Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

8 part groups · 2 illustrations

Illustrations

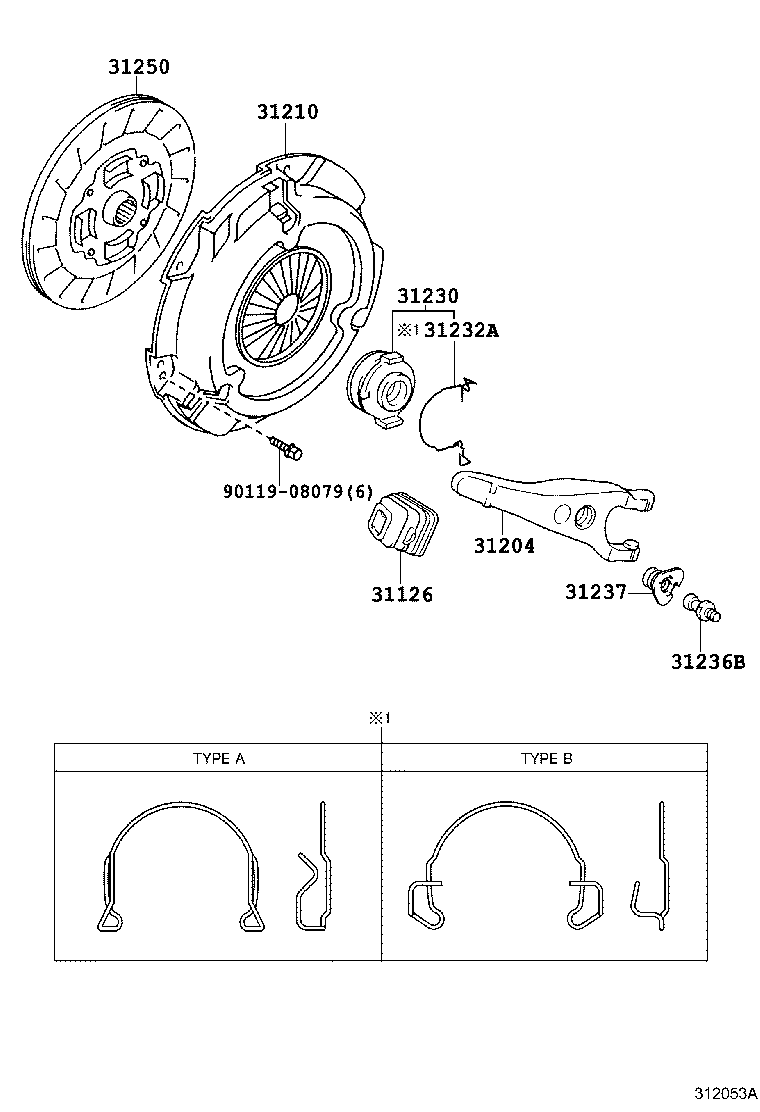

Figure 312054A 312054A 2006-01 → 2008-03 Figure 312053A 312053A 2008-03 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31250 Disc Assy, Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
