Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

8 part groups · 2 illustrations

Illustrations

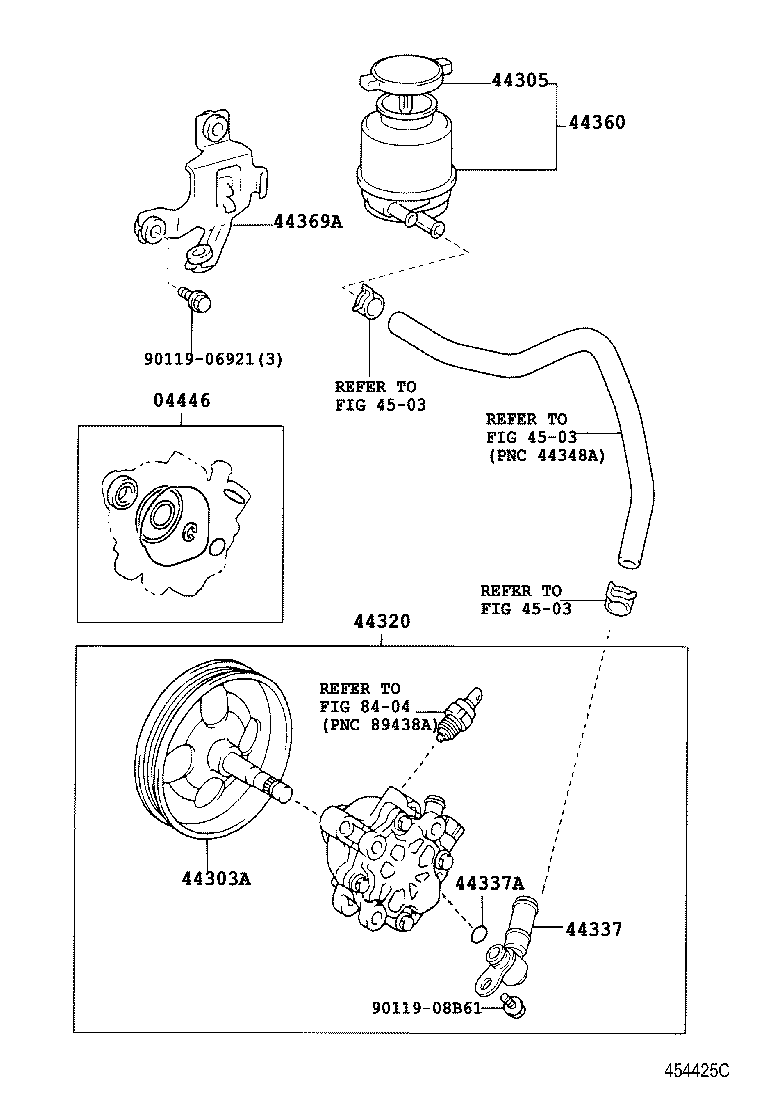

Figure 454426D 454426D 2006-01 → — Figure 454425C 454425C 2006-01 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44369A Bracket, Oil Reservoir, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
