Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

14 part groups · 3 illustrations

Illustrations

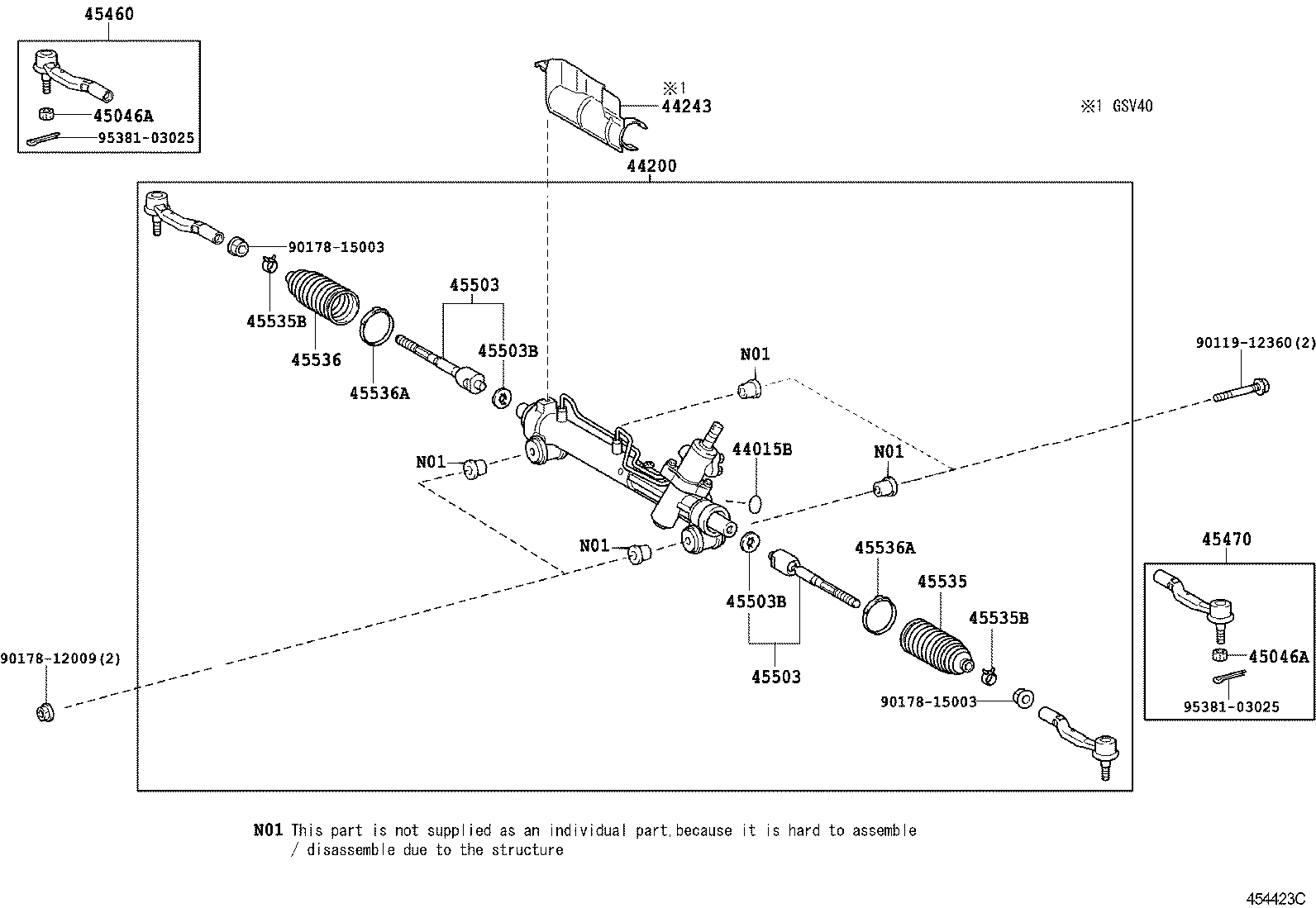

Figure 454422A 454422A 2006-01 → — Figure 454423C 454423C 2006-01 → — Figure 452883 452883 2006-01 → —

Part groups

PNCDescription
04445A Gasket Kit, Power Steering Gear(FOR RACK & PINION)
04455 Gasket Kit, Power Steering Control Valve Overhole
44015B Ring, O(FOR BEARING GUIDE NUT)
44200 Link Assy, Power Steering
44243 Insulator, Power Steering Rack Housing Heat
45046A Nut, Castle(FOR TIE ROD END)
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45503 End Sub-assy, Steering Rack
45503B Washer, Claw(FOR STEERING RACK END)
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
