Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 8 illustrations

Illustrations

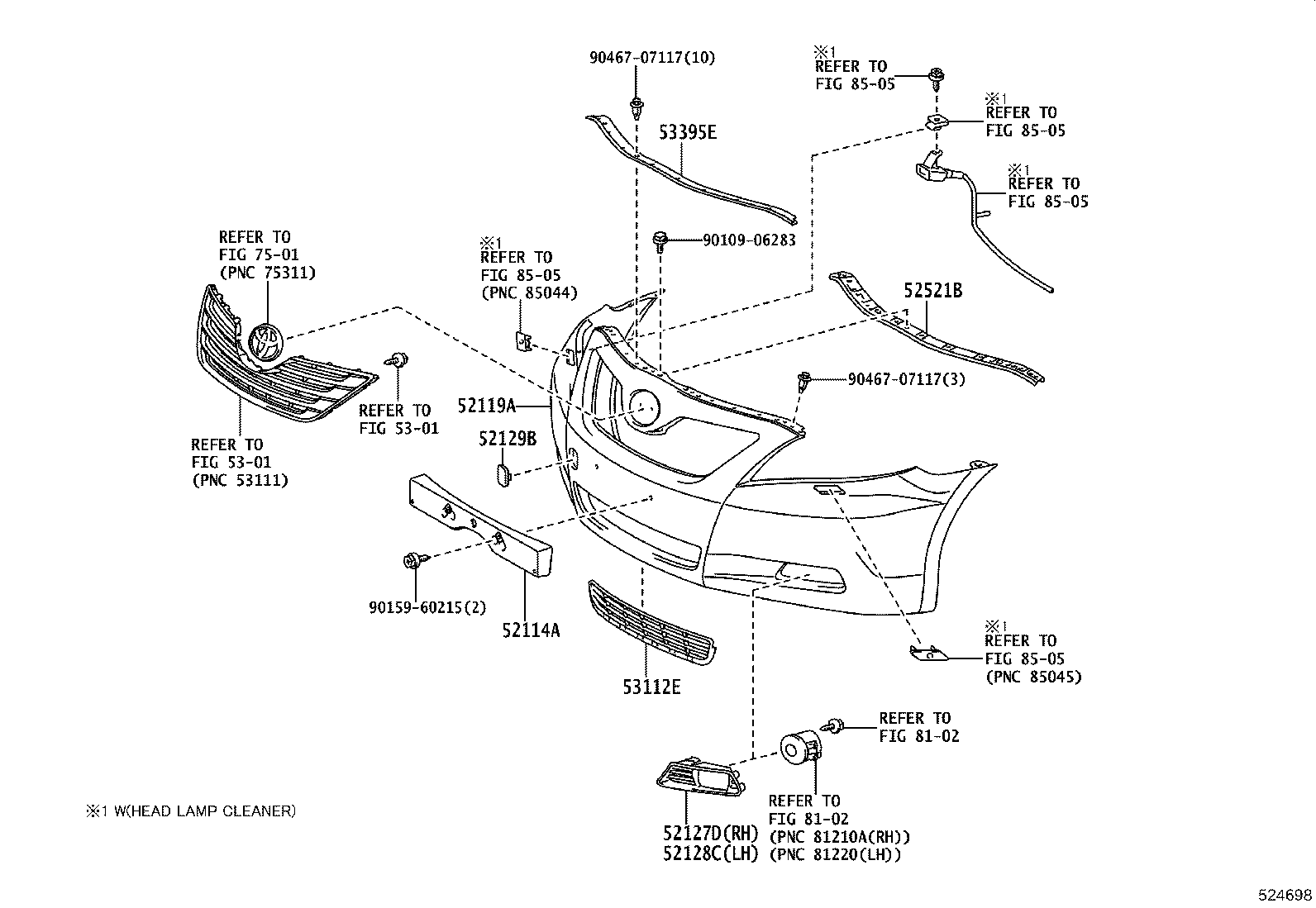

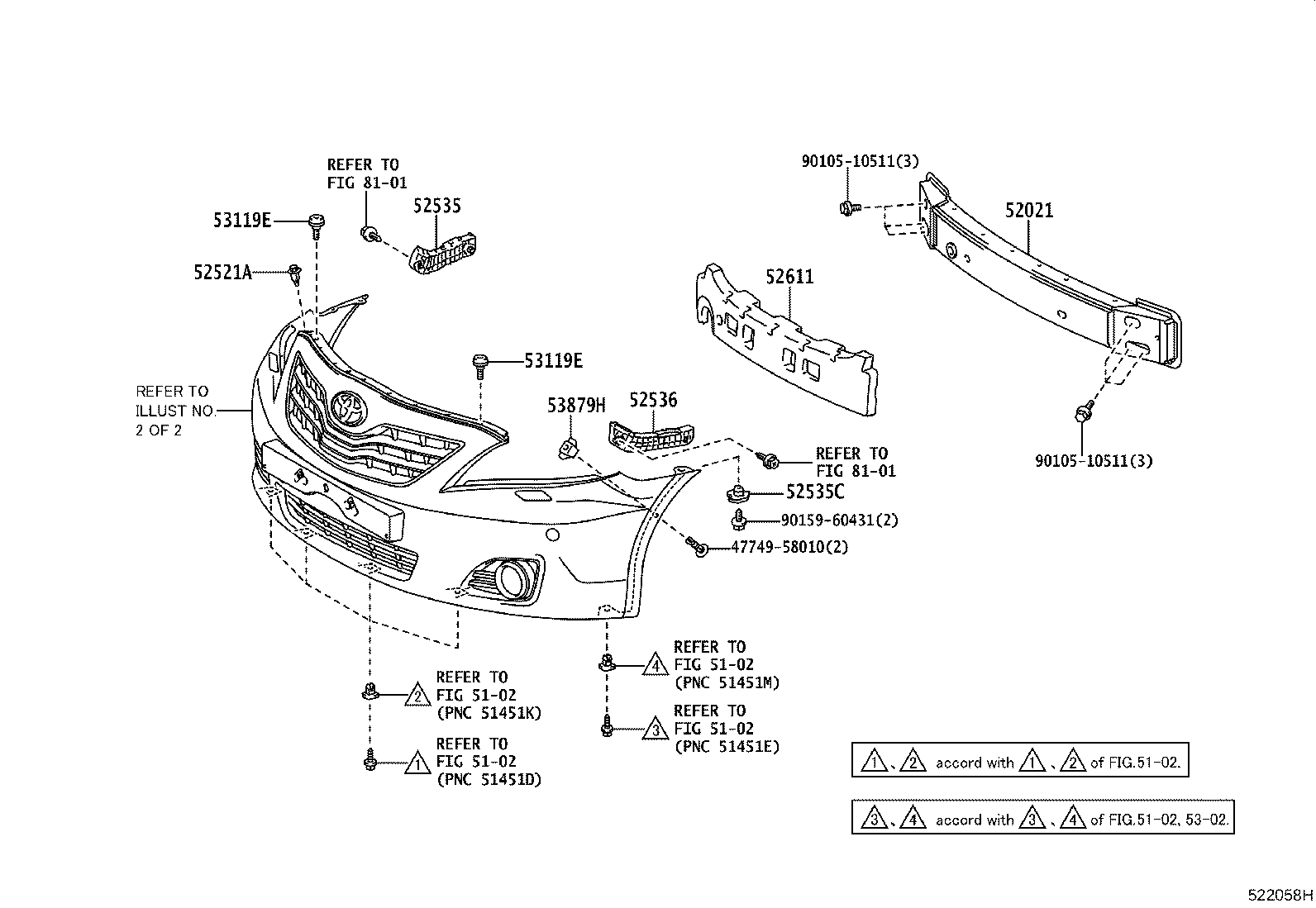

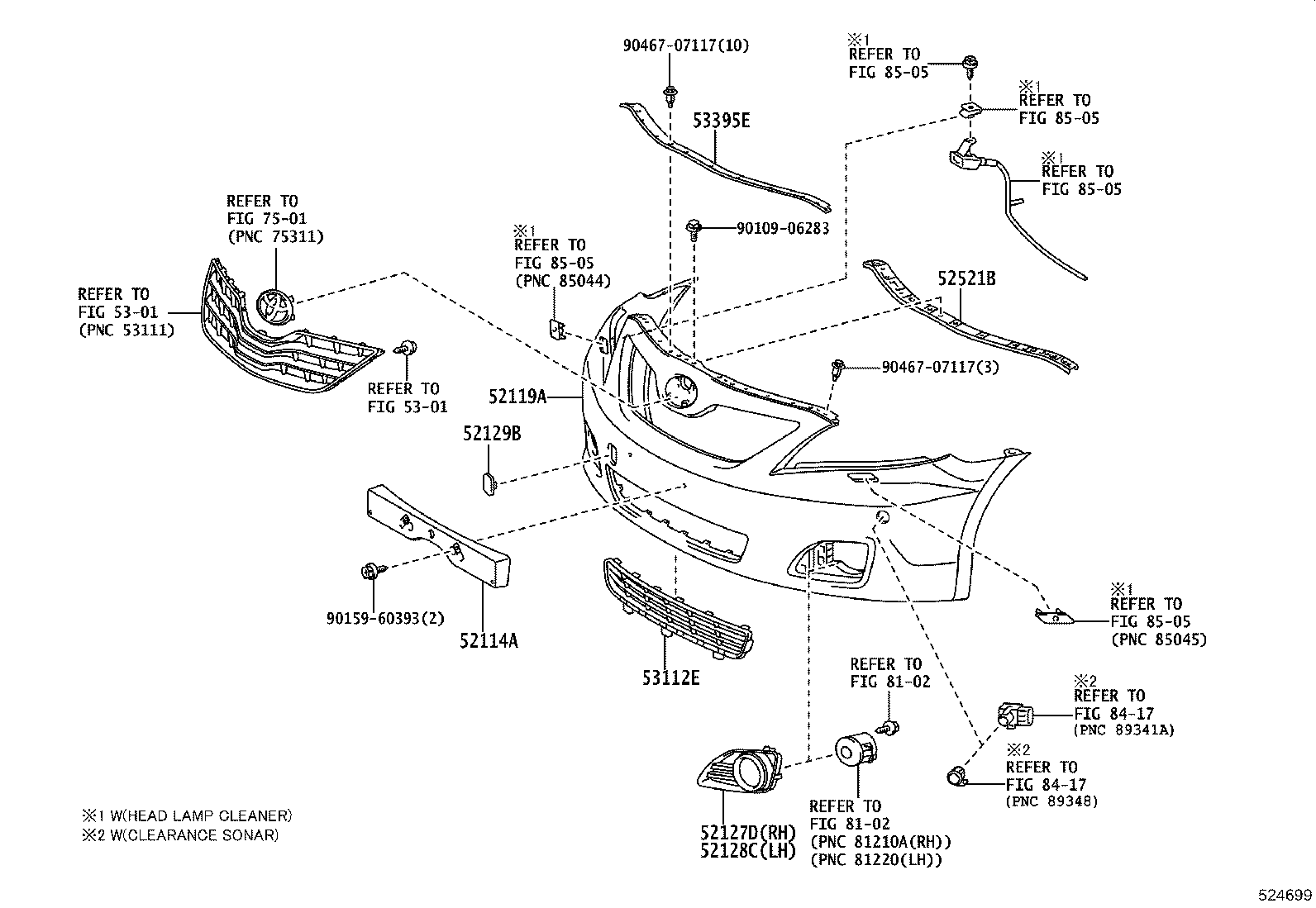

Figure 521509J 521509J 2006-01 → 2009-01 Figure 521509J 521509J 2007-12 → 2009-03 Figure 524698 524698 2006-01 → 2009-01 Figure 524698 524698 2007-12 → 2009-03 Figure 522058H 522058H 2009-01 → — Figure 522058H 522058H 2009-03 → — Figure 524699 524699 2009-01 → — Figure 524699 524699 2009-03 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52521A Clip(FOR FRONT BUMPER RETAINER)
52521B Retainer, Front Bumper, Upper
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53119E Protector, Radiator Grille
53395E Seal, Hood TO Front End Panel
53879H Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
