Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

22 part groups · 2 illustrations

Illustrations

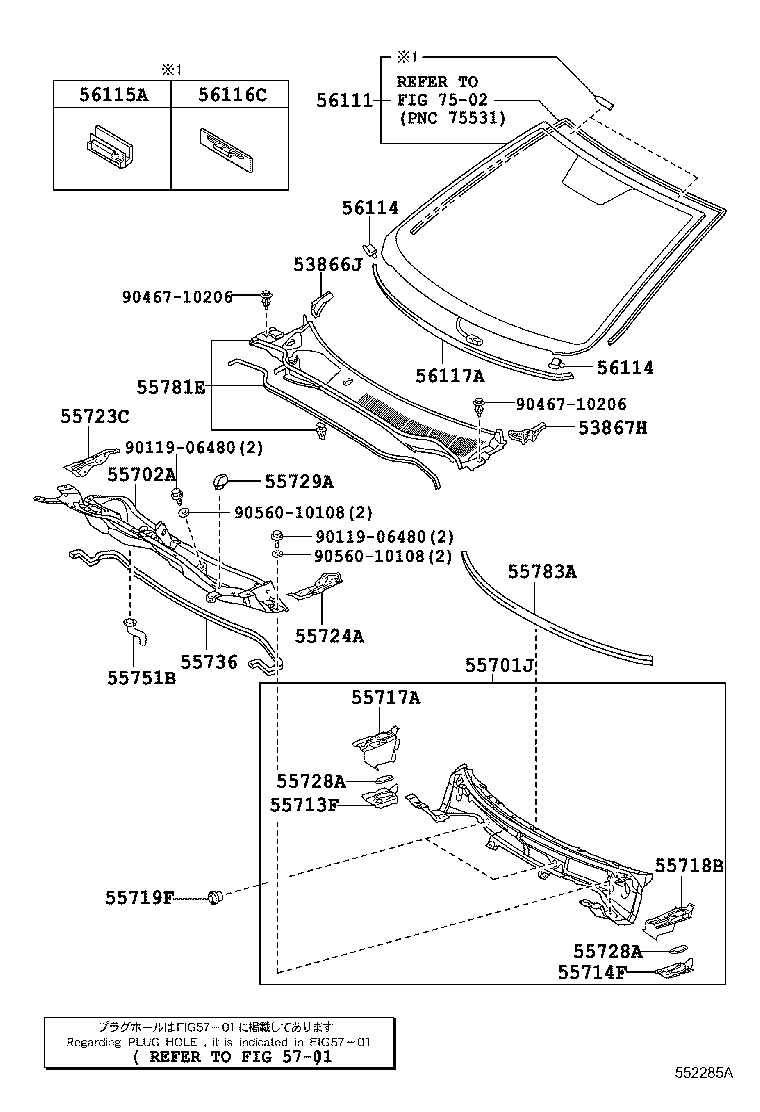

Figure 552287A 552287A 2006-01 → — Figure 552285A 552285A 2006-01 → —

Part groups

PNCDescription
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55701J Panel Sub-assy, Cowl Top, Outer
55702A Panel Sub-assy, Cowl Top, Outer Front
55713F Reinforcement, Cowl Top Side, RH
55714F Reinforcement, Cowl Top Side, LH
55717A Panel, Cowl Top Side, Inner RH
55718B Panel, Cowl Top Side, Inner LH
55719F Packing, Front Lower Panel
55723C Reinforcement, Cowl Top Side, RH
55724A Reinforcement, Cowl Top Side, LH
55728A Reinforcement, Hood Stopper
55729A Cover, Cowl Panel Hole
55736 Seal, Water Guard Plate
55751B Hose, Cowl Water Extract, NO.1
55781E Louver Sub-assy, Cowl Top Ventilator
55783A Pad, Cowl Top Silencer
56111 Glass, Windshield
56114 Retainer, Windshield Glass
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
