Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

11 part groups · 2 illustrations

Illustrations

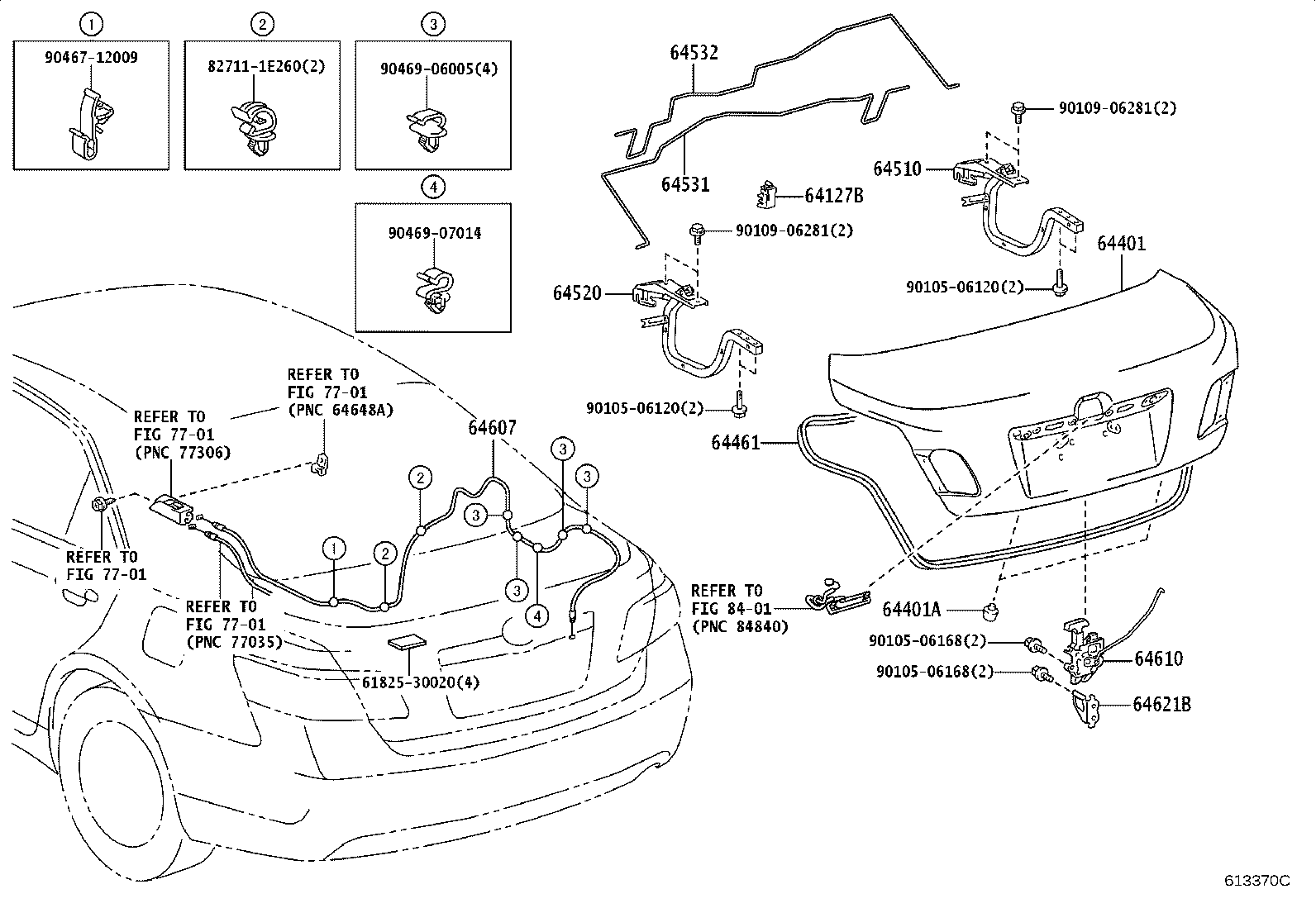

Figure 613369E 613369E 2006-01 → — Figure 613370C 613370C 2006-01 → —

Part groups

PNCDescription
64127B Support, Luggage Compartment Door Torsion Bar
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461 Weatherstrip, Luggage Compartment Door
64510 Hinge Assy, Luggage Compartment Door, RH
64520 Hinge Assy, Luggage Compartment Door, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64607 Cable Sub-assy, Luggage Door Lock Control
64610 Lock Assy, Luggage Compartment Door
64621B Striker, Luggage Compartment Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
