Toyota Camry
2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe
Supported model
Data version 2011-10

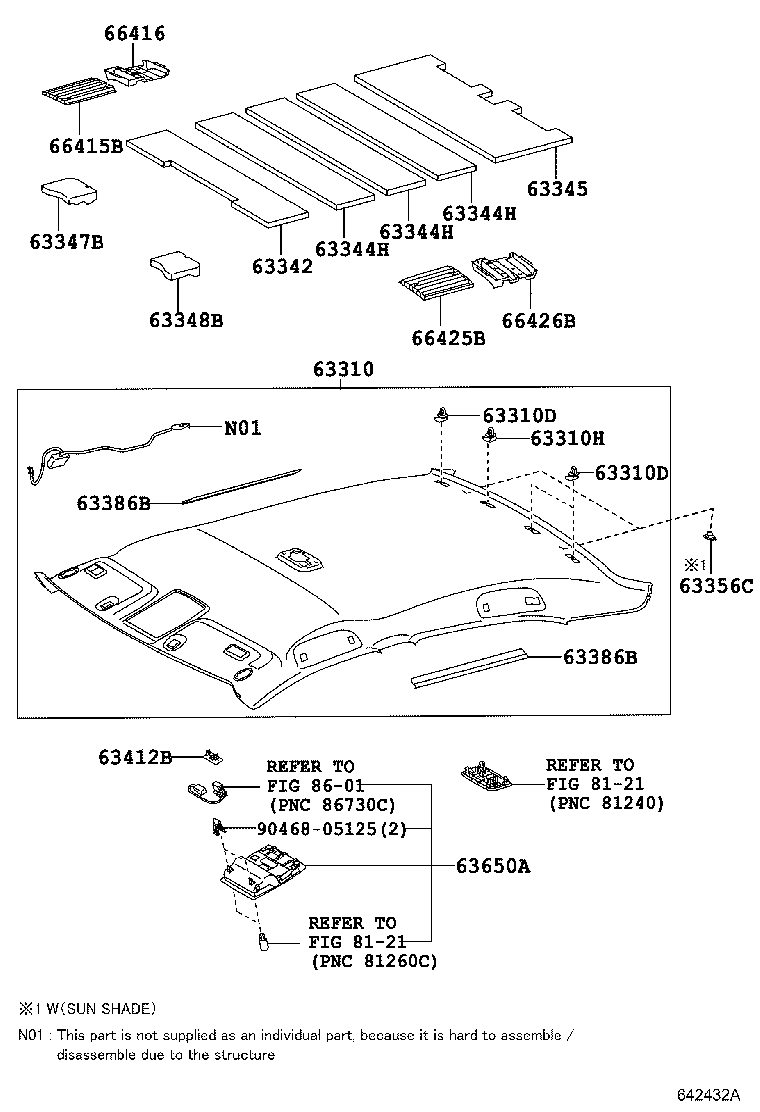

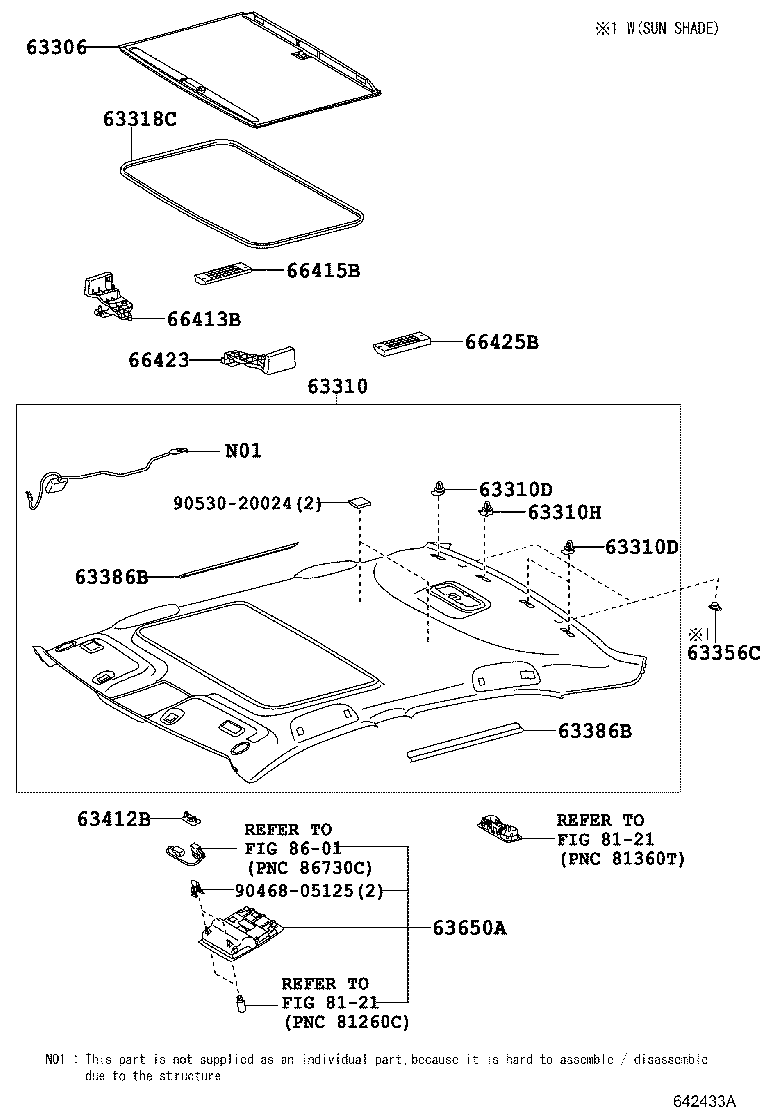

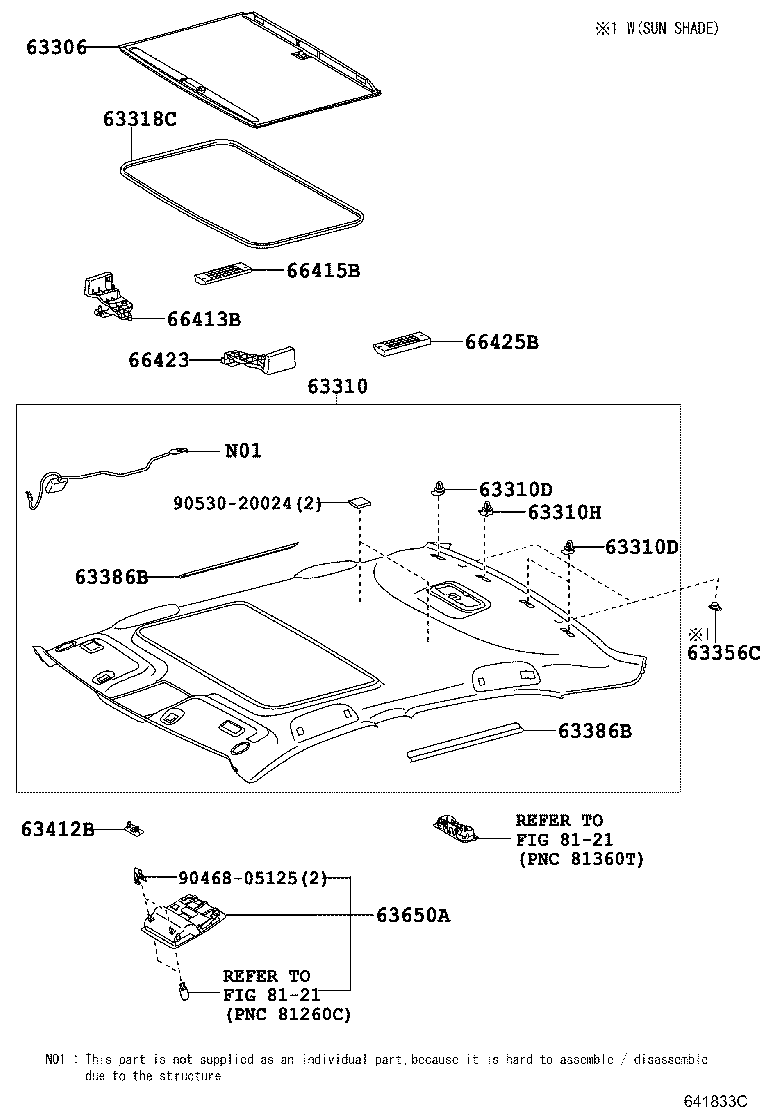

Roof Headlining & Silencer Pad
20 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63344H | Pad, Roof Silencer, NO.4 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63347B | Pad, Roof Side Rail Silencer, RH |
| 63348B | Pad, Roof Side Rail Silencer, LH |
| 63356C | Holder, Sunshade Trim |
| 63386B | Reinforcement, Roof Headlining Trim |
| 63412B | Retainer, Roof Console |
| 63650A | Box Assy, Roof Console |
| 66413B | Spacer, Side Rail, Front RH |
| 66415B | Spacer, Side Rail, Rear NO.2 RH |
| 66416 | Spacer, Side Rail, Rear NO.3 RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66425B | Spacer, Side Rail, Rear NO.2 LH |
| 66426B | Spacer, Side Rail, Rear NO.3 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
