Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

29 part groups · 3 illustrations

Illustrations

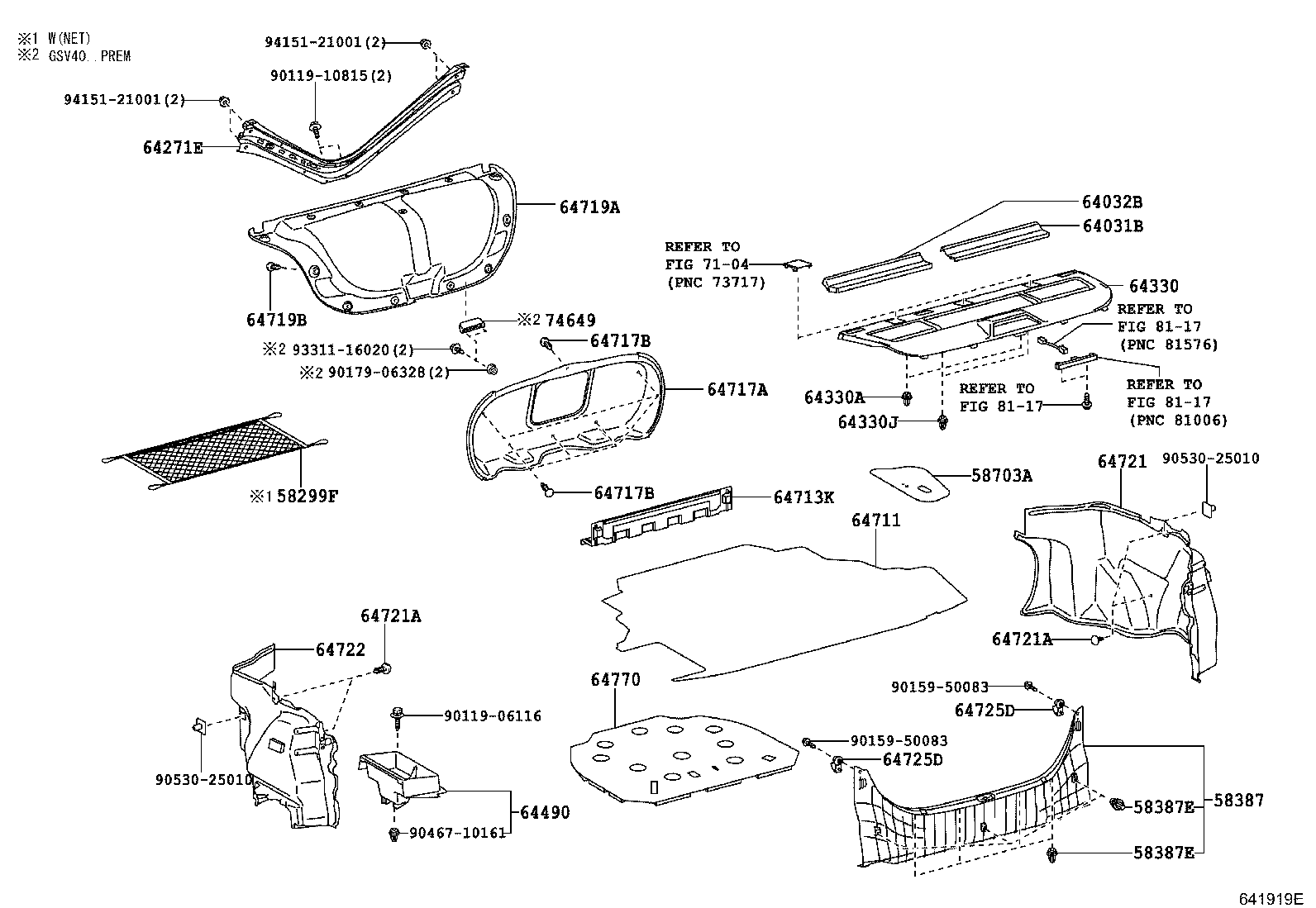

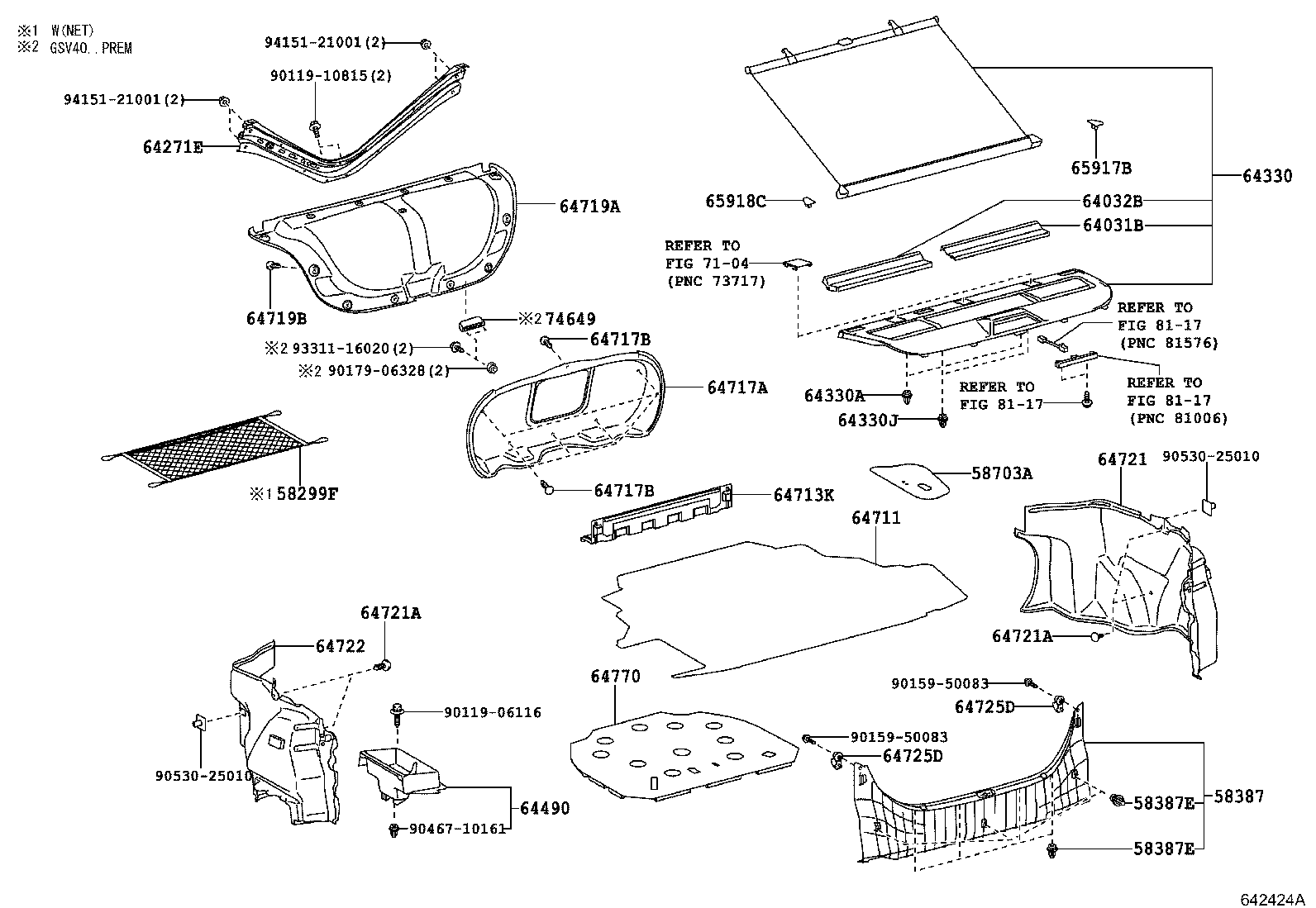

Figure 641834F 641834F 2006-01 → — Figure 641919E 641919E 2006-01 → — Figure 642424A 642424A 2006-01 → —

Part groups

PNCDescription
58299F Net, Baggage Holder
58387 Plate, Rear Floor Finish
58387E Clip(FOR REAR FLOOR FINISH PLATE)
58703A Cover Sub-assy, Luggage Compartment Side, RH
64031B Cover Sub-assy, Tonneau Side, RH
64032B Cover Sub-assy, Tonneau Side, LH
64270A Clip(FOR ROOM PARTITION BOARD SETTING)
64271E Panel, Room Partition
64271G Board, Room Partition, RH
64272B Board, Room Partition, LH
64330 Panel Assy, Package Tray Trim
64330A Clip(FOR PACKAGE TRAY TRIM PANEL)
64330J Clip(FOR PACKAGE TRAY TRIM PANEL)
64490 Tray Assy, Luggage Compartment Side
64711 Mat, Luggage Compartment Floor
64713K Cover, Luggage Compartment Trim, Front Upper
64717A Cover, Luggage Compartment Trim, Front
64717B Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64719A Cover, Luggage Compartment Door
64719B Clip(FOR LUGGAGE COMPARTMENT DOOR)
64721 Cover, Luggage Compartment Trim, Inner RH
64721A Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722 Cover, Luggage Compartment Trim, Inner LH
64725D Hook, Luggage Compartment Trim, NO.1
64727A Pad, Luggage Compartment Trim, Inner
64770 Cover Assy, Spare Wheel
65917B Cap, Curtain Rail End, RH
65918C Cap, Curtain Rail End, LH
74649 Grip, Luggage Compartment Door Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
