Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

17 part groups · 7 illustrations

Illustrations

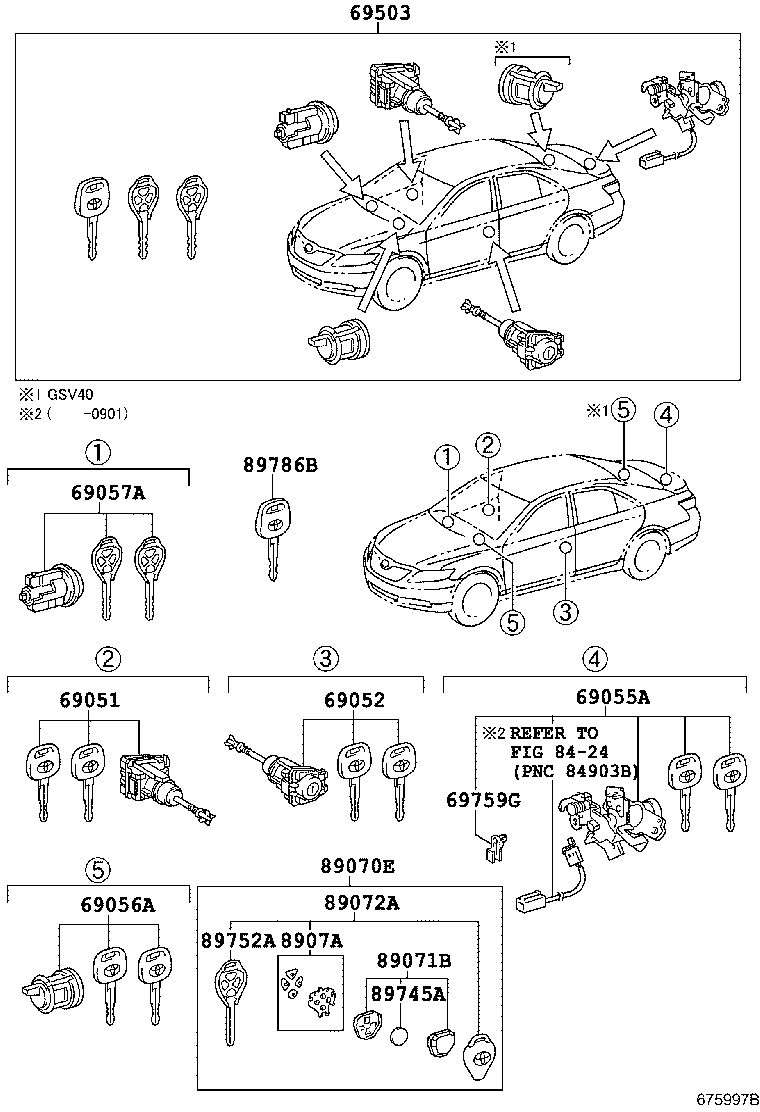

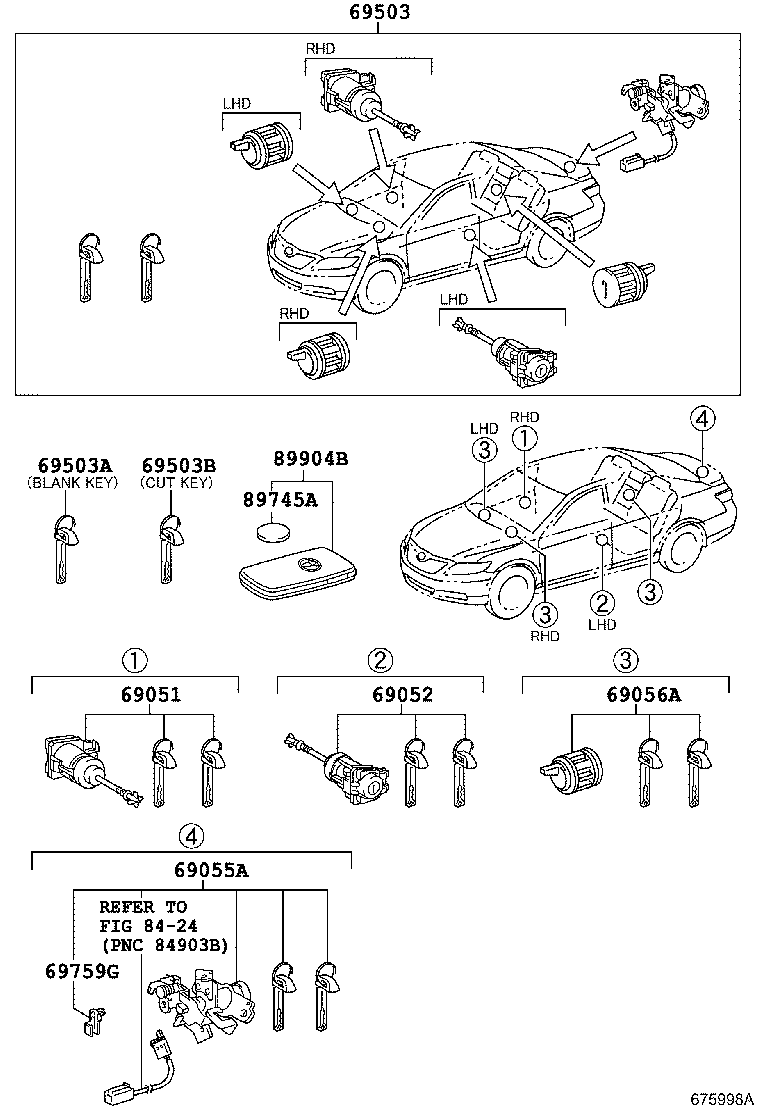

Figure 675996C 675996C 2006-01 → 2009-01 Figure 675996C 675996C 2006-01 → — Figure 675996C 675996C 2007-12 → 2009-03 Figure 675997B 675997B 2006-01 → 2009-01 Figure 675997B 675997B 2006-01 → — Figure 675998A 675998A 2009-01 → — Figure 675998A 675998A 2009-03 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
69759G Snap, Luggage Door Lock Cylinder
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
8907A Switch Set, Transmitter
89745A Battery, Transmitter
89752A Case, Transmitter Housing
89786B Transmitter, Transponder Key Sub
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
