Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

25 part groups · 10 illustrations

Illustrations

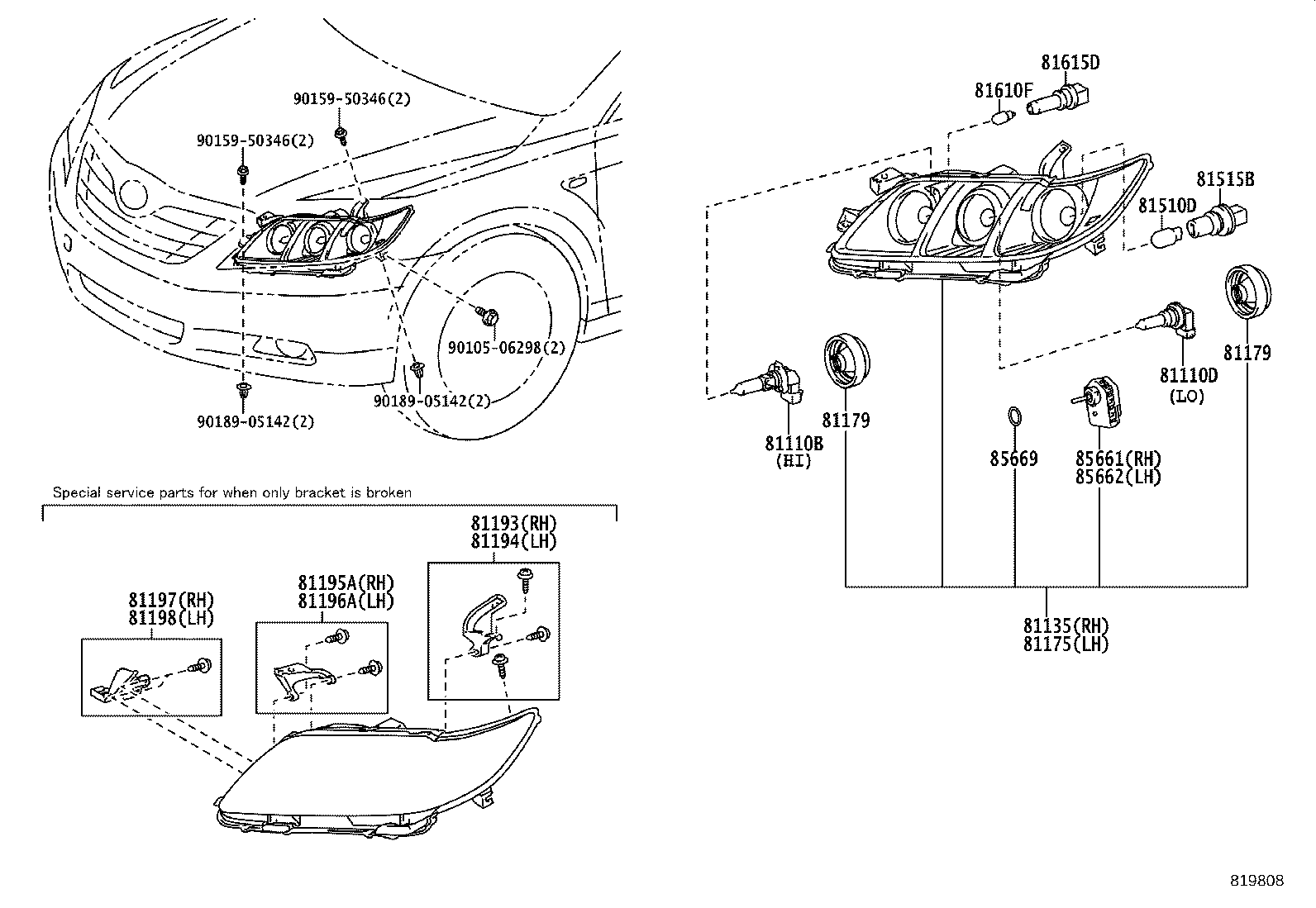

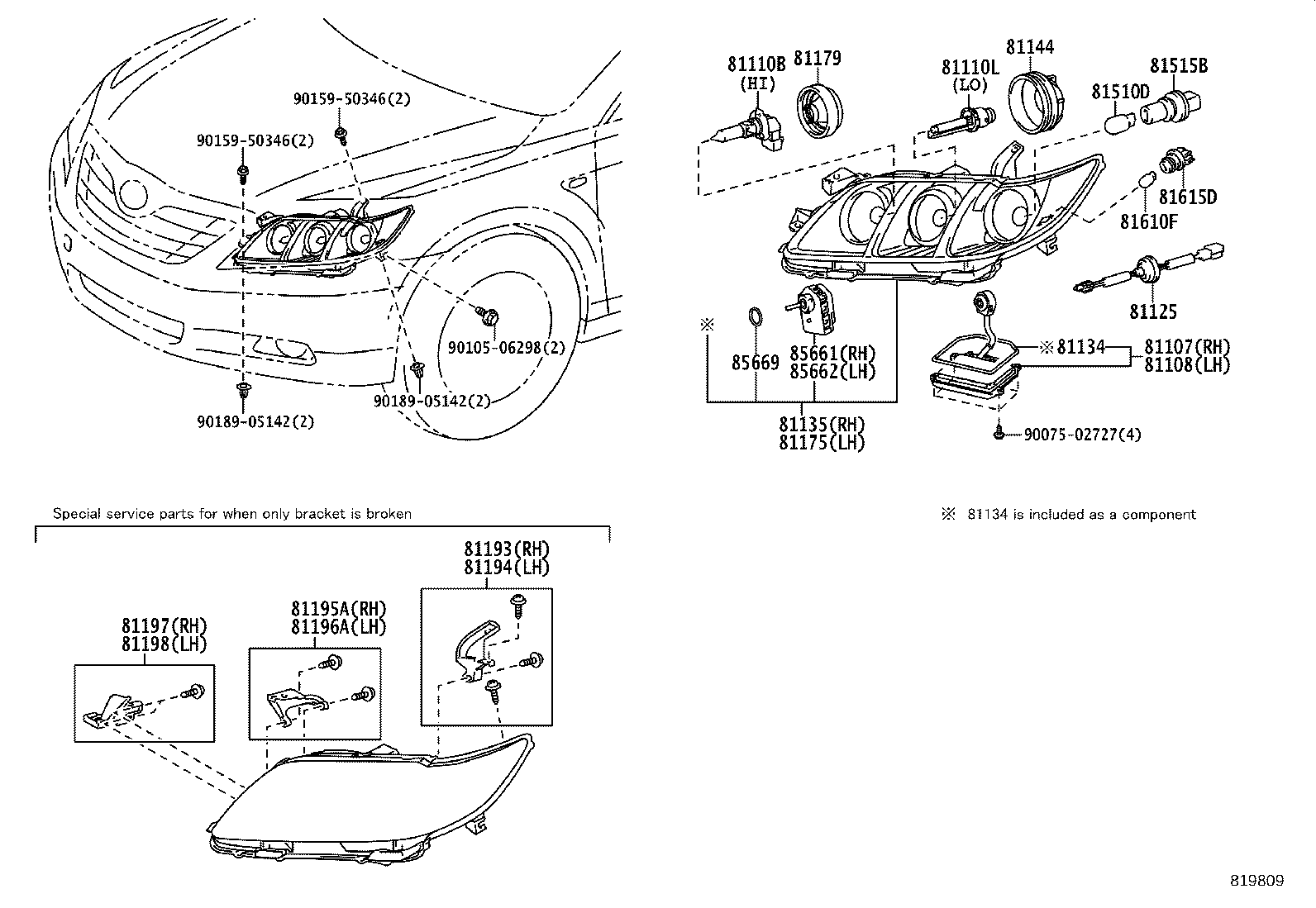

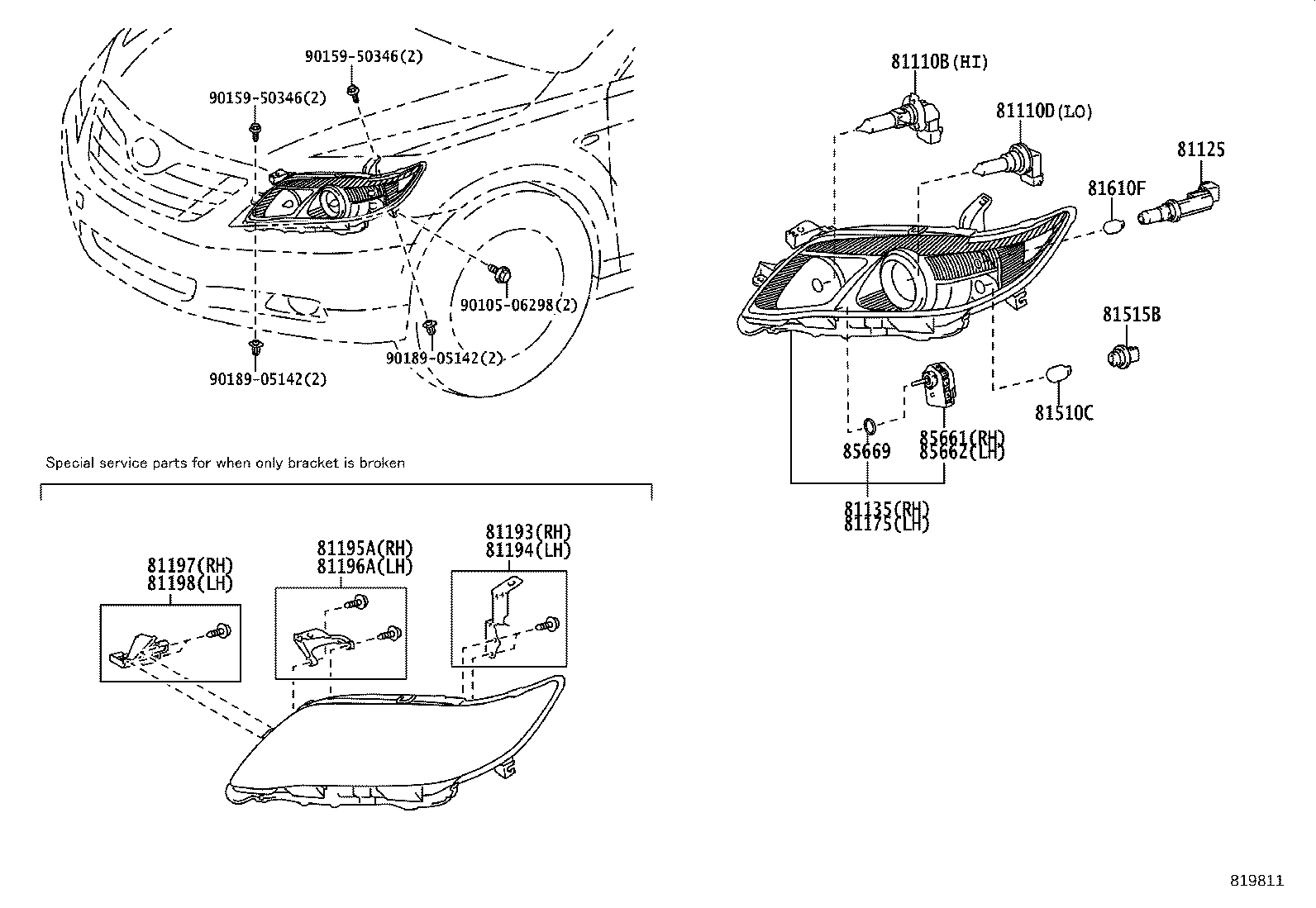

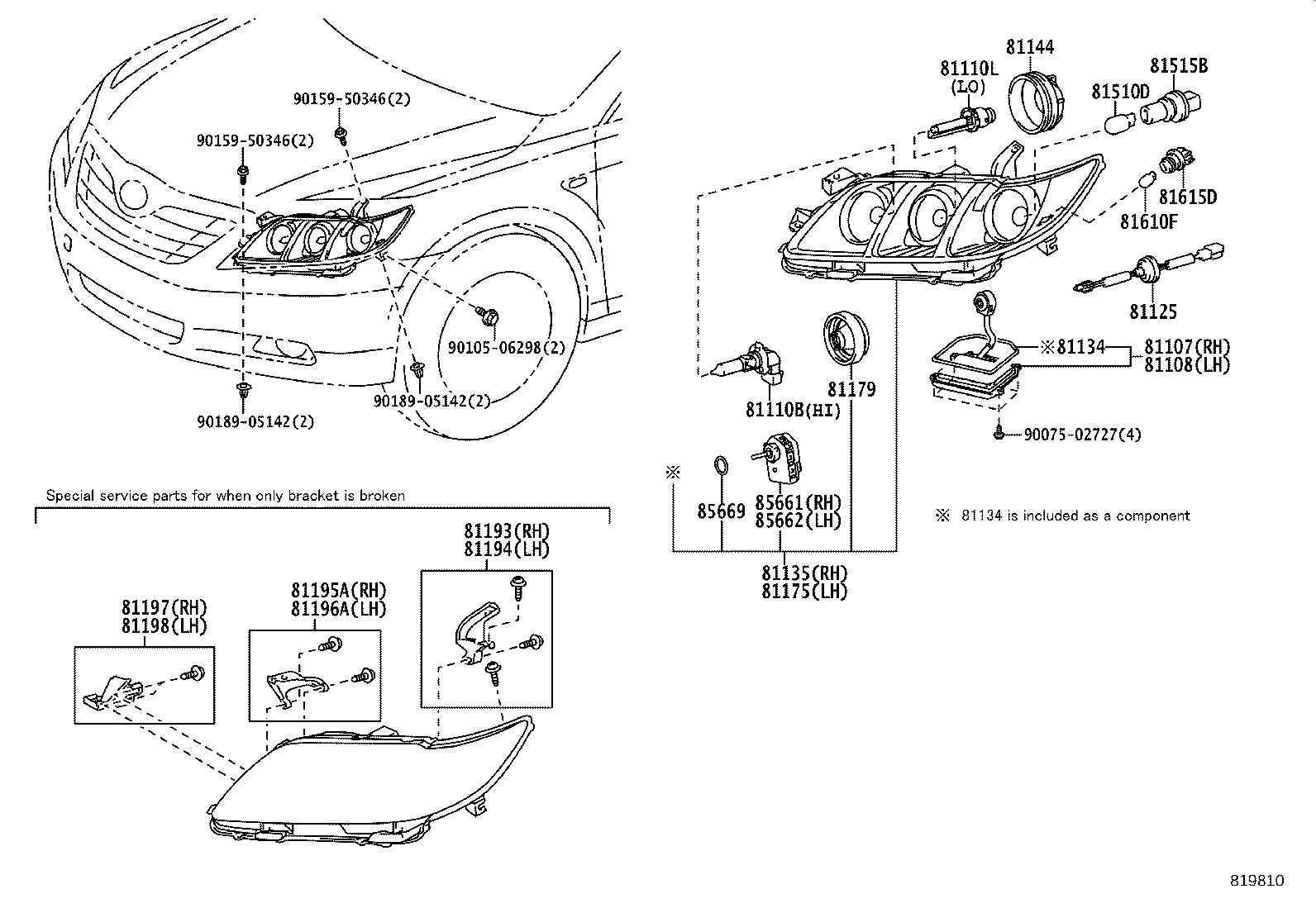

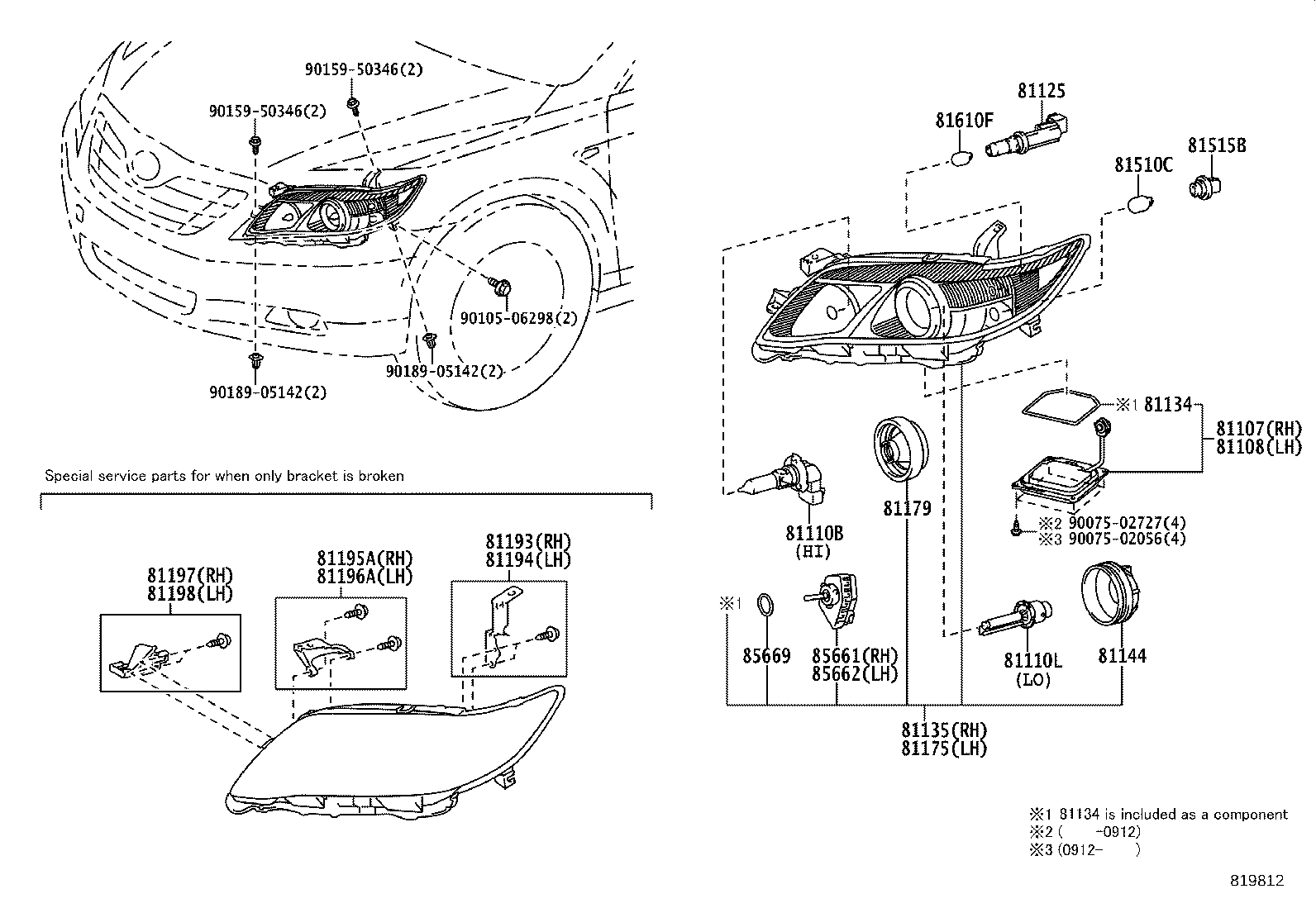

Figure 819807 819807 2006-01 → 2006-12 Figure 819808 819808 2006-12 → 2009-01 Figure 819808 819808 2007-12 → 2009-03 Figure 819809 819809 2006-01 → 2006-06 Figure 819810 819810 2006-06 → 2009-01 Figure 819810 819810 2007-12 → 2009-03 Figure 819811 819811 2009-01 → — Figure 819811 819811 2009-03 → — Figure 819812 819812 2009-01 → — Figure 819812 819812 2009-03 → —

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81175 Unit Assy, Headlamp, LH
81179 Cover, Headlamp Socket
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
