Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

58 part groups · 20 illustrations

Illustrations

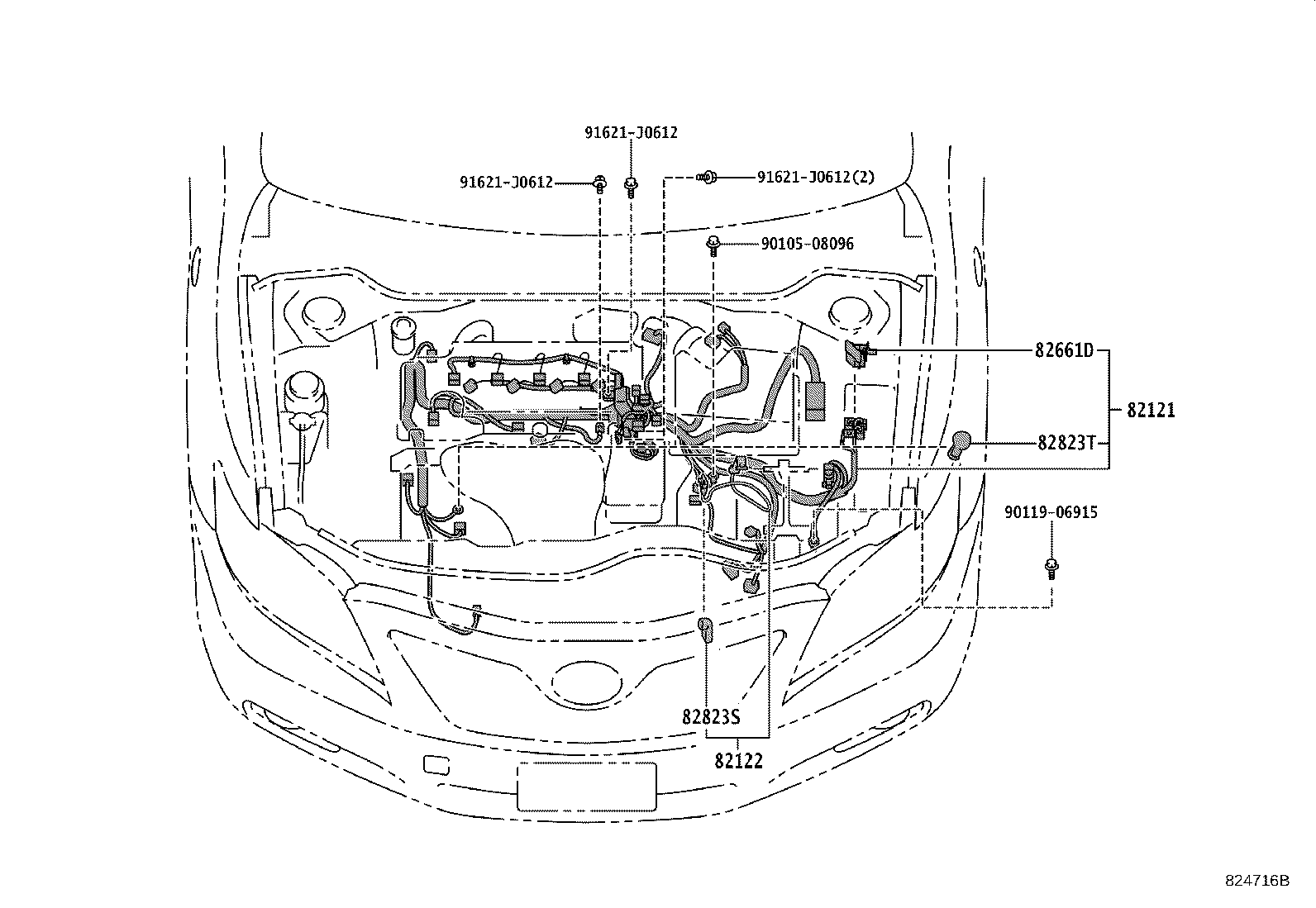

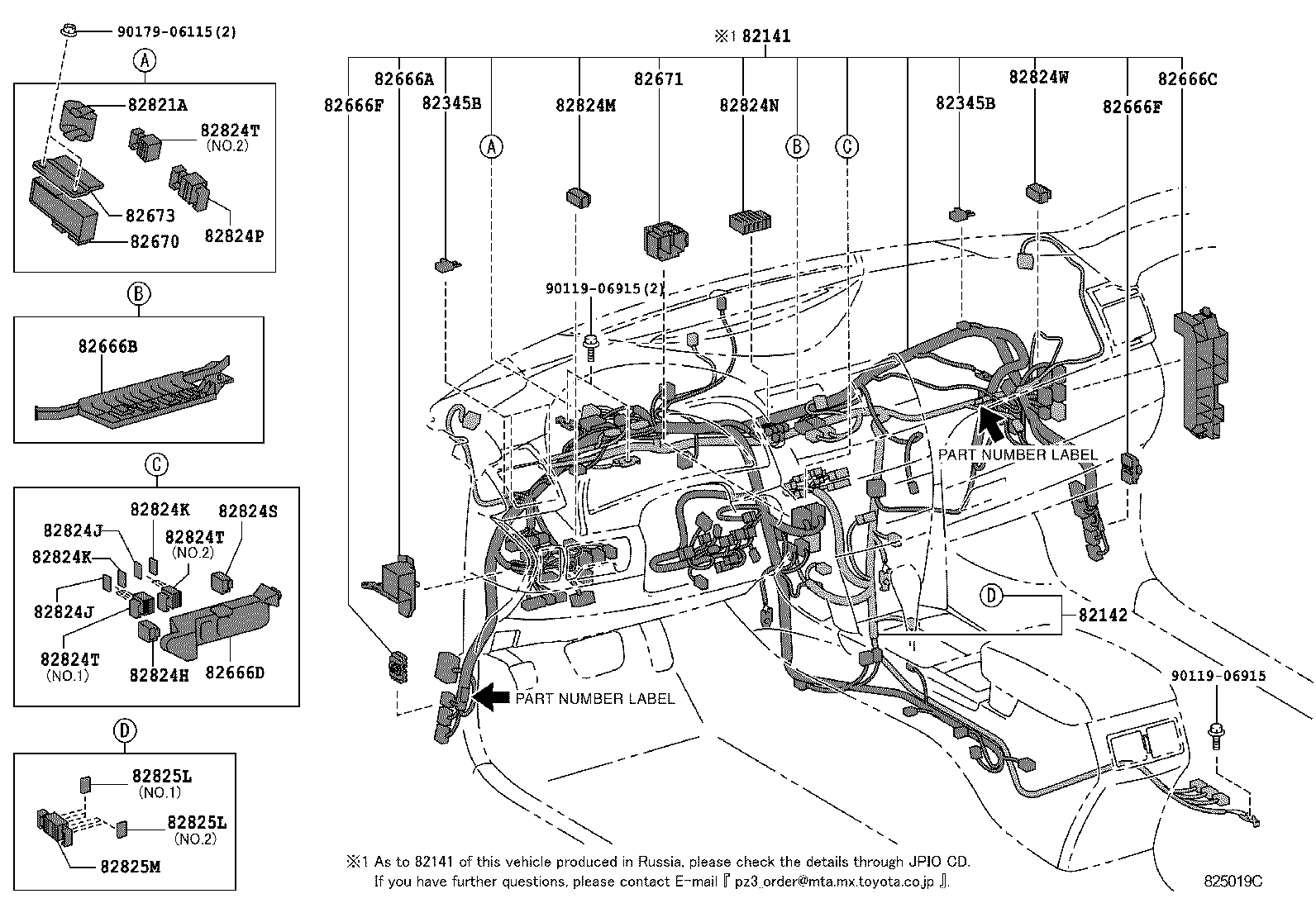

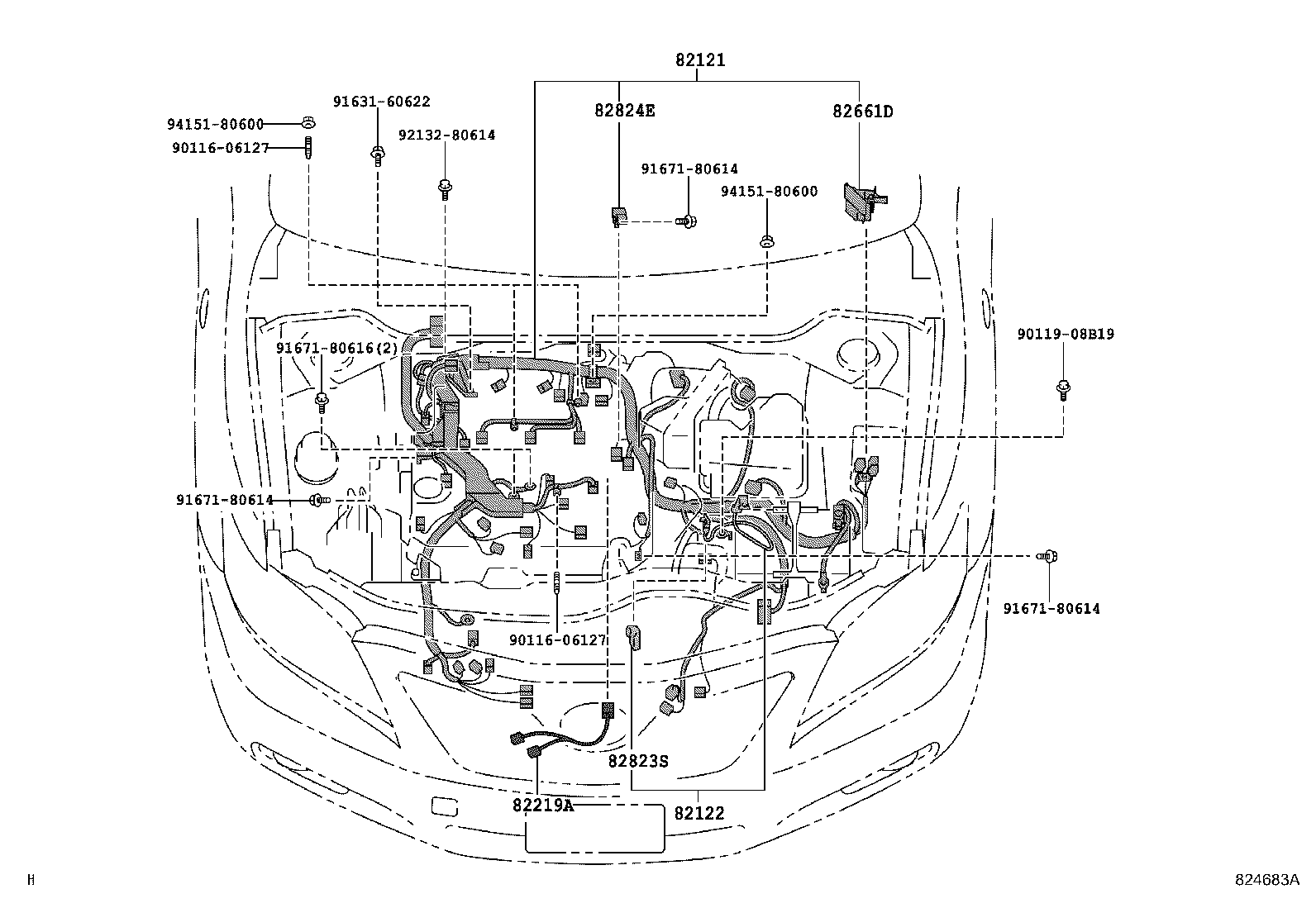

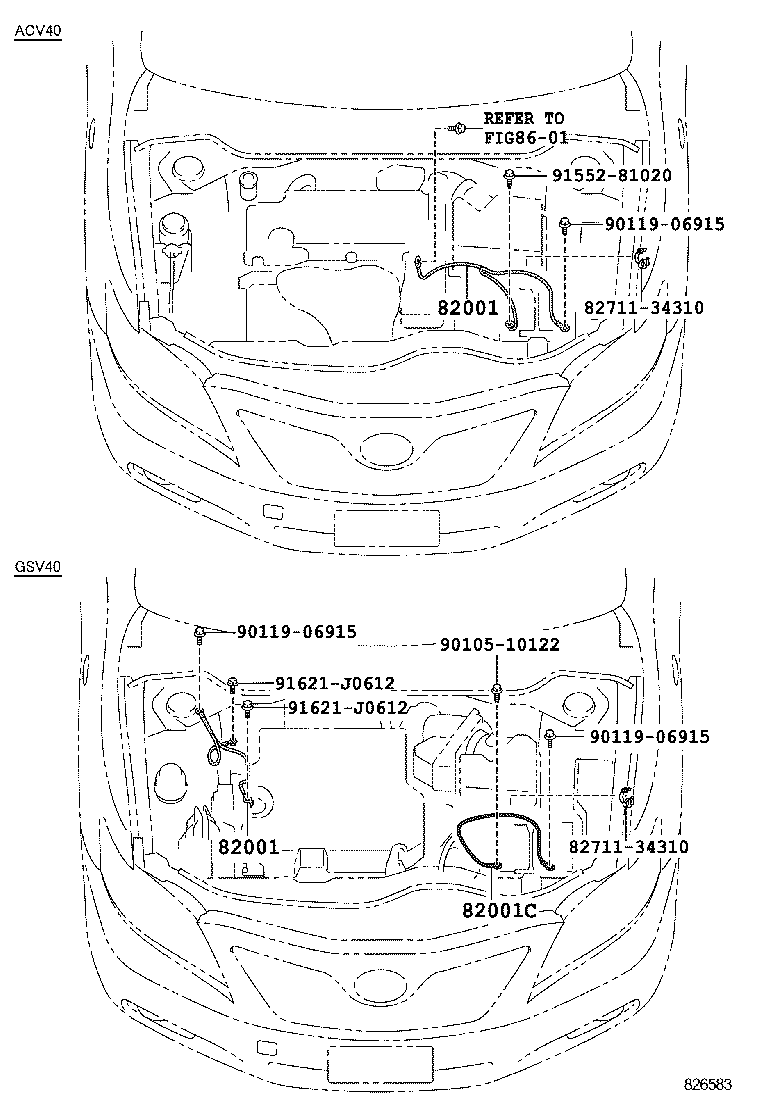

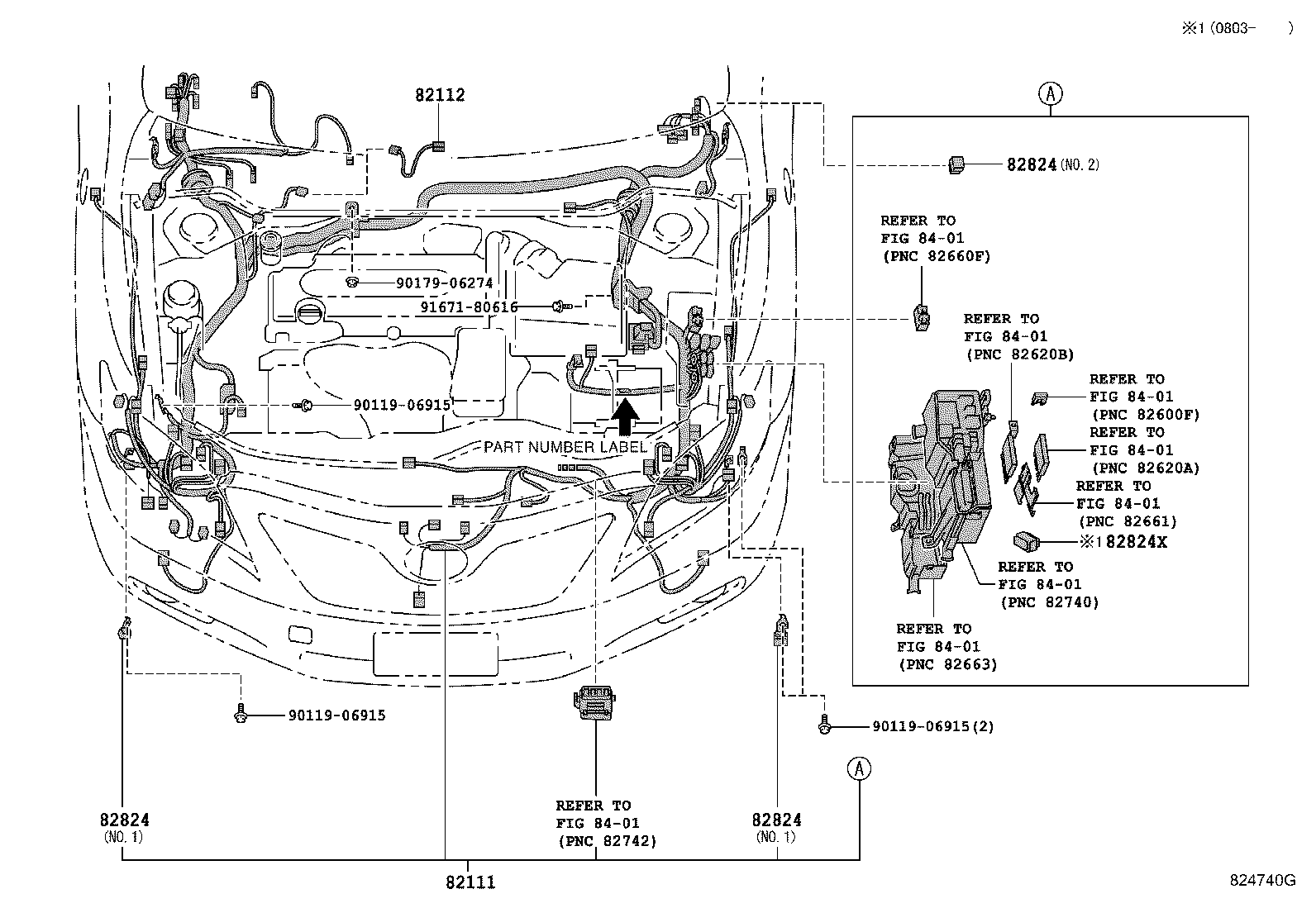

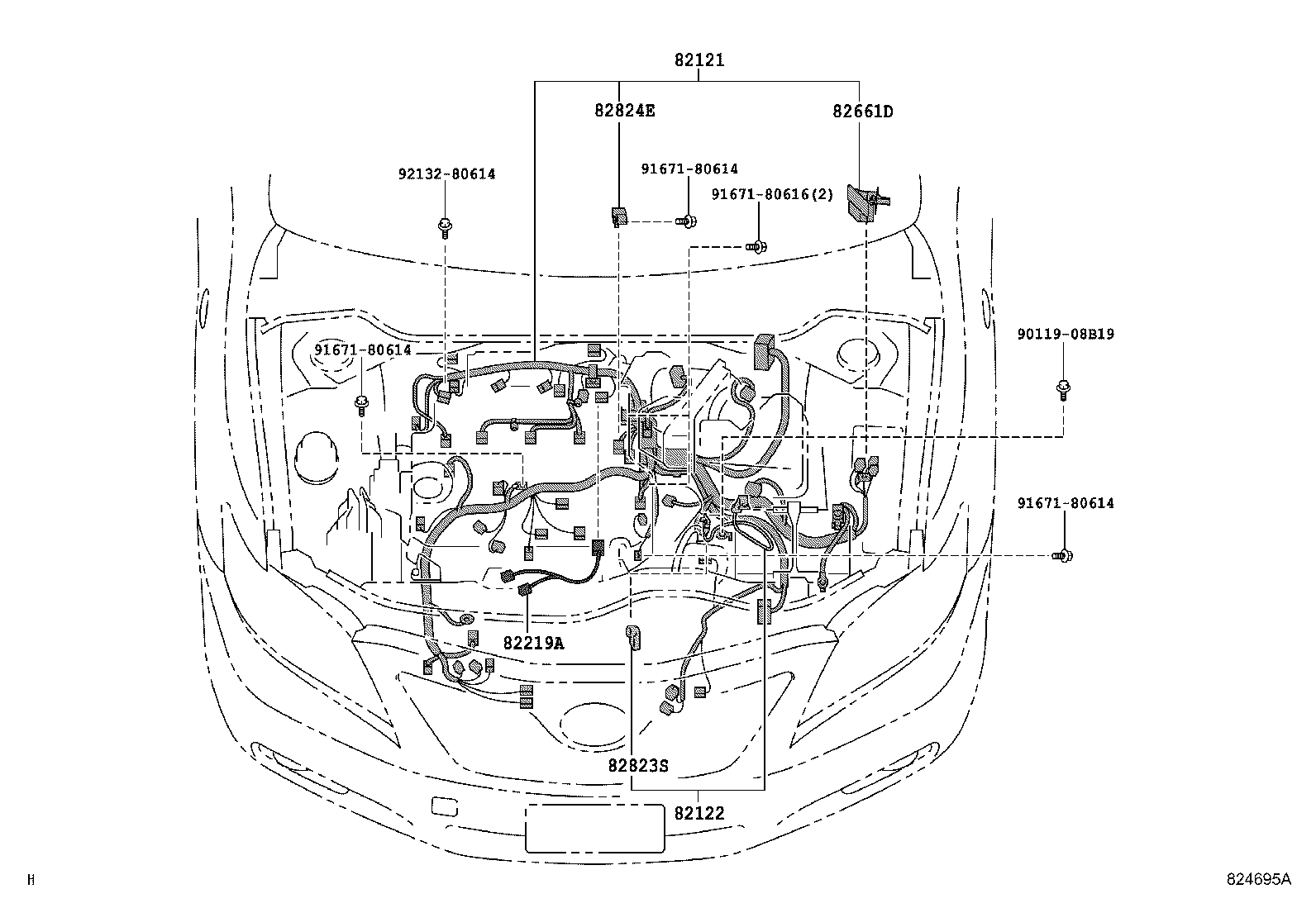

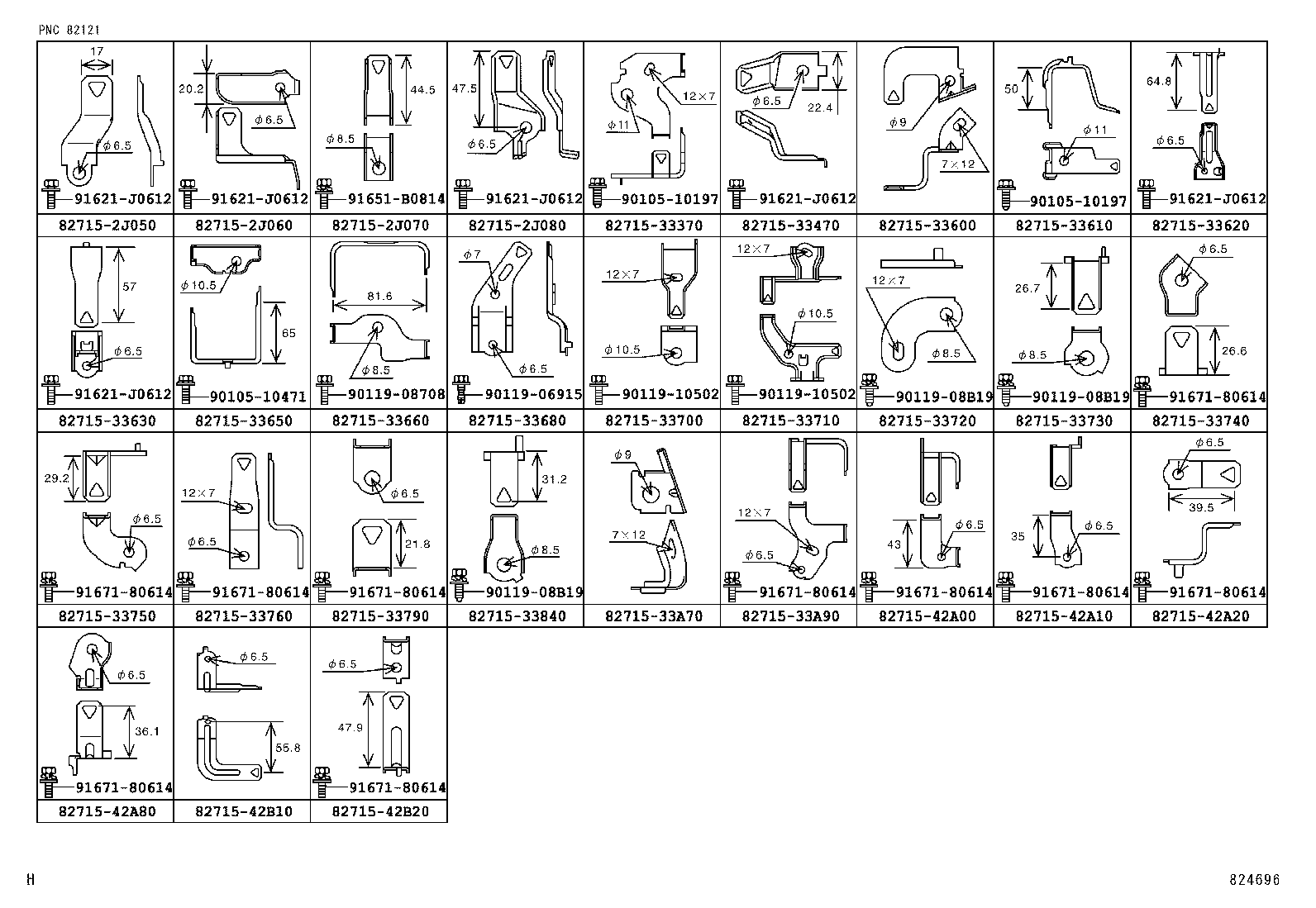

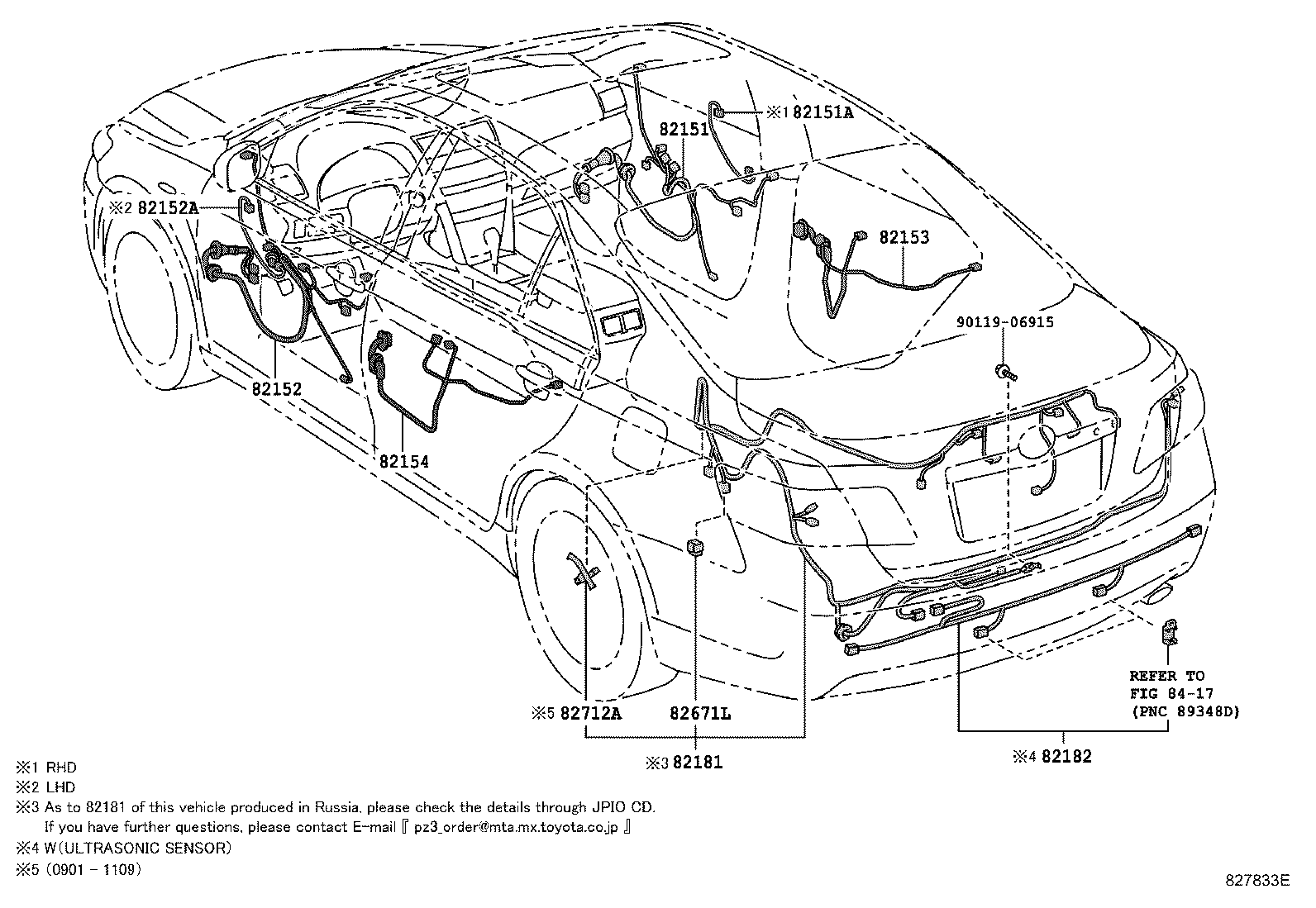

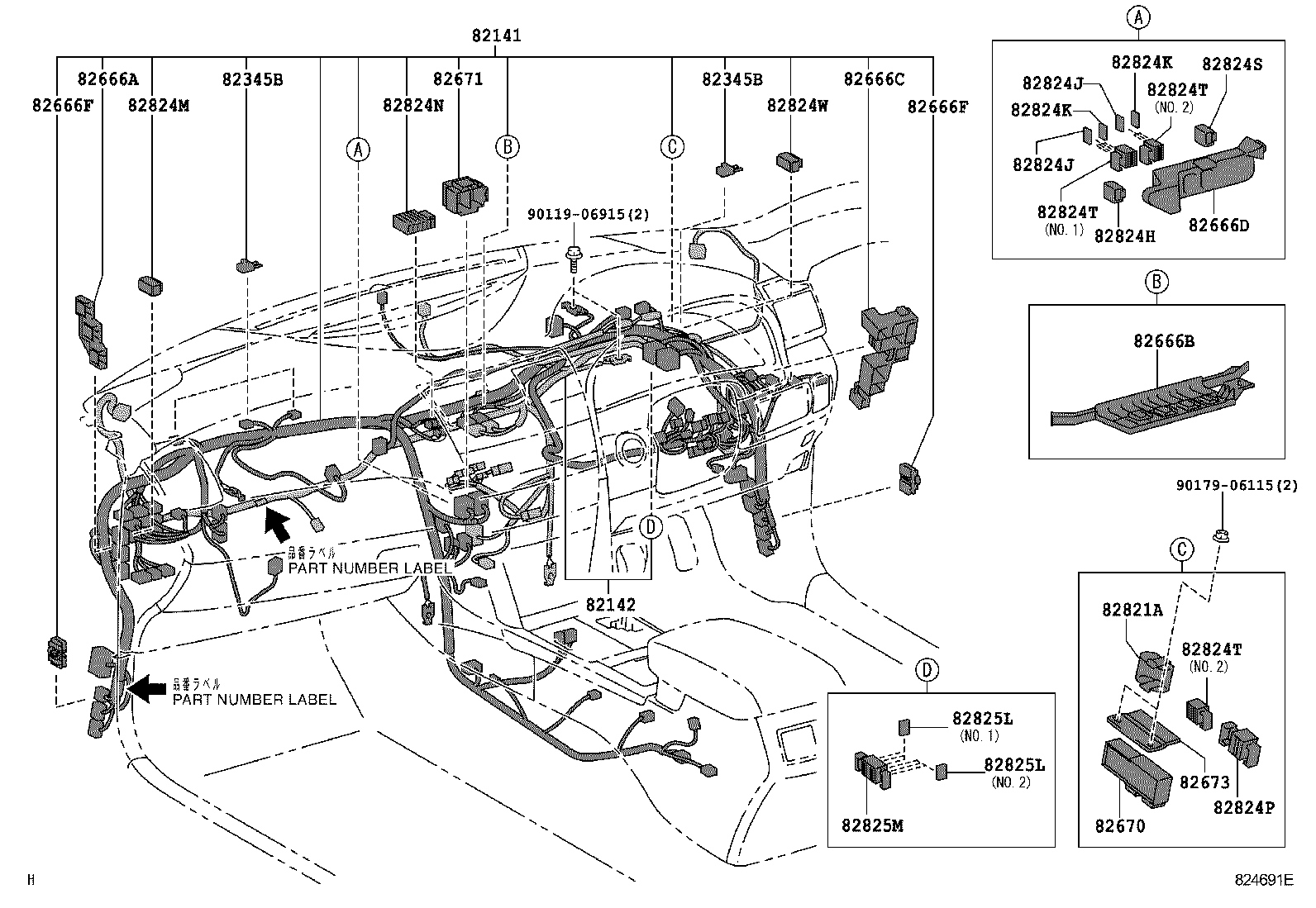

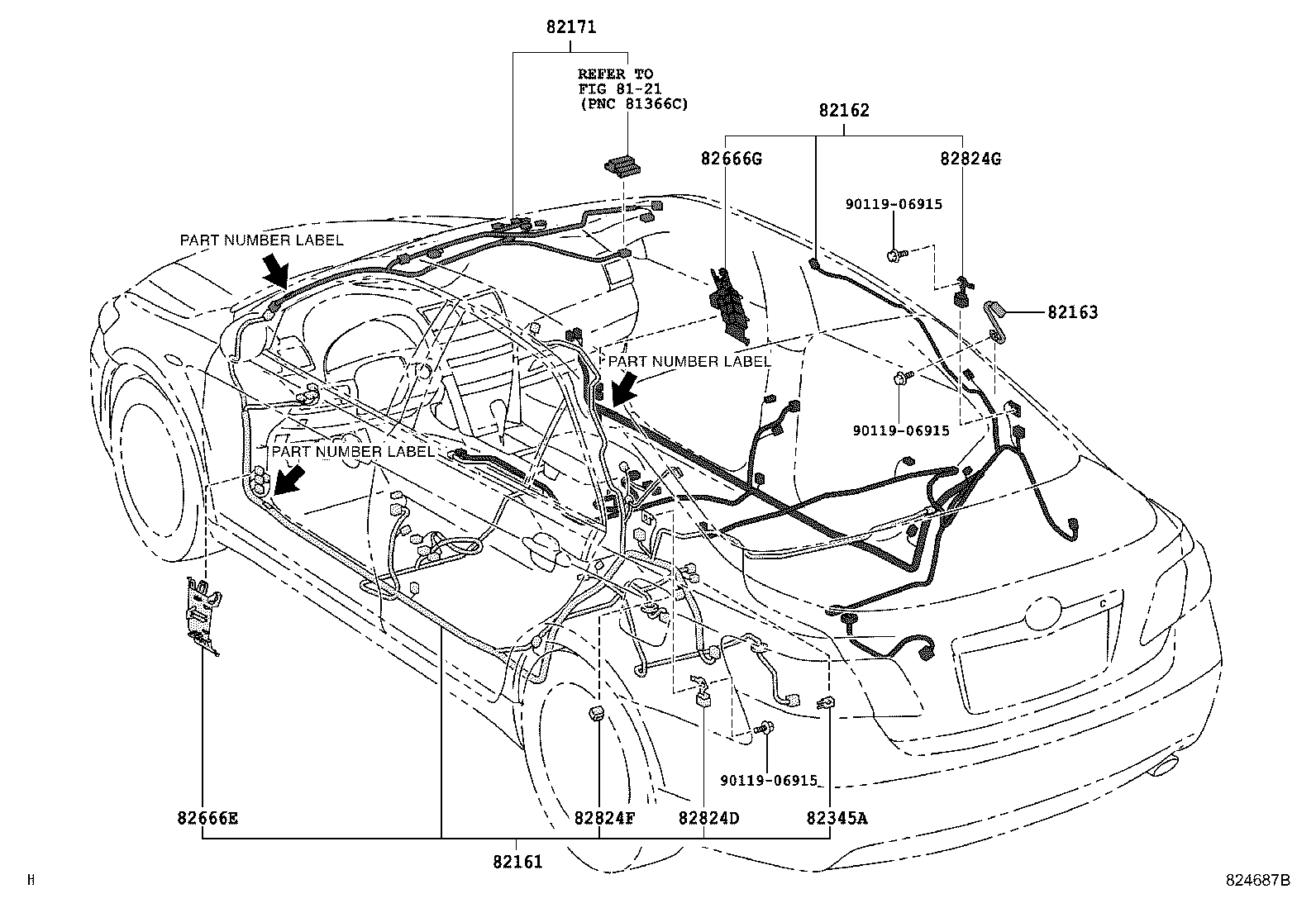

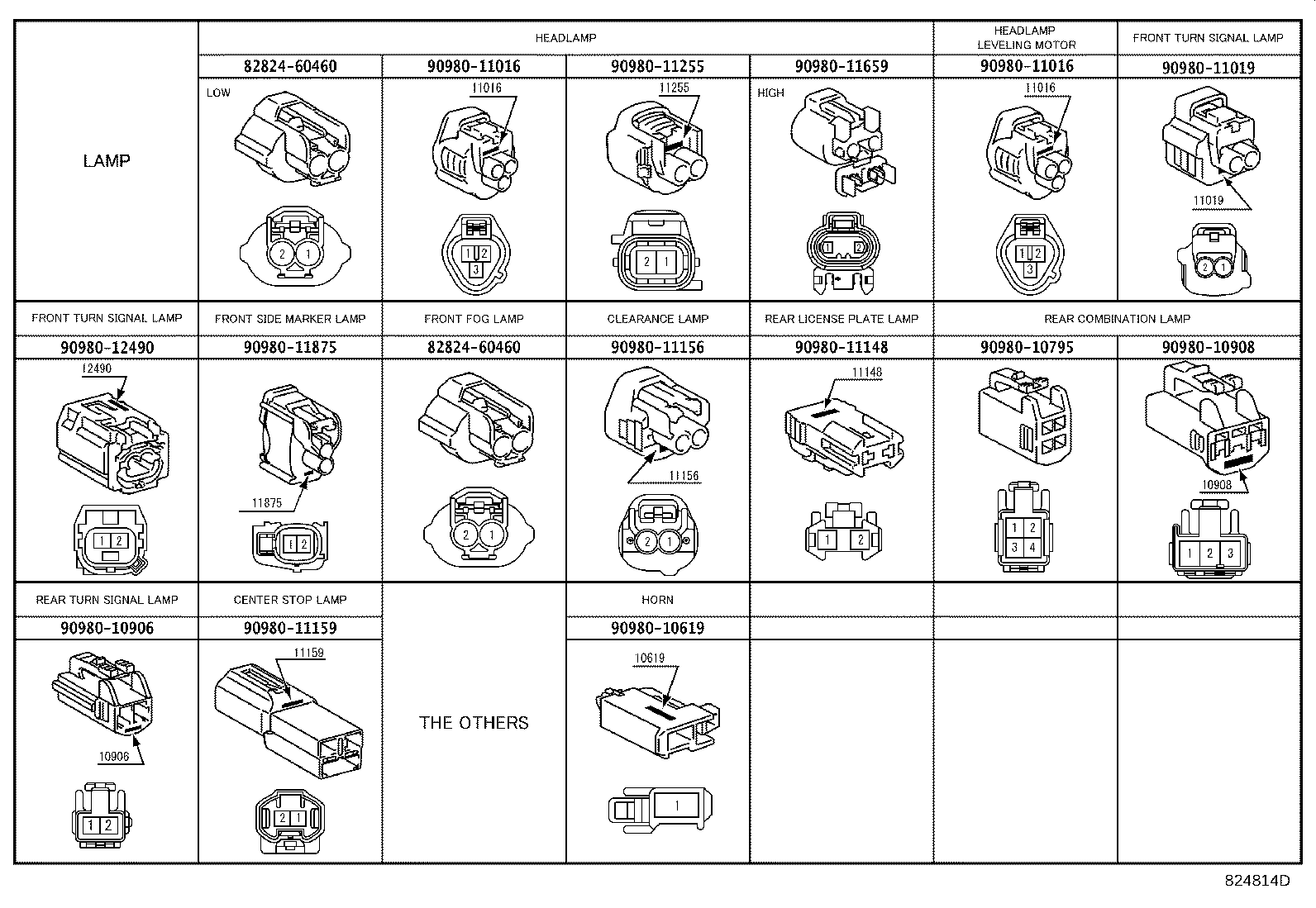

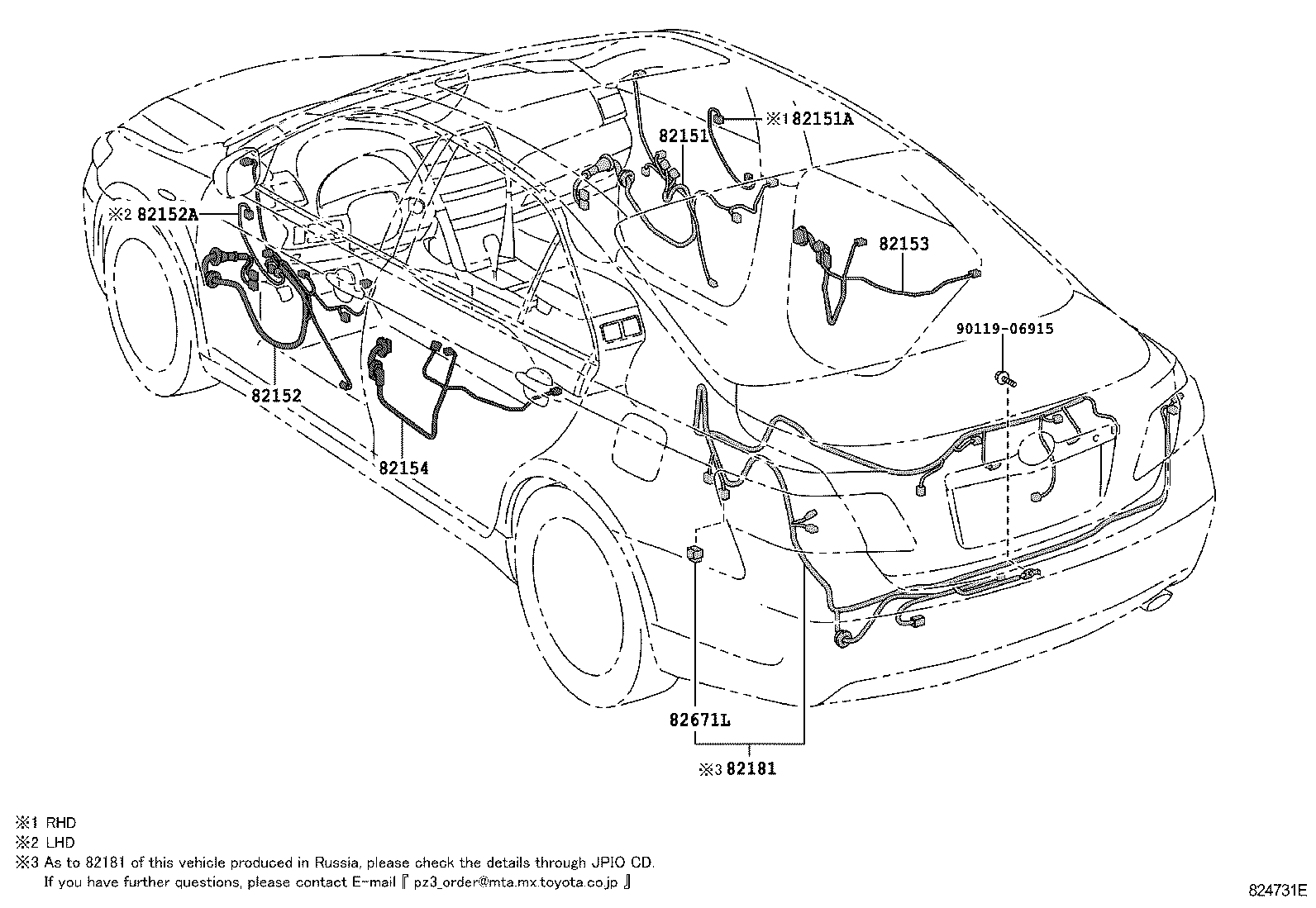

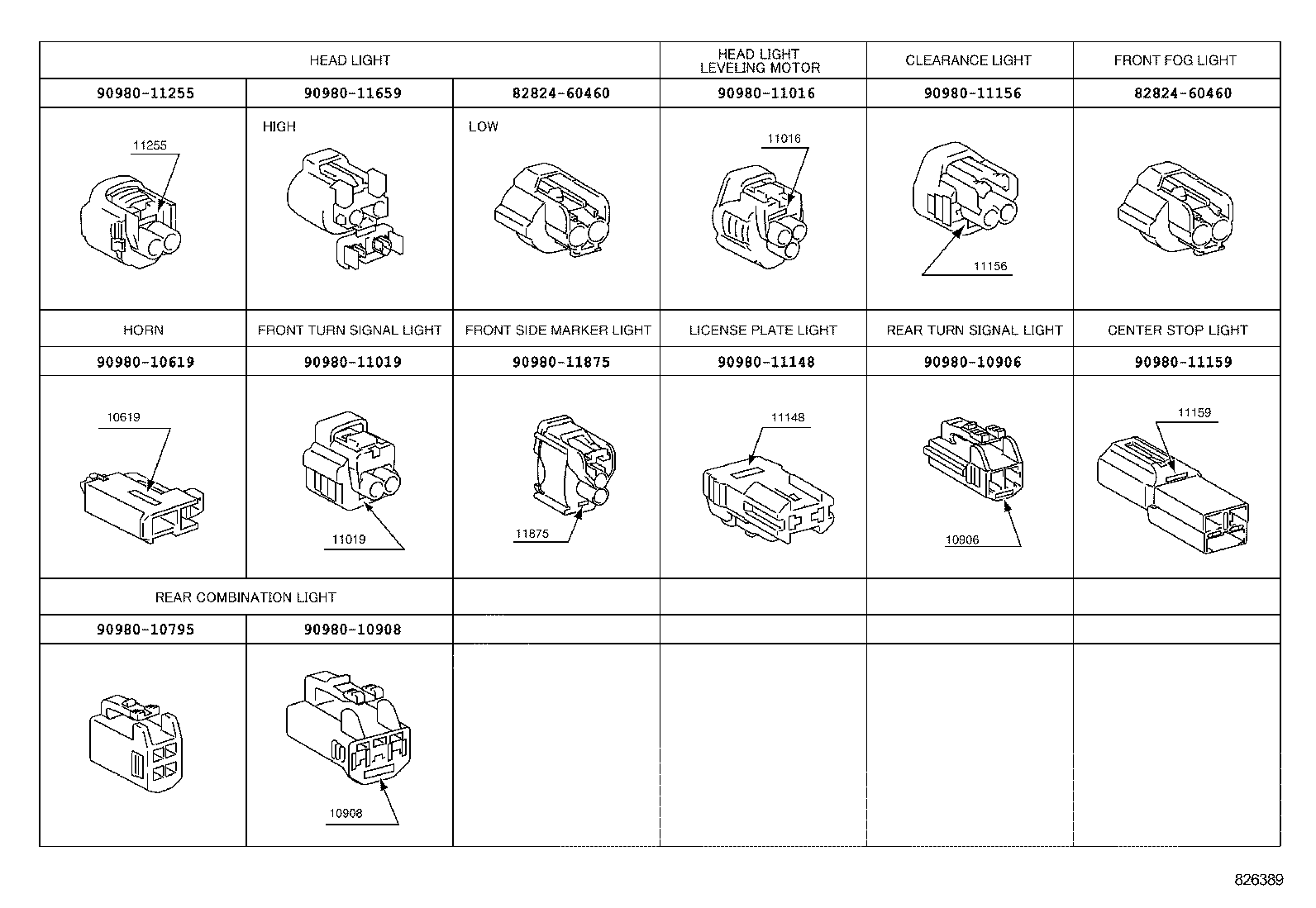

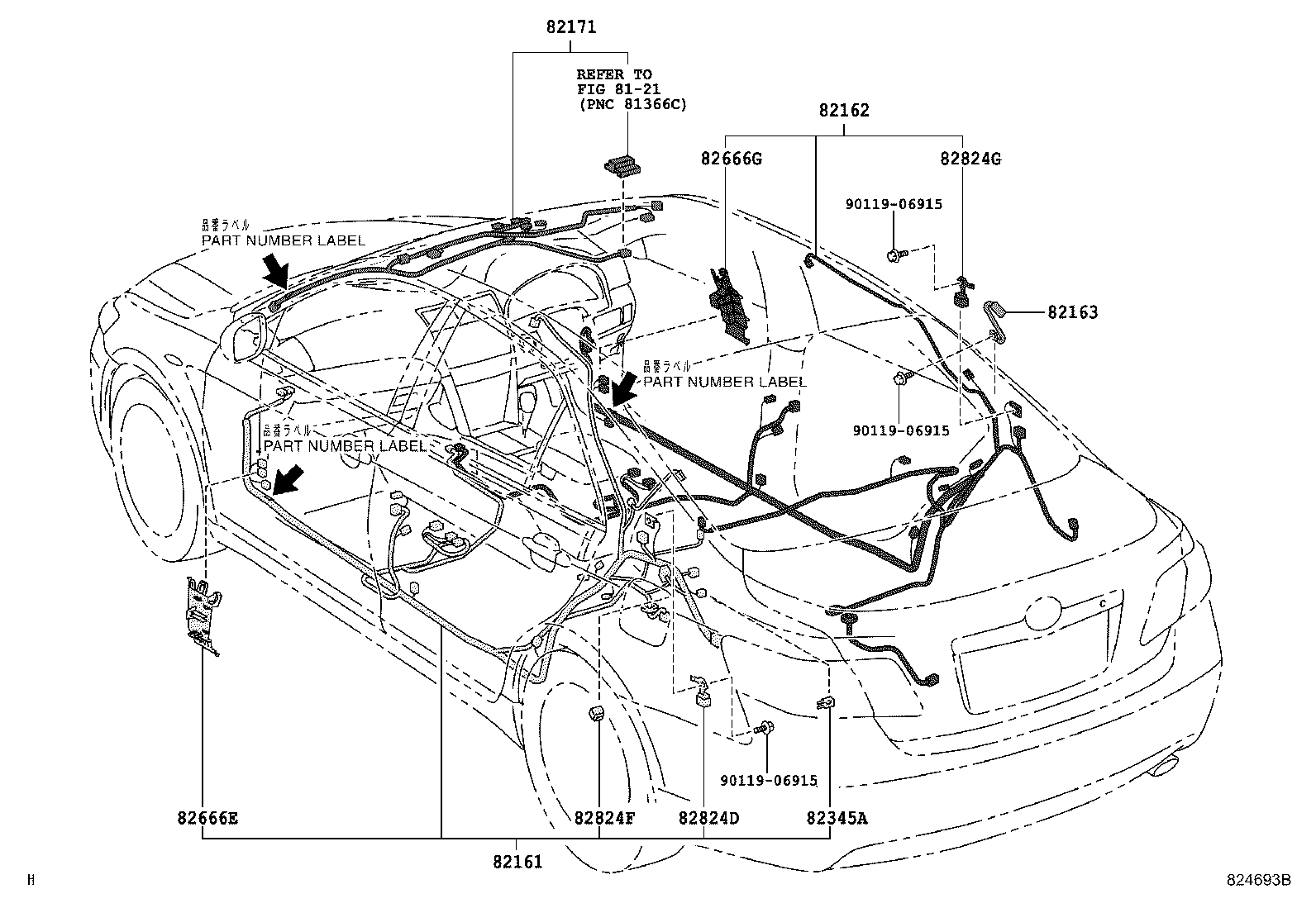

Figure 826323B 826323B 2006-01 → — Figure 824740G 824740G 2006-01 → — Figure 824716B 824716B 2006-01 → — Figure 824683A 824683A 2006-01 → — Figure 824695A 824695A 2006-01 → — Figure 825019C 825019C 2006-01 → — Figure 824691E 824691E 2006-01 → — Figure 824731E 824731E 2006-01 → 2009-01 Figure 824731E 824731E 2007-12 → 2009-03 Figure 827833E 827833E 2009-01 → — Figure 827833E 827833E 2009-03 → — Figure 824730 824730 2006-01 → — Figure 824687B 824687B 2006-01 → — Figure 824693B 824693B 2006-01 → — Figure 824696 824696 2006-01 → — Figure 824697A 824697A 2006-01 → — Figure 826583 826583 2006-01 → — Figure 824814D 824814D 2006-01 → — Figure 826389 826389 2009-01 → — Figure 826389 826389 2009-03 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82345A Diode
82345B Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82671L Block, Junction, NO.4
82673 Bracket, Junction Block
82712A Support, Wiring Harness
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82824X Connector, Wiring Harness
82825L Connector, Wiring Harness
82825M Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
