Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

14 part groups · 5 illustrations

Illustrations

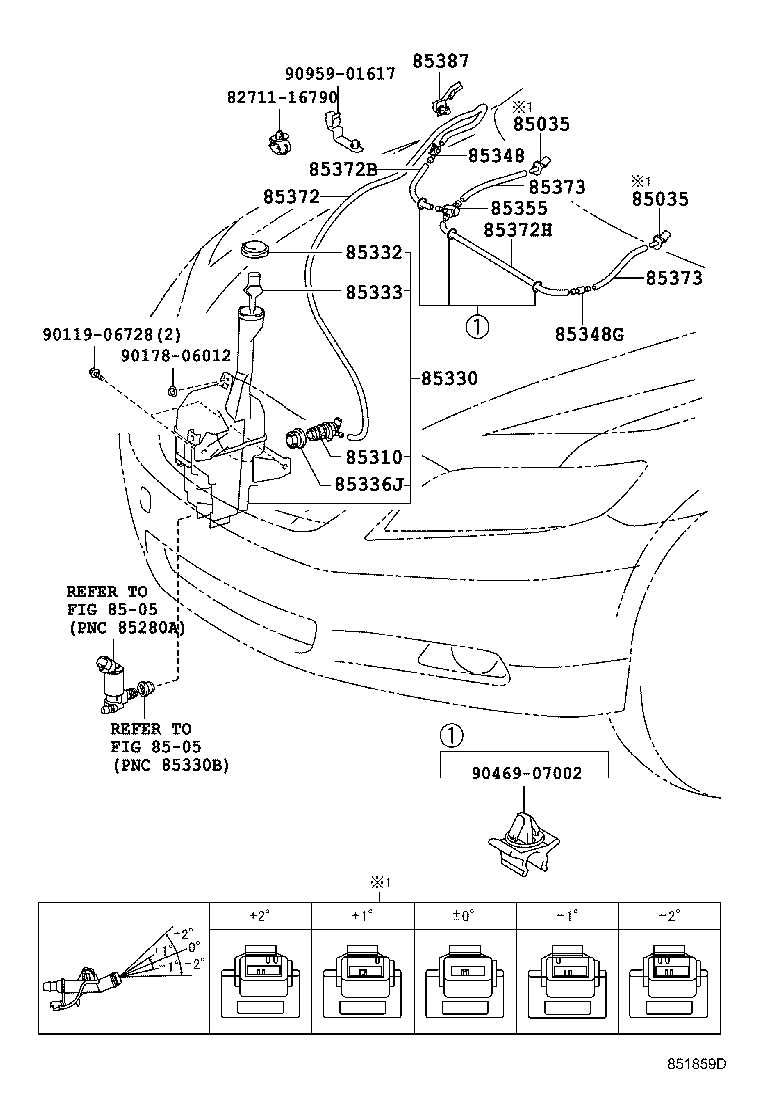

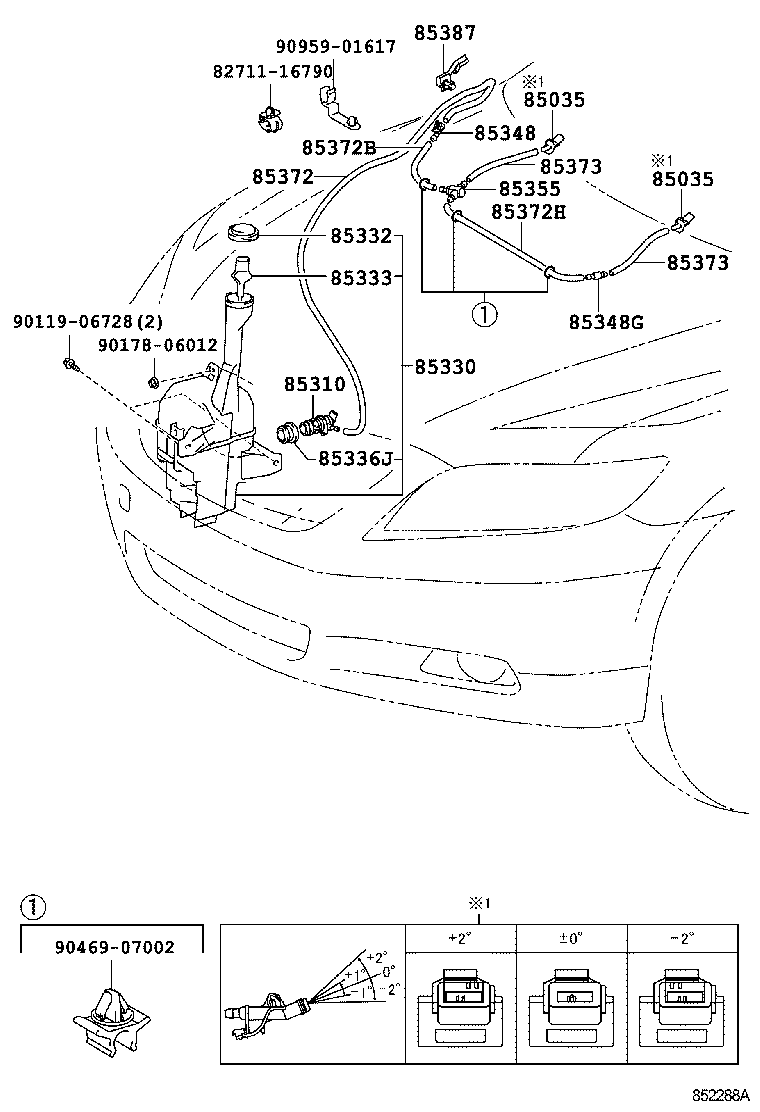

Figure 851718E 851718E 2006-01 → 2009-01 Figure 851718E 851718E 2006-01 → 2009-03 Figure 852288A 852288A 2009-01 → — Figure 852288A 852288A 2009-03 → — Figure 851859D 851859D 2006-01 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85336J Protector, Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348G Joint, Windshield Washer Hose, NO.2
85355 Valve, Windshield Washer Hose
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
85387 Clamp NO.1 (FOR WINDSEIELD WASHER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
