Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

16 part groups · 4 illustrations

Illustrations

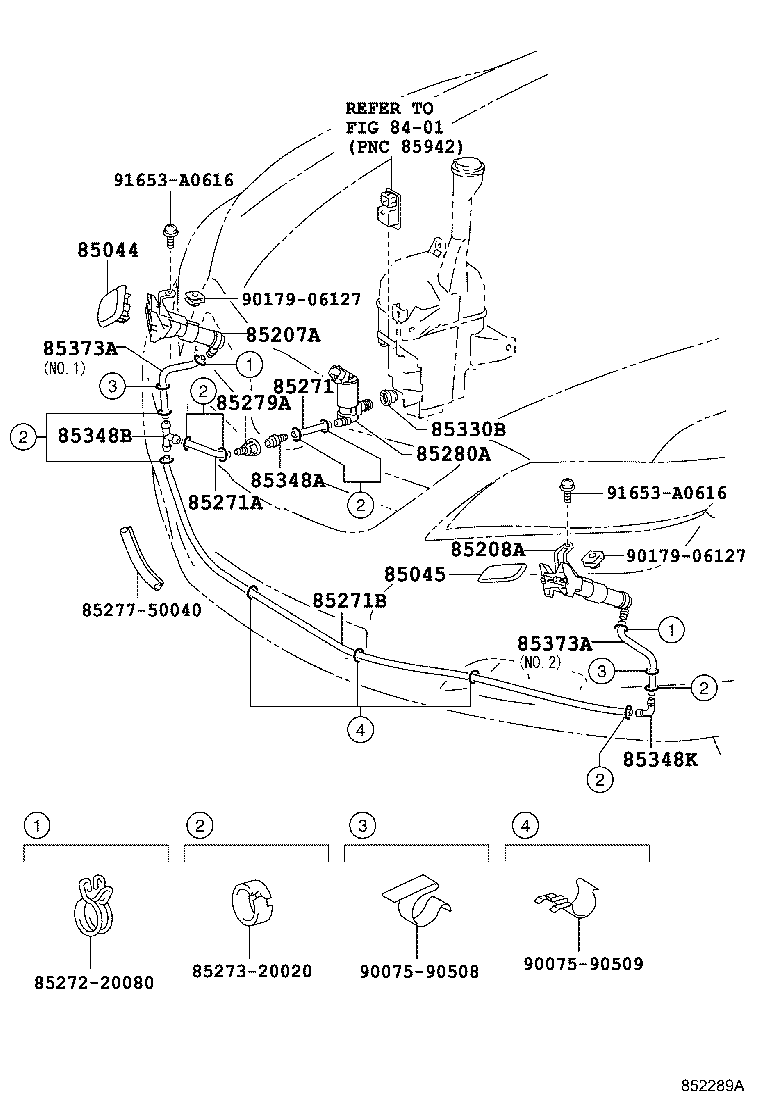

Figure 851703B 851703B 2006-01 → 2009-01 Figure 851703B 851703B 2006-01 → 2009-03 Figure 852289A 852289A 2009-01 → — Figure 852289A 852289A 2009-03 → —

Part groups

PNCDescription
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85279A Joint, Headlamp Cleaner Hose
85280A Motor And Pump Assy, Headlamp Cleaner
85330B Bush, Headlamp Cleaner Washer Jar
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85348K Joint, Headlamp Cleaner Elbow, NO.1
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
