Toyota Camry

2006-01 → 2011-09 · chassis ACV40,GSV40 · catalogue 284580 · Europe

Supported model Data version 2011-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 10 illustrations

Illustrations

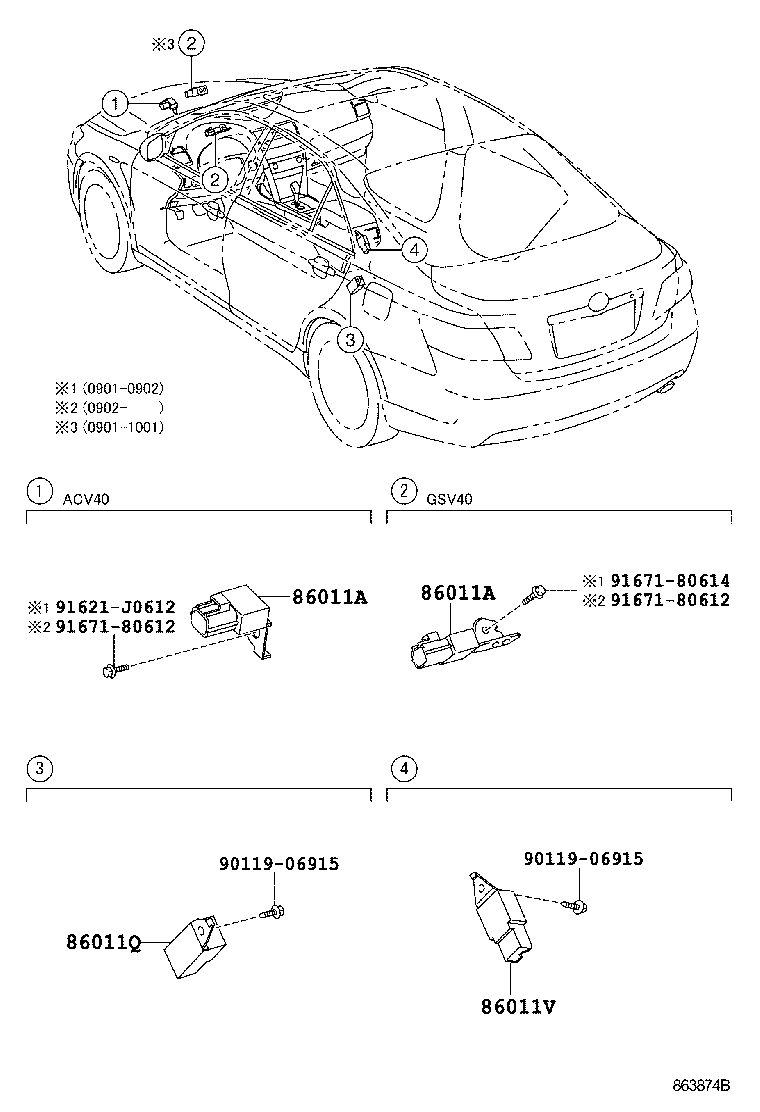

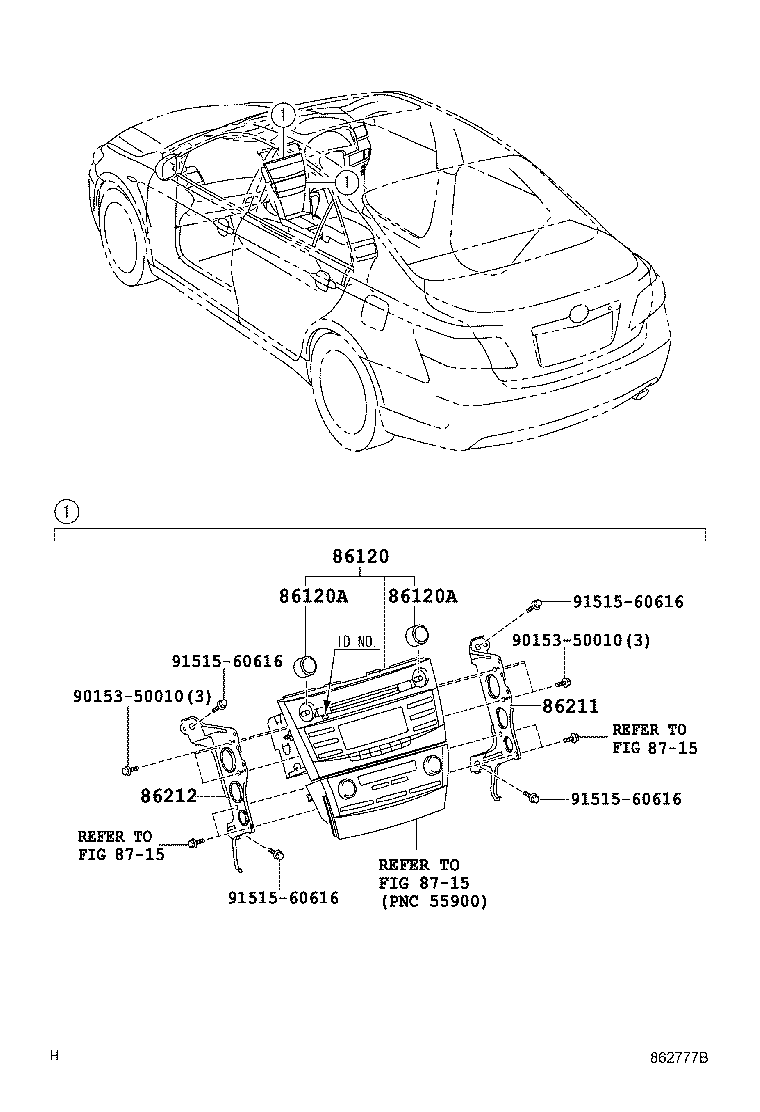

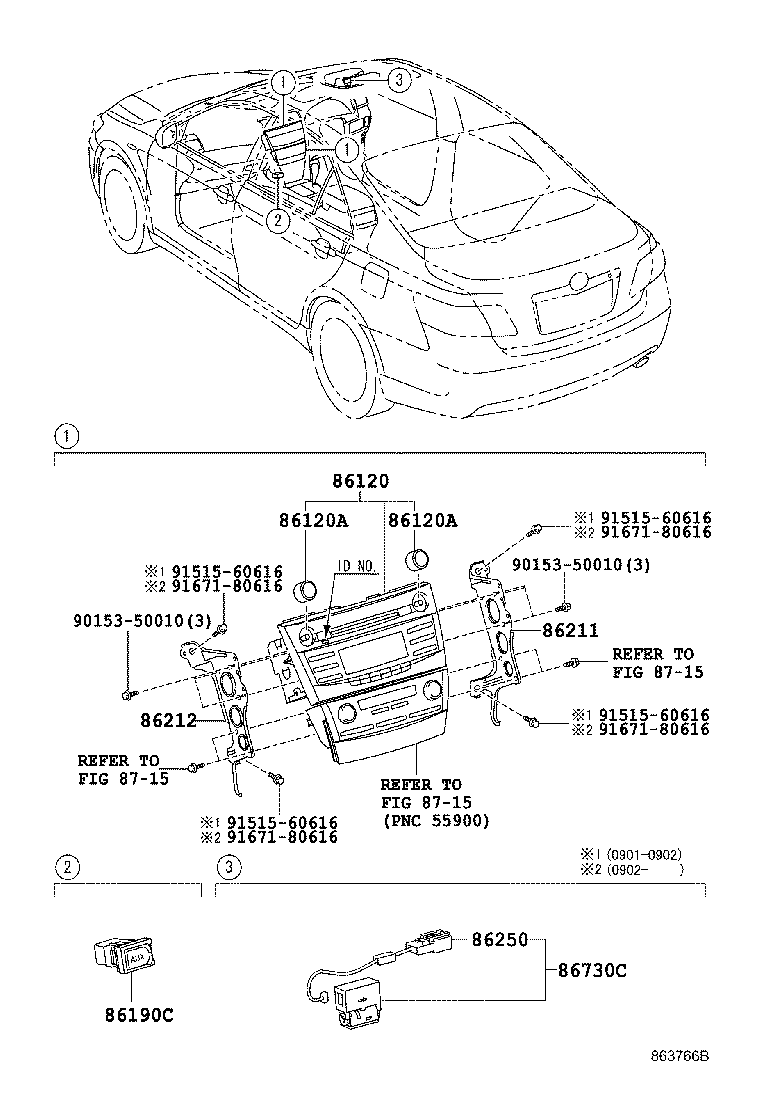

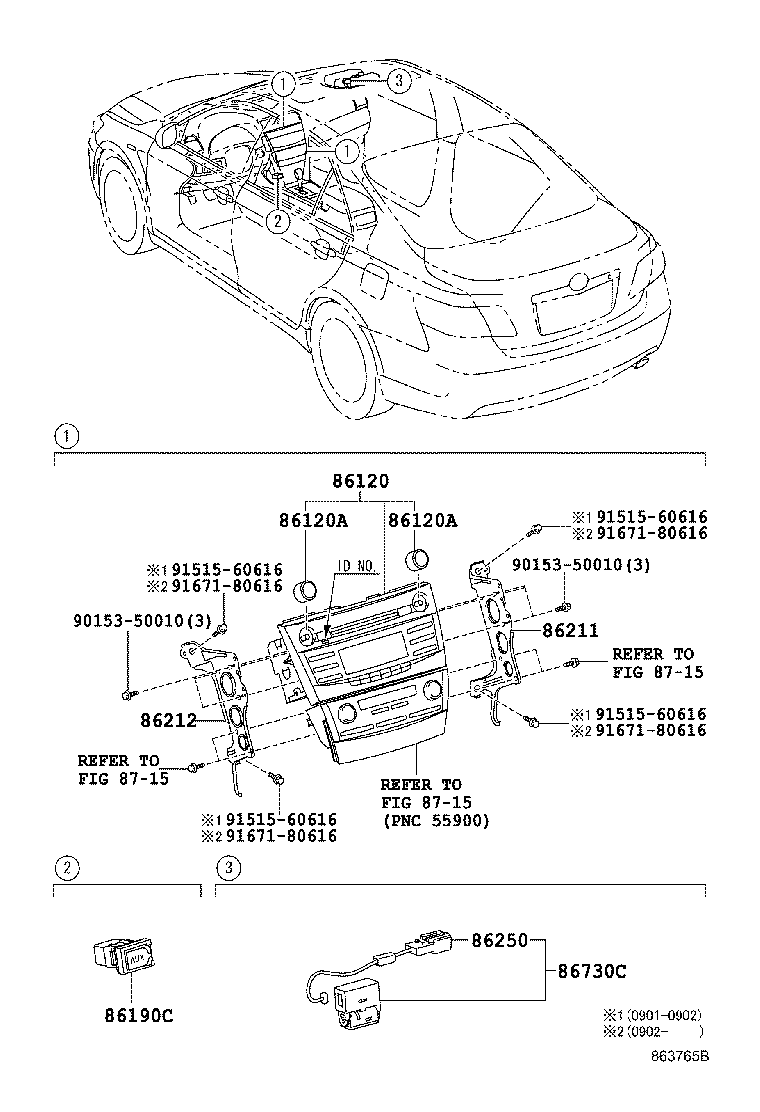

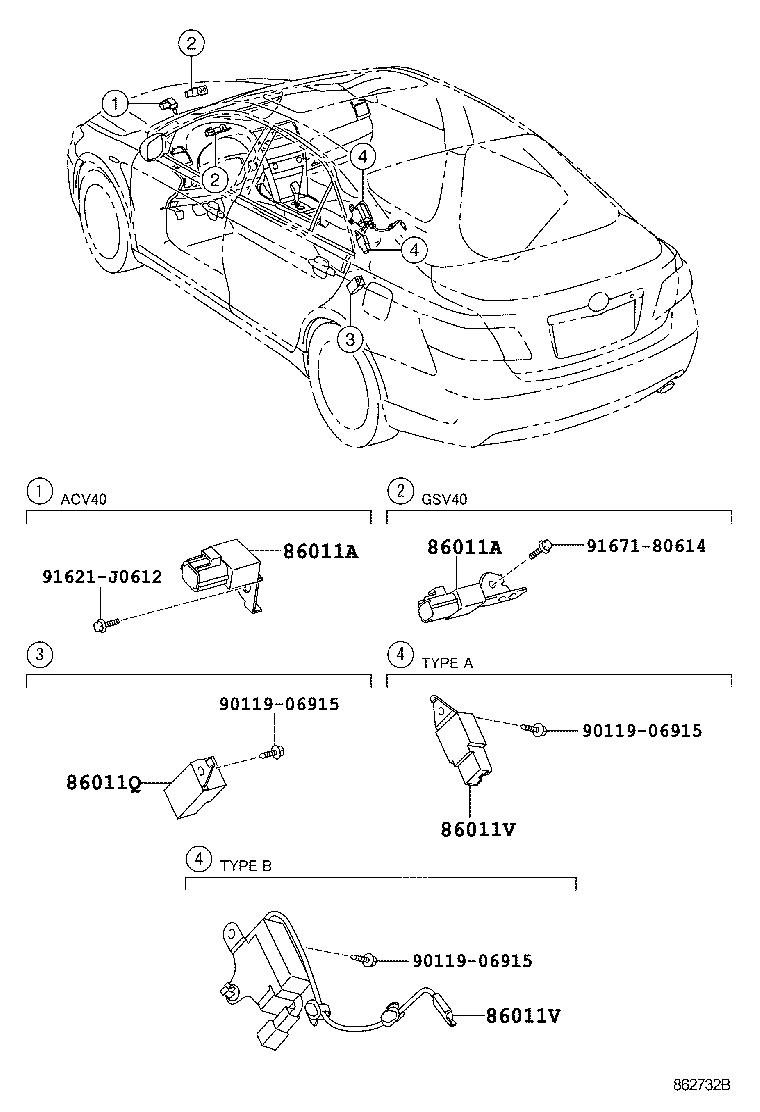

Figure 862776G 862776G 2006-01 → 2009-01 Figure 862776G 862776G 2007-12 → 2009-03 Figure 862777B 862777B 2006-01 → 2009-01 Figure 863765B 863765B 2009-01 → — Figure 863765B 863765B 2009-03 → — Figure 863766B 863766B 2009-01 → — Figure 862732B 862732B 2006-01 → 2009-01 Figure 862732B 862732B 2007-12 → 2009-03 Figure 863874B 863874B 2009-01 → — Figure 863874B 863874B 2009-03 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86190C Adapter Assy, Stereo Jack, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86250 Microphone Assy, Amplifier
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
