Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

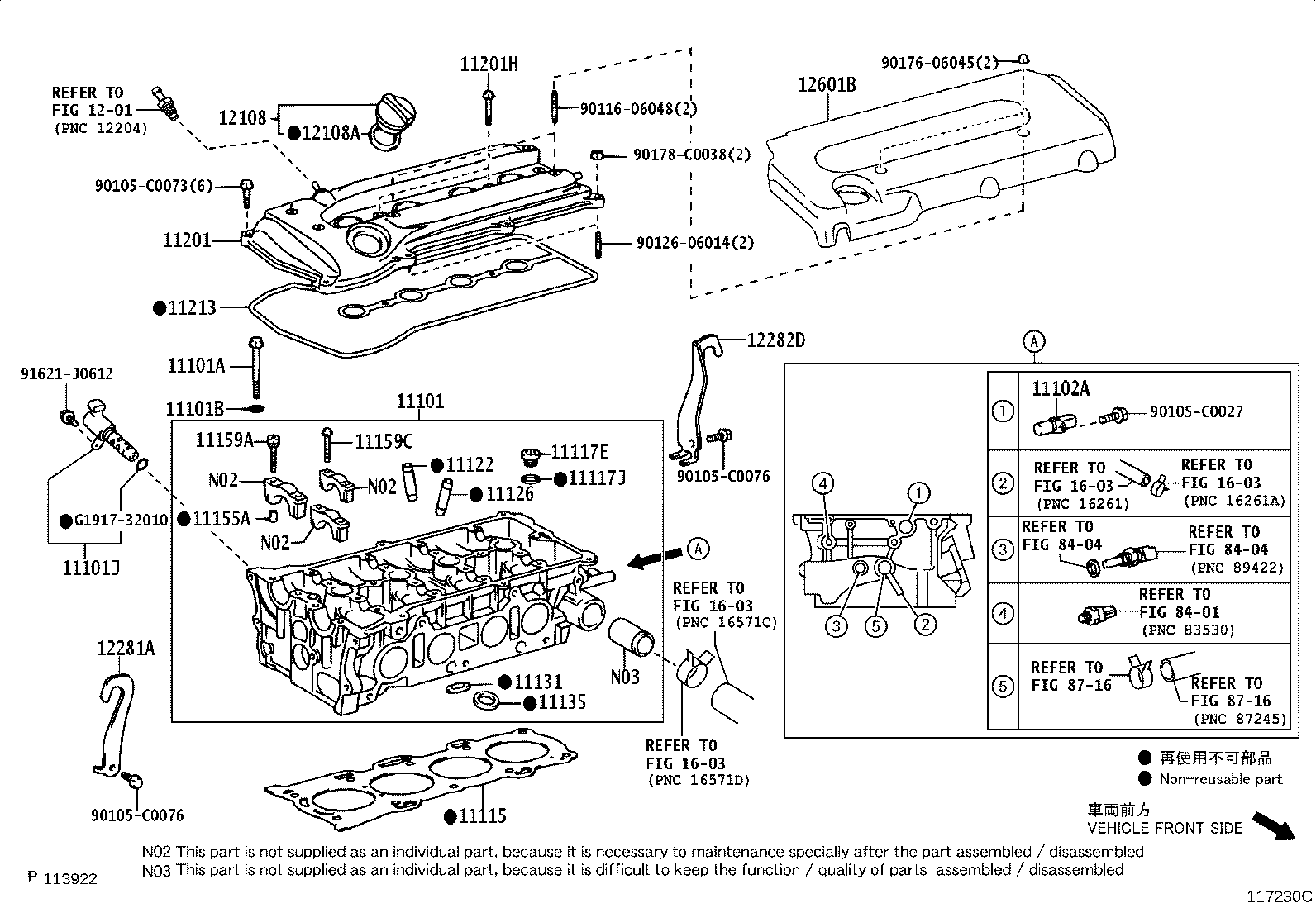

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-09451 note |
Head Sub-assy, Cylinder
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11101-0H040 |
Head Sub-assy, Cylinder
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11101-39535 |
Head Sub-assy, Cylinder
2011-08 → 2011-10
ended
|
2GRFE GSV50 | — | |
| 11101-39536 |
Head Sub-assy, Cylinder
2011-10 → 2014-05
ended
|
2GRFE GSV50 | — | |
| 11101-39537 |
Head Sub-assy, Cylinder
2014-05 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11101-39537 |
Head Sub-assy, Cylinder
2014-05 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11101-39715 note |
Head Sub-assy, Cylinder
2011-08 → 2011-09
ended
|
2ARFE ASV50 | — | |
| 11101-39775 |
Head Sub-assy, Cylinder
2011-08 → 2011-09
ended
|
2ARFXE AVV50 | — | |
| 11101-39775 note |
Head Sub-assy, Cylinder
2011-08 → 2011-09
ended
|
2ARFE ASV50 | — | |
| 11101-39776 note |
Head Sub-assy, Cylinder
2011-09 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 11101-39776 note |
Head Sub-assy, Cylinder
2011-09 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11101-39776 |
Head Sub-assy, Cylinder
2011-09 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11101-09451 note |
Head Sub-assy, Cylinder
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 11101-09560 |
Head Sub-assy, Cylinder
2015-03 → —
|
6ARFSE ASV51 | — | |
| 11101-39537 |
Head Sub-assy, Cylinder
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11101-39537 |
Head Sub-assy, Cylinder
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11101-39776 |
Head Sub-assy, Cylinder
2014-09 → 2017-04
ended
|
2ARFXE AVV50 | — | |
| 11101-39776 note |
Head Sub-assy, Cylinder
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02162 note |
Bolt(FOR CYLINDER HEAD SET)
2011-08 → 2014-10
ended
|
2GRFE GSV50 | — | |
| 90910-02162 |
Bolt(FOR CYLINDER HEAD SET)
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 90910-02164 note |
Bolt(FOR CYLINDER HEAD SET)
2011-08 → 2014-09
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90910-02164 note |
Bolt(FOR CYLINDER HEAD SET)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90910-02164 note |
Bolt(FOR CYLINDER HEAD SET)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90910-02164 note |
Bolt(FOR CYLINDER HEAD SET)
2014-10 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 90910-02162 note |
Bolt(FOR CYLINDER HEAD SET)
2014-09 → 2014-10
ended
|
2GRFE GSV50 JPP | — | |
| 90910-02164 note |
Bolt(FOR CYLINDER HEAD SET)
2014-10 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 90910-02164 note |
Bolt(FOR CYLINDER HEAD SET)
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 90910-02164 note |
Bolt(FOR CYLINDER HEAD SET)
2014-10 → —
|
2GRFE GSV50 RUP | — | |
| 90910-02164 |
Bolt(FOR CYLINDER HEAD SET)
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90910-C2006 note |
Bolt(FOR CYLINDER HEAD SET)
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-11034 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2011-08 → 2014-09
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 90201-11034 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 90201-11034 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2014-09 → 2017-11
ended
|
2AR#,6ARFSE ASV5#,AVV50 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 90201-11034 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2017-11 → —
|
2ARFE,6ARFSE ASV5# | — | |
| 90201-C0005 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2017-11 → —
|
2ARFE,6ARFSE ASV5# | — | |
| 11101J — Valve Assy, Camshaft Timing Oil Control | ||||
| 15330-0T030 note |
Valve Assy, Camshaft Timing Oil Control
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 15330-28020 |
Valve Assy, Camshaft Timing Oil Control
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 15330-37010 note |
Valve Assy, Camshaft Timing Oil Control
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 15330-37010 note |
Valve Assy, Camshaft Timing Oil Control
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 15330-37010 |
Valve Assy, Camshaft Timing Oil Control
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 15330-0T030 |
Valve Assy, Camshaft Timing Oil Control
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 15330-0T030 |
Valve Assy, Camshaft Timing Oil Control
2015-03 → —
|
6ARFSE ASV51 | — | |
| 15330-37010 |
Valve Assy, Camshaft Timing Oil Control
2014-09 → 2017-04
ended
|
2ARFXE AVV50 | — | |
| 15330-37010 |
Valve Assy, Camshaft Timing Oil Control
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 11102A — Sensor, Camshaft Position | ||||
| 90919-05026 |
Sensor, Camshaft Position
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 90919-05060 |
Sensor, Camshaft Position
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 90919-05060 note |
Sensor, Camshaft Position
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 90919-05060 note |
Sensor, Camshaft Position
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90919-05060 note |
Sensor, Camshaft Position
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90919-05060 |
Sensor, Camshaft Position
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 90919-05060 note |
Sensor, Camshaft Position
2017-05 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 90919-05060 |
Sensor, Camshaft Position
2014-09 → 2017-05
ended
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 90919-05060 |
Sensor, Camshaft Position
2014-09 → 2017-04
ended
|
2ARFXE AVV50 | — | |
| 90919-C5001 note |
Sensor, Camshaft Position
2017-05 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-0V030 note |
Gasket, Cylinder Head
2013-10 → 2014-05
ended
|
2ARFE ASV50 RUP | — | |
| 11115-0V031 note |
Gasket, Cylinder Head
2014-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11115-28050 |
Gasket, Cylinder Head
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11115-31080 |
Gasket, Cylinder Head
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11115-31080 |
Gasket, Cylinder Head
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11115-36030 note |
Gasket, Cylinder Head
2013-06 → 2013-10
ended
|
2ARFE ASV50 RUP | — | |
| 11115-36030 note |
Gasket, Cylinder Head
2011-08 → 2014-05
ended
|
2ARFE ASV50 | — | |
| 11115-36030 note |
Gasket, Cylinder Head
2013-10 → 2014-05
ended
|
2ARFE ASV50 RUP | — | |
| 11115-36031 note |
Gasket, Cylinder Head
2014-06 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 11115-36031 note |
Gasket, Cylinder Head
2014-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11115-36040 |
Gasket, Cylinder Head
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11115-0V020 |
Gasket, Cylinder Head
2015-03 → —
|
6ARFSE ASV51 | — | |
| 11115-0V031 note |
Gasket, Cylinder Head
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 11115-31080 |
Gasket, Cylinder Head
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11115-31080 |
Gasket, Cylinder Head
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11115-36031 |
Gasket, Cylinder Head
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 11115-36031 note |
Gasket, Cylinder Head
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 11115-36041 |
Gasket, Cylinder Head
2014-09 → 2017-04
ended
|
2ARFXE AVV50 | — | |
| 11117E — Plug, W/Head Straight Screw, NO.1 | ||||
| 90341-20002 note |
Plug, W/Head Straight Screw, NO.1
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw, NO.1
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw, NO.1
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 90341-27006 |
Plug, W/Head Straight Screw, NO.1
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
2014-09 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 90341-20012 |
Plug, W/Head Straight Screw, NO.1
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11117J — Gasket(FOR CYLINDER HEAD SCREW PLUG) | ||||
| 90430-20004 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2013-06 → 2014-05
ended
|
2ARFE ASV50 RUP | — | |
| 90430-20004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 90430-20004 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2011-08 → 2014-09
ended
|
2ARFE ASV50 | — | |
| 90430-20004 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2014-05 → 2014-09
ended
|
2ARFE ASV50 RUP | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2012-08 → 2014-09
ended
|
1AZFE ACV51 | — | |
| 90430-C0001 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2014-05 → 2014-09
ended
|
2ARFE ASV50 RUP | — | |
| 90430-20004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2014-09 → 2016-07
ended
|
6ARFSE ASV51 | — | |
| 90430-20004 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90430-20004 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 90430-20004 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2016-07 → —
|
6ARFSE ASV51 | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 90430-27005 |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 90430-C0001 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 90430-C0001 note |
Gasket(FOR CYLINDER HEAD SCREW PLUG)
2016-07 → —
|
6ARFSE ASV51 | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-28010 note |
Bush, Intake Valve Guide
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2011-08 → 2014-11
ended
|
2ARFE ASV50 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11122-31090 note |
Bush, Intake Valve Guide
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11123-28010 note |
Bush, Intake Valve Guide
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2011-08 → 2014-11
ended
|
2ARFE ASV50 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11123-31090 note |
Bush, Intake Valve Guide
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2014-09 → 2015-01
ended
|
2GRFE GSV50 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11122-31070 note |
Bush, Intake Valve Guide
2015-01 → —
|
2GRFE GSV50 RUP | — | |
| 11122-31070 note |
Bush, Intake Valve Guide
2015-01 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11122-31090 note |
Bush, Intake Valve Guide
2014-11 → 2018-03
ended
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2014-09 → 2015-01
ended
|
2GRFE GSV50 | — | |
| 11123-31070 note |
Bush, Intake Valve Guide
2015-01 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11123-31070 note |
Bush, Intake Valve Guide
2015-01 → —
|
2GRFE GSV50 RUP | — | |
| 11123-31090 note |
Bush, Intake Valve Guide
2014-11 → 2018-03
ended
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11126-20020 note |
Bush, Exhaust Valve Guide
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2011-08 → 2014-11
ended
|
2ARFE ASV50 | — | |
| 11126-31040 note |
Bush, Exhaust Valve Guide
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11127-20020 note |
Bush, Exhaust Valve Guide
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2011-08 → 2014-11
ended
|
2ARFE ASV50 | — | |
| 11127-31040 note |
Bush, Exhaust Valve Guide
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11126-31040 note |
Bush, Exhaust Valve Guide
2014-11 → 2018-03
ended
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11127-31040 note |
Bush, Exhaust Valve Guide
2014-11 → 2018-03
ended
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 11131 — Seat, Intake Valve | ||||
| 11131-0H010 note |
Seat, Intake Valve
2012-08 → 2013-12
ended
|
1AZFE ACV51 | — | |
| 11131-0H030 note |
Seat, Intake Valve
2013-12 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11131-0V020 note |
Seat, Intake Valve
2013-06 → 2014-05
ended
|
2ARFE ASV50 RUP | — | |
| 11131-0V030 note |
Seat, Intake Valve
2014-05 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11131-31050 note |
Seat, Intake Valve
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11131-31050 note |
Seat, Intake Valve
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11131-36030 note |
Seat, Intake Valve
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11131-36030 note |
Seat, Intake Valve
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 11131-36030 note |
Seat, Intake Valve
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11132-0V010 note |
Seat, Intake Valve
2013-06 → 2014-05
ended
|
2ARFE ASV50 RUP | — | |
| 11132-0V030 note |
Seat, Intake Valve
2014-05 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11132-28030 note |
Seat, Intake Valve
2012-08 → 2013-12
ended
|
1AZFE ACV51 | — | |
| 11132-28040 note |
Seat, Intake Valve
2013-12 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11132-31050 note |
Seat, Intake Valve
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11132-31050 note |
Seat, Intake Valve
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11132-36030 note |
Seat, Intake Valve
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 11132-36030 note |
Seat, Intake Valve
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11132-36030 note |
Seat, Intake Valve
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11131-0V030 note |
Seat, Intake Valve
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 11131-0V040 note |
Seat, Intake Valve
2015-03 → —
|
6ARFSE ASV51 | — | |
| 11131-31050 note |
Seat, Intake Valve
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11131-31050 note |
Seat, Intake Valve
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11131-36030 note |
Seat, Intake Valve
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11132-0V030 note |
Seat, Intake Valve
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 11132-0V040 note |
Seat, Intake Valve
2015-03 → —
|
6ARFSE ASV51 | — | |
| 11132-31050 note |
Seat, Intake Valve
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11132-31050 note |
Seat, Intake Valve
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11132-36030 note |
Seat, Intake Valve
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-0H010 note |
Seat, Exhaust Valve
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11135-0V020 note |
Seat, Exhaust Valve
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11135-31080 note |
Seat, Exhaust Valve
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11135-31080 note |
Seat, Exhaust Valve
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11135-36010 note |
Seat, Exhaust Valve
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11135-36010 note |
Seat, Exhaust Valve
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11135-36010 note |
Seat, Exhaust Valve
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 11136-28050 note |
Seat, Exhaust Valve
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11136-36010 note |
Seat, Exhaust Valve
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 11136-36010 note |
Seat, Exhaust Valve
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11136-36010 note |
Seat, Exhaust Valve
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11136-36010 note |
Seat, Exhaust Valve
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11135-0V020 note |
Seat, Exhaust Valve
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 11135-0V040 note |
Seat, Exhaust Valve
2015-03 → —
|
6ARFSE ASV51 | — | |
| 11135-31080 note |
Seat, Exhaust Valve
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11135-31080 note |
Seat, Exhaust Valve
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11135-36010 note |
Seat, Exhaust Valve
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11136-0V040 note |
Seat, Exhaust Valve
2015-03 → —
|
6ARFSE ASV51 | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11136-31080 note |
Seat, Exhaust Valve
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11136-36010 note |
Seat, Exhaust Valve
2014-09 → —
|
2ARFE ASV50 RUP | — | |
| 11136-36010 note |
Seat, Exhaust Valve
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11155A — Pin, Ring W/Head | ||||
| 90253-11021 |
Pin, Ring W/Head
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 90253-11021 |
Pin, Ring W/Head
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 90253-11021 |
Pin, Ring W/Head
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 90253-11021 |
Pin, Ring W/Head
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 90253-11021 |
Pin, Ring W/Head
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-C0069 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11159C — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-C0121 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-0H060 |
Cover Sub-assy, Cylinder Head
2012-08 → 2012-09
ended
|
1AZFE ACV51 | — | |
| 11201-0H061 |
Cover Sub-assy, Cylinder Head
2012-09 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11201-0V040 note |
Cover Sub-assy, Cylinder Head
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11201-31250 |
Cover Sub-assy, Cylinder Head
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11201-31250 |
Cover Sub-assy, Cylinder Head
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11201-36010 note |
Cover Sub-assy, Cylinder Head
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11201-36010 note |
Cover Sub-assy, Cylinder Head
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 11201-36020 |
Cover Sub-assy, Cylinder Head
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11201-0V040 |
Cover Sub-assy, Cylinder Head
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 11201-0V060 |
Cover Sub-assy, Cylinder Head
2015-03 → —
|
6ARFSE ASV51 | — | |
| 11201-31250 |
Cover Sub-assy, Cylinder Head
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11201-31250 |
Cover Sub-assy, Cylinder Head
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11201-36010 |
Cover Sub-assy, Cylinder Head
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 11201-36020 |
Cover Sub-assy, Cylinder Head
2014-09 → 2017-04
ended
|
2ARFXE AVV50 | — | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 90105-C0072 note |
Bolt(FOR CYLINDER HEAD COVER)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90105-C0084 note |
Bolt(FOR CYLINDER HEAD COVER)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90119-C0122 |
Bolt(FOR CYLINDER HEAD COVER)
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 91551-80635 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 91551-80635 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 91551-80635 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90105-C0072 note |
Bolt(FOR CYLINDER HEAD COVER)
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 90105-C0072 note |
Bolt(FOR CYLINDER HEAD COVER)
2015-03 → —
|
6ARFSE ASV51 | — | |
| 90105-C0084 note |
Bolt(FOR CYLINDER HEAD COVER)
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 91551-80635 note |
Bolt(FOR CYLINDER HEAD COVER)
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-0H040 |
Gasket, Cylinder Head Cover
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 11213-0V010 note |
Gasket, Cylinder Head Cover
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11213-31050 |
Gasket, Cylinder Head Cover
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 11213-31050 |
Gasket, Cylinder Head Cover
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 11213-36020 |
Gasket, Cylinder Head Cover
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 11213-36020 note |
Gasket, Cylinder Head Cover
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11213-36020 note |
Gasket, Cylinder Head Cover
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 11213-36020 note |
Gasket, Cylinder Head Cover
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 11213-0V010 note |
Gasket, Cylinder Head Cover
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 11213-0V020 |
Gasket, Cylinder Head Cover
2015-03 → —
|
6ARFSE ASV51 | — | |
| 11213-31050 |
Gasket, Cylinder Head Cover
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 11213-31050 |
Gasket, Cylinder Head Cover
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 11213-36020 |
Gasket, Cylinder Head Cover
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11213-36020 note |
Gasket, Cylinder Head Cover
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-28010 |
Cap Sub-assy, Oil Filler
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 12180-28010 |
Cap Sub-assy, Oil Filler
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 12180-38010 note |
Cap Sub-assy, Oil Filler
2011-08 → 2014-09
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 12180-38010 note |
Cap Sub-assy, Oil Filler
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 12180-38010 note |
Cap Sub-assy, Oil Filler
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 12180-0V010 |
Cap Sub-assy, Oil Filler
2016-06 → —
|
6ARFSE ASV51 | — | |
| 12180-0V010 note |
Cap Sub-assy, Oil Filler
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 12180-28010 |
Cap Sub-assy, Oil Filler
2014-09 → 2015-04
ended
|
2GRFE GSV50 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2014-09 → 2016-05
ended
|
6ARFSE ASV51 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2015-05 → —
|
2GRFE GSV50 RUP | — | |
| 12180-38010 note |
Cap Sub-assy, Oil Filler
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2015-05 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2011-08 → 2014-09
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90430-37004 |
Gasket(FOR OIL FILLER CAP)
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 90430-37004 |
Gasket(FOR OIL FILLER CAP)
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2015-05 → —
|
2GRFE GSV50 RUP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2014-09 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2015-05 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90430-37004 |
Gasket(FOR OIL FILLER CAP)
2014-09 → 2015-05
ended
|
2GRFE GSV50 | — | |
| 12281A — Hanger, Engine, NO.1 | ||||
| 12281-0H010 |
Hanger, Engine, NO.1
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 12281-0V010 note |
Hanger, Engine, NO.1
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 12281-31120 |
Hanger, Engine, NO.1
2011-08 → 2013-01
ended
|
2GRFE GSV50 | — | |
| 12281-31120 |
Hanger, Engine, NO.1
2013-01 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 12281-31120 |
Hanger, Engine, NO.1
2013-01 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 12281-36020 note |
Hanger, Engine, NO.1
2011-08 → 2014-09
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 12281-36020 note |
Hanger, Engine, NO.1
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 12281-0V010 |
Hanger, Engine, NO.1
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 12281-31120 |
Hanger, Engine, NO.1
2014-09 → 2014-12
ended
|
2GRFE GSV50 | — | |
| 12281-31121 |
Hanger, Engine, NO.1
2015-01 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 12281-31121 |
Hanger, Engine, NO.1
2015-01 → —
|
2GRFE GSV50 RUP | — | |
| 12281-36020 |
Hanger, Engine, NO.1
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 12282D — Hanger, Engine, NO.2 | ||||
| 12282-0H010 |
Hanger, Engine, NO.2
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 12282-0V030 note |
Hanger, Engine, NO.2
2014-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 12282-31100 |
Hanger, Engine, NO.2
2013-01 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 12282-31100 |
Hanger, Engine, NO.2
2013-01 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 12282-31100 |
Hanger, Engine, NO.2
2011-08 → 2013-01
ended
|
2GRFE GSV50 | — | |
| 12282-36021 note |
Hanger, Engine, NO.2
2011-08 → 2014-09
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 12282-36021 note |
Hanger, Engine, NO.2
2013-06 → 2014-07
ended
|
2ARFE ASV50 RUP | — | |
| 12282-36021 note |
Hanger, Engine, NO.2
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 12282-0V010 |
Hanger, Engine, NO.2
2015-03 → —
|
6ARFSE ASV51 | — | |
| 12282-0V030 |
Hanger, Engine, NO.2
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 12282-31100 |
Hanger, Engine, NO.2
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 12282-31100 |
Hanger, Engine, NO.2
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 12282-36021 |
Hanger, Engine, NO.2
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 12601B — Cover Sub-assy, Engine, NO.1 | ||||
| 12601-28150 |
Cover Sub-assy, Engine, NO.1
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 12601-36050 |
Cover Sub-assy, Engine, NO.1
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 12601-36060 |
Cover Sub-assy, Engine, NO.1
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 12601-36060 |
Cover Sub-assy, Engine, NO.1
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 12601-0V190 |
Cover Sub-assy, Engine, NO.1
2015-03 → —
|
6ARFSE ASV51 | — | |
| 12601-36050 |
Cover Sub-assy, Engine, NO.1
2014-09 → 2017-04
ended
|
2ARFXE AVV50 | — | |
| 12601-36060 |
Cover Sub-assy, Engine, NO.1
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 12601-36060 |
Cover Sub-assy, Engine, NO.1
2014-09 → —
|
2ARFE ASV50 RUP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
