Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

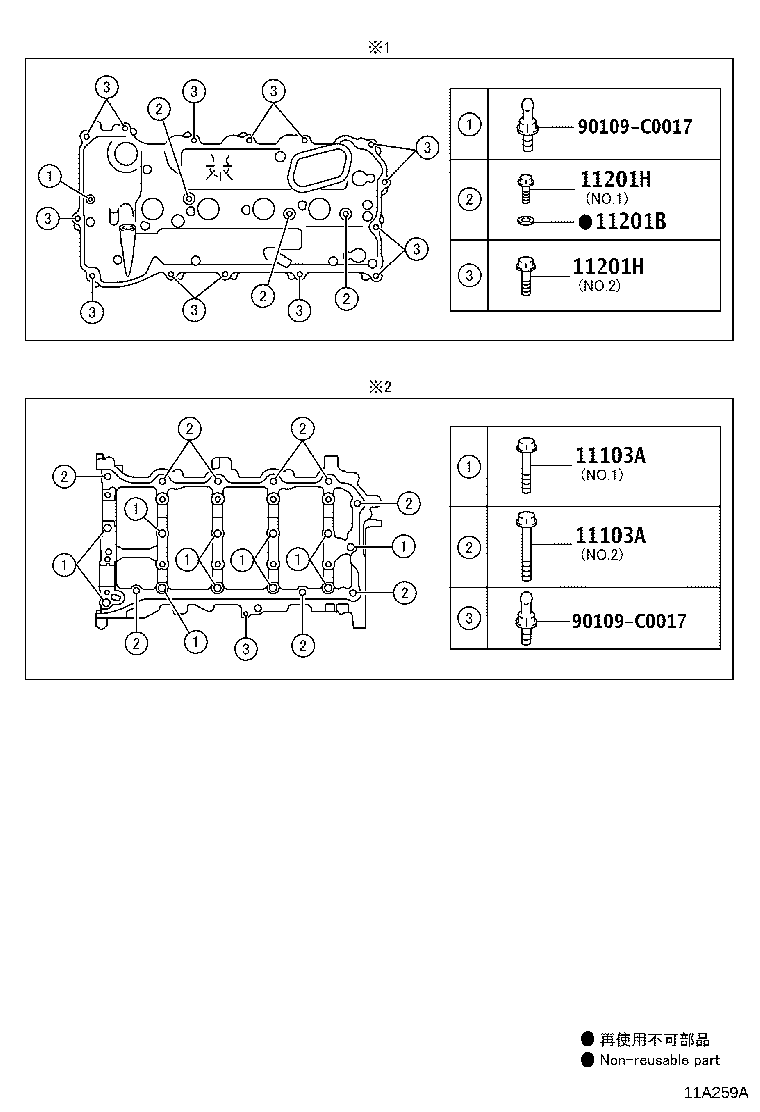

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11103A — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90105-C0074 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90105-C0167 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 90105-C0074 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 90105-C0167 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 90105-C0167 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-03 → —
|
6ARFSE ASV51 | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 90210-05008 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90210-05008 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90210-05008 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 90210-05008 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 90210-06013 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 90210-06013 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 90210-05008 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2017-05 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 90210-05008 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2014-09 → 2017-05
ended
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 90210-05008 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90210-06013 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 90210-06013 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 90210-C0003 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2017-05 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 11201H — Bolt(FOR CYLINDER HEAD COVER) | ||||
| 90105-C0072 note |
Bolt(FOR CYLINDER HEAD COVER)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90105-C0084 note |
Bolt(FOR CYLINDER HEAD COVER)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90119-C0122 |
Bolt(FOR CYLINDER HEAD COVER)
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 91551-80635 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 91551-80635 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 91551-80635 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 90105-C0072 note |
Bolt(FOR CYLINDER HEAD COVER)
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 90105-C0072 note |
Bolt(FOR CYLINDER HEAD COVER)
2015-03 → —
|
6ARFSE ASV51 | — | |
| 90105-C0084 note |
Bolt(FOR CYLINDER HEAD COVER)
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 91551-80635 note |
Bolt(FOR CYLINDER HEAD COVER)
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 91551-A0625 note |
Bolt(FOR CYLINDER HEAD COVER)
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
