Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

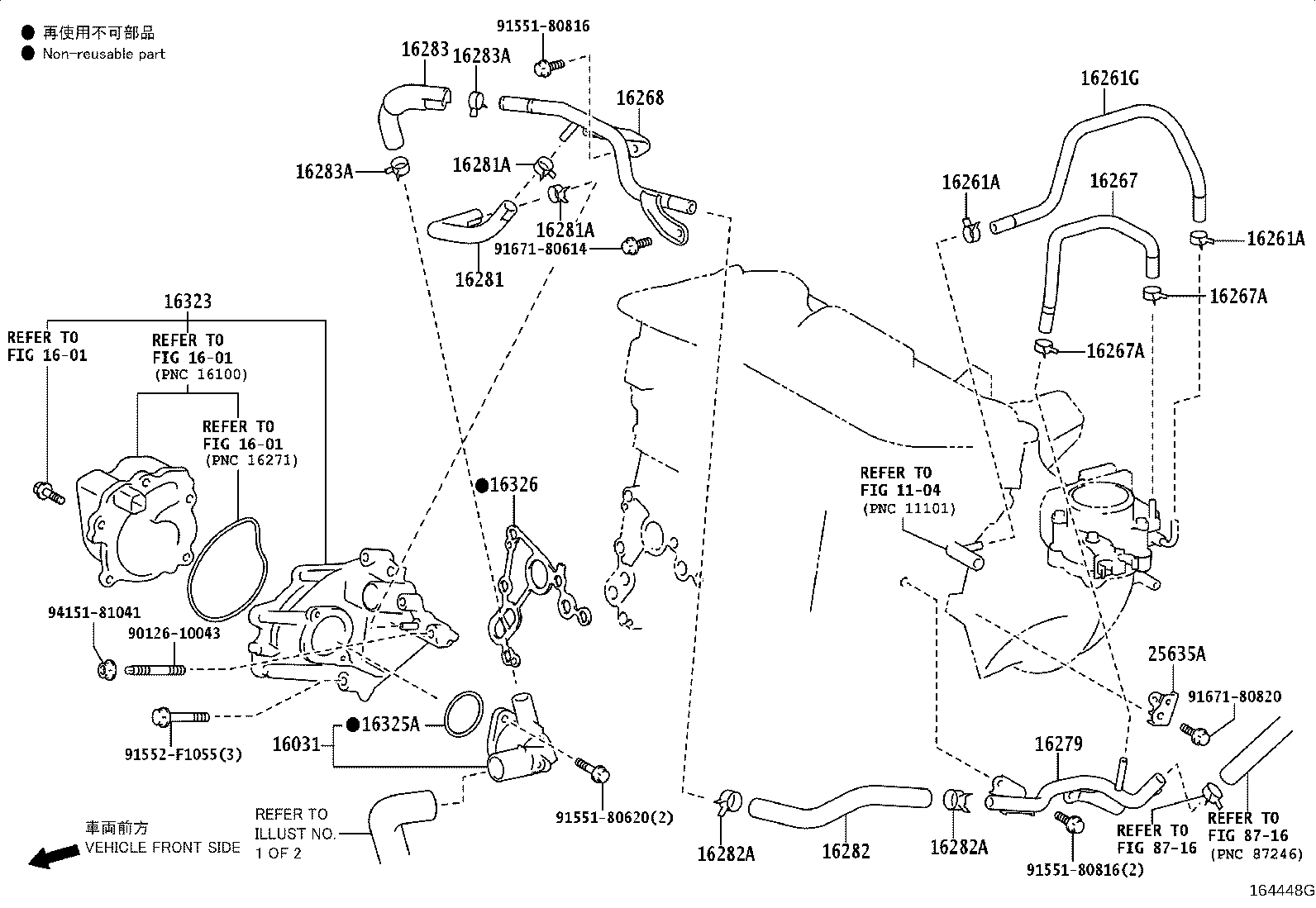

Exploded illustration 164448G 16261G — HOSE, WATER BY-PASS, NO.1 (5 parts) 16267 — HOSE, WATER BY-PASS, NO.3 (7 parts) 16282 — HOSE, WATER BY-PASS, NO.5 (6 parts) 16279 — PIPE, WATER BY-PASS, NO.3 (3 parts) 16283 — HOSE, WATER BY-PASS, NO.6 (3 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (2 parts) 16283A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) (2 parts) 16268 — PIPE, WATER BY-PASS, NO.1 (13 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (2 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (2 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (13 parts) 25635A — BRACKET, EGR PIPE, NO.1 (3 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (13 parts) 1104 — not listed in this catalogue 9167180820 — not listed in this catalogue 9155180816 — not listed in this catalogue 9155180816 — not listed in this catalogue 9167180614 — not listed in this catalogue 8716 — not listed in this catalogue 8716 — not listed in this catalogue 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (6 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (6 parts) 16281 — HOSE, WATER BY-PASS, NO.4 (3 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (3 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (3 parts) 91552F1055 — not listed in this catalogue 9415181041 — not listed in this catalogue 9012610043 — not listed in this catalogue 16326 — GASKET, WATER INLET HOUSING, NO.2 (10 parts) 16325A — GASKET, WATER INLET HOUSING (2 parts) 16031 — WATER INLET SUB-ASSY, W/THERMOSTAT (2 parts) 16323 — HOUSING, WATER INLET (14 parts) 1601 — not listed in this catalogue 1601 — not listed in this catalogue 9155180620 — not listed in this catalogue 1601 — not listed in this catalogue
164448G · 22 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
97 parts on this figure
Part number Description Fitment Price
16031 — Water Inlet Sub-assy, W/Thermostat
16031-36010 Water Inlet Sub-assy, W/Thermostat
2011-08 → 2014-09 ended
2ARFXE AVV50 —
16031-36010 Water Inlet Sub-assy, W/Thermostat
2014-09 → 2017-04 ended
2ARFXE AVV50 —
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
90466-C0026 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2013-06 → 2014-11 ended
2ARFE ASV50 RUP —
96135-51300 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-08 → 2014-11 ended
1AZFE ACV51 —
96136-42701 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2011-08 → 2014-11 ended
2GRFE GSV50 RUP —
96136-42701 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2011-08 → 2014-09 ended
2GRFE GSV50 JPP —
96137-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2011-08 → 2014-09 ended
2ARFXE AVV50 —
96137-41501 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2011-08 → 2014-09 ended
2ARFE ASV50 JPP —
96137-41501 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2011-08 → 2014-11 ended
2ARFE ASV50 RUP —
96137-41501 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2013-06 → 2014-11 ended
2ARFE ASV50 RUP —
90466-C0026 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2014-11 → —
2ARFE ASV50 RUP —
96136-42701 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2014-09 → 2017-04 ended
2GRFE GSV50 JPP —
96136-42701 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2014-09 → —
2GRFE GSV50 RUP —
96137-41501 note Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2014-11 → —
2ARFE ASV50 RUP —
96137-41501 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2014-09 → 2017-04 ended
2AR# ASV50,AVV50 JPP —
16261G — Hose, Water By-pass, NO.1
16261-36040 Hose, Water By-pass, NO.1
2013-10 → 2014-09 ended
2ARFXE AVV50 RHD —
16261-36060 Hose, Water By-pass, NO.1
2011-08 → 2013-10 ended
2ARFXE AVV50 —
16261-36061 Hose, Water By-pass, NO.1
2013-10 → 2014-09 ended
2ARFXE AVV50 LHD —
16261-36040 Hose, Water By-pass, NO.1
2014-09 → 2017-04 ended
2ARFXE AVV50 RHD —
16261-36061 Hose, Water By-pass, NO.1
2014-09 → 2017-04 ended
2ARFXE AVV50 LHD —
16267 — Hose, Water By-pass, NO.3
16267-31040 Hose, Water By-pass, NO.3
2011-08 → 2014-09 ended
2GRFE GSV50 JPP —
16267-31040 Hose, Water By-pass, NO.3
2011-08 → 2014-11 ended
2GRFE GSV50 RUP —
16267-36040 Hose, Water By-pass, NO.3
2011-08 → 2013-10 ended
2ARFXE AVV50 —
16267-36080 Hose, Water By-pass, NO.3
2013-10 → 2014-09 ended
2ARFXE AVV50 —
16267-31040 Hose, Water By-pass, NO.3
2014-09 → 2017-04 ended
2GRFE GSV50 JPP —
16267-31040 Hose, Water By-pass, NO.3
2014-09 → —
2GRFE GSV50 RUP —
16267-36080 Hose, Water By-pass, NO.3
2014-09 → 2017-04 ended
2ARFXE AVV50 —
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2011-08 → 2014-09 ended
2ARFXE AVV50 —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2011-08 → 2014-11 ended
2GRFE GSV50 RUP —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2011-08 → 2014-09 ended
2GRFE GSV50 JPP —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2014-09 → 2017-04 ended
2GRFE GSV50 JPP —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2014-09 → 2017-04 ended
2ARFXE AVV50 —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2014-09 → —
2GRFE GSV50 RUP —
16268 — Pipe, Water By-pass, NO.1
16268-0V050 note Pipe, Water By-pass, NO.1
2013-06 → 2014-11 ended
2ARFE ASV50 RUP —
16268-28070 Pipe, Water By-pass, NO.1
2012-08 → 2014-11 ended
1AZFE ACV51 —
16268-36050 note Pipe, Water By-pass, NO.1
2011-08 → 2014-11 ended
2ARFE ASV50 RUP —
16268-36050 note Pipe, Water By-pass, NO.1
2011-08 → 2014-09 ended
2ARFE ASV50 JPP —
16268-36081 Pipe, Water By-pass, NO.1
2013-10 → 2014-09 ended
2ARFXE AVV50 RHD —
16268-36090 Pipe, Water By-pass, NO.1
2011-08 → 2012-10 ended
2ARFXE AVV50 —
16268-36091 Pipe, Water By-pass, NO.1
2012-10 → 2014-09 ended
2ARFXE AVV50 LHD —
16268-36091 Pipe, Water By-pass, NO.1
2012-10 → 2013-10 ended
2ARFXE AVV50 RHD —
16268-0V040 Pipe, Water By-pass, NO.1
2015-03 → —
6ARFSE ASV51 —
16268-0V050 Pipe, Water By-pass, NO.1
2014-11 → —
2ARFE ASV50 RUP —
16268-36050 Pipe, Water By-pass, NO.1
2014-09 → 2017-04 ended
2ARFE ASV50 JPP —
16268-36081 Pipe, Water By-pass, NO.1
2014-09 → 2017-04 ended
2ARFXE AVV50 RHD —
16268-36091 Pipe, Water By-pass, NO.1
2014-09 → 2017-04 ended
2ARFXE AVV50 LHD —
16279 — Pipe, Water By-pass, NO.3
16279-36021 Pipe, Water By-pass, NO.3
2011-08 → 2013-10 ended
2ARFXE AVV50 RHD —
16279-36021 Pipe, Water By-pass, NO.3
2011-08 → 2014-09 ended
2ARFXE AVV50 LHD —
16279-36021 Pipe, Water By-pass, NO.3
2014-09 → 2017-04 ended
2ARFXE AVV50 LHD —
16281 — Hose, Water By-pass, NO.4
16281-36020 Hose, Water By-pass, NO.4
2011-08 → 2014-09 ended
2ARFXE AVV50 —
16281-36020 Hose, Water By-pass, NO.4
2014-09 → 2017-04 ended
2ARFXE AVV50 —
16281-36140 Hose, Water By-pass, NO.4
2015-03 → —
6ARFSE ASV51 —
16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2011-08 → 2014-09 ended
2ARFXE AVV50 —
90466-C0014 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-03 → —
6ARFSE ASV51 —
96137-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2014-09 → 2017-04 ended
2ARFXE AVV50 —
16282 — Hose, Water By-pass, NO.5
16282-36021 Hose, Water By-pass, NO.5
2013-10 → 2014-01 ended
2ARFXE AVV50 RHD —
16282-36022 Hose, Water By-pass, NO.5
2014-01 → 2014-09 ended
2ARFXE AVV50 RHD —
16282-36040 Hose, Water By-pass, NO.5
2011-08 → 2013-10 ended
2ARFXE AVV50 RHD —
16282-36040 Hose, Water By-pass, NO.5
2011-08 → 2014-09 ended
2ARFXE AVV50 LHD —
16282-36022 Hose, Water By-pass, NO.5
2014-09 → 2017-04 ended
2ARFXE AVV50 RHD —
16282-36040 Hose, Water By-pass, NO.5
2014-09 → 2017-04 ended
2ARFXE AVV50 LHD —
16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
90466-21001 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2011-08 → 2014-09 ended
2ARFXE AVV50 —
90466-21001 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2014-09 → 2017-04 ended
2ARFXE AVV50 —
16283 — Hose, Water By-pass, NO.6
16283-36030 Hose, Water By-pass, NO.6
2011-08 → 2012-09 ended
2ARFXE AVV50 —
16283-36031 Hose, Water By-pass, NO.6
2012-09 → 2014-09 ended
2ARFXE AVV50 —
16283-36031 Hose, Water By-pass, NO.6
2014-09 → 2017-04 ended
2ARFXE AVV50 —
16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
90466-21001 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2011-08 → 2014-09 ended
2ARFXE AVV50 —
90466-21001 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2014-09 → 2017-04 ended
2ARFXE AVV50 —
16323 — Housing, Water Inlet
16032-0V030 note Housing, Water Inlet
2013-06 → 2014-11 ended
2ARFE ASV50 RUP —
16032-36011 note Housing, Water Inlet
2011-08 → 2014-09 ended
2ARFE ASV50 JPP —
16032-36011 note Housing, Water Inlet
2011-08 → 2014-11 ended
2ARFE ASV50 RUP —
16032-36050 Housing, Water Inlet
2011-08 → 2014-09 ended
2ARFXE AVV50 —
16323-0H010 Housing, Water Inlet
2012-08 → 2013-07 ended
1AZFE ACV51 —
16323-0H011 Housing, Water Inlet
2013-07 → 2014-11 ended
1AZFE ACV51 —
16323-31040 Housing, Water Inlet
2011-08 → 2014-11 ended
2GRFE GSV50 RUP —
16323-31040 Housing, Water Inlet
2011-08 → 2014-09 ended
2GRFE GSV50 JPP —
16032-0V020 Housing, Water Inlet
2015-03 → —
6ARFSE ASV51 —
16032-0V030 Housing, Water Inlet
2014-11 → —
2ARFE ASV50 RUP —
16032-36011 Housing, Water Inlet
2014-09 → 2017-04 ended
2ARFE ASV50 JPP —
16032-36050 Housing, Water Inlet
2014-09 → 2017-04 ended
2ARFXE AVV50 —
16323-31040 Housing, Water Inlet
2014-09 → 2017-04 ended
2GRFE GSV50 JPP —
16323-31040 Housing, Water Inlet
2014-09 → —
2GRFE GSV50 RUP —
16325A — Gasket, Water Inlet Housing
16325-36010 Gasket, Water Inlet Housing
2011-08 → 2014-09 ended
2ARFXE AVV50 —
16325-36010 Gasket, Water Inlet Housing
2014-09 → 2017-04 ended
2ARFXE AVV50 —
16326 — Gasket, Water Inlet Housing, NO.2
16325-31010 Gasket, Water Inlet Housing, NO.2
2011-08 → 2014-09 ended
2GRFE GSV50 JPP —
16325-31010 Gasket, Water Inlet Housing, NO.2
2011-08 → 2014-11 ended
2GRFE GSV50 RUP —
16326-36010 note Gasket, Water Inlet Housing, NO.2
2011-08 → 2014-09 ended
2ARFE ASV50 JPP —
16326-36010 note Gasket, Water Inlet Housing, NO.2
2013-06 → 2014-11 ended
2ARFE ASV50 RUP —
16326-36010 note Gasket, Water Inlet Housing, NO.2
2011-08 → 2014-11 ended
2ARFE ASV50 RUP —
16326-36010 Gasket, Water Inlet Housing, NO.2
2011-08 → 2014-09 ended
2ARFXE AVV50 —
16325-31010 Gasket, Water Inlet Housing, NO.2
2014-09 → 2017-04 ended
2GRFE GSV50 JPP —
16325-31010 Gasket, Water Inlet Housing, NO.2
2014-09 → —
2GRFE GSV50 RUP —
16326-36010 Gasket, Water Inlet Housing, NO.2
2014-09 → 2017-04 ended
2AR# ASV50,AVV50 JPP —
16326-36010 Gasket, Water Inlet Housing, NO.2
2014-09 → —
2ARFE,6ARFSE ASV5# RUP —
25635A — Bracket, Egr Pipe, NO.1
25635-36010 Bracket, Egr Pipe, NO.1
2011-08 → 2013-10 ended
2ARFXE AVV50 RHD —
25635-36010 Bracket, Egr Pipe, NO.1
2011-08 → 2014-09 ended
2ARFXE AVV50 LHD —
25635-36010 Bracket, Egr Pipe, NO.1
2014-09 → 2017-04 ended
2ARFXE AVV50 LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
