Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

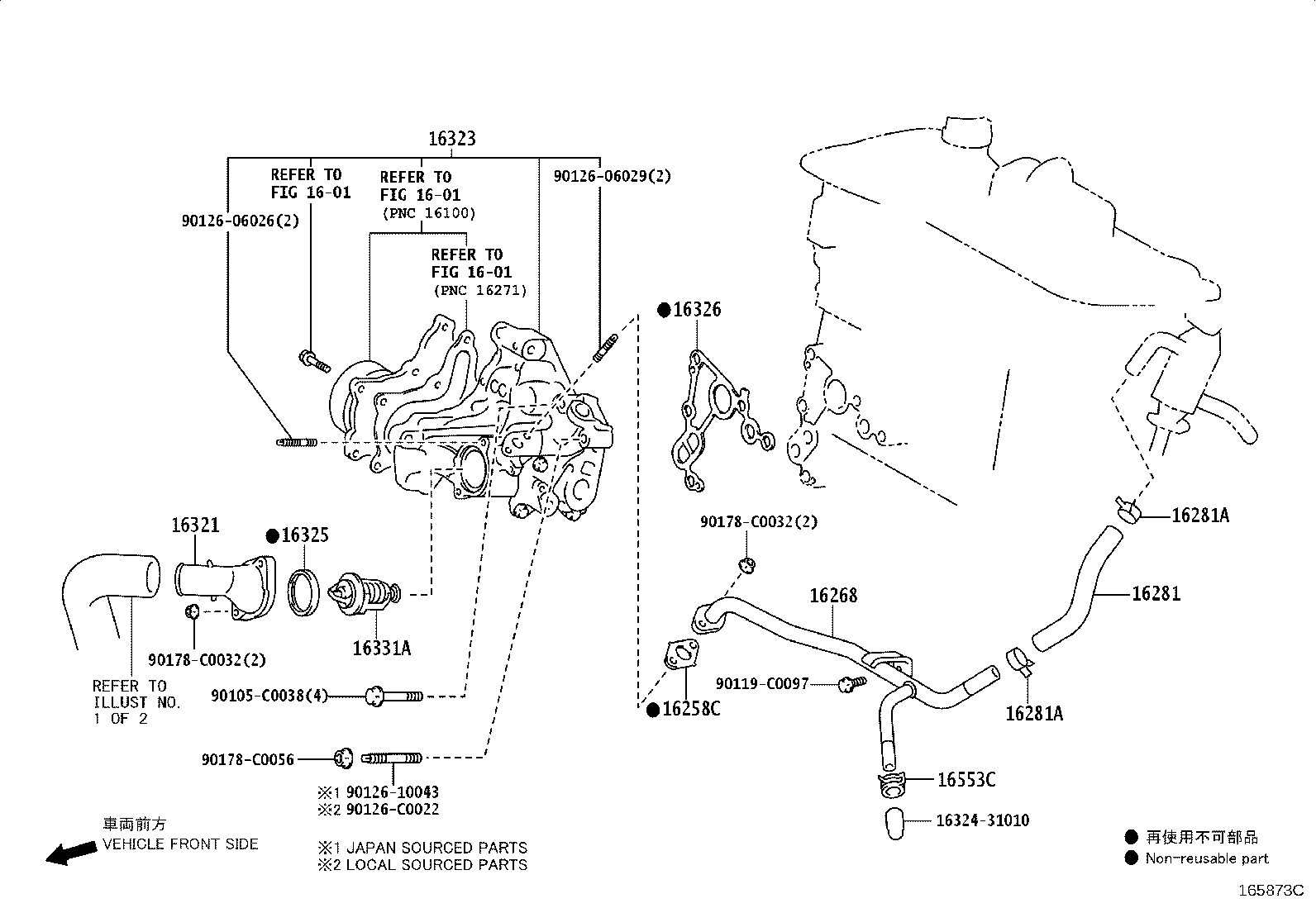

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16258C — Gasket(FOR WATER BY-PASS PIPE) | ||||
| 16258-0V010 note |
Gasket(FOR WATER BY-PASS PIPE)
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16258-36010 note |
Gasket(FOR WATER BY-PASS PIPE)
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 16258-36010 note |
Gasket(FOR WATER BY-PASS PIPE)
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16258-36100 |
Gasket(FOR WATER BY-PASS PIPE)
2013-10 → 2014-09
ended
|
2ARFXE AVV50 RHD | — | |
| 16258-0V010 |
Gasket(FOR WATER BY-PASS PIPE)
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 16258-36010 |
Gasket(FOR WATER BY-PASS PIPE)
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 16258-36100 |
Gasket(FOR WATER BY-PASS PIPE)
2014-09 → 2017-04
ended
|
2ARFXE AVV50 RHD | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-0V050 note |
Pipe, Water By-pass, NO.1
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16268-28070 |
Pipe, Water By-pass, NO.1
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 16268-36050 note |
Pipe, Water By-pass, NO.1
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 16268-36050 note |
Pipe, Water By-pass, NO.1
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16268-36081 |
Pipe, Water By-pass, NO.1
2013-10 → 2014-09
ended
|
2ARFXE AVV50 RHD | — | |
| 16268-36090 |
Pipe, Water By-pass, NO.1
2011-08 → 2012-10
ended
|
2ARFXE AVV50 | — | |
| 16268-36091 |
Pipe, Water By-pass, NO.1
2012-10 → 2013-10
ended
|
2ARFXE AVV50 RHD | — | |
| 16268-36091 |
Pipe, Water By-pass, NO.1
2012-10 → 2014-09
ended
|
2ARFXE AVV50 LHD | — | |
| 16268-0V040 |
Pipe, Water By-pass, NO.1
2015-03 → —
|
6ARFSE ASV51 | — | |
| 16268-0V050 |
Pipe, Water By-pass, NO.1
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 16268-36050 |
Pipe, Water By-pass, NO.1
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 16268-36081 |
Pipe, Water By-pass, NO.1
2014-09 → 2017-04
ended
|
2ARFXE AVV50 RHD | — | |
| 16268-36091 |
Pipe, Water By-pass, NO.1
2014-09 → 2017-04
ended
|
2ARFXE AVV50 LHD | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-36020 |
Hose, Water By-pass, NO.4
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 16281-36020 |
Hose, Water By-pass, NO.4
2014-09 → 2017-04
ended
|
2ARFXE AVV50 | — | |
| 16281-36140 |
Hose, Water By-pass, NO.4
2015-03 → —
|
6ARFSE ASV51 | — | |
| 16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 90466-C0014 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-03 → —
|
6ARFSE ASV51 | — | |
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2014-09 → 2017-04
ended
|
2ARFXE AVV50 | — | |
| 16321 — Inlet, Water | ||||
| 16321-0H060 |
Inlet, Water
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 16321-0V020 note |
Inlet, Water
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16321-31030 |
Inlet, Water
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 16321-31030 |
Inlet, Water
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 16321-36010 note |
Inlet, Water
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 16321-36010 note |
Inlet, Water
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16321-0V020 |
Inlet, Water
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 16321-31030 |
Inlet, Water
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 16321-31030 |
Inlet, Water
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 16321-36010 |
Inlet, Water
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 16323 — Housing, Water Inlet | ||||
| 16032-0V030 note |
Housing, Water Inlet
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16032-36011 note |
Housing, Water Inlet
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16032-36011 note |
Housing, Water Inlet
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 16032-36050 |
Housing, Water Inlet
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 16323-0H010 |
Housing, Water Inlet
2012-08 → 2013-07
ended
|
1AZFE ACV51 | — | |
| 16323-0H011 |
Housing, Water Inlet
2013-07 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 16323-31040 |
Housing, Water Inlet
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 16323-31040 |
Housing, Water Inlet
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 16032-0V020 |
Housing, Water Inlet
2015-03 → —
|
6ARFSE ASV51 | — | |
| 16032-0V030 |
Housing, Water Inlet
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 16032-36011 |
Housing, Water Inlet
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 16032-36050 |
Housing, Water Inlet
2014-09 → 2017-04
ended
|
2ARFXE AVV50 | — | |
| 16323-31040 |
Housing, Water Inlet
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 16323-31040 |
Housing, Water Inlet
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-0H030 note |
Gasket, Water Inlet Housing, NO.1
2014-03 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16325-0H030 |
Gasket, Water Inlet Housing, NO.1
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 16325-28010 note |
Gasket, Water Inlet Housing, NO.1
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16325-28010 note |
Gasket, Water Inlet Housing, NO.1
2014-03 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16325-28010 note |
Gasket, Water Inlet Housing, NO.1
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 16325-28010 note |
Gasket, Water Inlet Housing, NO.1
2013-06 → 2014-03
ended
|
2ARFE ASV50 RUP | — | |
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 16325-0H030 note |
Gasket, Water Inlet Housing, NO.1
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 16325-28010 note |
Gasket, Water Inlet Housing, NO.1
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 16326 — Gasket, Water Inlet Housing, NO.2 | ||||
| 16325-31010 |
Gasket, Water Inlet Housing, NO.2
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 16325-31010 |
Gasket, Water Inlet Housing, NO.2
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 16326-36010 |
Gasket, Water Inlet Housing, NO.2
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 16326-36010 note |
Gasket, Water Inlet Housing, NO.2
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 16326-36010 note |
Gasket, Water Inlet Housing, NO.2
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16326-36010 note |
Gasket, Water Inlet Housing, NO.2
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 16325-31010 |
Gasket, Water Inlet Housing, NO.2
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 16325-31010 |
Gasket, Water Inlet Housing, NO.2
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 16326-36010 |
Gasket, Water Inlet Housing, NO.2
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 16326-36010 |
Gasket, Water Inlet Housing, NO.2
2014-09 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 16331A — Thermostat | ||||
| 90916-03129 note |
Thermostat
2011-08 → 2014-09
ended
|
2ARFE ASV50 JPP | — | |
| 90916-03129 note |
Thermostat
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90916-03140 note |
Thermostat
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 90916-03140 note |
Thermostat
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 90916-C3001 note |
Thermostat
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 90916-C3001 note |
Thermostat
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90916-03129 note |
Thermostat
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 90916-03140 note |
Thermostat
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 90916-03140 note |
Thermostat
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 90916-C3001 note |
Thermostat
2014-11 → —
|
2ARFE,6ARFSE ASV5# RUP | — | |
| 16553C — Clamp, Hose | ||||
| 16581-36040 |
Clamp, Hose
2015-03 → —
|
6ARFSE ASV51 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
