Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

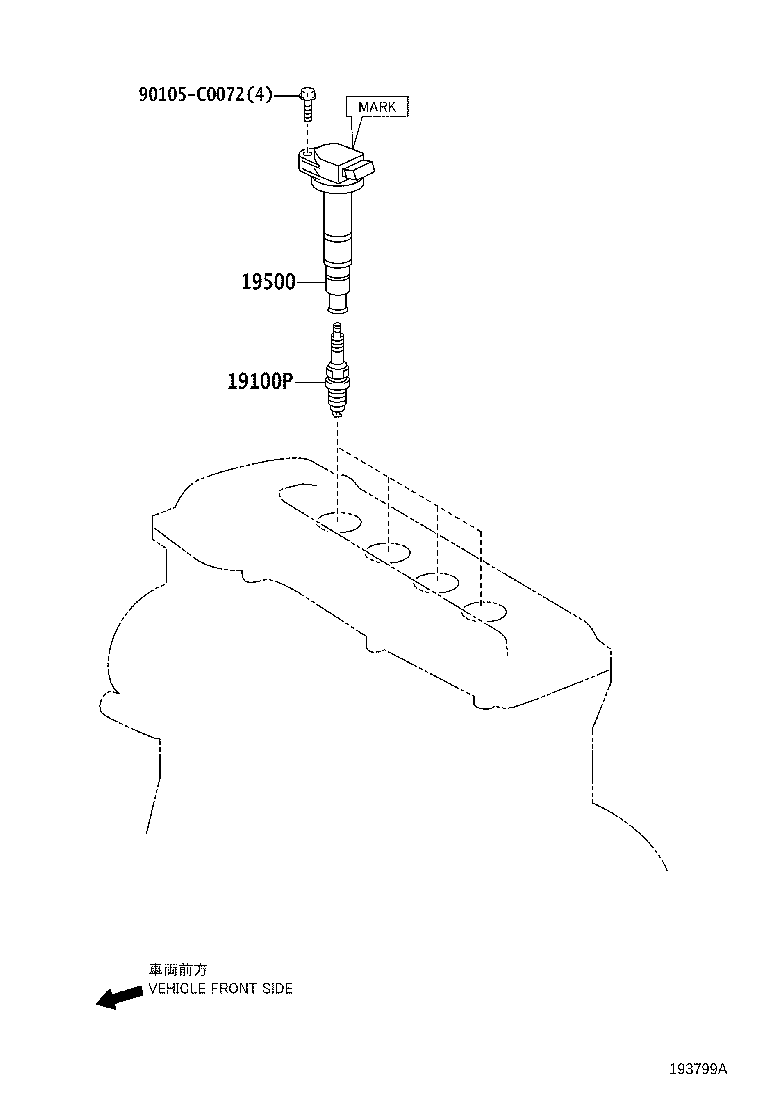

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 90919-01233 note |
Plug, Spark
2011-08 → 2014-11
ended
|
2ARFE ASV50 | — | |
| 90919-01233 note |
Plug, Spark
2014-10 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90919-01240 note |
Plug, Spark
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 90919-01247 note |
Plug, Spark
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 90919-01247 note |
Plug, Spark
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 90919-01259 note |
Plug, Spark
2011-08 → 2014-09
ended
|
2ARFXE AVV50 | — | |
| 90919-C1001 note |
Plug, Spark
2013-06 → 2014-10
ended
|
2ARFE ASV50 RUP | — | |
| 90919-C1001 note |
Plug, Spark
2014-10 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90919-01233 note |
Plug, Spark
2014-09 → 2017-04
ended
|
2ARFE ASV50 JPP | — | |
| 90919-01233 note |
Plug, Spark
2014-12 → —
|
2ARFE ASV50 RUP | — | |
| 90919-01247 note |
Plug, Spark
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 90919-01247 note |
Plug, Spark
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 90919-01259 note |
Plug, Spark
2014-09 → 2017-04
ended
|
2ARFXE AVV50 | — | |
| 90919-01286 note |
Plug, Spark
2015-03 → —
|
6ARFSE ASV51 | — | |
| 90919-C1001 note |
Plug, Spark
2014-11 → 2015-07
ended
|
2ARFE ASV50 RUP | — | |
| 90919-C1006 note |
Plug, Spark
2015-03 → —
|
6ARFSE ASV51 | — | |
| 90919-C1008 note |
Plug, Spark
2015-07 → —
|
2ARFE ASV50 RUP | — | |
| 19500 — Coil Assy, Ignition | ||||
| 90919-02255 |
Coil Assy, Ignition
2011-08 → 2014-09
ended
|
2GRFE GSV50 JPP | — | |
| 90919-02255 |
Coil Assy, Ignition
2011-08 → 2014-11
ended
|
2GRFE GSV50 RUP | — | |
| 90919-02256 note |
Coil Assy, Ignition
2011-08 → 2014-09
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90919-02256 note |
Coil Assy, Ignition
2011-08 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90919-02260 note |
Coil Assy, Ignition
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 90919-C2004 note |
Coil Assy, Ignition
2013-06 → 2014-11
ended
|
2ARFE ASV50 RUP | — | |
| 90919-C2006 note |
Coil Assy, Ignition
2012-08 → 2014-11
ended
|
1AZFE ACV51 | — | |
| 90919-02255 |
Coil Assy, Ignition
2014-09 → 2017-04
ended
|
2GRFE GSV50 JPP | — | |
| 90919-02255 |
Coil Assy, Ignition
2014-09 → —
|
2GRFE GSV50 RUP | — | |
| 90919-02256 |
Coil Assy, Ignition
2014-09 → 2017-04
ended
|
2AR# ASV50,AVV50 JPP | — | |
| 90919-02256 note |
Coil Assy, Ignition
2015-03 → —
|
6ARFSE ASV51 | — | |
| 90919-C2004 |
Coil Assy, Ignition
2014-11 → —
|
2ARFE ASV50 RUP | — | |
| 90919-C2004 note |
Coil Assy, Ignition
2015-03 → —
|
6ARFSE ASV51 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
