Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

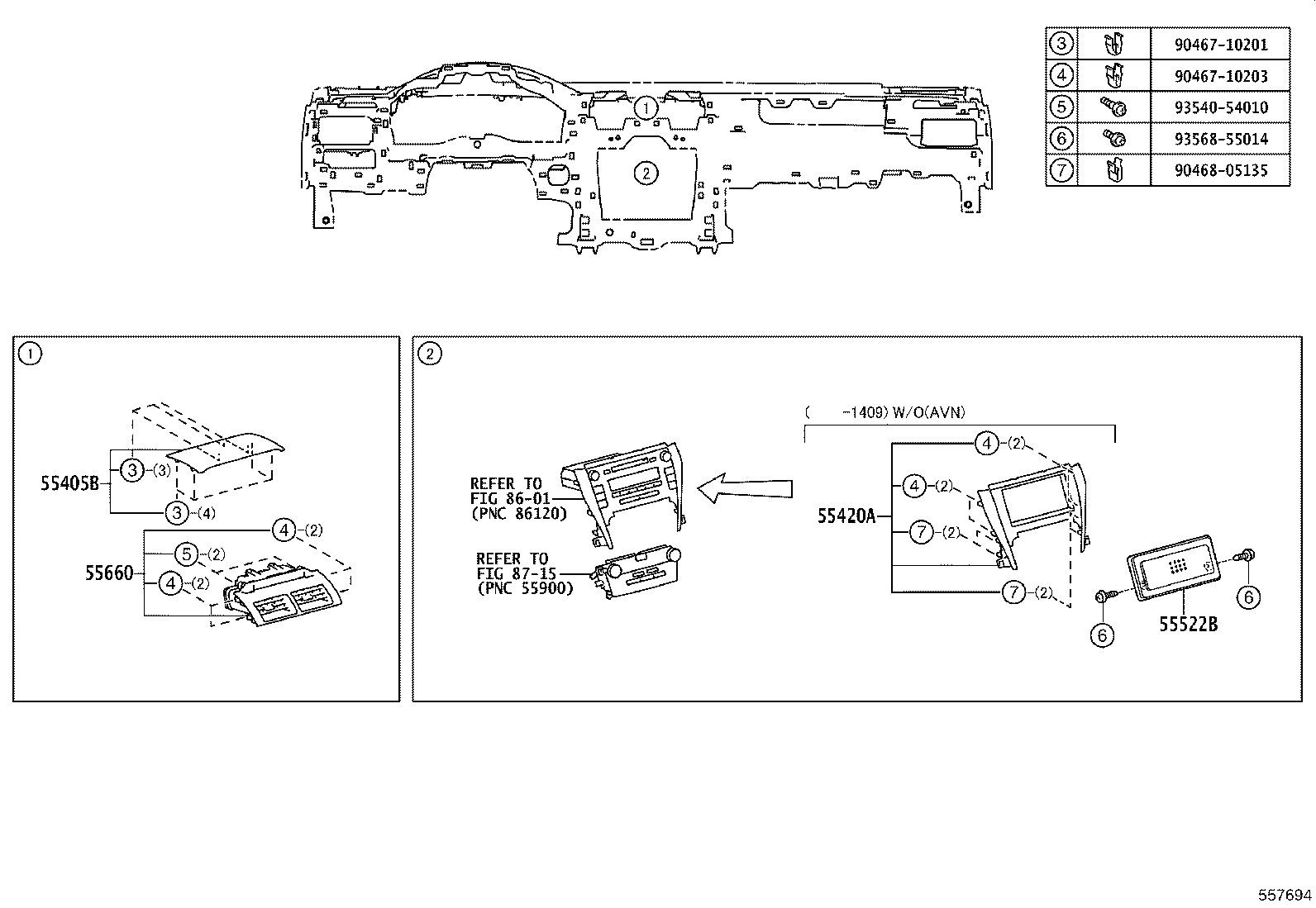

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55405B — Panel Sub-assy, Instrument Cluster Finish, Center | ||||
| 55405-33260-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2011-08 → 2014-11
ended
|
ACV51,ASV50,AVV50,GSV50 | — | |
| 55405-06120-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2014-11 → 2016-01
ended
|
ASV50 RUP | — | |
| 55405-06120-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2014-11 → 2016-01
ended
|
ASV51,GSV50 RUP | — | |
| 55405-06120-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2016-01 → 2018-03
ended
|
ASV50 RUP | — | |
| 55405-06120-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2016-01 → 2018-03
ended
|
ASV51,GSV50 RUP | — | |
| 55405-33260-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2014-09 → 2017-04
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 55405-33260-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2016-01 → 2018-03
ended
|
ASV50 RUP | — | |
| 55405-33260-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2016-01 → 2018-03
ended
|
GSV50 RUP | — | |
| 55405-33260-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2016-01 → 2018-03
ended
|
ASV51 | — | |
| 55420A — Panel Assy, Instrument Cluster Finish, Center | ||||
| 55420-33021 note |
Panel Assy, Instrument Cluster Finish, Center
2012-09 → 2014-09
ended
|
GSV50 EUR | — | |
| 55420-33030 note |
Panel Assy, Instrument Cluster Finish, Center
2015-10 → 2017-04
ended
|
GSV50 EUR | — | |
| 55420-33030 note |
Panel Assy, Instrument Cluster Finish, Center
2017-04 → —
|
ASV50 | — | |
| 55420-33030 note |
Panel Assy, Instrument Cluster Finish, Center
2016-12 → —
|
ASV50 RUP | — | |
| 55522B — Cover, Radio Tuner Opening | ||||
| 55522-52020 note |
Cover, Radio Tuner Opening
2015-10 → 2017-04
ended
|
GSV50 EUR | — | |
| 55522-52020 note |
Cover, Radio Tuner Opening
2016-12 → —
|
ASV50 RUP | — | |
| 55522-52020 note |
Cover, Radio Tuner Opening
2017-04 → —
|
ASV50 | — | |
| 55660 — Register Assy, Instrument Panel, NO.2 | ||||
| 55660-33220-C0 note |
Register Assy, Instrument Panel, NO.2
2011-08 → 2013-06
ended
|
ACV51,ASV50,AVV50,GSV50 | — | |
| 55660-33221-C0 note |
Register Assy, Instrument Panel, NO.2
2013-06 → 2014-11
ended
|
ACV51,ASV50,AVV50,GSV50 | — | |
| 55660-33221-C0 note |
Register Assy, Instrument Panel, NO.2
2014-09 → 2018-03
ended
|
ASV51,GSV50;ASV50,AVV50 JPP | — | |
| 55660-33221-C0 note |
Register Assy, Instrument Panel, NO.2
2014-11 → 2018-03
ended
|
ASV50 RUP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
