Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

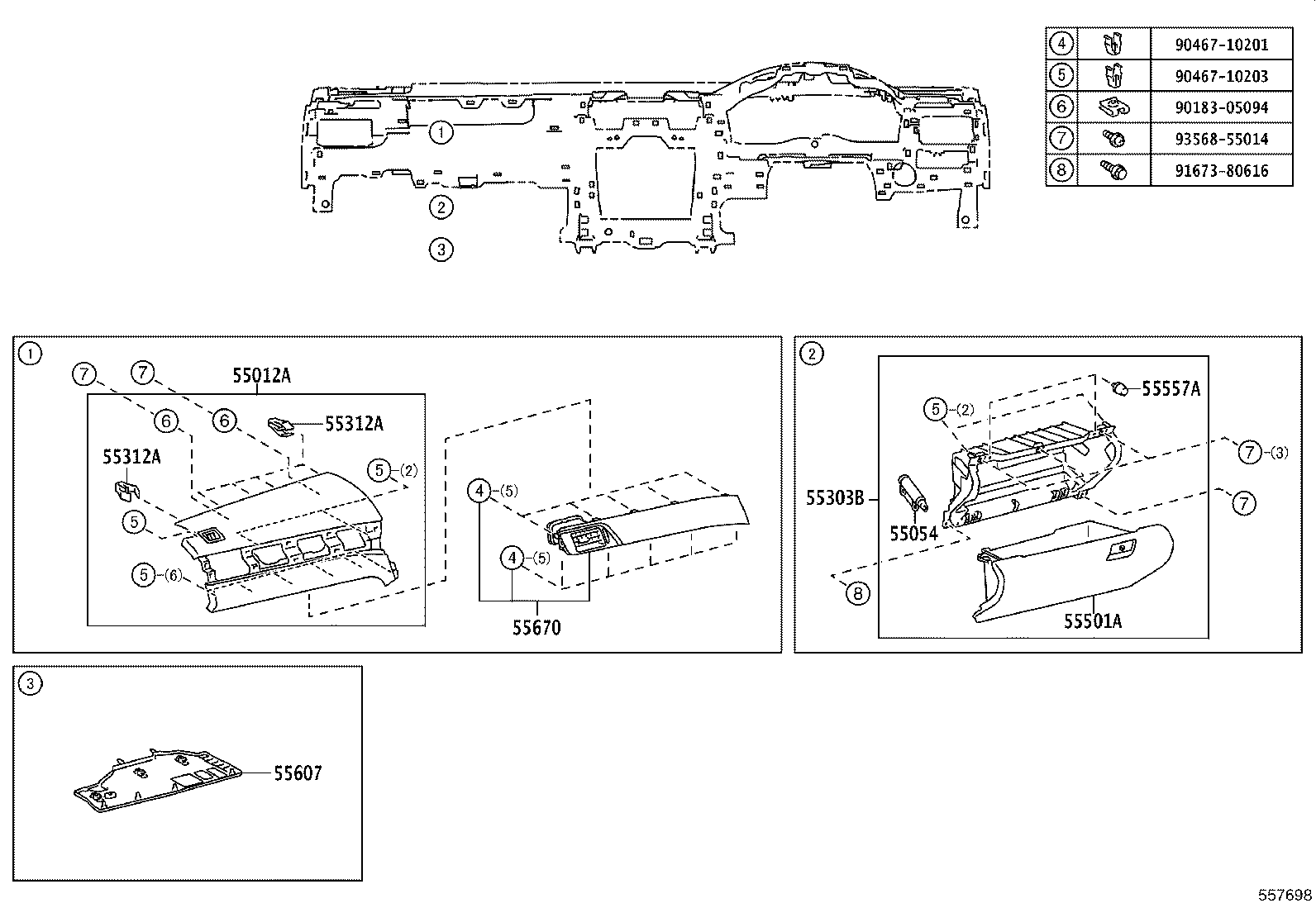

Exploded illustration 557698 9356855014 — not listed in this catalogue 9046710203 — not listed in this catalogue 9018305094 — not listed in this catalogue 9046710201 — not listed in this catalogue 9167380616 — not listed in this catalogue 55312A — CLIP, INSTRUMENT PANEL (2 parts) 55312A — CLIP, INSTRUMENT PANEL (2 parts) 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (13 parts) 55012A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 (6 parts) 55501A — DOOR SUB-ASSY, GLOVE COMPARTMENT (9 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (3 parts) 55670 — REGISTER ASSY, INSTRUMENT PANEL, NO.3 (29 parts) 55303B — PANEL SUB-ASSY, INSTRUMENT, LOWER (17 parts) 55054 — STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR (4 parts)
557698 · 9 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
83 parts on this figure
Part number Description Fitment Price
55012A — Garnish Sub-assy, Instrument Panel, NO.2
55012-33010-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2011-08 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 LHD —
55012-33020-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2011-08 → 2014-09 ended
ASV50,AVV50 RHD —
55012-33030-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2014-09 → 2018-03 ended
ASV50 JPP LHD;AVV50,GSV50 LHD —
55012-33030-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2014-11 → 2018-03 ended
ASV50 RUP —
55012-33030-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2015-03 → 2018-03 ended
ASV51 —
55012-33040-C0 note Garnish Sub-assy, Instrument Panel, NO.2
2014-09 → 2017-04 ended
ASV50,AVV50 RHD —
55054 — Stopper Sub-assy, Glove Compartment Door
55054-20020 Stopper Sub-assy, Glove Compartment Door
2011-08 → 2012-05 ended
ASV50,AVV50,GSV50 —
55054-47010 Stopper Sub-assy, Glove Compartment Door
2012-06 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
55054-47010 Stopper Sub-assy, Glove Compartment Door
2012-06 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
55054-47010 Stopper Sub-assy, Glove Compartment Door
2014-09 → —
ASV5#,AVV50,GSV50 —
55303B — Panel Sub-assy, Instrument, Lower
55303-33200-A0 note Panel Sub-assy, Instrument, Lower
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 LHD —
55303-33200-C0 note Panel Sub-assy, Instrument, Lower
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 LHD —
55303-33210-A0 note Panel Sub-assy, Instrument, Lower
2011-08 → 2014-09 ended
ASV50 RHD —
55303-33210-C0 note Panel Sub-assy, Instrument, Lower
2011-08 → 2014-09 ended
ASV50 RHD —
55303-33220-A0 note Panel Sub-assy, Instrument, Lower
2011-08 → 2014-09 ended
AVV50 LHD —
55303-33220-C0 note Panel Sub-assy, Instrument, Lower
2011-08 → 2014-09 ended
AVV50 LHD —
55303-33230-A0 note Panel Sub-assy, Instrument, Lower
2011-08 → 2014-09 ended
AVV50 RHD —
55303-33230-C0 note Panel Sub-assy, Instrument, Lower
2011-08 → 2014-09 ended
AVV50 RHD —
55303-33200-A1 note Panel Sub-assy, Instrument, Lower
2014-09 → 2018-03 ended
ASV5#,GSV50 LHD —
55303-33200-C0 note Panel Sub-assy, Instrument, Lower
2014-09 → 2018-03 ended
ASV51,GSV50;ASV50 JPP LHD —
55303-33200-C0 note Panel Sub-assy, Instrument, Lower
2014-11 → 2018-03 ended
ASV50 RUP —
55303-33210-A1 note Panel Sub-assy, Instrument, Lower
2014-09 → 2017-04 ended
ASV50 RHD —
55303-33210-C0 note Panel Sub-assy, Instrument, Lower
2014-09 → 2017-04 ended
ASV50 RHD —
55303-33220-A1 note Panel Sub-assy, Instrument, Lower
2014-09 → 2017-04 ended
AVV50 LHD —
55303-33220-C0 note Panel Sub-assy, Instrument, Lower
2014-09 → 2017-04 ended
AVV50 LHD —
55303-33230-A1 note Panel Sub-assy, Instrument, Lower
2014-09 → 2017-04 ended
AVV50 RHD —
55303-33230-C0 note Panel Sub-assy, Instrument, Lower
2014-09 → 2017-04 ended
AVV50 RHD —
55312A — Clip, Instrument Panel
90467-13082-A0 note Clip, Instrument Panel
2011-08 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 —
90467-13082-A0 note Clip, Instrument Panel
2014-09 → 2018-03 ended
ASV5#,AVV50,GSV50 —
55501A — Door Sub-assy, Glove Compartment
55501-33160-A0 note Door Sub-assy, Glove Compartment
2011-08 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 LHD —
55501-33160-C0 note Door Sub-assy, Glove Compartment
2011-08 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 LHD —
55501-33170-A0 note Door Sub-assy, Glove Compartment
2011-08 → 2014-09 ended
ASV50,AVV50 RHD —
55501-33170-C0 note Door Sub-assy, Glove Compartment
2011-08 → 2014-09 ended
ASV50,AVV50 RHD —
55501-33160-A1 note Door Sub-assy, Glove Compartment
2014-09 → 2018-03 ended
ASV5#,AVV50,GSV50 LHD —
55501-33160-C0 note Door Sub-assy, Glove Compartment
2014-09 → 2018-03 ended
ASV50 JPP LHD;ASV51,AVV50,GSV50 LHD —
55501-33160-C0 note Door Sub-assy, Glove Compartment
2014-11 → 2018-03 ended
ASV50 RUP —
55501-33170-A1 note Door Sub-assy, Glove Compartment
2014-09 → 2017-04 ended
ASV50,AVV50 RHD —
55501-33170-C0 note Door Sub-assy, Glove Compartment
2014-09 → 2017-04 ended
ASV50,AVV50 RHD —
55557A — Cushion, Glove Compartment Door Check
55557-60050 Cushion, Glove Compartment Door Check
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
55557-60050 Cushion, Glove Compartment Door Check
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
55557-60050 Cushion, Glove Compartment Door Check
2014-09 → —
ASV5#,AVV50,GSV50 —
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-06280 Cover Sub-assy, Instrument Panel Under, NO.2
2013-11 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
55607-33101 Cover Sub-assy, Instrument Panel Under, NO.2
2011-08 → 2014-09 ended
AVV50 LHD —
55607-33120 Cover Sub-assy, Instrument Panel Under, NO.2
2011-08 → 2014-09 ended
ASV50 RHD —
55607-33130 Cover Sub-assy, Instrument Panel Under, NO.2
2011-08 → 2014-09 ended
AVV50 RHD —
55607-3T031 Cover Sub-assy, Instrument Panel Under, NO.2
2011-08 → 2013-11 ended
ACV51,ASV50,GSV50 RUP —
55607-3T031 Cover Sub-assy, Instrument Panel Under, NO.2
2011-08 → 2014-09 ended
ASV50,GSV50 JPP LHD —
55607-06280 Cover Sub-assy, Instrument Panel Under, NO.2
2014-11 → 2016-01 ended
ASV5#,GSV50 RUP —
55607-06280 note Cover Sub-assy, Instrument Panel Under, NO.2
2016-01 → —
ASV5#,GSV50 RUP —
55607-33101 Cover Sub-assy, Instrument Panel Under, NO.2
2014-09 → 2017-04 ended
AVV50 LHD —
55607-33120 Cover Sub-assy, Instrument Panel Under, NO.2
2014-09 → 2017-04 ended
ASV50 RHD —
55607-33130 Cover Sub-assy, Instrument Panel Under, NO.2
2014-09 → 2017-04 ended
AVV50 RHD —
55607-3T031 Cover Sub-assy, Instrument Panel Under, NO.2
2014-09 → 2017-04 ended
ASV50,GSV50 JPP LHD —
55607-3T031 note Cover Sub-assy, Instrument Panel Under, NO.2
2016-01 → —
ASV5#,GSV50 RUP —
55670 — Register Assy, Instrument Panel, NO.3
55670-33191-C1 note Register Assy, Instrument Panel, NO.3
2011-08 → 2013-06 ended
ACV51,ASV50,GSV50 LHD —
55670-33192-C1 note Register Assy, Instrument Panel, NO.3
2013-06 → 2013-11 ended
ACV51 —
55670-33192-C1 note Register Assy, Instrument Panel, NO.3
2013-06 → 2014-08 ended
ASV50,GSV50 LHD —
55670-33192-E0 note Register Assy, Instrument Panel, NO.3
2014-08 → 2014-11 ended
ASV50,GSV50 LHD —
55670-33201-C0 note Register Assy, Instrument Panel, NO.3
2011-08 → 2013-06 ended
ASV50 RHD —
55670-33202-C0 note Register Assy, Instrument Panel, NO.3
2013-06 → 2014-08 ended
ASV50 RHD —
55670-33202-E0 note Register Assy, Instrument Panel, NO.3
2014-08 → 2014-09 ended
ASV50 RHD —
55670-33211 Register Assy, Instrument Panel, NO.3
2012-08 → 2013-06 ended
ACV51 —
55670-33211-C1 note Register Assy, Instrument Panel, NO.3
2011-08 → 2013-06 ended
AVV50 LHD —
55670-33212-C1 note Register Assy, Instrument Panel, NO.3
2013-11 → 2014-08 ended
ACV51 —
55670-33212-C1 note Register Assy, Instrument Panel, NO.3
2013-06 → 2014-08 ended
AVV50 LHD —
55670-33212-E0 note Register Assy, Instrument Panel, NO.3
2014-08 → 2014-11 ended
ACV51,AVV50 LHD —
55670-33221-C1 note Register Assy, Instrument Panel, NO.3
2011-08 → 2013-06 ended
AVV50 RHD —
55670-33222-C1 note Register Assy, Instrument Panel, NO.3
2013-06 → 2014-08 ended
AVV50 RHD —
55670-33222-E0 note Register Assy, Instrument Panel, NO.3
2014-08 → 2014-09 ended
AVV50 RHD —
55670-33212-E0 note Register Assy, Instrument Panel, NO.3
2015-03 → 2015-12 ended
ASV51 —
55670-33212-E0 note Register Assy, Instrument Panel, NO.3
2014-11 → 2015-12 ended
GSV50 RUP —
55670-33251-E0 note Register Assy, Instrument Panel, NO.3
2014-09 → 2015-10 ended
ASV50 RHD —
55670-33260-E0 note Register Assy, Instrument Panel, NO.3
2014-09 → 2015-10 ended
AVV50 LHD —
55670-33270-E0 note Register Assy, Instrument Panel, NO.3
2014-09 → 2015-12 ended
ASV50,GSV50 RUP —
55670-33270-E0 note Register Assy, Instrument Panel, NO.3
2014-09 → 2015-10 ended
ASV50,GSV50 JPP LHD —
55670-33280-E0 note Register Assy, Instrument Panel, NO.3
2014-09 → 2015-10 ended
AVV50 RHD —
55670-33380-E0 note Register Assy, Instrument Panel, NO.3
2015-10 → —
ASV50,GSV50 JPP LHD —
55670-33380-E0 note Register Assy, Instrument Panel, NO.3
2015-12 → —
ASV50,GSV50 RUP —
55670-33390-E0 note Register Assy, Instrument Panel, NO.3
2015-10 → 2017-04 ended
ASV50 RHD —
55670-33400-E0 note Register Assy, Instrument Panel, NO.3
2015-12 → 2017-04 ended
GSV50 RUP —
55670-33400-E0 note Register Assy, Instrument Panel, NO.3
2015-12 → 2018-03 ended
ASV51 —
55670-33410-E0 note Register Assy, Instrument Panel, NO.3
2015-10 → 2017-04 ended
AVV50 LHD —
55670-33420-E0 note Register Assy, Instrument Panel, NO.3
2015-10 → 2017-04 ended
AVV50 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
