Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

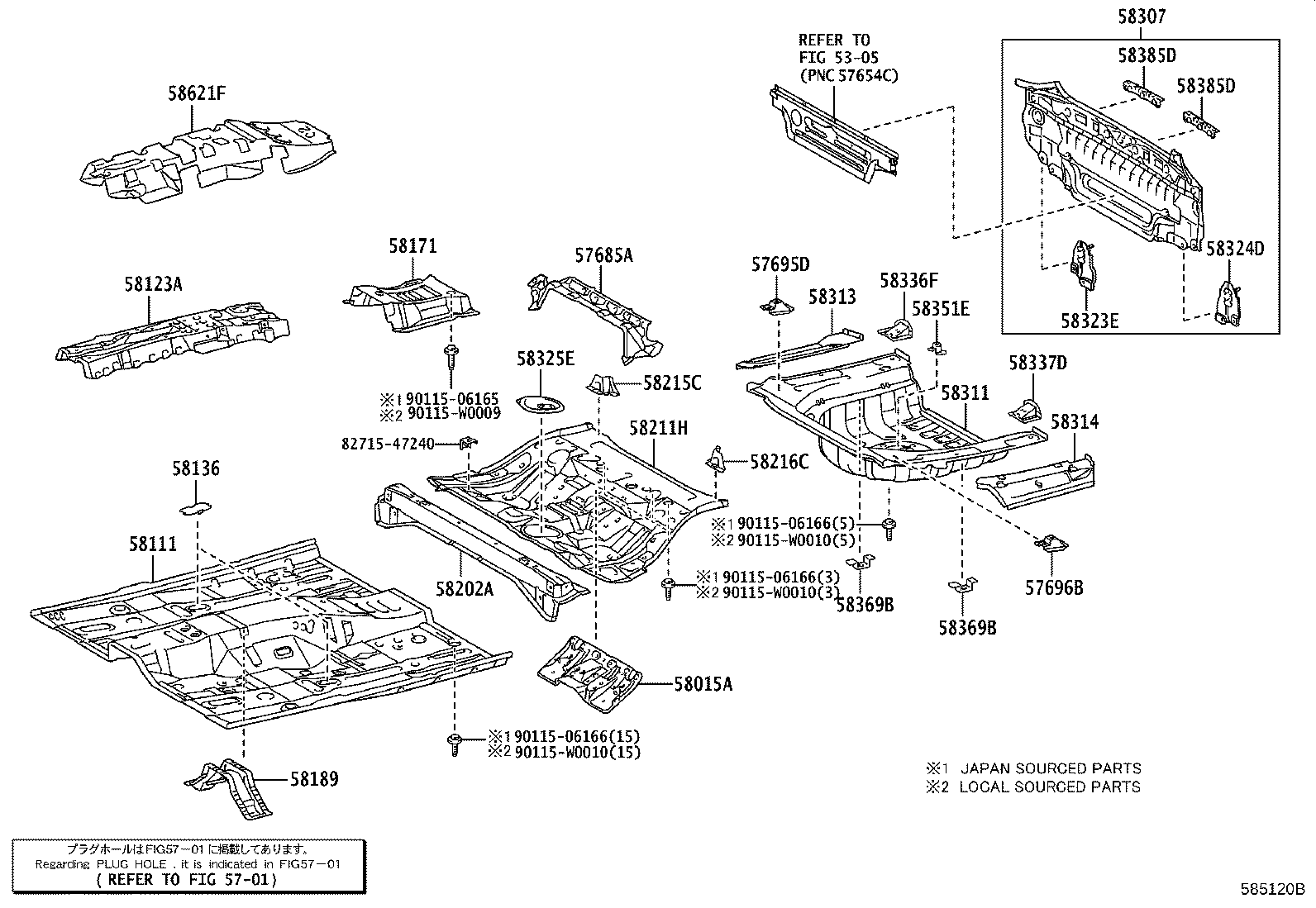

Exploded illustration 585120B 58015A — REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH (16 parts) 58111 — PAN, FRONT FLOOR (4 parts) 58123A — SUPPORT, SHIFT & SELECT LEVER (5 parts) 58136 — COVER, FRONT FLOOR HOLE (2 parts) 58171 — REINFORCEMENT, PARKING BRAKE BASE (4 parts) 58189 — REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET (5 parts) 58202A — PAN SUB-ASSY, CENTER FLOOR, FRONT (4 parts) 58211H — PAN, CENTER FLOOR (6 parts) 58215C — REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH (4 parts) 58216C — REINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH (4 parts) 58311 — PAN, REAR FLOOR (5 parts) 58313 — PANEL, REAR FLOOR SIDE, RH (6 parts) 58314 — PANEL, REAR FLOOR SIDE, LH (4 parts) 58325E — COVER, REAR FLOOR SERVICE HOLE (4 parts) 58336F — REINFORCEMENT, REAR FLOOR PAN, RH (4 parts) 58337D — REINFORCEMENT, REAR FLOOR PAN, LH (4 parts) 58351E — BRACKET, SPARE WHEEL CLAMP (4 parts) 58369B — BRACKET, FUEL TUBE, NO.3 (4 parts) 58369B — BRACKET, FUEL TUBE, NO.3 (4 parts) 58621F — SILENCER, CENTER CONSOLE, NO.1 (4 parts) 9011506165 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 57685A — BRACKET, REAR FLOOR MOUNTING, NO.1 RH (2 parts) 57695D — BRACKET, REAR FLOOR MOUNTING, NO.2 RH (2 parts) 57696B — BRACKET, REAR FLOOR MOUNTING, NO.2 LH (2 parts) 8271547240 — not listed in this catalogue 5701 — not listed in this catalogue 9011506166 — not listed in this catalogue 90115W0010 — not listed in this catalogue 90115W0010 — not listed in this catalogue 90115W0010 — not listed in this catalogue 90115W0009 — not listed in this catalogue 58307 — PANEL SUB-ASSY, BODY LOWER BACK (4 parts) 58323E — REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH (4 parts) 58324D — REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH (4 parts) 58385D — BRACKET, REAR BUMPER COVER (4 parts) 58385D — BRACKET, REAR BUMPER COVER (4 parts) 5305 — not listed in this catalogue
585120B · 28 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
115 parts on this figure
Part number Description Fitment Price
57685A — Bracket, Rear Floor Mounting, NO.1 RH
57685-33010 Bracket, Rear Floor Mounting, NO.1 RH
2011-08 → 2014-09 ended
AVV50 —
57685-33010 Bracket, Rear Floor Mounting, NO.1 RH
2014-09 → 2017-04 ended
AVV50 —
57695D — Bracket, Rear Floor Mounting, NO.2 RH
57695-33020 Bracket, Rear Floor Mounting, NO.2 RH
2011-08 → 2014-09 ended
AVV50 —
57695-33020 Bracket, Rear Floor Mounting, NO.2 RH
2014-09 → 2017-04 ended
AVV50 —
57696B — Bracket, Rear Floor Mounting, NO.2 LH
57695-33020 Bracket, Rear Floor Mounting, NO.2 LH
2011-08 → 2014-09 ended
AVV50 —
57695-33020 Bracket, Rear Floor Mounting, NO.2 LH
2014-09 → 2017-04 ended
AVV50 —
58015A — Reinforce Sub-assy, Belt Anchor, NO.3 RH
58015-33030 Reinforce Sub-assy, Belt Anchor, NO.3 RH
2011-08 → 2014-09 ended
ASV50,AVV50 JPP —
58015-33030 Reinforce Sub-assy, Belt Anchor, NO.3 RH
2011-08 → 2014-11 ended
ACV51,ASV50 RUP —
58015-33030 note Reinforce Sub-assy, Belt Anchor, NO.3 RH
2013-11 → 2014-11 ended
GSV50 RUP —
58015-33041 Reinforce Sub-assy, Belt Anchor, NO.3 RH
2011-08 → 2014-09 ended
GSV50 JPP —
58015-33041 note Reinforce Sub-assy, Belt Anchor, NO.3 RH
2011-08 → 2014-09 ended
ASV50 JPP RUS —
58015-33041 note Reinforce Sub-assy, Belt Anchor, NO.3 RH
2011-08 → 2014-09 ended
ASV50 JPP RUS —
58015-33041 Reinforce Sub-assy, Belt Anchor, NO.3 RH
2011-08 → 2014-11 ended
GSV50 RUP —
58015-33041 note Reinforce Sub-assy, Belt Anchor, NO.3 RH
2012-11 → 2014-11 ended
ASV50 RUP —
58015-33030 note Reinforce Sub-assy, Belt Anchor, NO.3 RH
2014-11 → 2017-01 ended
GSV50 RUP —
58015-33030 Reinforce Sub-assy, Belt Anchor, NO.3 RH
2014-09 → 2017-04 ended
ASV50,AVV50 JPP —
58015-33030 Reinforce Sub-assy, Belt Anchor, NO.3 RH
2014-09 → —
ASV5# RUP —
58015-33041 note Reinforce Sub-assy, Belt Anchor, NO.3 RH
2014-09 → 2017-04 ended
ASV50 JPP RUS —
58015-33041 note Reinforce Sub-assy, Belt Anchor, NO.3 RH
2014-11 → —
ASV50 RUP —
58015-33041 Reinforce Sub-assy, Belt Anchor, NO.3 RH
2014-09 → —
GSV50 RUP —
58015-33041 note Reinforce Sub-assy, Belt Anchor, NO.3 RH
2014-09 → 2017-04 ended
ASV50 JPP RUS —
58015-33041 Reinforce Sub-assy, Belt Anchor, NO.3 RH
2014-09 → 2017-04 ended
GSV50 JPP —
58111 — Pan, Front Floor
58111-33070 Pan, Front Floor
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58111-33070 Pan, Front Floor
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58111-33070 Pan, Front Floor
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58111-33070 Pan, Front Floor
2014-09 → —
ASV5#,GSV50 RUP —
58123A — Support, Shift & Select Lever
58013-33070 Support, Shift & Select Lever
2011-08 → 2012-12 ended
ACV51,ASV50,AVV50,GSV50 —
58013-33070 Support, Shift & Select Lever
2013-01 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58013-33070 Support, Shift & Select Lever
2013-01 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58013-33070 Support, Shift & Select Lever
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58013-33070 Support, Shift & Select Lever
2014-09 → —
ASV5#,GSV50 RUP —
58136 — Cover, Front Floor Hole
58136-33010 Cover, Front Floor Hole
2011-08 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 —
58136-33010 Cover, Front Floor Hole
2014-09 → 2018-03 ended
ASV5#,AVV50,GSV50 —
58171 — Reinforcement, Parking Brake Base
58171-33080 Reinforcement, Parking Brake Base
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58171-33080 Reinforcement, Parking Brake Base
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58171-33080 Reinforcement, Parking Brake Base
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58171-33080 Reinforcement, Parking Brake Base
2014-09 → —
ASV5#,GSV50 RUP —
58189 — Reinforcement, Exhaust Pipe Clamp Bracket
58189-33050 Reinforcement, Exhaust Pipe Clamp Bracket
2012-12 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58189-33050 Reinforcement, Exhaust Pipe Clamp Bracket
2012-12 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58189-33070 Reinforcement, Exhaust Pipe Clamp Bracket
2011-08 → 2012-11 ended
ACV51,ASV50,AVV50,GSV50 —
58189-33050 Reinforcement, Exhaust Pipe Clamp Bracket
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58189-33050 Reinforcement, Exhaust Pipe Clamp Bracket
2014-09 → —
ASV5#,GSV50 RUP —
58202A — Pan Sub-assy, Center Floor, Front
58202-33010 Pan Sub-assy, Center Floor, Front
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58202-33010 Pan Sub-assy, Center Floor, Front
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58202-33010 Pan Sub-assy, Center Floor, Front
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58202-33010 Pan Sub-assy, Center Floor, Front
2014-09 → —
ASV5#,GSV50 RUP —
58211H — Pan, Center Floor
58211-33142 Pan, Center Floor
2011-08 → 2014-09 ended
ASV50,GSV50 JPP —
58211-33142 Pan, Center Floor
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58211-33160 Pan, Center Floor
2011-08 → 2014-09 ended
AVV50 —
58211-33142 Pan, Center Floor
2014-09 → 2017-04 ended
ASV50,GSV50 JPP —
58211-33142 Pan, Center Floor
2014-09 → —
ASV5#,GSV50 RUP —
58211-33160 Pan, Center Floor
2014-09 → 2017-04 ended
AVV50 —
58215C — Reinforcement, Center Floor Panel, NO.2 RH
58215-33040 Reinforcement, Center Floor Panel, NO.2 RH
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58215-33040 Reinforcement, Center Floor Panel, NO.2 RH
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58215-33040 Reinforcement, Center Floor Panel, NO.2 RH
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58215-33040 Reinforcement, Center Floor Panel, NO.2 RH
2014-09 → —
ASV5#,GSV50 RUP —
58216C — Reinforcement, Center Floor Panel, NO.2 LH
58216-33030 Reinforcement, Center Floor Panel, NO.2 LH
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58216-33030 Reinforcement, Center Floor Panel, NO.2 LH
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58216-33030 Reinforcement, Center Floor Panel, NO.2 LH
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58216-33030 Reinforcement, Center Floor Panel, NO.2 LH
2014-09 → —
ASV5#,GSV50 RUP —
58307 — Panel Sub-assy, Body Lower Back
58307-33160 Panel Sub-assy, Body Lower Back
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58307-33160 Panel Sub-assy, Body Lower Back
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58307-33160 Panel Sub-assy, Body Lower Back
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58307-33160 Panel Sub-assy, Body Lower Back
2014-09 → —
ASV5#,GSV50 RUP —
58311 — Pan, Rear Floor
58311-06180 Pan, Rear Floor
2012-06 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58311-33071 Pan, Rear Floor
2011-08 → 2012-06 ended
ASV50,GSV50 RUP —
58311-33071 Pan, Rear Floor
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58311-06180 Pan, Rear Floor
2014-11 → —
ASV5#,GSV50 RUP —
58311-33071 Pan, Rear Floor
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58313 — Panel, Rear Floor Side, RH
58313-33050 Panel, Rear Floor Side, RH
2011-08 → 2014-09 ended
ASV50,GSV50 JPP —
58313-33050 Panel, Rear Floor Side, RH
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58313-33060 Panel, Rear Floor Side, RH
2011-08 → 2014-09 ended
AVV50 —
58313-33050 Panel, Rear Floor Side, RH
2014-09 → 2017-04 ended
ASV50,GSV50 JPP —
58313-33050 Panel, Rear Floor Side, RH
2014-09 → —
ASV5#,GSV50 RUP —
58313-33060 Panel, Rear Floor Side, RH
2014-09 → 2017-04 ended
AVV50 —
58314 — Panel, Rear Floor Side, LH
58314-33060 Panel, Rear Floor Side, LH
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58314-33060 Panel, Rear Floor Side, LH
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58314-33060 Panel, Rear Floor Side, LH
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58314-33060 Panel, Rear Floor Side, LH
2014-09 → —
ASV5#,GSV50 RUP —
58323E — Reinforcement, Rear Bumper Arm Support, RH
58323-33080 Reinforcement, Rear Bumper Arm Support, RH
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58323-33080 Reinforcement, Rear Bumper Arm Support, RH
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58323-33080 Reinforcement, Rear Bumper Arm Support, RH
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58323-33080 Reinforcement, Rear Bumper Arm Support, RH
2014-09 → —
ASV5#,GSV50 RUP —
58324D — Reinforcement, Rear Bumper Arm Support, LH
58324-33060 Reinforcement, Rear Bumper Arm Support, LH
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58324-33060 Reinforcement, Rear Bumper Arm Support, LH
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58324-33060 Reinforcement, Rear Bumper Arm Support, LH
2014-09 → —
ASV5#,GSV50 RUP —
58324-33060 Reinforcement, Rear Bumper Arm Support, LH
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58325E — Cover, Rear Floor Service Hole
58325-33050 Cover, Rear Floor Service Hole
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58325-33050 Cover, Rear Floor Service Hole
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58325-33050 Cover, Rear Floor Service Hole
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58325-33050 Cover, Rear Floor Service Hole
2014-09 → —
ASV5#,GSV50 RUP —
58336F — Reinforcement, Rear Floor Pan, RH
58336-33020 Reinforcement, Rear Floor Pan, RH
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58336-33020 Reinforcement, Rear Floor Pan, RH
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58336-33020 Reinforcement, Rear Floor Pan, RH
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58336-33020 Reinforcement, Rear Floor Pan, RH
2014-09 → —
ASV5#,GSV50 RUP —
58337D — Reinforcement, Rear Floor Pan, LH
58337-33030 Reinforcement, Rear Floor Pan, LH
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58337-33030 Reinforcement, Rear Floor Pan, LH
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58337-33030 Reinforcement, Rear Floor Pan, LH
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58337-33030 Reinforcement, Rear Floor Pan, LH
2014-09 → —
ASV5#,GSV50 RUP —
58351E — Bracket, Spare Wheel Clamp
58351-33010 Bracket, Spare Wheel Clamp
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58351-33010 Bracket, Spare Wheel Clamp
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58351-33010 Bracket, Spare Wheel Clamp
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58351-33010 Bracket, Spare Wheel Clamp
2014-09 → —
ASV5#,GSV50 RUP —
58369B — Bracket, Fuel Tube, NO.3
58369-32010 Bracket, Fuel Tube, NO.3
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58369-32010 Bracket, Fuel Tube, NO.3
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58369-32010 Bracket, Fuel Tube, NO.3
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58369-32010 Bracket, Fuel Tube, NO.3
2014-09 → —
ASV5#,GSV50 RUP —
58385D — Bracket, Rear Bumper Cover
58385-33050 Bracket, Rear Bumper Cover
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58385-33050 Bracket, Rear Bumper Cover
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58385-33050 Bracket, Rear Bumper Cover
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58385-33050 Bracket, Rear Bumper Cover
2014-09 → —
ASV5#,GSV50 RUP —
58621F — Silencer, Center Console, NO.1
58621-33090 Silencer, Center Console, NO.1
2011-08 → 2013-11 ended
ACV51,ASV50,GSV50 RUP —
58621-33090 Silencer, Center Console, NO.1
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58621-06140 Silencer, Center Console, NO.1
2014-11 → —
ASV5#,GSV50 RUP —
58621-33090 Silencer, Center Console, NO.1
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
