Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

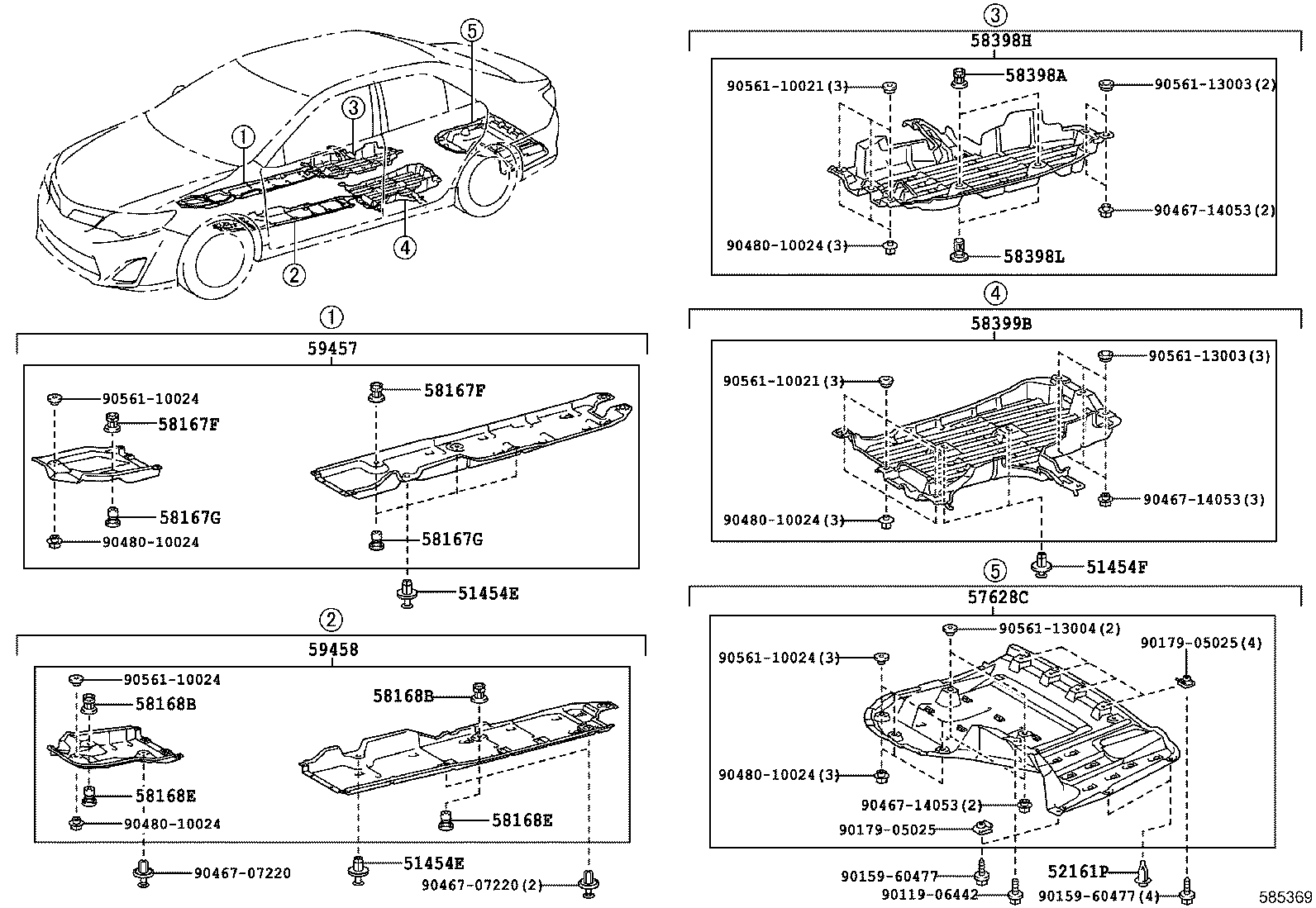

Exploded illustration 585369 51454E — SILENCER, FRONT FLOOR COVER (4 parts) 51454E — SILENCER, FRONT FLOOR COVER (4 parts) 59457 — COVER, FRONT FLOOR FOOTREST, NO.2 RH (6 parts) 59458 — COVER, FRONT FLOOR FOOTREST, NO.2 LH (4 parts) 58398H — COVER, FLOOR UNDER, NO.1 (4 parts) 58399B — COVER, FLOOR UNDER, NO.2 (4 parts) 57628C — COVER, REAR FLOOR SIDE MEMBER, LH (2 parts) 52161P — PIECE, REAR BUMPER (2 parts) 9015960477 — not listed in this catalogue 9015960477 — not listed in this catalogue 9011906442 — not listed in this catalogue 9017905025 — not listed in this catalogue 9017905025 — not listed in this catalogue 9046707220 — not listed in this catalogue 9046707220 — not listed in this catalogue 9048010024 — not listed in this catalogue 9056110024 — not listed in this catalogue 9048010024 — not listed in this catalogue 9056110024 — not listed in this catalogue 9048010024 — not listed in this catalogue 9056110024 — not listed in this catalogue 9046714053 — not listed in this catalogue 9056113004 — not listed in this catalogue 58167F — CLIP, NO.1(FOR FLOOR UNDER COVER) (3 parts) 58167F — CLIP, NO.1(FOR FLOOR UNDER COVER) (3 parts) 58167G — CLIP, NO.2(FOR FLOOR UNDER COVER) (3 parts) 58167G — CLIP, NO.2(FOR FLOOR UNDER COVER) (3 parts) 58168B — CLIP, NO.1(FOR FLOOR UNDER COVER) (3 parts) 58168B — CLIP, NO.1(FOR FLOOR UNDER COVER) (3 parts) 58168E — CLIP, NO.2(FOR FLOOR UNDER COVER) (3 parts) 58168E — CLIP, NO.2(FOR FLOOR UNDER COVER) (3 parts) 9046714053 — not listed in this catalogue 9048010024 — not listed in this catalogue 9056110021 — not listed in this catalogue 9056110021 — not listed in this catalogue 9056113003 — not listed in this catalogue 9056113003 — not listed in this catalogue 58398A — CLIP, NO.3(FOR FLOOR UNDER COVER) (3 parts) 58398L — CLIP, NO.4(FOR FLOOR UNDER COVER) (3 parts) 9048010024 — not listed in this catalogue 9046714053 — not listed in this catalogue 51454F — SILENCER, REAR FLOOR COVER (4 parts)
585369 · 19 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
51454E — Silencer, Front Floor Cover
51454-08010 Silencer, Front Floor Cover
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
51454-08010 Silencer, Front Floor Cover
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
51454-08010 Silencer, Front Floor Cover
2014-09 → —
ASV5#,GSV50 RUP —
51454-08010 Silencer, Front Floor Cover
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
51454F — Silencer, Rear Floor Cover
51453-33010 Silencer, Rear Floor Cover
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
51453-33010 Silencer, Rear Floor Cover
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
51453-33010 Silencer, Rear Floor Cover
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
51453-33010 Silencer, Rear Floor Cover
2014-09 → —
ASV5#,GSV50 RUP —
52161P — Piece, Rear Bumper
52161-16010 Piece, Rear Bumper
2011-08 → 2014-09 ended
AVV50 —
52161-16010 Piece, Rear Bumper
2014-09 → 2017-04 ended
AVV50 —
57628C — Cover, Rear Floor Side Member, LH
57628-33080 Cover, Rear Floor Side Member, LH
2011-08 → 2014-09 ended
AVV50 —
57628-33100 Cover, Rear Floor Side Member, LH
2014-09 → 2017-04 ended
AVV50 —
58167F — Clip, NO.1(FOR FLOOR UNDER COVER)
90467-17024-A0 note Clip, NO.1(FOR FLOOR UNDER COVER)
2011-08 → 2012-09 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17026-A0 note Clip, NO.1(FOR FLOOR UNDER COVER)
2012-10 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17026-A0 note Clip, NO.1(FOR FLOOR UNDER COVER)
2014-09 → 2018-03 ended
ASV5#,AVV50,GSV50 —
58167G — Clip, NO.2(FOR FLOOR UNDER COVER)
90467-17025-C0 note Clip, NO.2(FOR FLOOR UNDER COVER)
2011-08 → 2012-09 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17027-C0 note Clip, NO.2(FOR FLOOR UNDER COVER)
2012-10 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17027-C0 note Clip, NO.2(FOR FLOOR UNDER COVER)
2014-09 → 2018-03 ended
ASV5#,AVV50,GSV50 —
58168B — Clip, NO.1(FOR FLOOR UNDER COVER)
90467-17024-A0 note Clip, NO.1(FOR FLOOR UNDER COVER)
2011-08 → 2012-09 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17026-A0 note Clip, NO.1(FOR FLOOR UNDER COVER)
2012-10 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17026-A0 note Clip, NO.1(FOR FLOOR UNDER COVER)
2014-09 → 2018-03 ended
ASV5#,AVV50,GSV50 —
58168E — Clip, NO.2(FOR FLOOR UNDER COVER)
90467-17025-C0 note Clip, NO.2(FOR FLOOR UNDER COVER)
2011-08 → 2012-09 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17027-C0 note Clip, NO.2(FOR FLOOR UNDER COVER)
2012-10 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17027-C0 note Clip, NO.2(FOR FLOOR UNDER COVER)
2014-09 → 2018-03 ended
ASV5#,AVV50,GSV50 —
58398A — Clip, NO.3(FOR FLOOR UNDER COVER)
90467-17024-A0 note Clip, NO.3(FOR FLOOR UNDER COVER)
2011-08 → 2012-09 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17026-A0 note Clip, NO.3(FOR FLOOR UNDER COVER)
2012-10 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17026-A0 note Clip, NO.3(FOR FLOOR UNDER COVER)
2014-09 → 2018-03 ended
ASV5#,AVV50,GSV50 —
58398H — Cover, Floor Under, NO.1
58398-33020 Cover, Floor Under, NO.1
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58398-33020 Cover, Floor Under, NO.1
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58398-33020 Cover, Floor Under, NO.1
2014-11 → —
ASV5#,GSV50 RUP —
58398-33040 Cover, Floor Under, NO.1
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
58398L — Clip, NO.4(FOR FLOOR UNDER COVER)
90467-17025-C0 note Clip, NO.4(FOR FLOOR UNDER COVER)
2011-08 → 2012-09 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17027-C0 note Clip, NO.4(FOR FLOOR UNDER COVER)
2012-10 → 2014-11 ended
ACV51,ASV50,AVV50,GSV50 —
90467-17027-C0 note Clip, NO.4(FOR FLOOR UNDER COVER)
2014-09 → 2018-03 ended
ASV5#,AVV50,GSV50 —
58399B — Cover, Floor Under, NO.2
58399-33030 Cover, Floor Under, NO.2
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
58399-33030 Cover, Floor Under, NO.2
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
58399-33030 Cover, Floor Under, NO.2
2014-11 → —
ASV5#,GSV50 RUP —
58399-33050 Cover, Floor Under, NO.2
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
59457 — Cover, Front Floor Footrest, NO.2 RH
59407-33010 Cover, Front Floor Footrest, NO.2 RH
2011-08 → 2014-09 ended
ASV50,GSV50 JPP —
59407-33010 Cover, Front Floor Footrest, NO.2 RH
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
59407-33020 Cover, Front Floor Footrest, NO.2 RH
2011-08 → 2014-09 ended
AVV50 —
59407-33010 Cover, Front Floor Footrest, NO.2 RH
2014-09 → 2017-04 ended
ASV50,GSV50 JPP —
59407-33010 Cover, Front Floor Footrest, NO.2 RH
2014-09 → —
ASV5#,GSV50 RUP —
59407-33020 Cover, Front Floor Footrest, NO.2 RH
2014-09 → 2017-04 ended
AVV50 —
59458 — Cover, Front Floor Footrest, NO.2 LH
59408-33010 Cover, Front Floor Footrest, NO.2 LH
2011-08 → 2014-09 ended
ASV50,AVV50,GSV50 JPP —
59408-33010 Cover, Front Floor Footrest, NO.2 LH
2011-08 → 2014-11 ended
ACV51,ASV50,GSV50 RUP —
59408-33010 Cover, Front Floor Footrest, NO.2 LH
2014-09 → 2017-04 ended
ASV50,AVV50,GSV50 JPP —
59408-33010 Cover, Front Floor Footrest, NO.2 LH
2014-09 → —
ASV5#,GSV50 RUP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
