Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

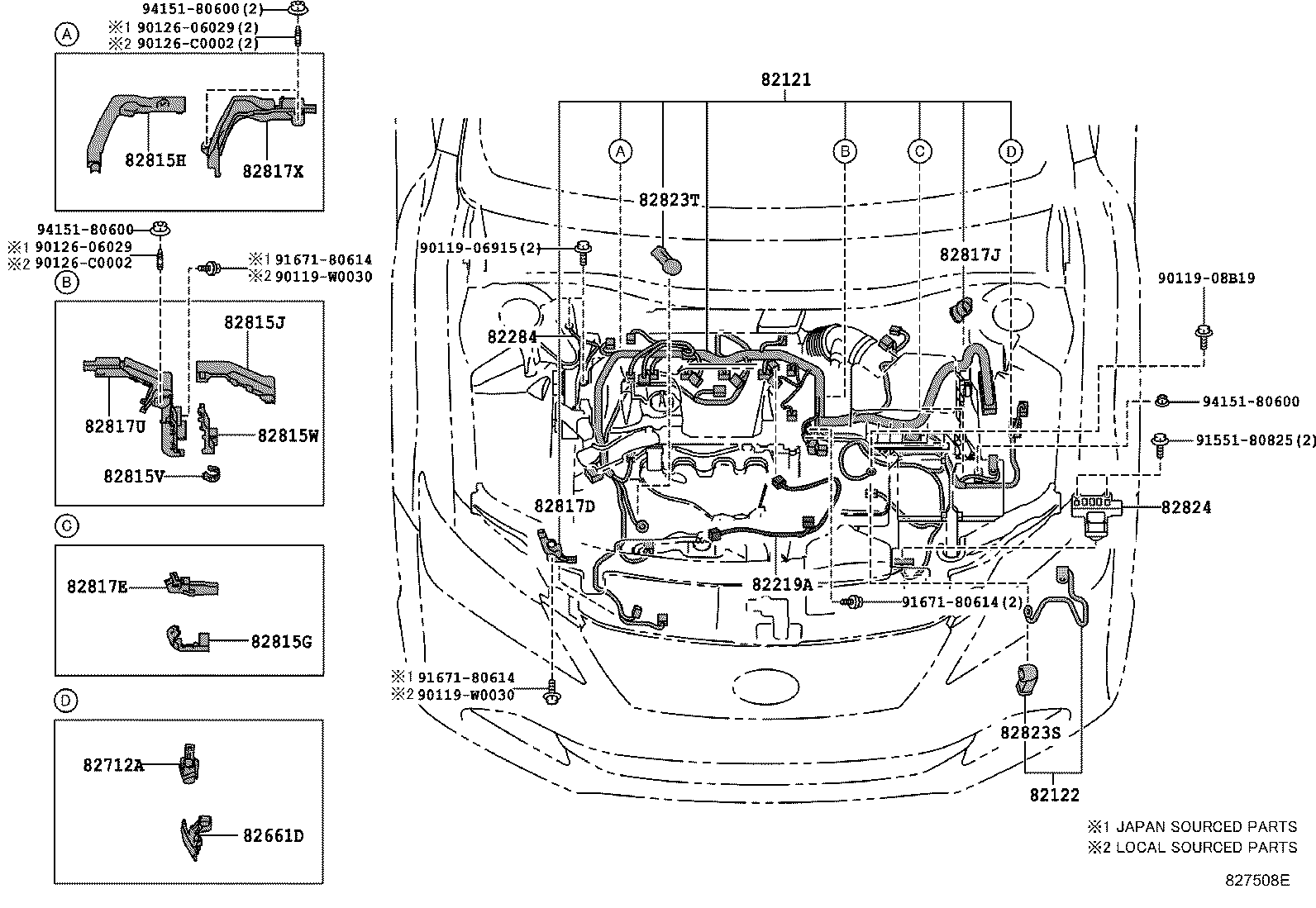

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-06E00 |
Wire, Engine
2011-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82121-06F60 |
Wire, Engine
2012-08 → 2014-11
ended
|
ACV51 | — | |
| 82121-06F90 note |
Wire, Engine
2012-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82121-33D00 |
Wire, Engine
2011-08 → 2014-09
ended
|
ASV50 JPP | — | |
| 82121-33D10 note |
Wire, Engine
2014-04 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82121-33D10 note |
Wire, Engine
2011-08 → 2014-09
ended
|
ASV50 RHD | — | |
| 82121-33D10 note |
Wire, Engine
2011-08 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82121-33D30 |
Wire, Engine
2011-08 → 2014-11
ended
|
GSV50 | — | |
| 82121-33D50 |
Wire, Engine
2013-11 → 2014-09
ended
|
AVV50 RHD | — | |
| 82121-33D70 |
Wire, Engine
2011-08 → 2014-09
ended
|
AVV50 LHD | — | |
| 82121-33D70 |
Wire, Engine
2011-08 → 2013-11
ended
|
AVV50 RHD | — | |
| 82121-06E00 |
Wire, Engine
2014-11 → 2015-12
ended
|
ASV50 RUP | — | |
| 82121-06F90 note |
Wire, Engine
2014-11 → 2015-12
ended
|
ASV50 RUP | — | |
| 82121-06K80 |
Wire, Engine
2015-03 → 2015-12
ended
|
ASV51 | — | |
| 82121-06K90 note |
Wire, Engine
2014-11 → 2015-12
ended
|
ASV50 RUP | — | |
| 82121-06L00 |
Wire, Engine
2014-11 → 2015-12
ended
|
GSV50 RUP | — | |
| 82121-06P80 |
Wire, Engine
2015-12 → —
|
ASV51 | — | |
| 82121-06P90 |
Wire, Engine
2015-12 → —
|
ASV50 RUP | — | |
| 82121-06Q00 note |
Wire, Engine
2015-12 → —
|
ASV50 RUP | — | |
| 82121-06Q10 note |
Wire, Engine
2015-12 → —
|
ASV50 RUP | — | |
| 82121-06Q20 |
Wire, Engine
2015-12 → —
|
GSV50 RUP | — | |
| 82121-33D00 |
Wire, Engine
2014-09 → 2015-10
ended
|
ASV50 JPP | — | |
| 82121-33D10 note |
Wire, Engine
2014-09 → 2015-10
ended
|
ASV50 LHD EUR | — | |
| 82121-33D10 note |
Wire, Engine
2014-09 → 2015-10
ended
|
ASV50 RHD | — | |
| 82121-33D10 note |
Wire, Engine
2014-09 → 2015-10
ended
|
ASV50 LHD EUR | — | |
| 82121-33D30 |
Wire, Engine
2014-09 → 2015-10
ended
|
GSV50 JPP | — | |
| 82121-33D50 |
Wire, Engine
2014-09 → 2017-04
ended
|
AVV50 RHD | — | |
| 82121-33D70 |
Wire, Engine
2014-09 → 2017-04
ended
|
AVV50 LHD | — | |
| 82121-33J60 |
Wire, Engine
2015-10 → 2017-04
ended
|
ASV50 EUR | — | |
| 82121-33J60 note |
Wire, Engine
2015-10 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82121-33J70 note |
Wire, Engine
2015-10 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82121-33J70 note |
Wire, Engine
2015-10 → 2017-04
ended
|
ASV50 RHD | — | |
| 82121-33J70 note |
Wire, Engine
2015-10 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82121-33J70 |
Wire, Engine
2015-10 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82121-33J80 |
Wire, Engine
2015-10 → 2017-04
ended
|
GSV50 JPP | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-33100 |
Wire, Engine, NO.2
2011-08 → 2014-11
ended
|
ACV51,ASV50,GSV50 | — | |
| 82122-33100 |
Wire, Engine, NO.2
2014-09 → —
|
ASV5#,GSV50 | — | |
| 82219A — Wire, Sensor | ||||
| 82219-06020 note |
Wire, Sensor
2013-04 → 2014-11
ended
|
ASV50 RUP | — | |
| 82219-06020 note |
Wire, Sensor
2013-04 → 2014-09
ended
|
ASV50 JPP | — | |
| 82219-33060 |
Wire, Sensor
2011-08 → 2014-09
ended
|
AVV50 | — | |
| 82219-33090 |
Wire, Sensor
2011-08 → 2013-04
ended
|
ASV50 | — | |
| 82219-33090 note |
Wire, Sensor
2013-04 → 2014-09
ended
|
ASV50 JPP | — | |
| 82219-33090 note |
Wire, Sensor
2013-04 → 2014-11
ended
|
ASV50 RUP | — | |
| 82219-41010 |
Wire, Sensor
2011-08 → 2014-09
ended
|
GSV50 JPP | — | |
| 82219-41010 |
Wire, Sensor
2011-08 → 2014-11
ended
|
GSV50 RUP | — | |
| 82219-73010 note |
Wire, Sensor
2011-08 → 2014-09
ended
|
ASV50 RHD | — | |
| 82219-73010 note |
Wire, Sensor
2014-04 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82219-73010 note |
Wire, Sensor
2011-08 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82219-06020 note |
Wire, Sensor
2014-09 → 2015-10
ended
|
ASV50 JPP RUS | — | |
| 82219-06020 note |
Wire, Sensor
2014-09 → 2015-12
ended
|
ASV50 RUP | — | |
| 82219-06020 note |
Wire, Sensor
2014-09 → 2017-04
ended
|
ASV50 EUR | — | |
| 82219-06020 note |
Wire, Sensor
2015-10 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82219-06060 note |
Wire, Sensor
2015-12 → —
|
ASV50 RUS | — | |
| 82219-06060 note |
Wire, Sensor
2015-12 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82219-06060 note |
Wire, Sensor
2015-12 → 2017-04
ended
|
ASV50 RHD | — | |
| 82219-06060 note |
Wire, Sensor
2015-12 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82219-33060 |
Wire, Sensor
2014-09 → 2017-04
ended
|
AVV50 | — | |
| 82219-33090 note |
Wire, Sensor
2014-09 → 2015-10
ended
|
ASV50 JPP RUS | — | |
| 82219-33090 note |
Wire, Sensor
2015-10 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82219-33090 note |
Wire, Sensor
2014-09 → 2017-04
ended
|
ASV50 EUR | — | |
| 82219-33090 note |
Wire, Sensor
2014-09 → 2015-12
ended
|
ASV50 RUP | — | |
| 82219-41010 |
Wire, Sensor
2014-09 → —
|
GSV50 | — | |
| 82219-73010 note |
Wire, Sensor
2015-10 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82219-73010 note |
Wire, Sensor
2015-12 → —
|
ASV50 RUP | — | |
| 82219-73010 note |
Wire, Sensor
2014-09 → 2015-10
ended
|
ASV50 LHD EUR | — | |
| 82219-73010 note |
Wire, Sensor
2015-10 → —
|
ASV50 JPP RUS | — | |
| 82219-73010 note |
Wire, Sensor
2014-09 → 2015-10
ended
|
ASV50 RHD | — | |
| 82219-73010 note |
Wire, Sensor
2014-09 → 2015-10
ended
|
ASV50 LHD EUR | — | |
| 82219-73010 note |
Wire, Sensor
2015-10 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82219-73010 note |
Wire, Sensor
2015-10 → 2017-04
ended
|
ASV50 RHD | — | |
| 82284 — Wire, Earth | ||||
| 82284-06010 |
Wire, Earth
2011-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82284-06020 |
Wire, Earth
2011-11 → 2014-11
ended
|
GSV50 RUP | — | |
| 82284-33020 |
Wire, Earth
2011-08 → 2014-09
ended
|
ASV50 JPP LHD | — | |
| 82284-33040 |
Wire, Earth
2011-08 → 2014-09
ended
|
GSV50 JPP | — | |
| 82284-33050 |
Wire, Earth
2011-08 → 2014-09
ended
|
AVV50 | — | |
| 82284-33060 |
Wire, Earth
2011-08 → 2014-09
ended
|
ASV50 RHD | — | |
| 82284-06010 |
Wire, Earth
2014-11 → —
|
ASV50 RUP | — | |
| 82284-06020 |
Wire, Earth
2014-11 → —
|
GSV50 RUP | — | |
| 82284-06250 |
Wire, Earth
2015-03 → —
|
ASV51 | — | |
| 82284-33020 |
Wire, Earth
2014-09 → 2017-04
ended
|
ASV50 JPP LHD | — | |
| 82284-33040 |
Wire, Earth
2014-09 → 2017-04
ended
|
GSV50 JPP | — | |
| 82284-33050 |
Wire, Earth
2014-09 → 2017-04
ended
|
AVV50 | — | |
| 82284-33060 |
Wire, Earth
2014-09 → 2017-04
ended
|
ASV50 RHD | — | |
| 82661D — Cover, Relay Block, Side NO.1 | ||||
| 82661-33020 |
Cover, Relay Block, Side NO.1
2011-08 → 2014-11
ended
|
ACV51,ASV50,GSV50 RUP | — | |
| 82661-33020 |
Cover, Relay Block, Side NO.1
2011-08 → 2014-09
ended
|
ASV50,GSV50 JPP | — | |
| 82661-33020 |
Cover, Relay Block, Side NO.1
2014-09 → —
|
ASV50,GSV50 | — | |
| 82712A — Support, Wiring Harness | ||||
| 82712-33080 |
Support, Wiring Harness
2011-08 → 2014-09
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 82712-33080 |
Support, Wiring Harness
2011-08 → 2014-11
ended
|
ACV51,ASV50,GSV50 RUP | — | |
| 82712-33080 |
Support, Wiring Harness
2014-09 → —
|
ASV50,AVV50,GSV50 | — | |
| 82815G — Cover, Wiring Harness Protector NO.5 | ||||
| 82815-33500 |
Cover, Wiring Harness Protector NO.5
2011-08 → 2014-09
ended
|
AVV50 | — | |
| 82815-33710 |
Cover, Wiring Harness Protector NO.5
2011-08 → 2014-09
ended
|
ASV50,GSV50 JPP | — | |
| 82815-33710 |
Cover, Wiring Harness Protector NO.5
2011-08 → 2014-11
ended
|
ASV50,GSV50 RUP | — | |
| 82815-33760 |
Cover, Wiring Harness Protector NO.5
2012-08 → 2014-11
ended
|
ACV51 | — | |
| 82815-33500 |
Cover, Wiring Harness Protector NO.5
2014-09 → 2017-04
ended
|
AVV50 | — | |
| 82815-33710 |
Cover, Wiring Harness Protector NO.5
2014-09 → —
|
ASV50,GSV50 | — | |
| 82815-33870 |
Cover, Wiring Harness Protector NO.5
2015-03 → —
|
ASV51 | — | |
| 82815H — Cover, Wiring Harness Protector NO.6 | ||||
| 82815-33510 |
Cover, Wiring Harness Protector NO.6
2011-08 → 2014-09
ended
|
AVV50 | — | |
| 82815-33640 |
Cover, Wiring Harness Protector NO.6
2011-08 → 2014-09
ended
|
GSV50 JPP | — | |
| 82815-33640 |
Cover, Wiring Harness Protector NO.6
2011-08 → 2014-11
ended
|
GSV50 RUP | — | |
| 82815-33770 |
Cover, Wiring Harness Protector NO.6
2011-08 → 2014-09
ended
|
ASV50 JPP | — | |
| 82815-33770 |
Cover, Wiring Harness Protector NO.6
2011-08 → 2014-11
ended
|
ASV50 RUP | — | |
| 82815-33510 |
Cover, Wiring Harness Protector NO.6
2014-09 → 2017-04
ended
|
AVV50 | — | |
| 82815-33640 |
Cover, Wiring Harness Protector NO.6
2014-09 → —
|
GSV50 | — | |
| 82815-33770 |
Cover, Wiring Harness Protector NO.6
2014-09 → —
|
ASV50 | — | |
| 82815-33860 |
Cover, Wiring Harness Protector NO.6
2015-03 → —
|
ASV51 | — | |
| 82815J — Cover, Wiring Harness Protector, NO.7 | ||||
| 82815-33520 |
Cover, Wiring Harness Protector, NO.7
2011-08 → 2014-09
ended
|
AVV50 | — | |
| 82815-33650 |
Cover, Wiring Harness Protector, NO.7
2011-08 → 2014-09
ended
|
GSV50 JPP | — | |
| 82815-33650 |
Cover, Wiring Harness Protector, NO.7
2011-08 → 2014-11
ended
|
GSV50 RUP | — | |
| 82815-33780 |
Cover, Wiring Harness Protector, NO.7
2011-08 → 2014-09
ended
|
ASV50 JPP | — | |
| 82815-33780 |
Cover, Wiring Harness Protector, NO.7
2011-08 → 2014-11
ended
|
ASV50 RUP | — | |
| 82815-33520 |
Cover, Wiring Harness Protector, NO.7
2014-09 → 2017-04
ended
|
AVV50 | — | |
| 82815-33650 |
Cover, Wiring Harness Protector, NO.7
2014-09 → —
|
GSV50 | — | |
| 82815-33780 |
Cover, Wiring Harness Protector, NO.7
2014-09 → —
|
ASV50 | — | |
| 82815V — Cover, Wiring Harness Protector, NO.1 | ||||
| 82815-0T090 |
Cover, Wiring Harness Protector, NO.1
2012-03 → 2014-09
ended
|
ASV50 JPP | — | |
| 82815-0T090 |
Cover, Wiring Harness Protector, NO.1
2012-03 → 2014-11
ended
|
ASV50 RUP | — | |
| 82815-0T090 |
Cover, Wiring Harness Protector, NO.1
2014-09 → —
|
ASV50 | — | |
| 82815W — Cover, Wiring Harness Protector, NO.2 | ||||
| 82815-0T060 |
Cover, Wiring Harness Protector, NO.2
2012-03 → 2014-09
ended
|
ASV50 JPP | — | |
| 82815-0T060 |
Cover, Wiring Harness Protector, NO.2
2012-03 → 2014-11
ended
|
ASV50 RUP | — | |
| 82815-0T060 |
Cover, Wiring Harness Protector, NO.2
2014-09 → —
|
ASV50 | — | |
| 82815-33880 |
Cover, Wiring Harness Protector, NO.2
2015-03 → —
|
ASV51 | — | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-33770 |
Protector, Wiring Harness, NO.5
2012-08 → 2014-11
ended
|
ACV51 | — | |
| 82817-33D80 |
Protector, Wiring Harness, NO.5
2011-08 → 2014-09
ended
|
AVV50 | — | |
| 82817-33E60 |
Protector, Wiring Harness, NO.5
2011-08 → 2014-09
ended
|
ASV50 JPP | — | |
| 82817-33E60 |
Protector, Wiring Harness, NO.5
2011-08 → 2014-11
ended
|
ASV50 RUP | — | |
| 82817-33K50 |
Protector, Wiring Harness, NO.5
2011-08 → 2014-11
ended
|
GSV50 RUP | — | |
| 82817-33K50 |
Protector, Wiring Harness, NO.5
2011-08 → 2014-09
ended
|
GSV50 JPP | — | |
| 82817-33D80 |
Protector, Wiring Harness, NO.5
2014-09 → 2017-04
ended
|
AVV50 | — | |
| 82817-33E60 |
Protector, Wiring Harness, NO.5
2014-09 → —
|
ASV50 | — | |
| 82817-33K50 |
Protector, Wiring Harness, NO.5
2014-09 → —
|
GSV50 | — | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-33D90 |
Protector, Wiring Harness, NO.6
2011-08 → 2014-09
ended
|
AVV50 | — | |
| 82817-33J20 |
Protector, Wiring Harness, NO.6
2011-08 → 2014-09
ended
|
ASV50,GSV50 JPP | — | |
| 82817-33J20 |
Protector, Wiring Harness, NO.6
2011-08 → 2014-11
ended
|
ASV50,GSV50 RUP | — | |
| 82817-33K20 |
Protector, Wiring Harness, NO.6
2012-08 → 2014-11
ended
|
ACV51 | — | |
| 82817-33D90 |
Protector, Wiring Harness, NO.6
2014-09 → 2017-04
ended
|
AVV50 | — | |
| 82817-33J20 |
Protector, Wiring Harness, NO.6
2014-09 → —
|
ASV50,GSV50 | — | |
| 82817-33M60 |
Protector, Wiring Harness, NO.6
2015-03 → —
|
ASV51 | — | |
| 82817J — Protector, Wiring Harness, NO.9 | ||||
| 82817-33E20 |
Protector, Wiring Harness, NO.9
2011-08 → 2014-09
ended
|
AVV50 | — | |
| 82817-33K70 |
Protector, Wiring Harness, NO.9
2011-08 → 2014-09
ended
|
ASV50,GSV50 JPP | — | |
| 82817-33K70 |
Protector, Wiring Harness, NO.9
2011-08 → 2014-11
ended
|
ACV51,ASV50,GSV50 RUP | — | |
| 82817-33E20 |
Protector, Wiring Harness, NO.9
2014-09 → 2017-04
ended
|
AVV50 | — | |
| 82817-33K70 |
Protector, Wiring Harness, NO.9
2014-09 → —
|
ASV50,GSV50 | — | |
| 82817-33M50 |
Protector, Wiring Harness, NO.9
2015-03 → —
|
ASV51 | — | |
| 82817U — Protector, Wiring Harness, NO.16 | ||||
| 82817-0T060 |
Protector, Wiring Harness, NO.16
2012-03 → 2014-11
ended
|
ASV50 RUP | — | |
| 82817-0T060 |
Protector, Wiring Harness, NO.16
2012-03 → 2014-09
ended
|
ASV50 JPP | — | |
| 82817-0T060 |
Protector, Wiring Harness, NO.16
2014-09 → —
|
ASV50 | — | |
| 82817-33M80 |
Protector, Wiring Harness, NO.16
2015-03 → —
|
ASV51 | — | |
| 82817X — Protector, Wiring Harness, NO.17 | ||||
| 82817-0T050 |
Protector, Wiring Harness, NO.17
2012-03 → 2014-09
ended
|
ASV50 JPP | — | |
| 82817-0T050 |
Protector, Wiring Harness, NO.17
2012-03 → 2014-11
ended
|
ASV50 RUP | — | |
| 82817-0T050 |
Protector, Wiring Harness, NO.17
2014-09 → —
|
ASV50 | — | |
| 82817-33M30 |
Protector, Wiring Harness, NO.17
2015-03 → —
|
ASV51 | — | |
| 82823S — Cap, Starter Terminal | ||||
| 82823-12090 |
Cap, Starter Terminal
2012-03 → 2014-11
ended
|
ACV51,ASV50,GSV50 | — | |
| 82823-12090 |
Cap, Starter Terminal
2014-09 → —
|
ASV5#,GSV50 | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-12090 |
Cap, Alternator Terminal
2012-03 → 2014-11
ended
|
ASV50 RUP | — | |
| 82823-22080 |
Cap, Alternator Terminal
2012-08 → 2014-11
ended
|
ACV51 | — | |
| 82823-12090 |
Cap, Alternator Terminal
2014-09 → —
|
ASV50 | — | |
| 82824 — Connector, Wiring Harness | ||||
| 82824-33360 |
Connector, Wiring Harness
2011-08 → 2014-09
ended
|
ASV50 JPP | — | |
| 82824-33360 |
Connector, Wiring Harness
2011-08 → 2014-11
ended
|
ASV50 RUP | — | |
| 82824-33360 |
Connector, Wiring Harness
2014-09 → 2017-04
ended
|
ASV50 JPP | — | |
| 82824-33360 |
Connector, Wiring Harness
2014-09 → —
|
ASV5# RUP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
