Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

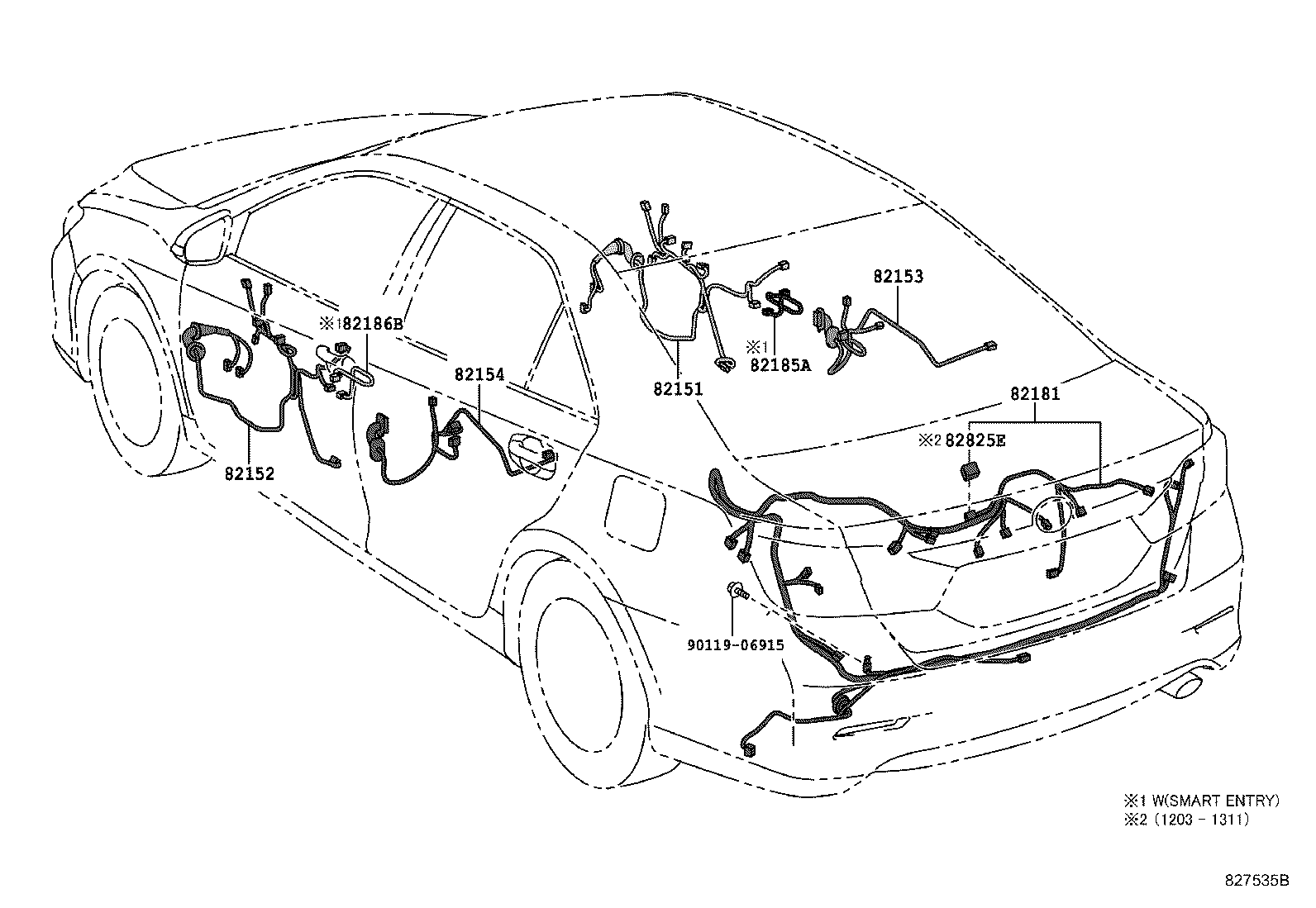

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82151 — Wire, Front Door, RH | ||||
| 82151-06C50 |
Wire, Front Door, RH
2011-11 → 2014-11
ended
|
ACV51,ASV50 RUP | — | |
| 82151-06C60 note |
Wire, Front Door, RH
2011-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82151-06C60 note |
Wire, Front Door, RH
2011-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82151-06C60 |
Wire, Front Door, RH
2011-11 → 2014-11
ended
|
GSV50 RUP | — | |
| 82151-33C50 |
Wire, Front Door, RH
2011-08 → 2014-09
ended
|
ASV50 JPP LHD | — | |
| 82151-33C60 |
Wire, Front Door, RH
2011-08 → 2014-09
ended
|
AVV50,GSV50 JPP LHD | — | |
| 82151-33C60 note |
Wire, Front Door, RH
2011-08 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82151-33C60 note |
Wire, Front Door, RH
2011-08 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82151-33C60 note |
Wire, Front Door, RH
2011-08 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82151-33C70 |
Wire, Front Door, RH
2011-08 → 2014-09
ended
|
ASV50 RHD | — | |
| 82151-33C80 note |
Wire, Front Door, RH
2011-08 → 2012-09
ended
|
ASV50 RHD | — | |
| 82151-33C80 |
Wire, Front Door, RH
2011-08 → 2012-09
ended
|
AVV50 RHD | — | |
| 82151-33C81 note |
Wire, Front Door, RH
2012-09 → 2014-09
ended
|
ASV50 RHD | — | |
| 82151-33C81 |
Wire, Front Door, RH
2012-09 → 2014-09
ended
|
AVV50 RHD | — | |
| 82151-06Q10 |
Wire, Front Door, RH
2014-11 → —
|
ASV5# RUP | — | |
| 82151-06Q20 note |
Wire, Front Door, RH
2014-11 → —
|
ASV50 RUP | — | |
| 82151-06Q20 note |
Wire, Front Door, RH
2014-11 → —
|
ASV50 RUP | — | |
| 82151-06Q20 note |
Wire, Front Door, RH
2014-11 → 2017-04
ended
|
GSV50 RUP | — | |
| 82151-06Q30 |
Wire, Front Door, RH
2014-11 → —
|
GSV50 RUP | — | |
| 82151-33C50 |
Wire, Front Door, RH
2014-09 → 2017-04
ended
|
ASV50 JPP LHD | — | |
| 82151-33C60 note |
Wire, Front Door, RH
2014-09 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82151-33C60 note |
Wire, Front Door, RH
2014-09 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82151-33C60 note |
Wire, Front Door, RH
2014-09 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82151-33C60 |
Wire, Front Door, RH
2014-09 → 2017-04
ended
|
AVV50,GSV50 JPP LHD | — | |
| 82151-33C82 |
Wire, Front Door, RH
2014-09 → 2017-04
ended
|
ASV50,AVV50 RHD | — | |
| 82152 — Wire, Front Door, LH | ||||
| 82152-06D90 |
Wire, Front Door, LH
2011-11 → 2013-11
ended
|
ACV51,ASV50 RUP | — | |
| 82152-06D91 |
Wire, Front Door, LH
2013-11 → 2014-11
ended
|
ACV51,ASV50 RUP | — | |
| 82152-06E00 |
Wire, Front Door, LH
2011-11 → 2013-11
ended
|
GSV50 RUP | — | |
| 82152-06E00 note |
Wire, Front Door, LH
2011-11 → 2013-11
ended
|
ASV50 RUP | — | |
| 82152-06E00 note |
Wire, Front Door, LH
2011-11 → 2013-11
ended
|
ASV50 RUP | — | |
| 82152-06E01 |
Wire, Front Door, LH
2013-11 → 2014-11
ended
|
GSV50 RUP | — | |
| 82152-06E01 note |
Wire, Front Door, LH
2013-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82152-06E01 note |
Wire, Front Door, LH
2013-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82152-33D00 |
Wire, Front Door, LH
2011-08 → 2014-09
ended
|
ASV50 JPP LHD | — | |
| 82152-33D10 note |
Wire, Front Door, LH
2011-08 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82152-33D10 note |
Wire, Front Door, LH
2011-08 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82152-33D10 |
Wire, Front Door, LH
2011-08 → 2014-09
ended
|
AVV50,GSV50 JPP LHD | — | |
| 82152-33D10 note |
Wire, Front Door, LH
2011-08 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82152-33D20 |
Wire, Front Door, LH
2011-08 → 2014-09
ended
|
ASV50 RHD | — | |
| 82152-33D30 |
Wire, Front Door, LH
2011-08 → 2012-09
ended
|
AVV50 RHD | — | |
| 82152-33D30 note |
Wire, Front Door, LH
2011-08 → 2012-09
ended
|
ASV50 RHD | — | |
| 82152-33D31 note |
Wire, Front Door, LH
2012-09 → 2014-09
ended
|
ASV50 RHD | — | |
| 82152-33D31 |
Wire, Front Door, LH
2012-09 → 2014-09
ended
|
AVV50 RHD | — | |
| 82152-06P10 |
Wire, Front Door, LH
2014-11 → —
|
ASV5# RUP | — | |
| 82152-06P20 note |
Wire, Front Door, LH
2014-11 → —
|
ASV50 RUP | — | |
| 82152-06P20 note |
Wire, Front Door, LH
2014-11 → —
|
ASV50 RUP | — | |
| 82152-06P20 note |
Wire, Front Door, LH
2014-11 → 2017-04
ended
|
GSV50 RUP | — | |
| 82152-06P30 |
Wire, Front Door, LH
2014-11 → —
|
GSV50 RUP | — | |
| 82152-33D01 |
Wire, Front Door, LH
2014-09 → 2017-04
ended
|
ASV50 JPP LHD | — | |
| 82152-33D11 note |
Wire, Front Door, LH
2014-09 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82152-33D11 note |
Wire, Front Door, LH
2014-09 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82152-33D11 note |
Wire, Front Door, LH
2014-09 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82152-33D11 |
Wire, Front Door, LH
2014-09 → 2017-04
ended
|
AVV50,GSV50 JPP LHD | — | |
| 82152-33D31 |
Wire, Front Door, LH
2014-09 → 2017-04
ended
|
ASV50,AVV50 RHD | — | |
| 82153 — Wire, Rear Door, NO.1 | ||||
| 82153-06350 |
Wire, Rear Door, NO.1
2011-11 → 2014-11
ended
|
ACV51,ASV50,GSV50 RUP | — | |
| 82153-33300 |
Wire, Rear Door, NO.1
2011-08 → 2014-09
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 82153-06350 |
Wire, Rear Door, NO.1
2014-11 → —
|
ASV5#,GSV50 RUP | — | |
| 82153-06640 note |
Wire, Rear Door, NO.1
2014-11 → —
|
ASV50 RUP | — | |
| 82153-33300 |
Wire, Rear Door, NO.1
2014-09 → 2017-04
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 82154 — Wire, Rear Door, NO.2 | ||||
| 82154-06350 |
Wire, Rear Door, NO.2
2011-11 → 2014-11
ended
|
ACV51,ASV50,GSV50 RUP | — | |
| 82154-33230 |
Wire, Rear Door, NO.2
2011-08 → 2014-09
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 82154-06350 |
Wire, Rear Door, NO.2
2014-11 → —
|
ASV5#,GSV50 RUP | — | |
| 82154-06640 note |
Wire, Rear Door, NO.2
2014-11 → —
|
ASV50 RUP | — | |
| 82154-33230 |
Wire, Rear Door, NO.2
2014-09 → 2017-04
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 82181 — Wire, Luggage Room, NO.1 | ||||
| 82181-06850 |
Wire, Luggage Room, NO.1
2011-11 → 2013-11
ended
|
ACV51,ASV50 RUP | — | |
| 82181-06851 |
Wire, Luggage Room, NO.1
2013-11 → 2014-11
ended
|
ACV51 | — | |
| 82181-06860 note |
Wire, Luggage Room, NO.1
2011-11 → 2013-11
ended
|
ASV50 RUP | — | |
| 82181-06860 note |
Wire, Luggage Room, NO.1
2012-08 → 2013-11
ended
|
ACV51 | — | |
| 82181-06860 note |
Wire, Luggage Room, NO.1
2012-08 → 2013-11
ended
|
ACV51 | — | |
| 82181-06861 note |
Wire, Luggage Room, NO.1
2013-11 → 2014-11
ended
|
ACV51 | — | |
| 82181-06861 |
Wire, Luggage Room, NO.1
2013-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82181-06861 note |
Wire, Luggage Room, NO.1
2013-11 → 2014-11
ended
|
ACV51 | — | |
| 82181-06870 note |
Wire, Luggage Room, NO.1
2011-11 → 2013-11
ended
|
ASV50 RUP | — | |
| 82181-06871 note |
Wire, Luggage Room, NO.1
2013-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82181-06871 note |
Wire, Luggage Room, NO.1
2013-11 → 2014-11
ended
|
GSV50 RUP | — | |
| 82181-06880 note |
Wire, Luggage Room, NO.1
2011-11 → 2013-11
ended
|
ASV50 RUP | — | |
| 82181-06880 |
Wire, Luggage Room, NO.1
2011-11 → 2013-11
ended
|
GSV50 RUP | — | |
| 82181-06881 |
Wire, Luggage Room, NO.1
2013-11 → 2014-11
ended
|
GSV50 RUP | — | |
| 82181-06881 note |
Wire, Luggage Room, NO.1
2013-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82181-33380 |
Wire, Luggage Room, NO.1
2011-08 → 2013-09
ended
|
ASV50 JPP | — | |
| 82181-33381 |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 EUR | — | |
| 82181-33390 note |
Wire, Luggage Room, NO.1
2011-08 → 2013-09
ended
|
ASV50 EUR | — | |
| 82181-33390 note |
Wire, Luggage Room, NO.1
2011-08 → 2013-09
ended
|
ASV50 JPP RUS | — | |
| 82181-33391 |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82181-33391 note |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82181-33391 note |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82181-33391 note |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 RHD | — | |
| 82181-33400 note |
Wire, Luggage Room, NO.1
2011-08 → 2013-09
ended
|
ASV50 RHD | — | |
| 82181-33400 note |
Wire, Luggage Room, NO.1
2011-08 → 2013-09
ended
|
ASV50 LHD EUR | — | |
| 82181-33401 note |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 RHD | — | |
| 82181-33410 note |
Wire, Luggage Room, NO.1
2011-08 → 2013-09
ended
|
ASV50 LHD EUR | — | |
| 82181-33410 note |
Wire, Luggage Room, NO.1
2011-08 → 2013-09
ended
|
ASV50 RHD | — | |
| 82181-33410 |
Wire, Luggage Room, NO.1
2011-08 → 2013-09
ended
|
GSV50 EUR | — | |
| 82181-33410 note |
Wire, Luggage Room, NO.1
2011-08 → 2013-09
ended
|
ASV50 JPP RUS | — | |
| 82181-33411 note |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82181-33411 note |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82181-33411 note |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82181-33411 note |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 RHD | — | |
| 82181-33411 |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
GSV50 EUR | — | |
| 82181-33430 note |
Wire, Luggage Room, NO.1
2011-08 → 2012-09
ended
|
ASV50 JPP RUS | — | |
| 82181-33430 |
Wire, Luggage Room, NO.1
2011-08 → 2012-09
ended
|
GSV50 JPP RUS | — | |
| 82181-33431 |
Wire, Luggage Room, NO.1
2012-10 → 2013-09
ended
|
GSV50 JPP RUS | — | |
| 82181-33431 note |
Wire, Luggage Room, NO.1
2012-10 → 2013-09
ended
|
ASV50 JPP RUS | — | |
| 82181-33432 note |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82181-33432 |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
GSV50 JPP RUS | — | |
| 82181-33450 |
Wire, Luggage Room, NO.1
2011-08 → 2013-09
ended
|
AVV50 | — | |
| 82181-33451 |
Wire, Luggage Room, NO.1
2013-09 → 2014-09
ended
|
AVV50 | — | |
| 82181-06L80 |
Wire, Luggage Room, NO.1
2015-03 → 2015-12
ended
|
ASV51 | — | |
| 82181-06L90 note |
Wire, Luggage Room, NO.1
2015-03 → 2015-12
ended
|
ASV51 | — | |
| 82181-06L90 note |
Wire, Luggage Room, NO.1
2015-03 → 2015-12
ended
|
ASV51 | — | |
| 82181-06L90 note |
Wire, Luggage Room, NO.1
2014-11 → 2015-12
ended
|
GSV50 RUP | — | |
| 82181-06L90 |
Wire, Luggage Room, NO.1
2014-11 → 2015-12
ended
|
ASV50 RUP | — | |
| 82181-06M00 note |
Wire, Luggage Room, NO.1
2014-11 → 2015-12
ended
|
ASV50 RUP | — | |
| 82181-06M10 |
Wire, Luggage Room, NO.1
2014-11 → 2015-12
ended
|
GSV50 RUP | — | |
| 82181-06P10 |
Wire, Luggage Room, NO.1
2015-12 → —
|
ASV51 | — | |
| 82181-06P20 note |
Wire, Luggage Room, NO.1
2015-12 → 2017-04
ended
|
GSV50 RUP | — | |
| 82181-06P20 note |
Wire, Luggage Room, NO.1
2015-12 → —
|
ASV51 | — | |
| 82181-06P20 note |
Wire, Luggage Room, NO.1
2015-12 → —
|
ASV51 | — | |
| 82181-06P20 |
Wire, Luggage Room, NO.1
2015-12 → —
|
ASV50 RUP | — | |
| 82181-06P30 note |
Wire, Luggage Room, NO.1
2015-12 → —
|
ASV50 RUP | — | |
| 82181-06P40 |
Wire, Luggage Room, NO.1
2015-12 → —
|
GSV50 RUP | — | |
| 82181-33680 |
Wire, Luggage Room, NO.1
2014-09 → 2015-10
ended
|
ASV50 JPP RUS | — | |
| 82181-33690 note |
Wire, Luggage Room, NO.1
2014-09 → 2015-10
ended
|
ASV50 LHD EUR | — | |
| 82181-33690 note |
Wire, Luggage Room, NO.1
2014-09 → 2015-10
ended
|
ASV50 JPP RUS | — | |
| 82181-33690 |
Wire, Luggage Room, NO.1
2014-09 → 2015-10
ended
|
ASV50 RHD;GSV50 EUR | — | |
| 82181-33700 note |
Wire, Luggage Room, NO.1
2014-09 → 2015-10
ended
|
ASV50 JPP RUS | — | |
| 82181-33700 |
Wire, Luggage Room, NO.1
2014-09 → 2015-10
ended
|
GSV50 JPP RUS | — | |
| 82181-33730 |
Wire, Luggage Room, NO.1
2014-09 → 2015-10
ended
|
AVV50 | — | |
| 82181-33760 |
Wire, Luggage Room, NO.1
2014-09 → 2015-10
ended
|
ASV50 LHD EUR | — | |
| 82181-33D60 |
Wire, Luggage Room, NO.1
2015-10 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82181-33D70 note |
Wire, Luggage Room, NO.1
2015-10 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82181-33D70 note |
Wire, Luggage Room, NO.1
2015-10 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82181-33D70 |
Wire, Luggage Room, NO.1
2015-10 → 2017-04
ended
|
ASV50 RHD;GSV50 EUR | — | |
| 82181-33D80 note |
Wire, Luggage Room, NO.1
2015-10 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82181-33D80 |
Wire, Luggage Room, NO.1
2015-10 → 2017-04
ended
|
GSV50 JPP RUS | — | |
| 82181-33D90 |
Wire, Luggage Room, NO.1
2015-10 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82181-33E00 note |
Wire, Luggage Room, NO.1
2015-10 → 2017-04
ended
|
GSV50 EUR | — | |
| 82181-33E30 |
Wire, Luggage Room, NO.1
2015-10 → 2017-04
ended
|
AVV50 | — | |
| 82185A — Wire, Smart Door, Front RH | ||||
| 82185-06070 |
Wire, Smart Door, Front RH
2011-11 → 2014-11
ended
|
GSV50 RUP | — | |
| 82185-06070 note |
Wire, Smart Door, Front RH
2011-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82185-06070 note |
Wire, Smart Door, Front RH
2011-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82185-33090 |
Wire, Smart Door, Front RH
2011-08 → 2014-09
ended
|
AVV50,GSV50 JPP | — | |
| 82185-33090 note |
Wire, Smart Door, Front RH
2011-08 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82185-33090 note |
Wire, Smart Door, Front RH
2011-08 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82185-33090 note |
Wire, Smart Door, Front RH
2011-08 → 2014-09
ended
|
ASV50 RHD | — | |
| 82185-33090 note |
Wire, Smart Door, Front RH
2011-08 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82185-06070 note |
Wire, Smart Door, Front RH
2014-11 → —
|
ASV50 RUP | — | |
| 82185-06070 note |
Wire, Smart Door, Front RH
2014-11 → —
|
ASV50 RUP | — | |
| 82185-06070 |
Wire, Smart Door, Front RH
2014-11 → —
|
GSV50 RUP | — | |
| 82185-33090 note |
Wire, Smart Door, Front RH
2014-09 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82185-33090 note |
Wire, Smart Door, Front RH
2014-09 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82185-33090 |
Wire, Smart Door, Front RH
2014-09 → 2017-04
ended
|
ASV50 RHD;AVV50,GSV50 JPP | — | |
| 82185-33090 note |
Wire, Smart Door, Front RH
2014-09 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82186B — Wire, Smart Door, Front LH | ||||
| 82186-06030 note |
Wire, Smart Door, Front LH
2011-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82186-06030 note |
Wire, Smart Door, Front LH
2011-11 → 2014-11
ended
|
ASV50 RUP | — | |
| 82186-06030 |
Wire, Smart Door, Front LH
2011-11 → 2014-11
ended
|
GSV50 RUP | — | |
| 82186-33020 note |
Wire, Smart Door, Front LH
2011-08 → 2014-09
ended
|
ASV50 RHD | — | |
| 82186-33020 note |
Wire, Smart Door, Front LH
2011-08 → 2014-09
ended
|
ASV50 LHD EUR | — | |
| 82186-33020 note |
Wire, Smart Door, Front LH
2011-08 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82186-33020 note |
Wire, Smart Door, Front LH
2011-08 → 2014-09
ended
|
ASV50 JPP RUS | — | |
| 82186-33020 |
Wire, Smart Door, Front LH
2011-08 → 2014-09
ended
|
AVV50,GSV50 JPP | — | |
| 82186-06030 |
Wire, Smart Door, Front LH
2014-11 → —
|
GSV50 RUP | — | |
| 82186-06030 note |
Wire, Smart Door, Front LH
2014-11 → —
|
ASV50 RUP | — | |
| 82186-06030 note |
Wire, Smart Door, Front LH
2014-11 → —
|
ASV50 RUP | — | |
| 82186-33020 |
Wire, Smart Door, Front LH
2014-09 → 2017-04
ended
|
ASV50 RHD;AVV50,GSV50 JPP | — | |
| 82186-33020 note |
Wire, Smart Door, Front LH
2014-09 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82186-33020 note |
Wire, Smart Door, Front LH
2014-09 → 2017-04
ended
|
ASV50 JPP RUS | — | |
| 82186-33020 note |
Wire, Smart Door, Front LH
2014-09 → 2017-04
ended
|
ASV50 LHD EUR | — | |
| 82825E — Connector, Wiring Harness | ||||
| 82824-30220 |
Connector, Wiring Harness
2012-03 → 2013-09
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 82824-30220 |
Connector, Wiring Harness
2012-03 → 2013-11
ended
|
ACV51,ASV50,GSV50 RUP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
