Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

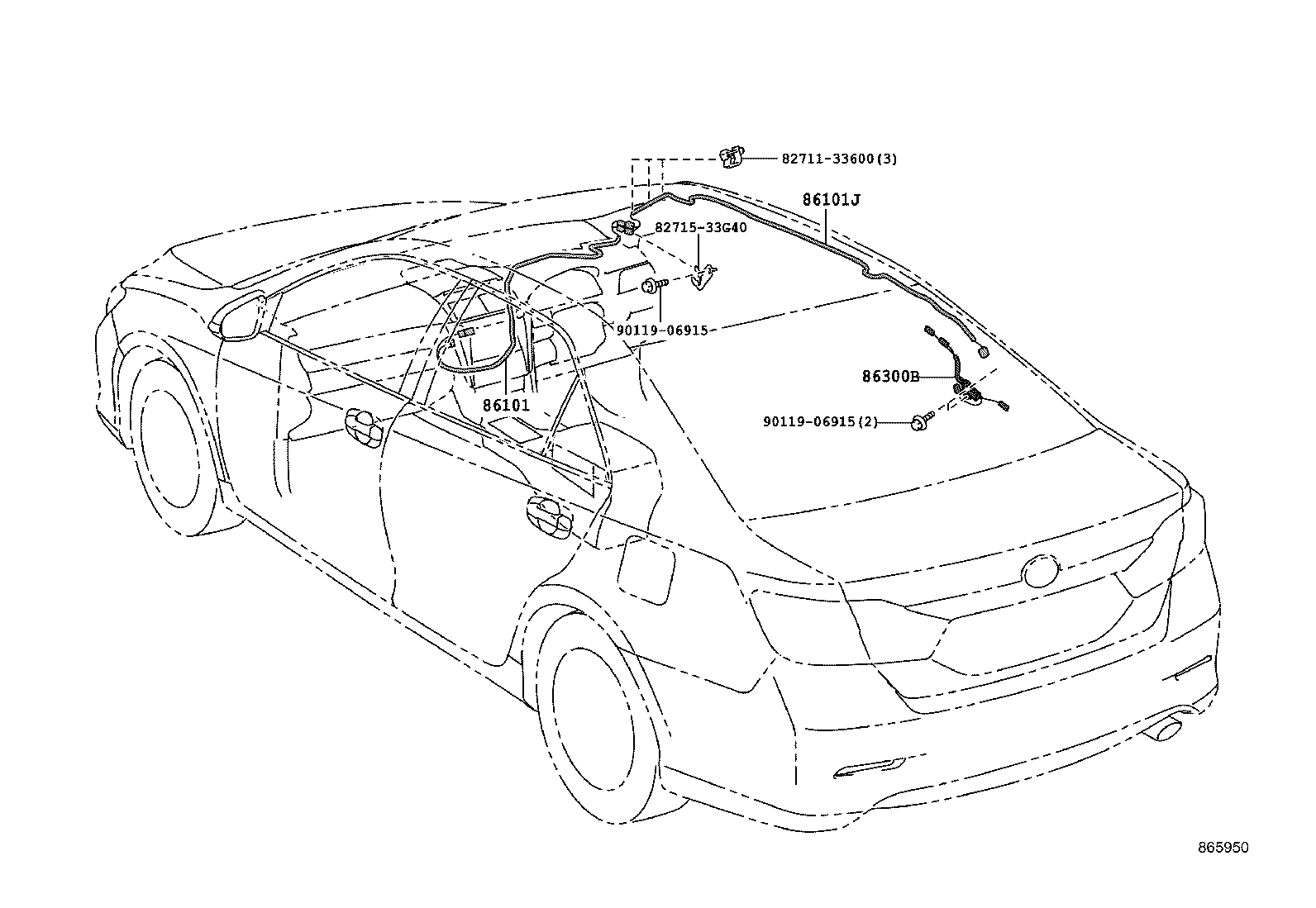

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-33A90 |
Cord Sub-assy, Antenna
2011-08 → 2014-09
ended
|
ASV50,AVV50 RHD | — | |
| 86101-33B00 |
Cord Sub-assy, Antenna
2011-08 → 2014-09
ended
|
ASV50,AVV50,GSV50 JPP LHD | — | |
| 86101-33B00 |
Cord Sub-assy, Antenna
2011-08 → 2014-11
ended
|
ACV51,ASV50,GSV50 RUP | — | |
| 86101-33B00 note |
Cord Sub-assy, Antenna
2014-11 → 2016-12
ended
|
GSV50 RUP | — | |
| 86101-33B00 |
Cord Sub-assy, Antenna
2014-11 → —
|
ASV5# RUP | — | |
| 86101-33B00 |
Cord Sub-assy, Antenna
2016-12 → —
|
GSV50 RUP | — | |
| 86101-33E40 |
Cord Sub-assy, Antenna
2014-11 → 2016-12
ended
|
GSV50 RUP | — | |
| 86101-33E40 note |
Cord Sub-assy, Antenna
2014-11 → 2016-12
ended
|
ASV50 RUP | — | |
| 86101-33E60 note |
Cord Sub-assy, Antenna
2014-09 → 2016-06
ended
|
GSV50 EUR | — | |
| 86101-33E60 note |
Cord Sub-assy, Antenna
2014-09 → 2016-06
ended
|
ASV50,GSV50 LHD EUR | — | |
| 86101-33E60 note |
Cord Sub-assy, Antenna
2016-06 → 2017-04
ended
|
GSV50 EUR | — | |
| 86101-33E60 note |
Cord Sub-assy, Antenna
2016-06 → 2017-04
ended
|
ASV50,GSV50 LHD EUR | — | |
| 86101-33G70 |
Cord Sub-assy, Antenna
2014-09 → 2017-04
ended
|
ASV50,AVV50 RHD | — | |
| 86101-33G80 |
Cord Sub-assy, Antenna
2014-09 → 2017-04
ended
|
ASV50,AVV50,GSV50 JPP LHD | — | |
| 86101J — Cord Sub-assy, Antenna, NO.2 | ||||
| 86101-33A70 |
Cord Sub-assy, Antenna, NO.2
2011-08 → 2014-09
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 86101-33A70 |
Cord Sub-assy, Antenna, NO.2
2011-08 → 2014-11
ended
|
ACV51,ASV50,GSV50 RUP | — | |
| 86101-33A70 note |
Cord Sub-assy, Antenna, NO.2
2014-11 → 2016-12
ended
|
GSV50 RUP | — | |
| 86101-33A70 |
Cord Sub-assy, Antenna, NO.2
2014-11 → —
|
ASV5# RUP | — | |
| 86101-33A70 |
Cord Sub-assy, Antenna, NO.2
2016-12 → —
|
GSV50 RUP | — | |
| 86101-33D80 note |
Cord Sub-assy, Antenna, NO.2
2014-09 → 2017-04
ended
|
GSV50 EUR | — | |
| 86101-33D80 note |
Cord Sub-assy, Antenna, NO.2
2014-09 → 2017-04
ended
|
ASV50,GSV50 LHD EUR | — | |
| 86101-33D90 |
Cord Sub-assy, Antenna, NO.2
2014-11 → 2016-12
ended
|
GSV50 RUP | — | |
| 86101-33D90 note |
Cord Sub-assy, Antenna, NO.2
2014-11 → 2016-12
ended
|
ASV50 RUP | — | |
| 86101-33E20 note |
Cord Sub-assy, Antenna, NO.2
2014-09 → 2017-04
ended
|
GSV50 EUR | — | |
| 86101-33E20 note |
Cord Sub-assy, Antenna, NO.2
2014-09 → 2017-04
ended
|
ASV50,GSV50 LHD EUR | — | |
| 86101-33G60 |
Cord Sub-assy, Antenna, NO.2
2014-09 → 2017-04
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 86300B — Antenna Assy, Amplifier, NO.1 | ||||
| 86300-33330 |
Antenna Assy, Amplifier, NO.1
2011-08 → 2014-09
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 86300-33330 |
Antenna Assy, Amplifier, NO.1
2011-08 → 2014-11
ended
|
ACV51,ASV50,GSV50 RUP | — | |
| 86300-33330 |
Antenna Assy, Amplifier, NO.1
2014-09 → —
|
ASV5#,AVV50,GSV50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
