Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

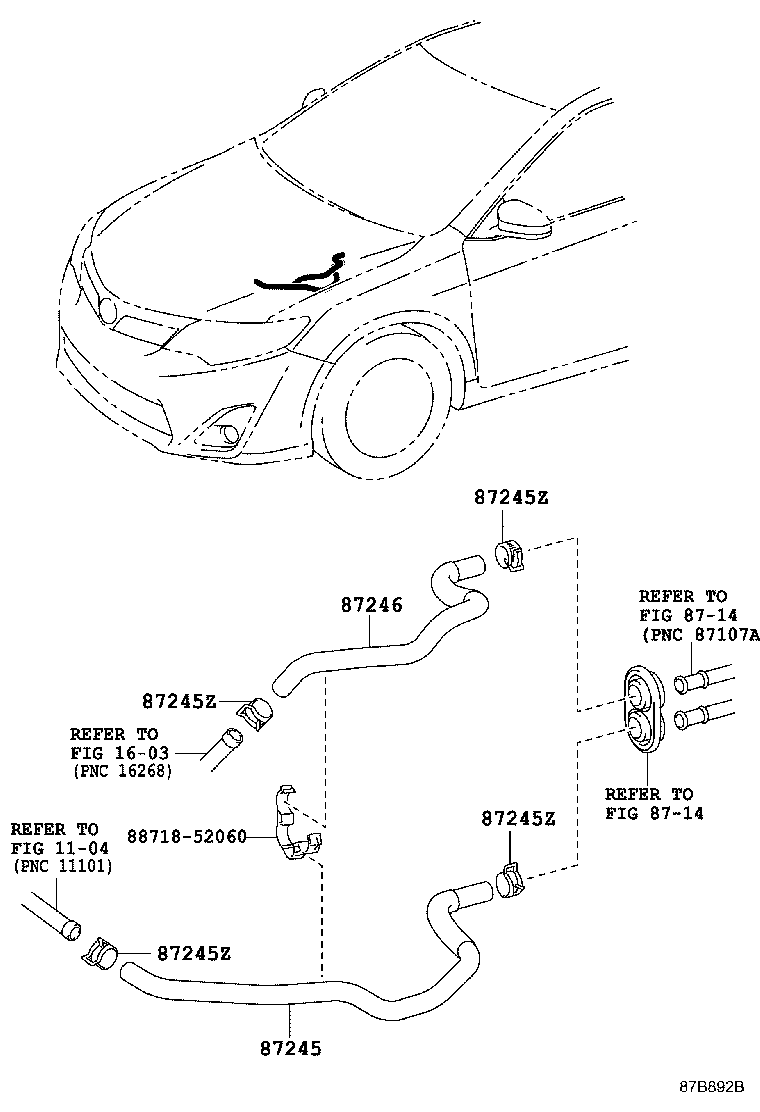

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87245 — Hose, Heater Water, Inlet | ||||
| 87245-33630 |
Hose, Heater Water, Inlet
2011-08 → 2014-11
ended
|
GSV50 RUP | — | |
| 87245-33630 |
Hose, Heater Water, Inlet
2011-08 → 2014-09
ended
|
GSV50 JPP | — | |
| 87245-33650 |
Hose, Heater Water, Inlet
2011-08 → 2014-09
ended
|
ASV50 JPP | — | |
| 87245-33650 |
Hose, Heater Water, Inlet
2011-08 → 2014-11
ended
|
ASV50 RUP | — | |
| 87245-33670 |
Hose, Heater Water, Inlet
2011-08 → 2014-09
ended
|
AVV50 | — | |
| 87245-33740 |
Hose, Heater Water, Inlet
2012-08 → 2014-11
ended
|
ACV51 | — | |
| 87245-33630 |
Hose, Heater Water, Inlet
2014-09 → 2017-04
ended
|
GSV50 JPP | — | |
| 87245-33630 |
Hose, Heater Water, Inlet
2014-09 → —
|
GSV50 RUP | — | |
| 87245-33650 |
Hose, Heater Water, Inlet
2014-09 → 2017-04
ended
|
ASV50 JPP | — | |
| 87245-33650 |
Hose, Heater Water, Inlet
2014-09 → —
|
ASV50 RUP | — | |
| 87245-33670 |
Hose, Heater Water, Inlet
2014-09 → 2017-04
ended
|
AVV50 | — | |
| 87245-33780 |
Hose, Heater Water, Inlet
2015-03 → —
|
ASV51 | — | |
| 87245Z — Clip OR Clamp (FOR HEATER WATER HOSE) | ||||
| 96136-42501 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2011-08 → 2014-11
ended
|
ACV51,ASV50,AVV50,GSV50 | — | |
| 96136-42501 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2014-09 → 2015-11
ended
|
ASV5#,AVV50,GSV50 | — | |
| 96138-42501 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2015-11 → —
|
ASV5#,GSV50 RUP | — | |
| 96138-42501 |
Clip OR Clamp (FOR HEATER WATER HOSE)
2015-11 → 2017-04
ended
|
ASV50,AVV50,GSV50 JPP | — | |
| 87246 — Hose, Heater Water, Outlet | ||||
| 87245-33540 |
Hose, Heater Water, Outlet
2012-08 → 2014-11
ended
|
ACV51 | — | |
| 87245-33640 |
Hose, Heater Water, Outlet
2011-08 → 2014-09
ended
|
GSV50 JPP | — | |
| 87245-33640 |
Hose, Heater Water, Outlet
2011-08 → 2014-11
ended
|
GSV50 RUP | — | |
| 87245-33660 |
Hose, Heater Water, Outlet
2011-08 → 2014-09
ended
|
ASV50 JPP | — | |
| 87245-33660 |
Hose, Heater Water, Outlet
2011-08 → 2014-11
ended
|
ASV50 RUP | — | |
| 87245-33680 |
Hose, Heater Water, Outlet
2011-08 → 2014-09
ended
|
AVV50 LHD | — | |
| 87245-33700 |
Hose, Heater Water, Outlet
2011-08 → 2014-09
ended
|
AVV50 RHD | — | |
| 87245-33640 |
Hose, Heater Water, Outlet
2014-09 → 2017-04
ended
|
GSV50 JPP | — | |
| 87245-33640 |
Hose, Heater Water, Outlet
2014-09 → —
|
GSV50 RUP | — | |
| 87245-33660 |
Hose, Heater Water, Outlet
2014-09 → 2017-04
ended
|
ASV50 JPP | — | |
| 87245-33660 |
Hose, Heater Water, Outlet
2014-09 → —
|
ASV50 RUP | — | |
| 87245-33680 |
Hose, Heater Water, Outlet
2014-09 → 2017-04
ended
|
AVV50 LHD | — | |
| 87245-33700 |
Hose, Heater Water, Outlet
2014-09 → 2017-04
ended
|
AVV50 RHD | — | |
| 87245-33790 |
Hose, Heater Water, Outlet
2015-03 → —
|
ASV51 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
