Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

12 part groups · 4 illustrations

Illustrations

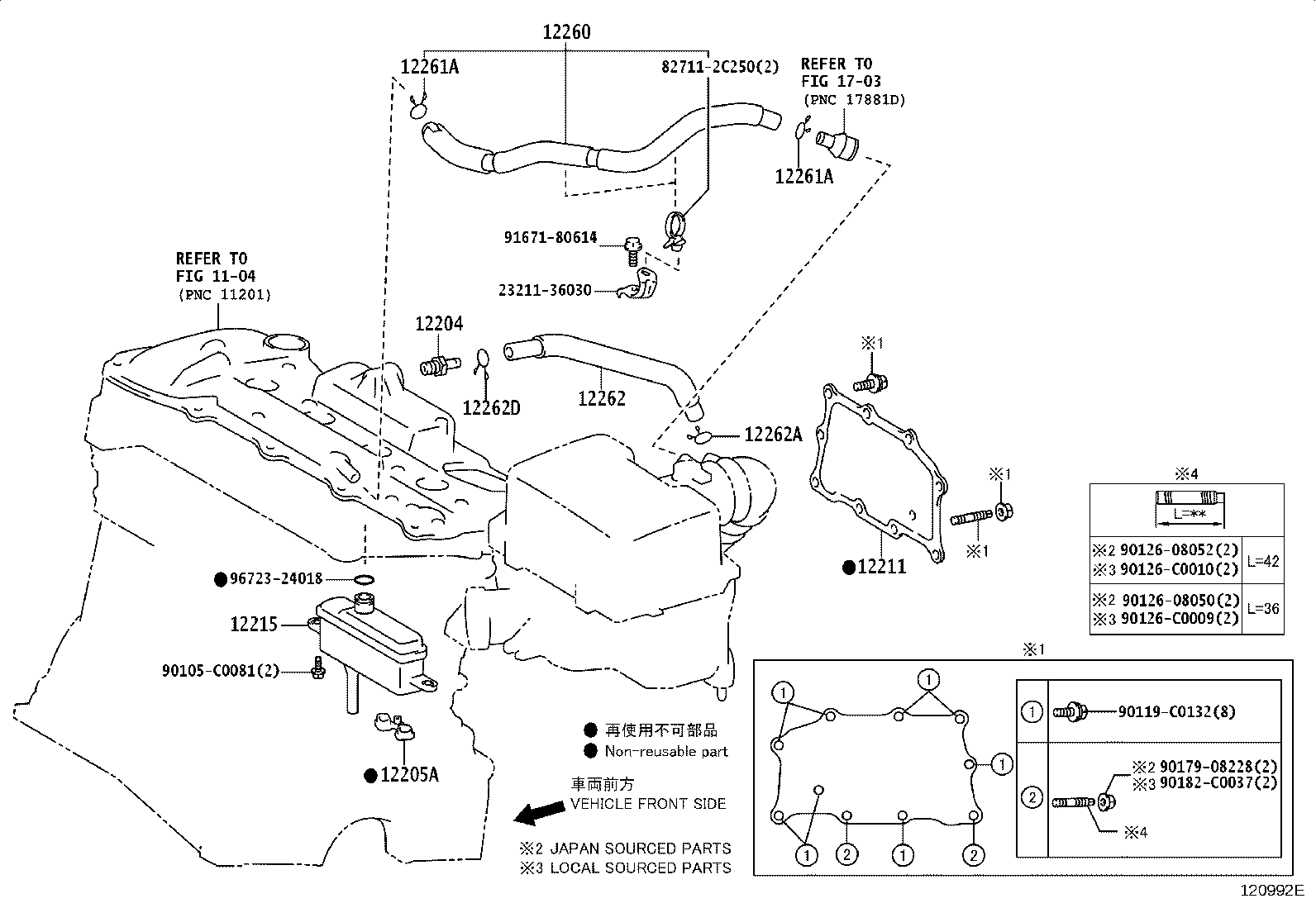

Figure 120788F 120788F 2011-08 → — Figure 120821A 120821A 2012-08 → — Figure 120992E 120992E 2015-03 → — Figure 121256 121256 2011-08 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12205 Case Sub-assy, Ventilation
12205A Ring, O(FOR VENTILATION CASE)
12211 Case, Ventilation, NO.1
12215 Separator, Case
12260 Hose Assy, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262D Clip(FOR VENTILATION HOSE NO.2)
12278 Insulator, Ventilation Hose Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
