Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

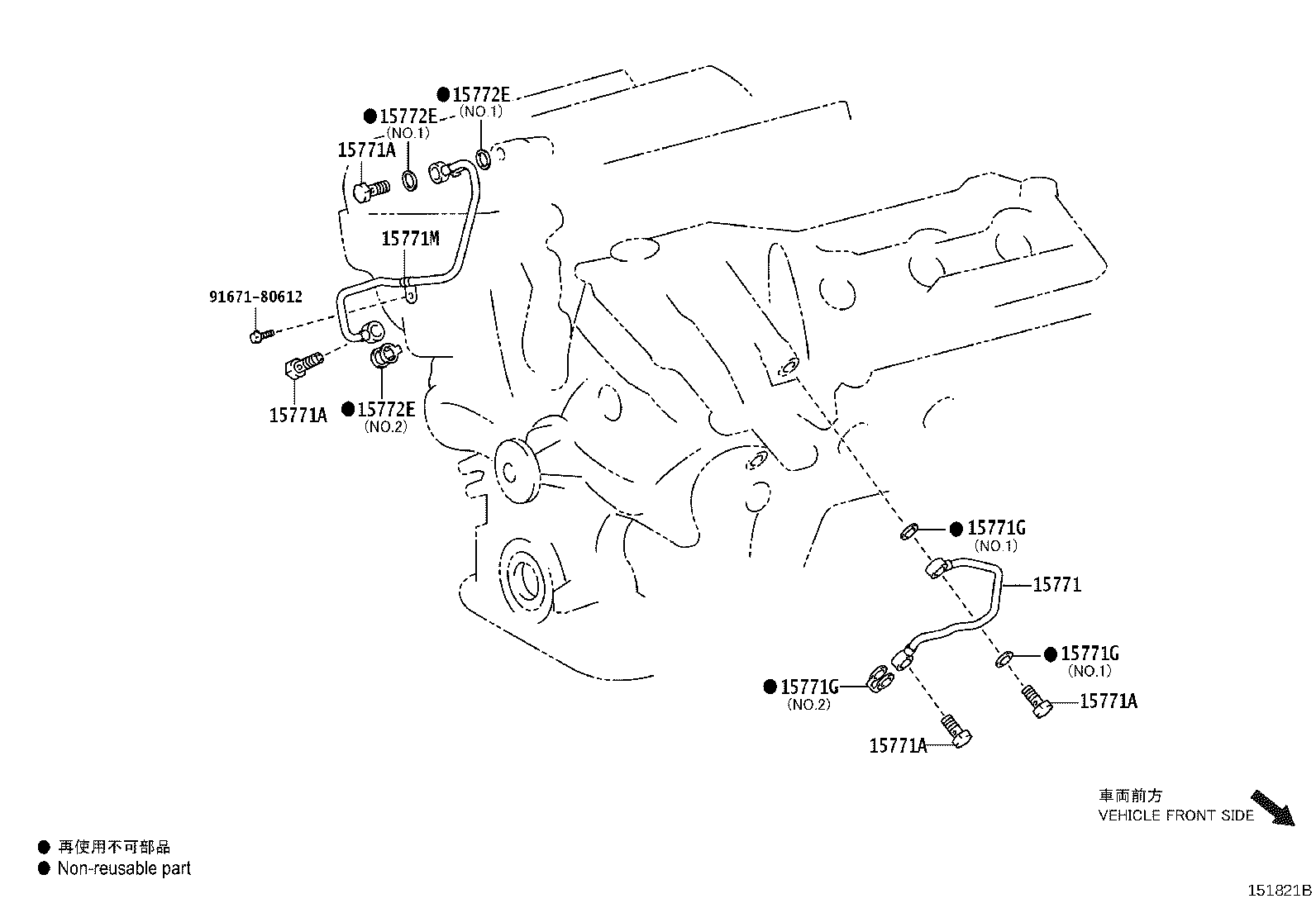

Engine Oil Cooler
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15695 | Bolt, Oil Cooler Union |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15725 | Gasket, Oil Cooler Cover |
| 15771 | Pipe, Oil, NO.1 |
| 15771A | Union(FOR OIL PIPE) |
| 15771G | Gasket |
| 15771M | Pipe, Oil |
| 15772E | Gasket(FOR OIL PIPE) |
| 15785 | Gasket, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
