Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 7 illustrations

Illustrations

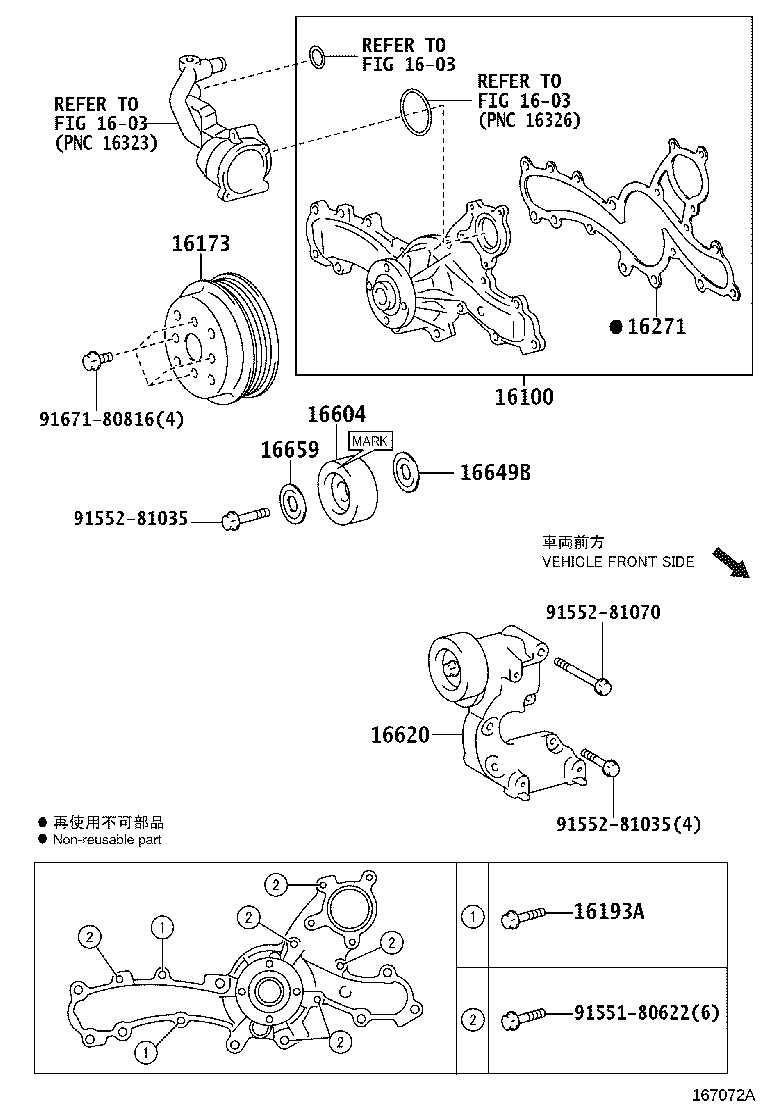

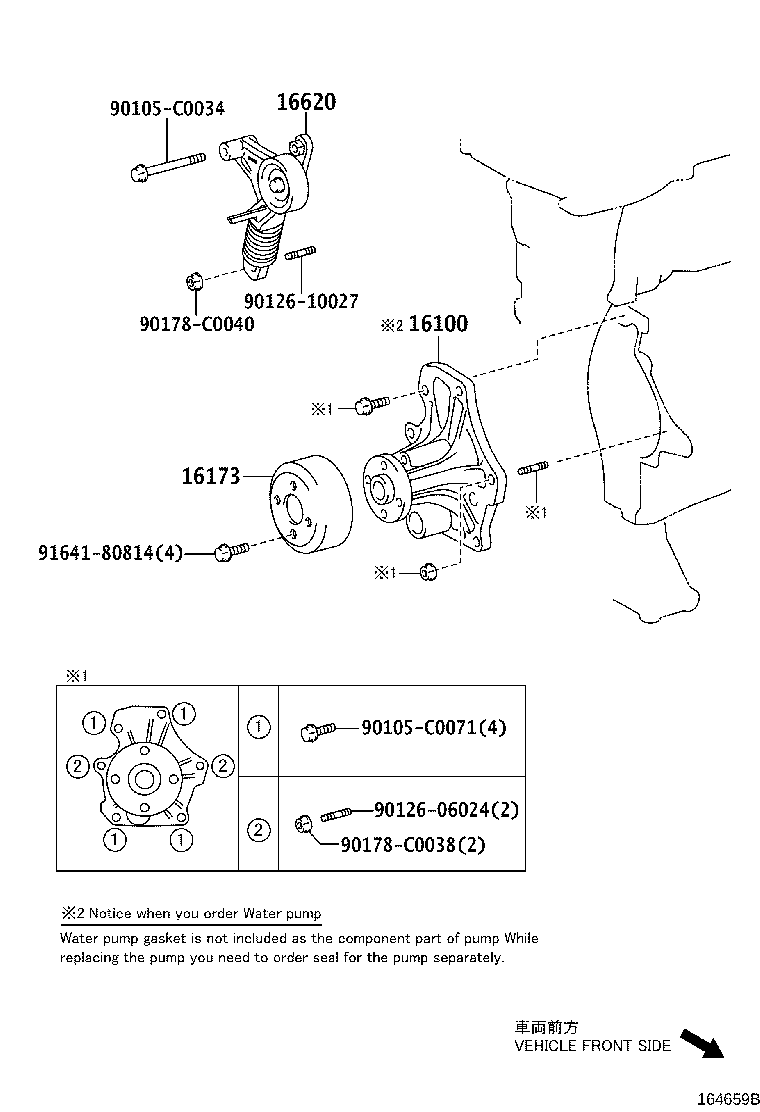

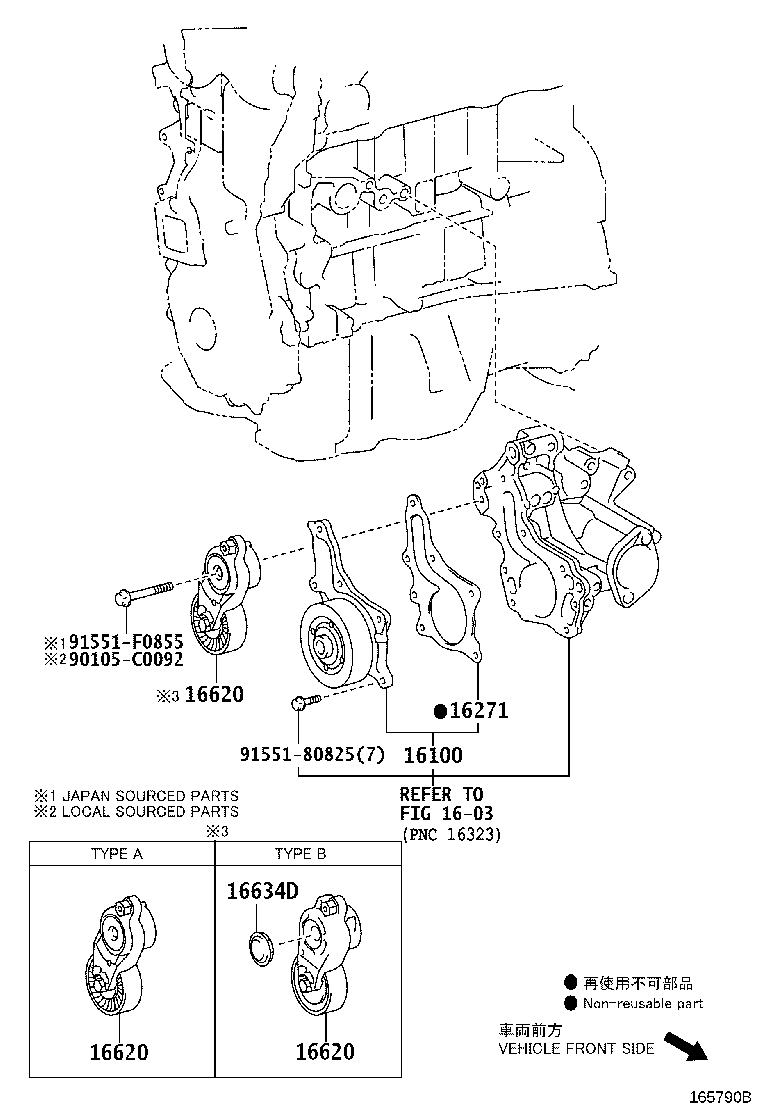

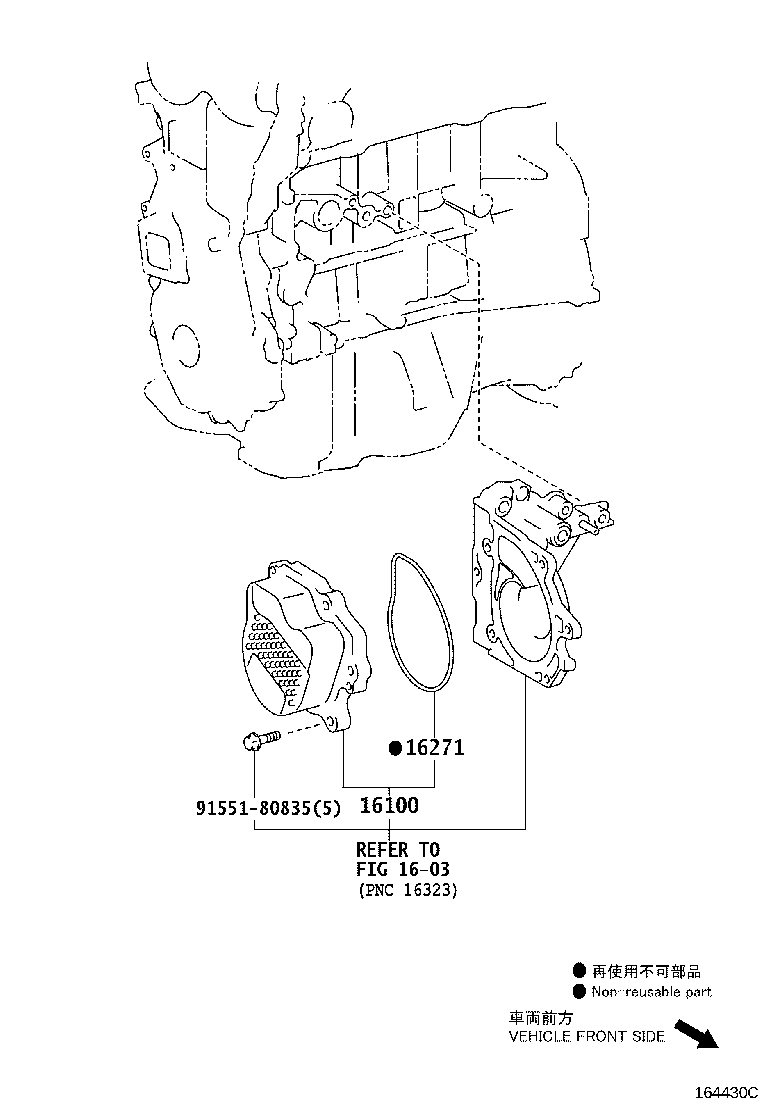

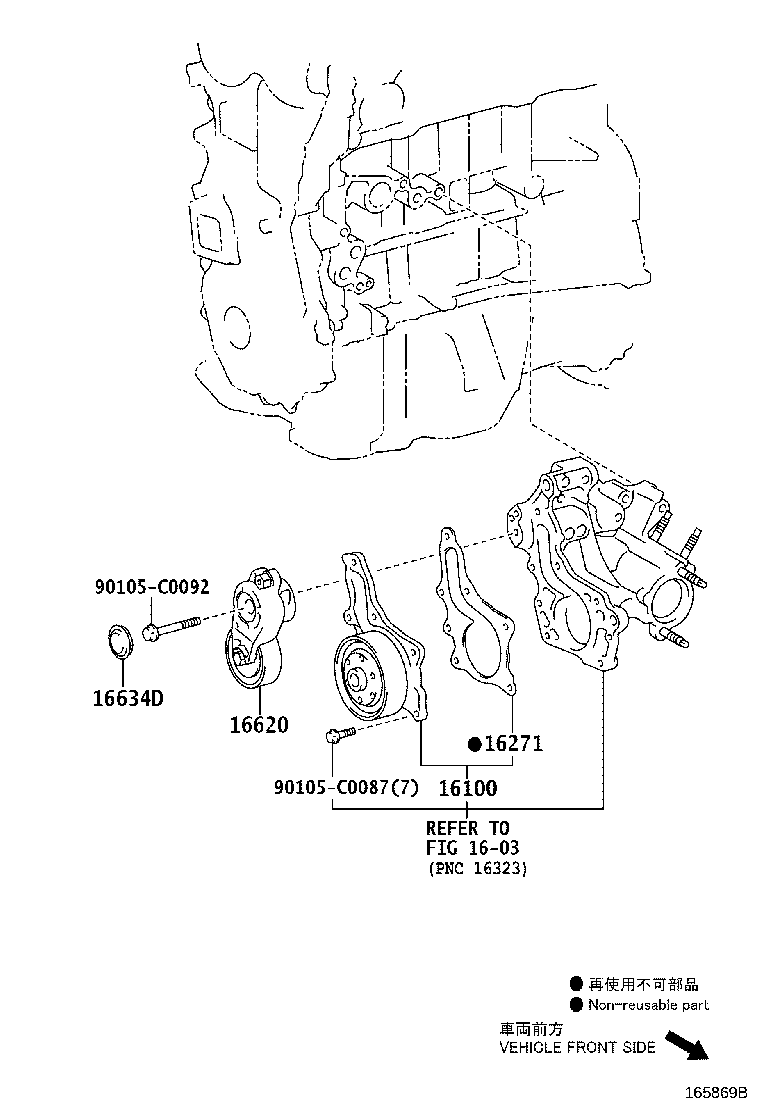

Figure 164431C 164431C 2011-08 → — Figure 165790B 165790B 2013-06 → — Figure 164430C 164430C 2011-08 → — Figure 164659B 164659B 2012-08 → — Figure 165869B 165869B 2015-03 → — Figure 167072A 167072A 2011-08 → 2017-04 Figure 167072A 167072A 2011-08 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16271 Gasket, Water Pump
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16634D Cover, Dust
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
