Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

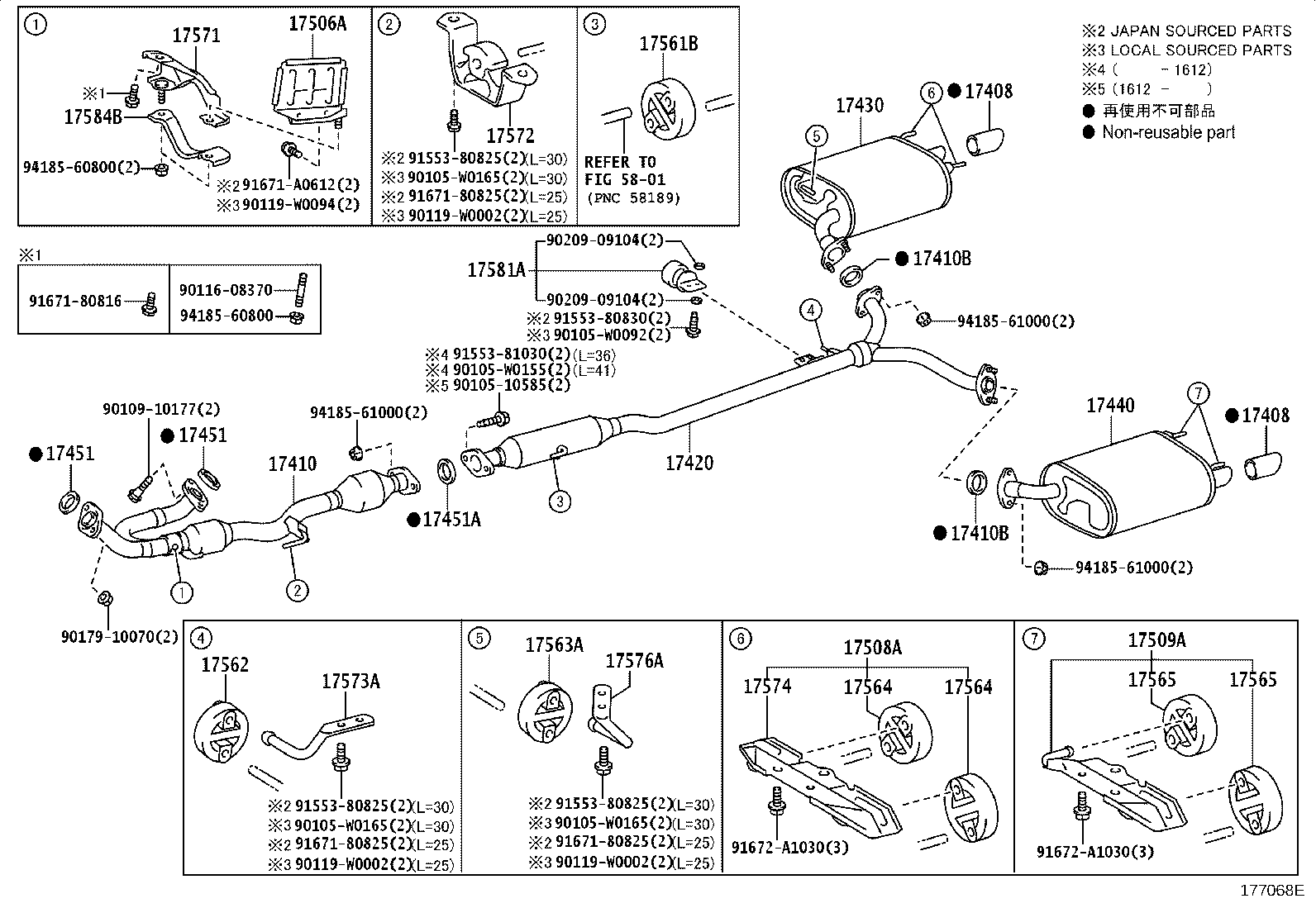

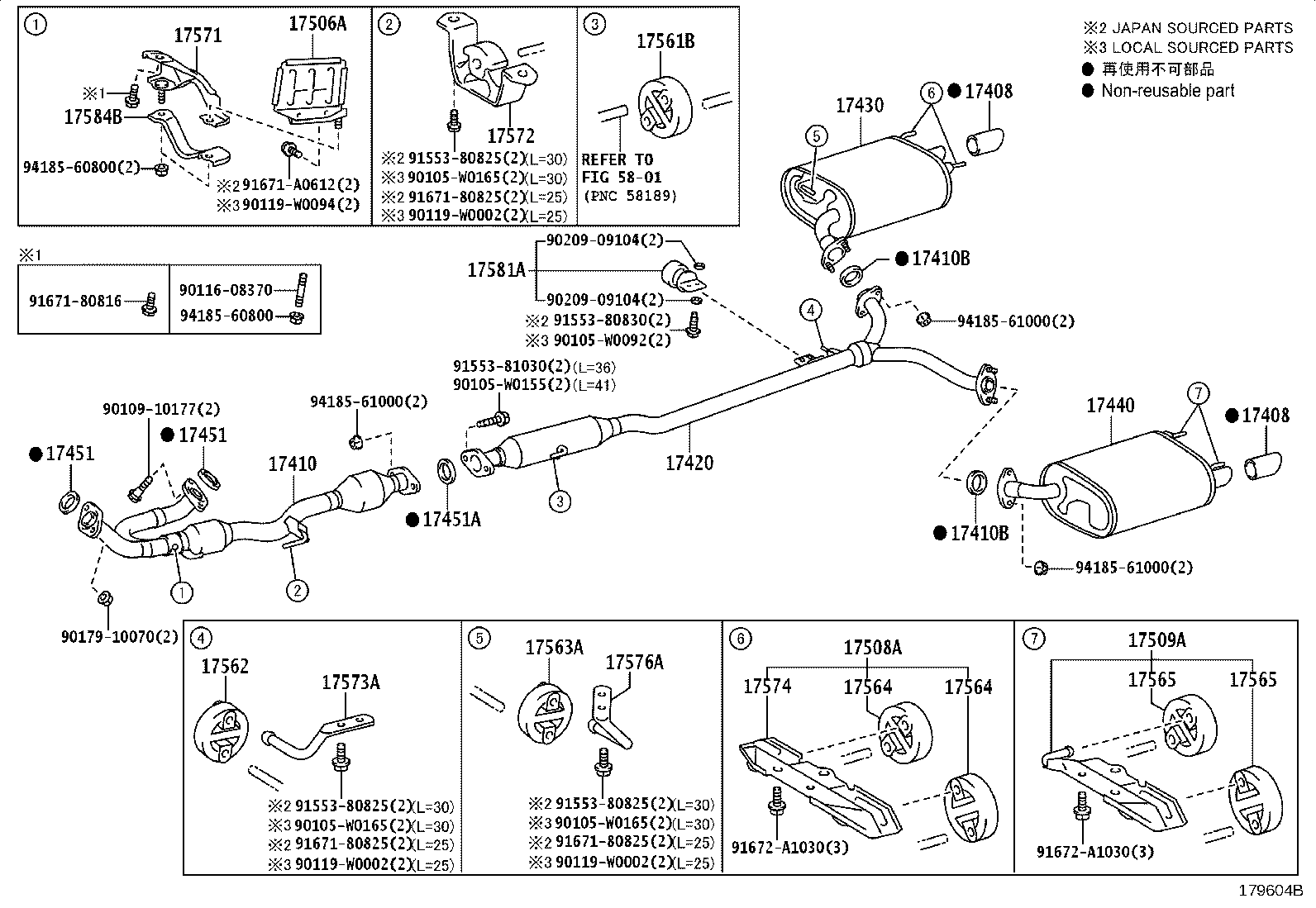

Exhaust Pipe
24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17408 | Baffle Sub Assy, Exhaust Tailpipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17440 | Pipe, Exhaust Tail, LH |
| 17451 | Gasket, Exhaust Pipe |
| 17451A | Gasket, Exhaust Pipe, NO.2 |
| 17506A | Bracket Sub-assy, Exhaust Pipe NO.1 Support |
| 17508A | Bracket Sub-assy, Exhaust Pipe NO.3 Support |
| 17509A | Bracket Sub-assy, Exhaust Pipe NO.4 Support |
| 17561B | Support, Exhaust Pipe, NO.1 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17564 | Support,Exhaust Pipe, NO.4 |
| 17565 | Support, Exhaust Pipe, NO.5 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 17574 | Bracket, Exhaust Pipe Support, NO.4 |
| 17576A | Bracket, Exhaust Pipe Support, NO.6 |
| 17581A | Damper, Exhaust Pipe |
| 17584B | Bracket, Exhaust Pipe NO.1 Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
