Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

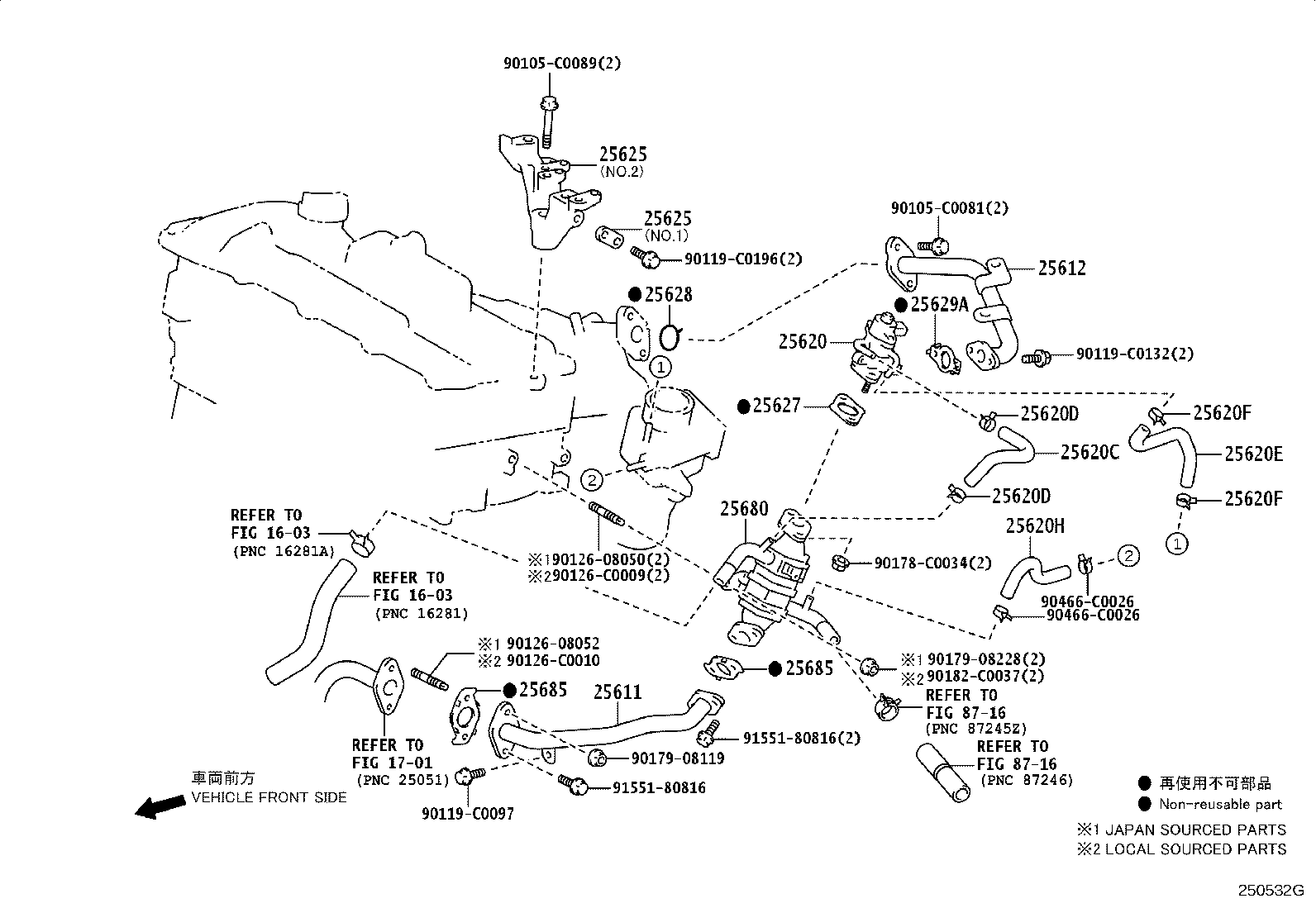

Exhaust Gas Recirculation System
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25611 | Connector, Egr Pipe |
| 25611A | Pipe, Egr, NO.1 |
| 25612 | Pipe, Egr, NO.2 |
| 25620 | Valve Assy, Egr |
| 25620C | Hose, Water By-pass, NO.1 |
| 25620D | Clip(FOR WATER BY-PASS HOSE, NO.1) |
| 25620E | Hose, Water By-pass NO.2 |
| 25620F | Clip(FOR WATER BY-PASS HOSE, NO.2) |
| 25620H | Hose Assy, Water By-pass |
| 25625 | Bracket, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25629A | Gasket, Egr Pipe, NO.2 |
| 25634 | Gasket, Egr Pipe |
| 25635 | Bracket, Egr Pipe, NO.1 |
| 25680 | Cooler Assy, Egr |
| 25685 | Gasket, Egr Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
