Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

21 part groups · 9 illustrations

Illustrations

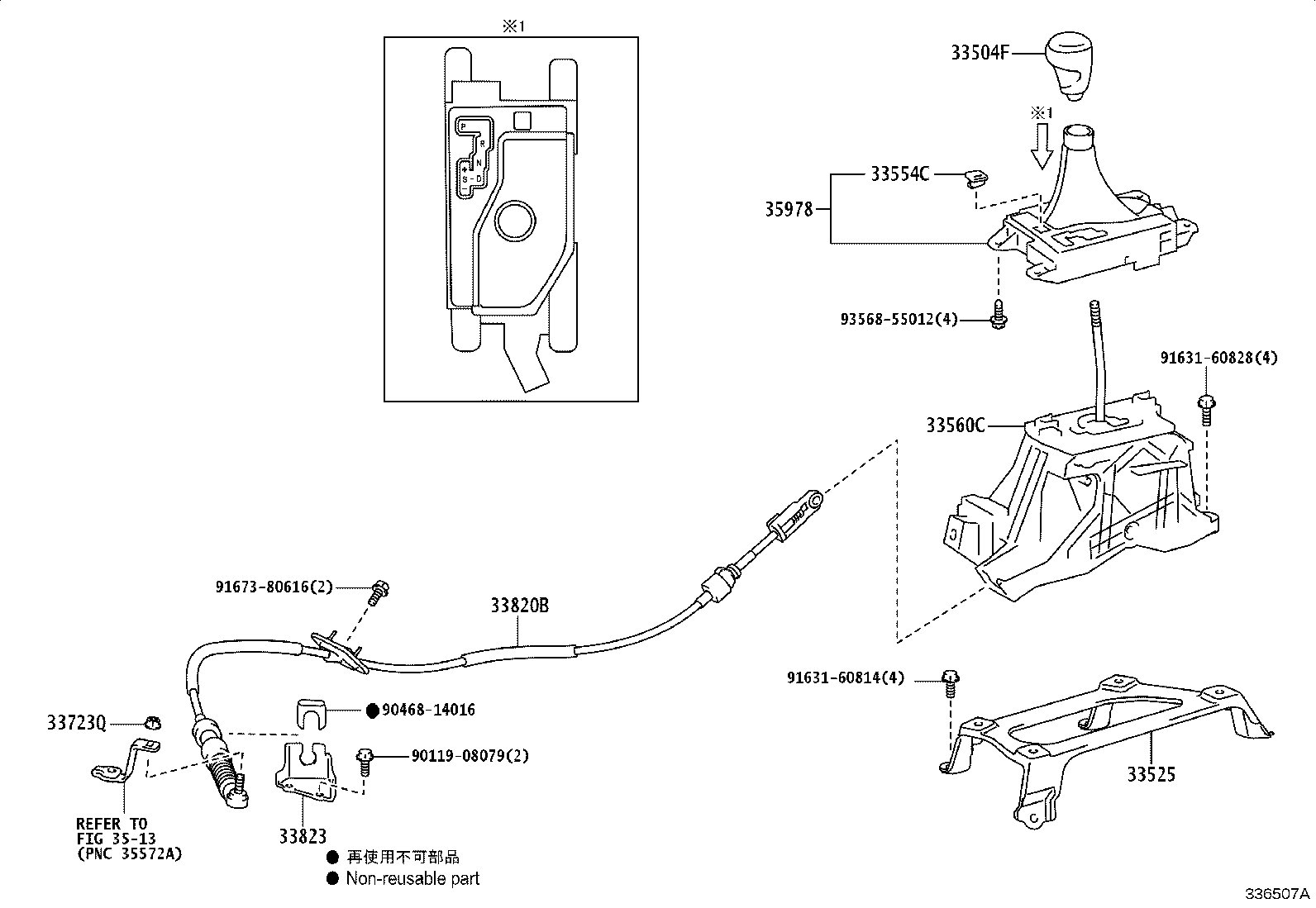

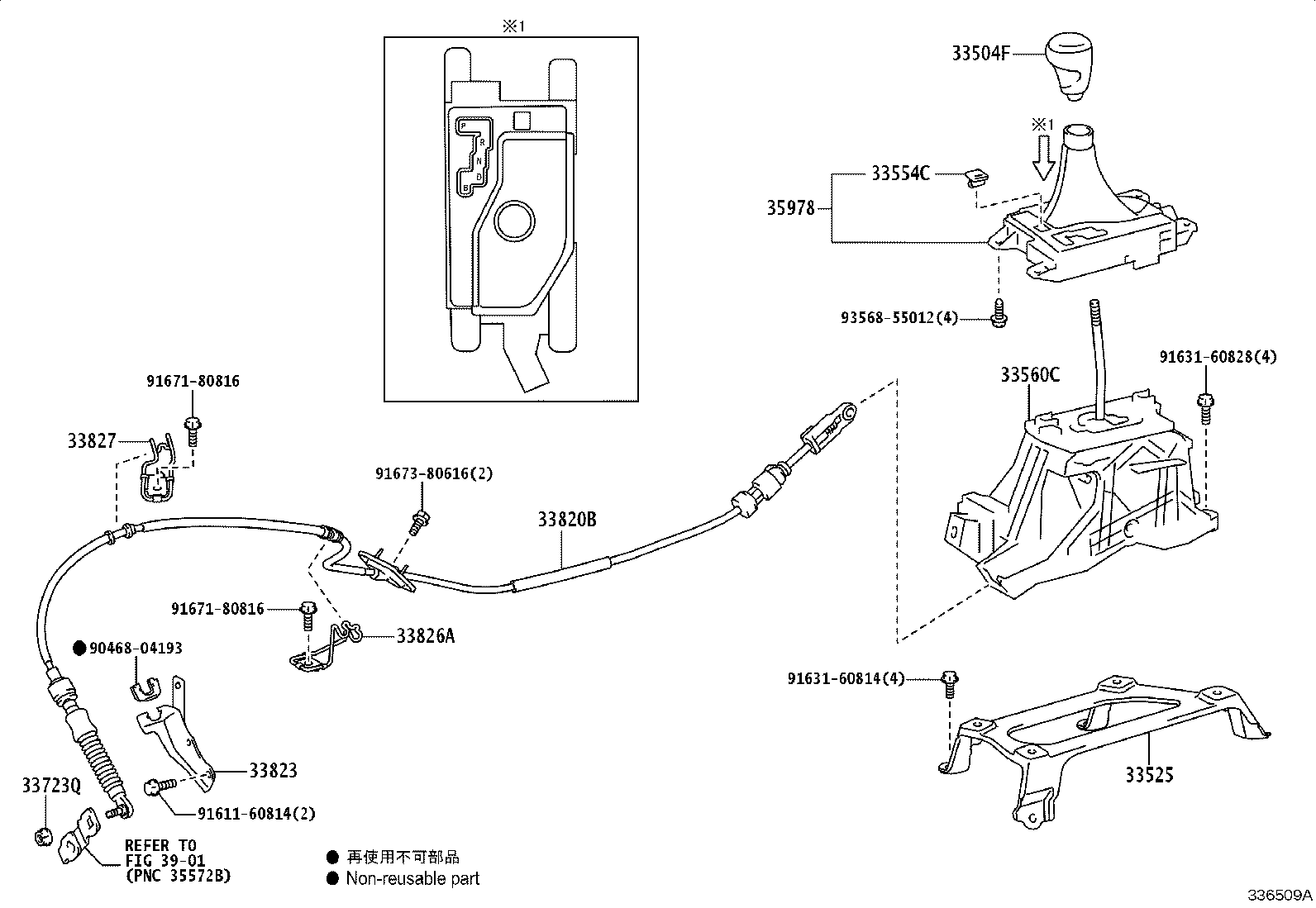

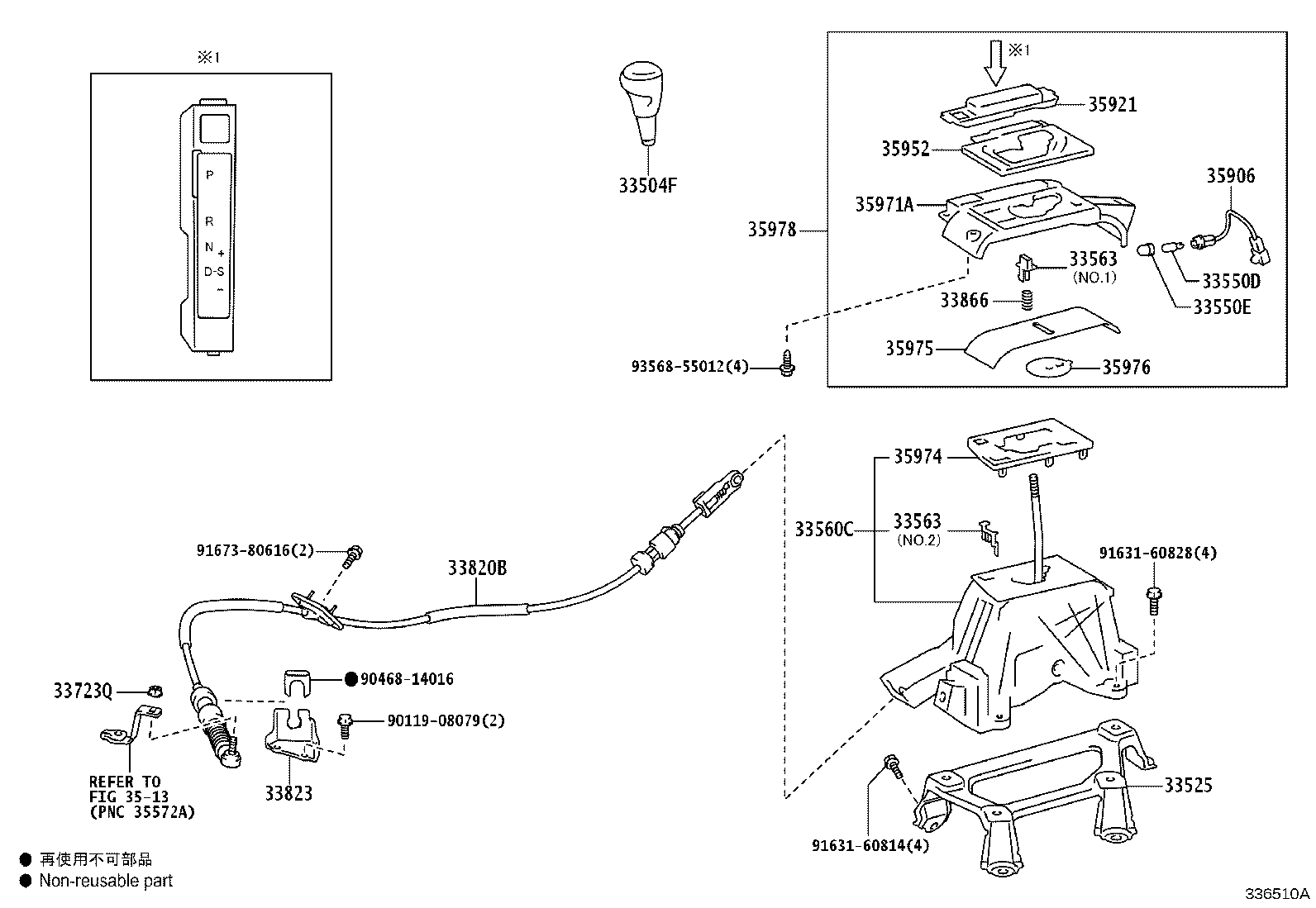

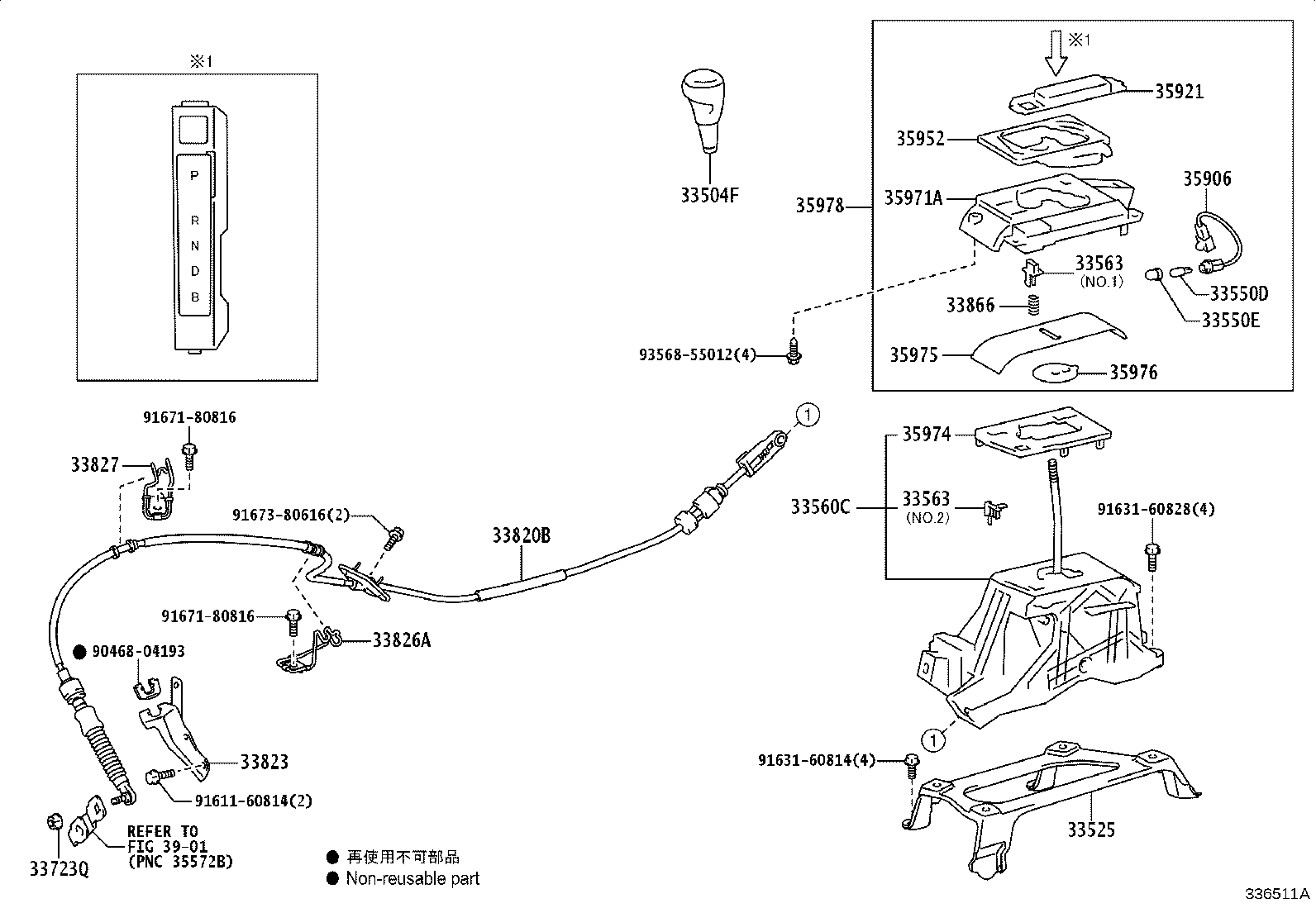

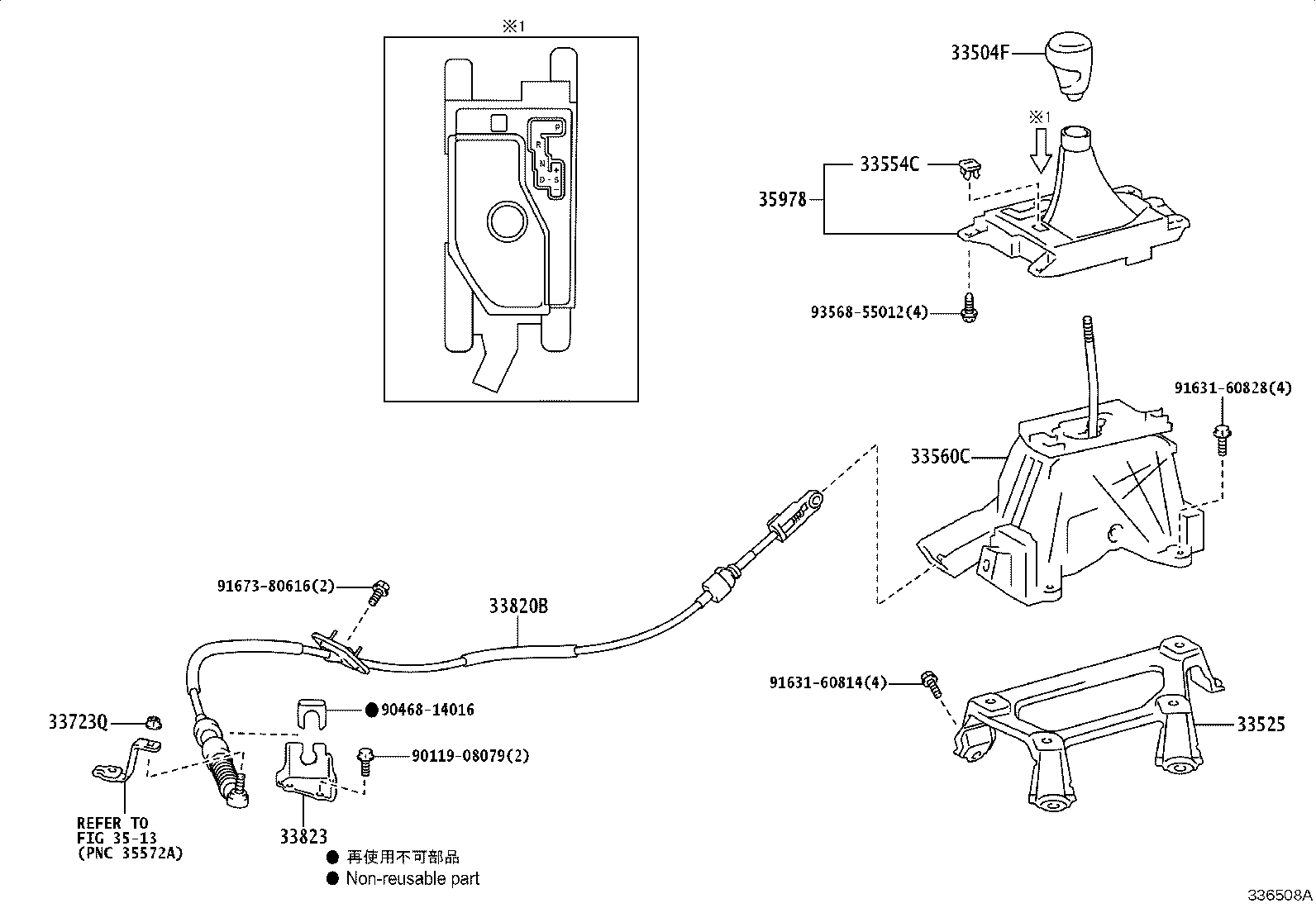

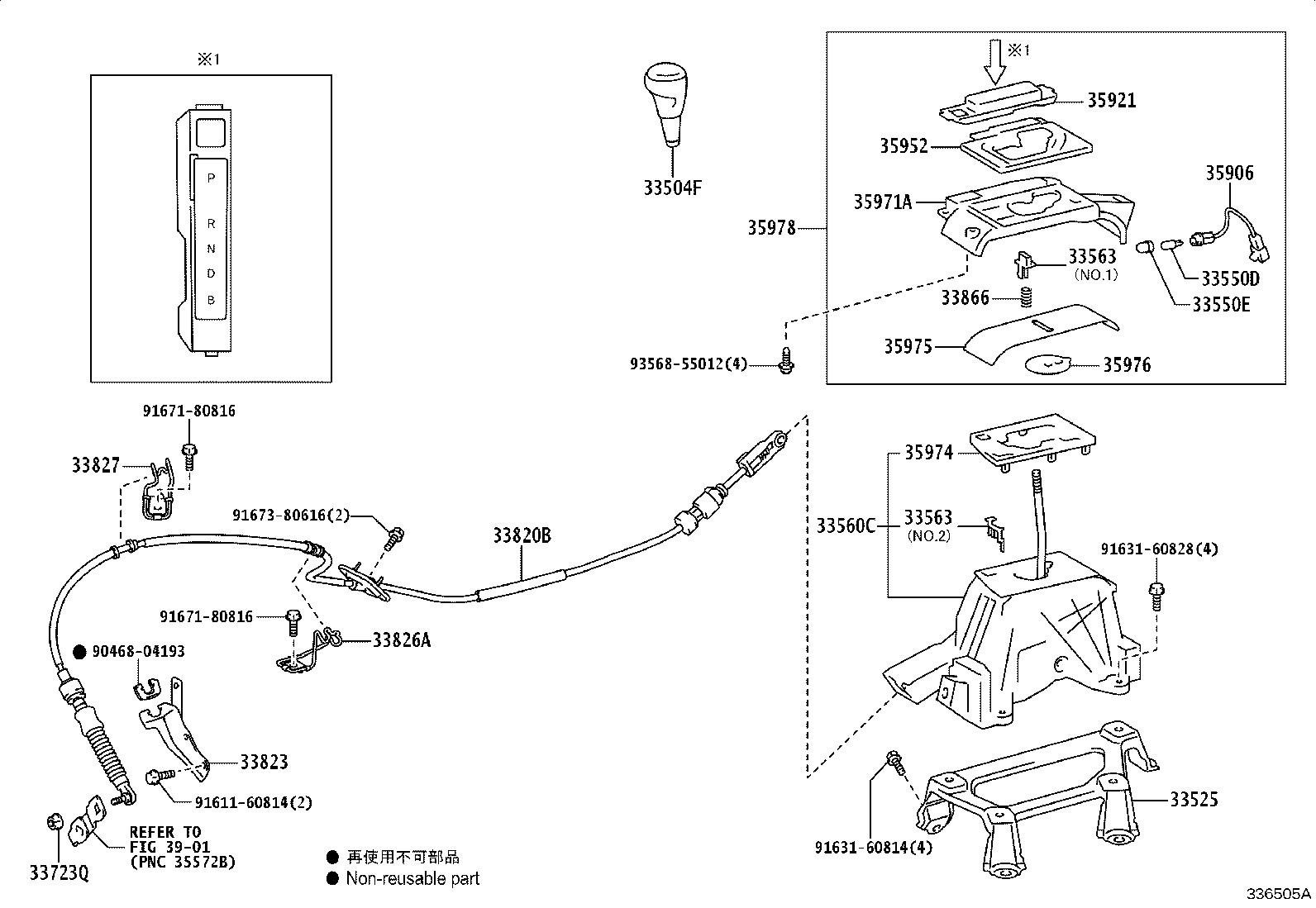

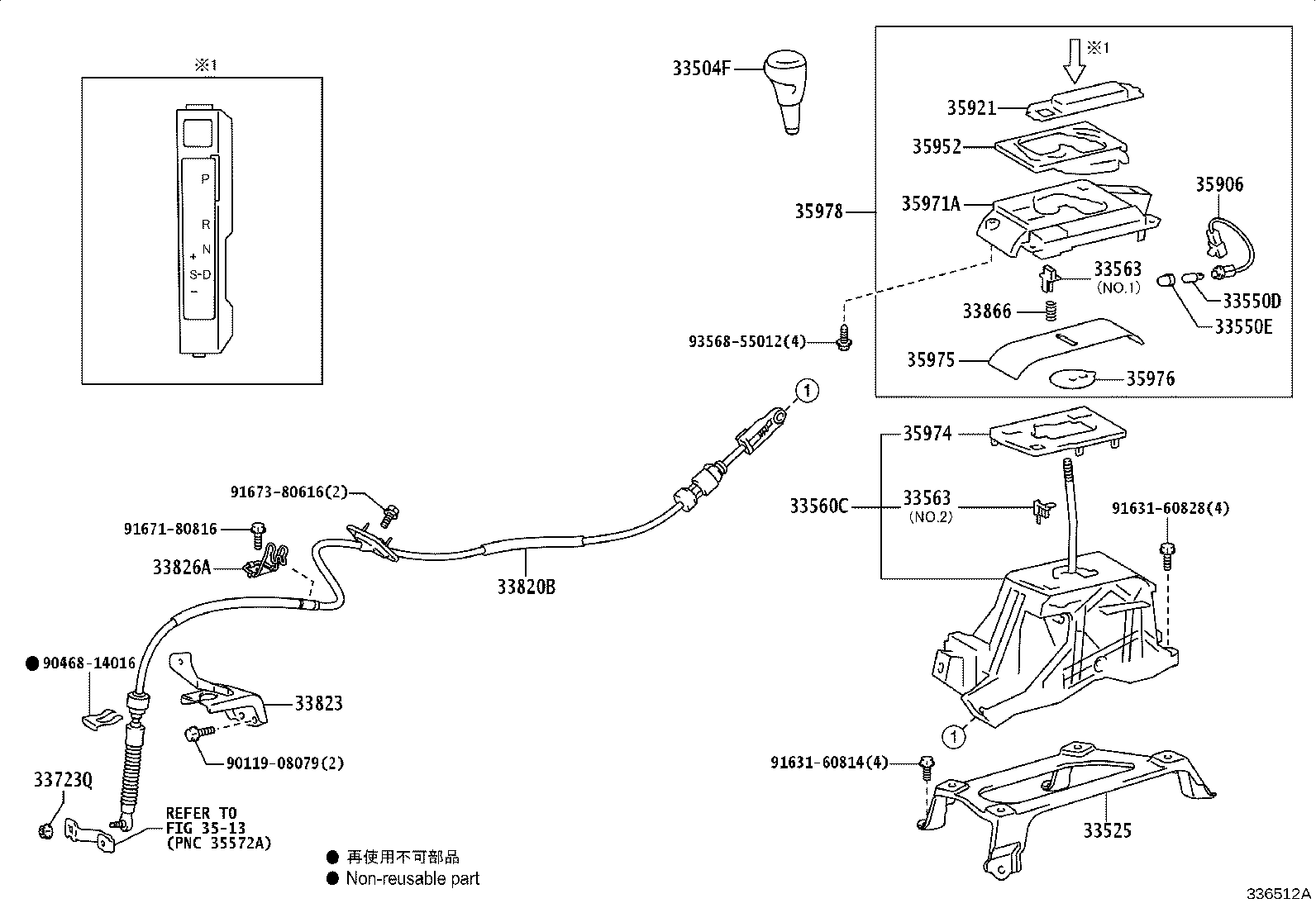

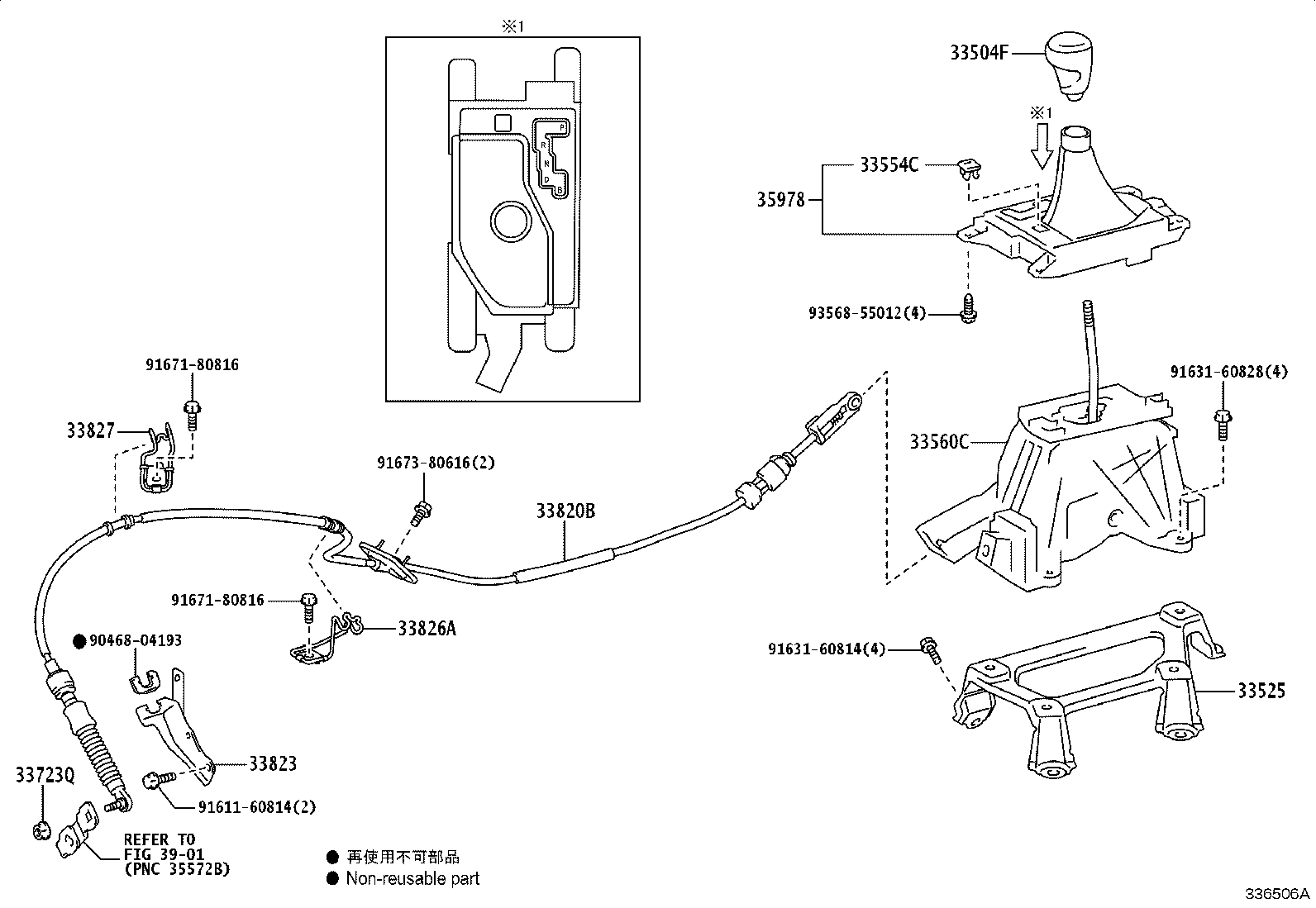

Figure 336504A 336504A 2011-08 → 2015-10 Figure 336510A 336510A 2011-08 → 2015-10 Figure 336511A 336511A 2011-08 → 2015-10 Figure 336505A 336505A 2011-08 → 2015-10 Figure 336512A 336512A 2012-08 → — Figure 336507A 336507A 2015-10 → — Figure 336508A 336508A 2015-10 → — Figure 336509A 336509A 2015-10 → — Figure 336506A 336506A 2015-10 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33525 Support, Shift Lever
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554C Cover, Shift Lock Release Button
33560C Lever Assy, Shift, Lower
33563 Button, Shift Lock Release
33723Q Nut (FOR CONNECTING ROD SWIVEL)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33827 Bracket, Transmission Control Cable, NO.3
33866 Spring, Shift Lock Release
35906 Wire Sub-assy, Indicator Lamp
35921 Plate, Control Position Indicator
35952 Lens, Position Indicator
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
