Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Torque Converter, Front Oil Pump & Chain (ATM)

16 part groups · 2 illustrations

Illustrations

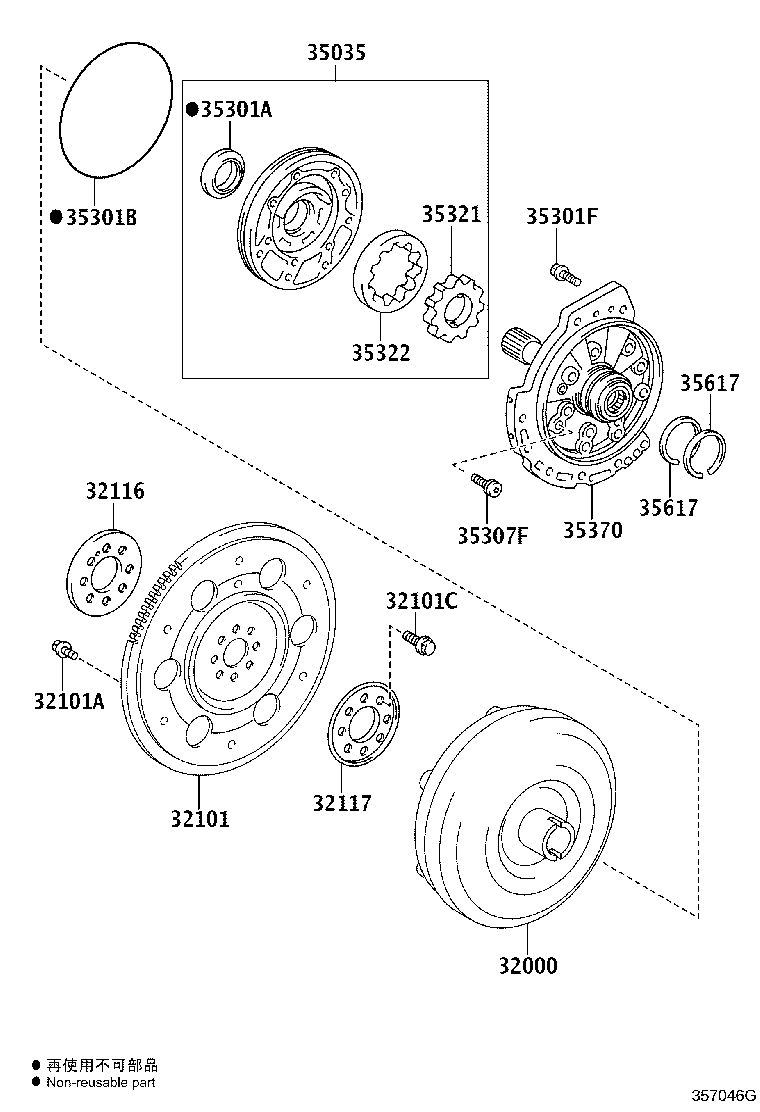

Figure 357078J 357078J 2011-08 → — Figure 357046G 357046G 2012-08 → —

Part groups

PNCDescription
32000 Converter Assy, Torque
32101 Gear Sub-assy, Drive Plate & Ring
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32116 Spacer, Drive Plate, Front
32117 Spacer, Drive Plate, Rear
35035 Body Sub-assy, FR Oil Pump & Gear
35301A Seal, Oil (FOR FRONT OIL PUMP)
35301B Ring, O (FOR FRONT OIL PUMP BODY)
35301E Pin, Straight (FOR FRONT OIL PUMP)
35301F Bolt (FOR FRONT OIL PUMP SETTING)
35307F Bolt (FOR STATOR SHAFT)
35321 Gear, Front Oil Pump Drive
35322 Gear, Front Oil Pump Driven
35370 Shaft Assy, Stator
35617 Ring, Clutch Drum Oil Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
