Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

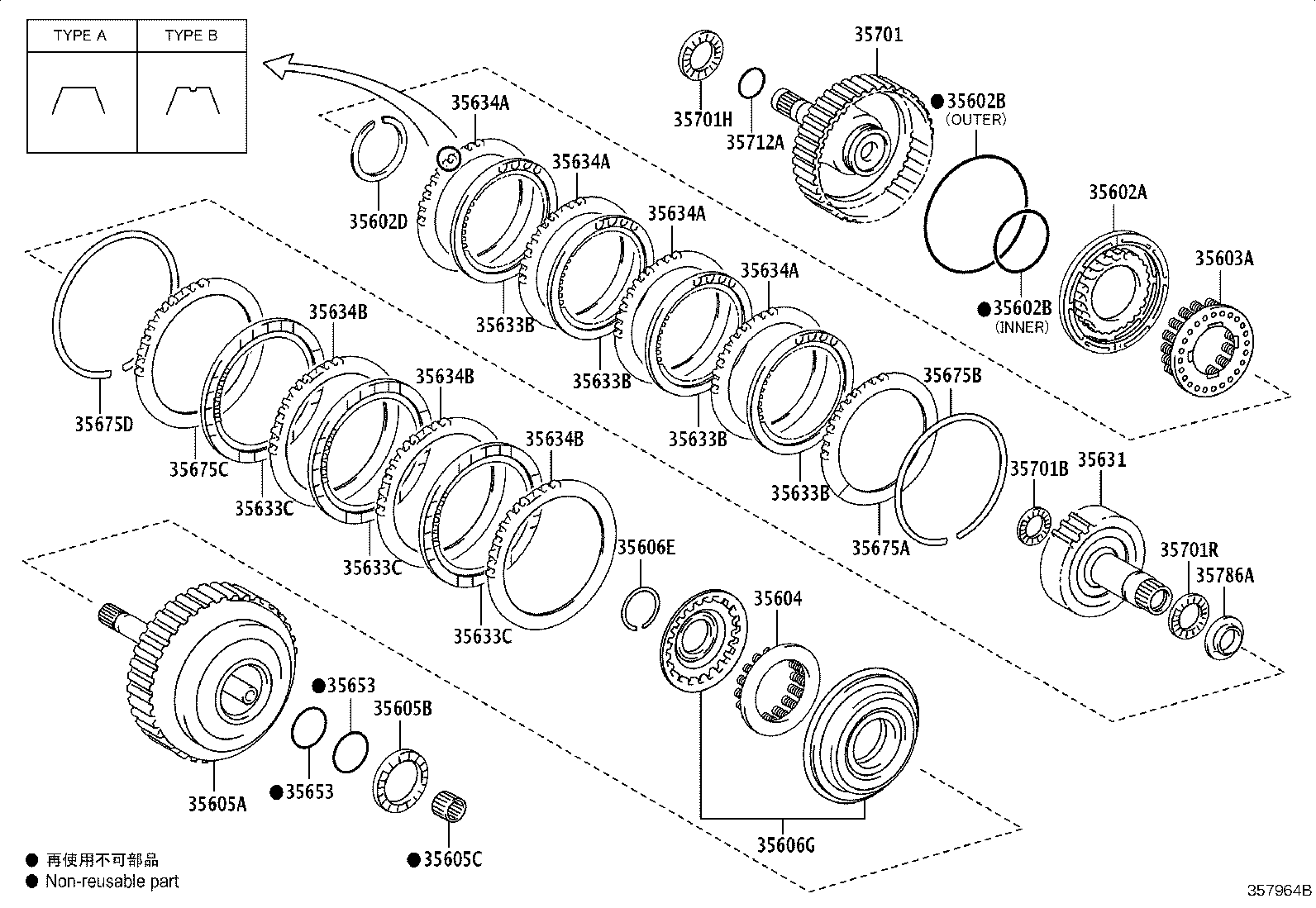

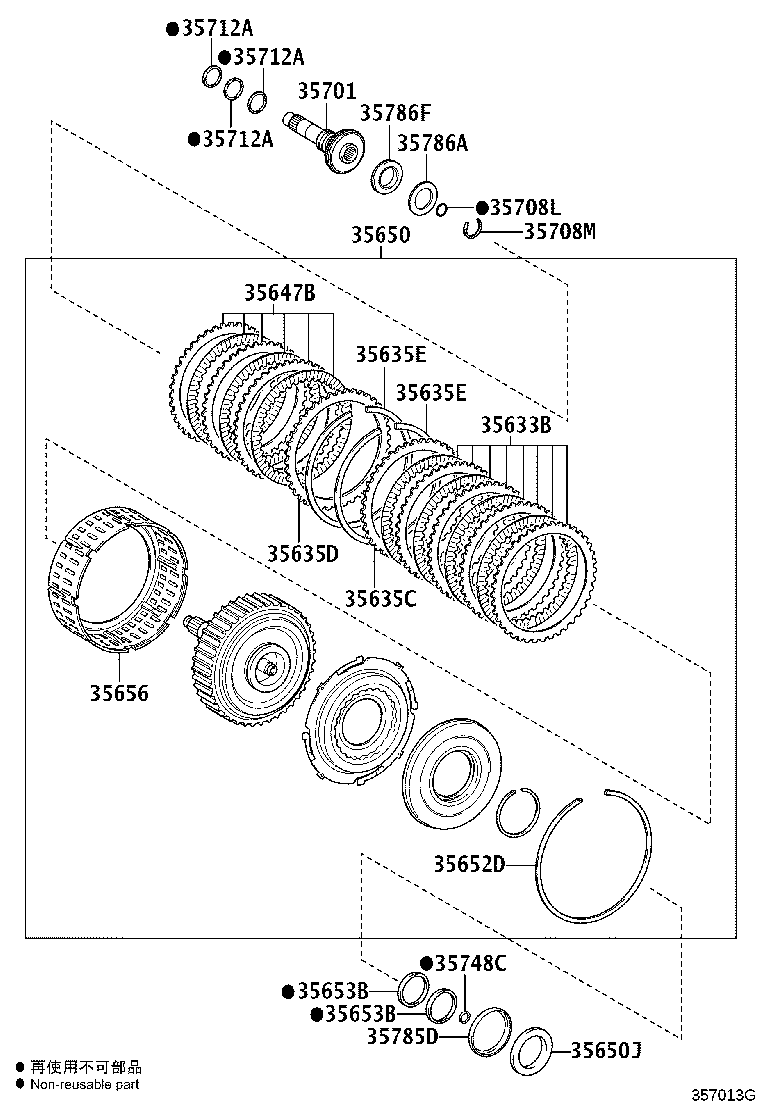

Brake Band & Multiple Disc Clutch (ATM)
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35602A | Piston Sub-assy, Forward Clutch |
| 35602B | Ring, O (FOR FORWARD CLUTCH PISTON) |
| 35602D | Ring, Shaft Snap(FOR FORWARD CLUTCH PISTON RETURN SPRING) |
| 35603A | Spring Sub-assy, Forward Clutch Return |
| 35604 | Spring Sub-assy, Direct Clutch Return |
| 35605A | Drum Sub-assy, Direct Clutch |
| 35605B | Bearing, Thrust Needle Roller |
| 35605C | Bearing, Needle Roller |
| 35606E | Ring, Shaft Snap (FOR DIRECT CLUTCH PISTON RETURN SPRING) |
| 35606G | Piston Set, Direct Clutch |
| 35631 | Hub, Clutch(FOR MULTIPLE DISC CLUTCH) |
| 35633B | Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35633C | Disc, Clutch (FOR DIRECT MULTIPLE DISC CLUTCH) |
| 35634A | Plate, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH) |
| 35634B | Plate, Clutch (FOR DIRECT MULTIPLE DISC CLUTCH) |
| 35635C | Clutch Frange, Direct Multiple Disc, NO.1 |
| 35635D | Clutch Frange, Direct Multiple Disc, NO.2 |
| 35635E | Ring, Snap (FOR DIRECT MULTIPLE DISC CLUTCH) |
| 35647B | Plate, Clutch, NO.2 |
| 35650 | Clutch Assy, Rear Multiple Disc |
| 35650J | Bearing, Thrust Needle Roller (FOR DIRECT DISC CLUTCH) |
| 35652D | Ring, Snap (FOR DIRECT CLUTCH PISTON) |
| 35653 | Ring, Rear Clutch Oil Seal, Outer |
| 35653B | Ring, Direct Clutch Drum Oil Seal |
| 35656 | Piston, Direct Clutch, NO.2 |
| 35675A | Flange, Forward Clutch |
| 35675B | Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE) |
| 35675C | Flange, Direct Clutch |
| 35675D | Ring, Hole Snap (FOR DIRECT CLUTCH FLANGE) |
| 35701 | Shaft Sub-assy, Input |
| 35701B | Bearing, Thrust Needle Roller (FOR INPUT SHAFT REAR) |
| 35701H | Bearing, Thrust Needle Roller (FOR INPUT SHAFT) |
| 35701R | Bearing, Thrust Needle Roller |
| 35708L | Ring, O (FOR INTERMEDIATE SHAFT) |
| 35708M | Ring, Snap (FOR INTERMEDIATE SHAFT) |
| 35712A | Ring, Input Shaft Oil Seal |
| 35748C | Ring, Intermediate Shaft Oil Seal |
| 35785D | Race, Thrust Bearing, NO.4 |
| 35786A | Race, Thrust Bearing, NO.1 |
| 35786F | Bearing, Thrust Needle Roller |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
