Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

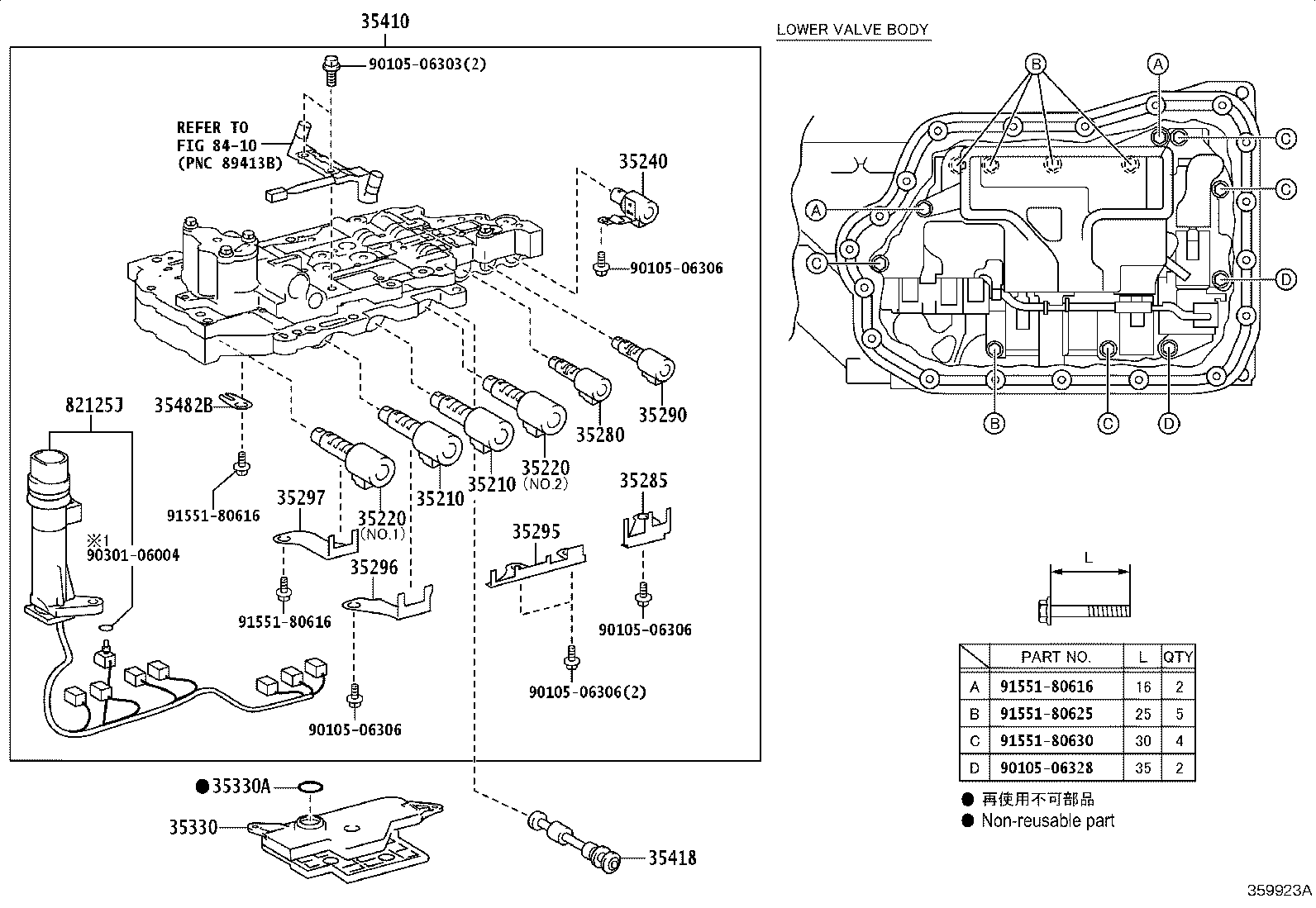

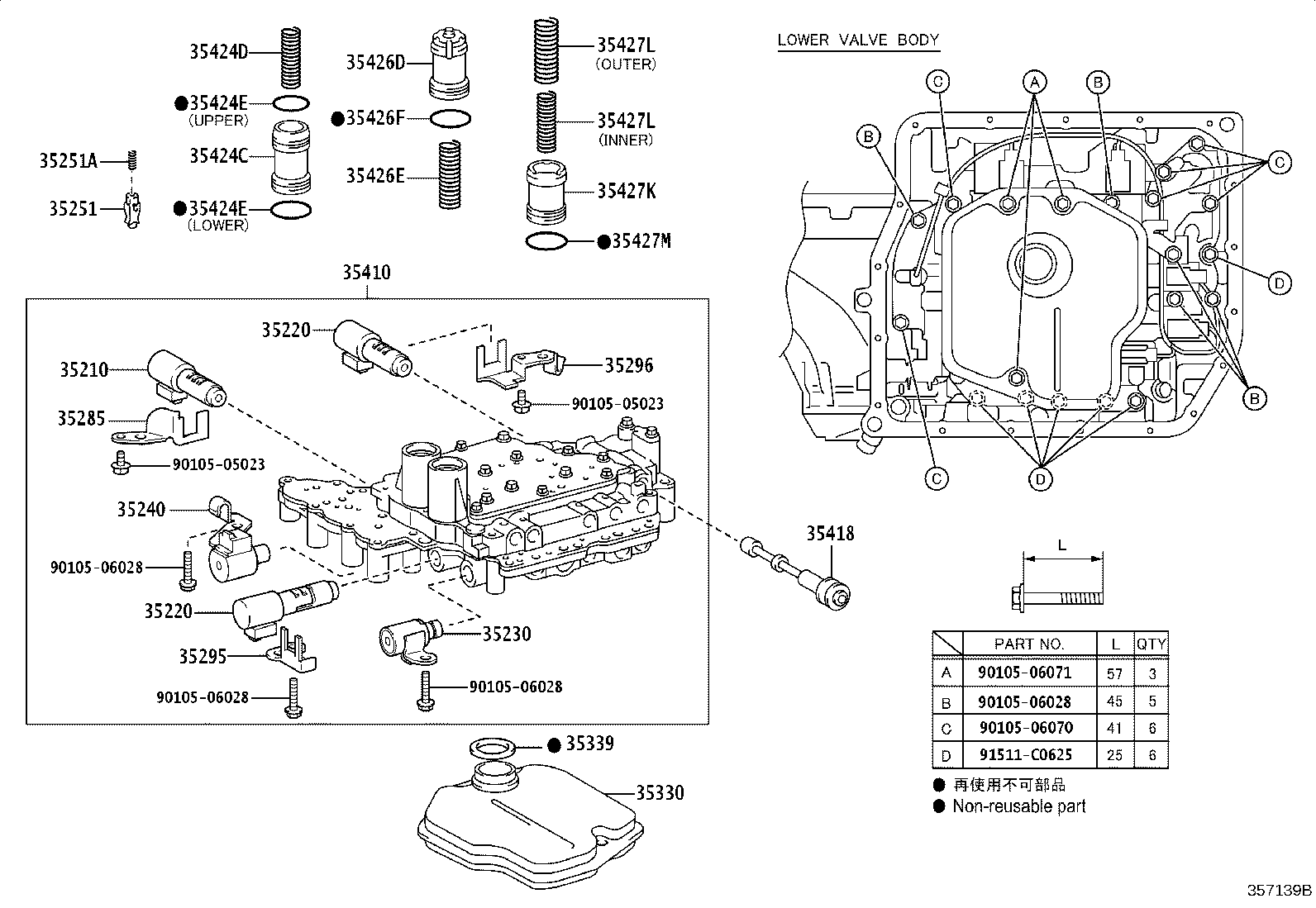

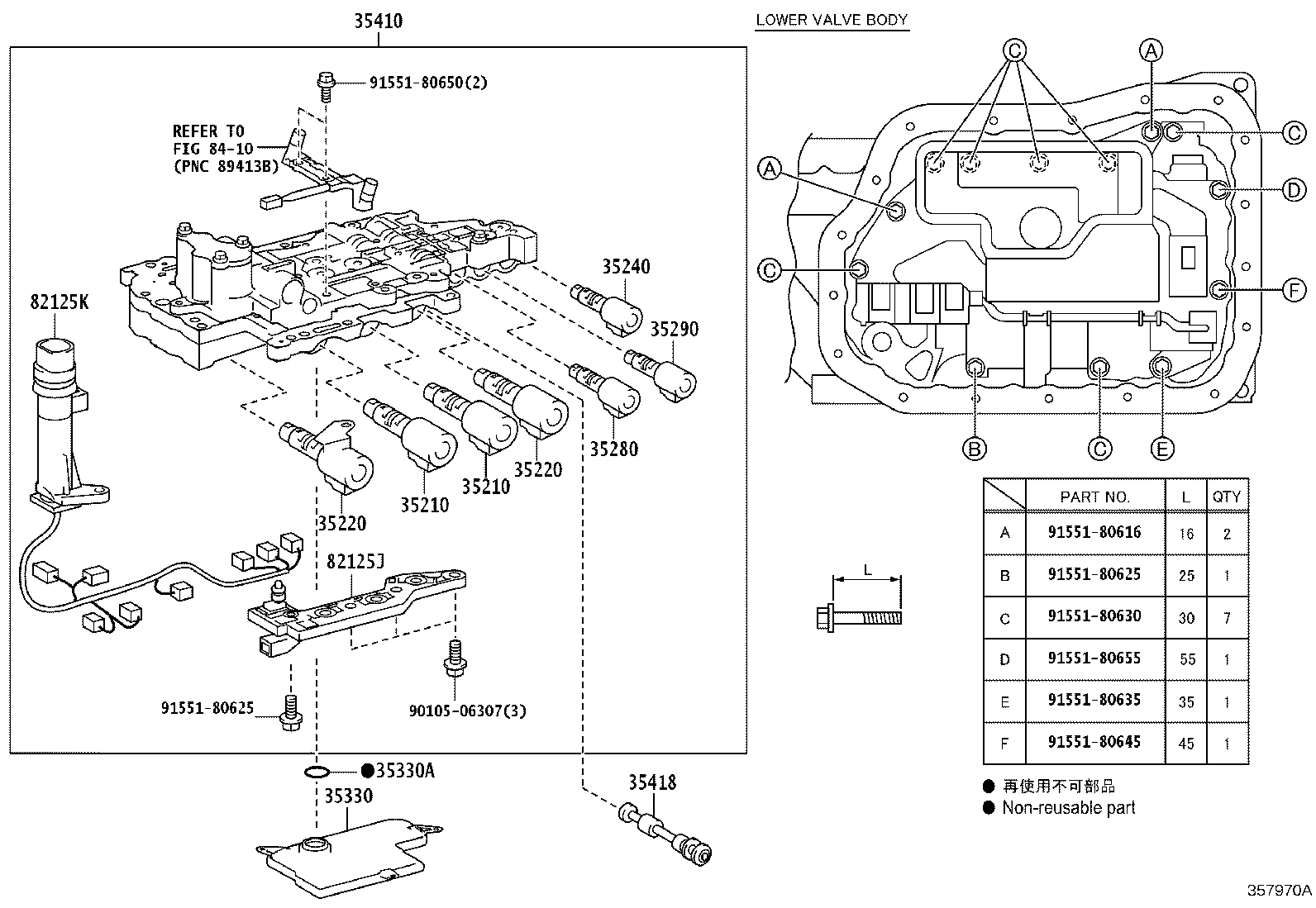

Valve Body & Oil Strainer (ATM)
37 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 35195A | Clamp, Transaxle Apply Tube, NO.1 |
| 35196 | Clamp, Transaxle Apply Tube, NO.2 |
| 35210 | Solenoid Assy, Clutch Control, NO.1 |
| 35220 | Solenoid Assy, Clutch Control, NO.2 |
| 35230 | Solenoid Assy, Transmission 3Way, NO.2 |
| 35240 | Solenoid Assy, Automatic Transmission 3Way |
| 35251 | Body, Check Ball |
| 35251A | Spring, Compression (FOR CHECK BALL BODY) |
| 35280 | Solenoid Assy, Lock UP Control |
| 35285 | Plate, Solenoid Lock |
| 35290 | Solenoid Assy, Line Pressure Control |
| 35295 | Plate, Solenoid Lock, NO.2 |
| 35296 | Plate, Solenoid Lock, NO.3 |
| 35297 | Plate, Solenoid Lock, NO.4 |
| 35330 | Strainer Assy, Valve Body Oil |
| 35330A | Ring, O (FOR OIL STRAINER) |
| 35339 | Gasket, Oil Strainer |
| 35409 | Spring Sub-assy, Manual Detent |
| 35410 | Body Assy, Transmission Valve |
| 35418 | Valve, Manual |
| 35424C | Piston, C-1 Accumulator |
| 35424D | Spring, Compression (FOR C-1 ACCUMULATOR PISTON) |
| 35424E | Ring, O (FOR C-1 ACCUMULATOR PISTON) |
| 35426D | Piston, C-3 Accumulator |
| 35426E | Spring, Compression (FOR C-3 ACCUMULATOR PISTON) |
| 35426F | Ring, O (FOR C-3 ACCUMULATOR PISTON) |
| 35427K | Piston, B-3 Accumulator |
| 35427L | Spring, Compression (FOR B-3 ACCUMULATOR PISTON) |
| 35427M | Ring, O (FOR B-3 ACCUMULATOR PISTON) |
| 35482B | Clamp, Temperature Sensor |
| 35599 | Cover, Manual Detent Spring |
| 35666D | Tube, Brake Apply |
| 35882A | Tube, Differential Gear Lube Apply |
| 35895 | Tube, Front Clutch Apply |
| 82125J | Wire, Transmission |
| 82125K | Wire, Transmission |
| 82125L | Ring, O(FOR TRANSMISSION WIRE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
