Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Throttle Link & Valve Lever (ATM)

22 part groups · 3 illustrations

Illustrations

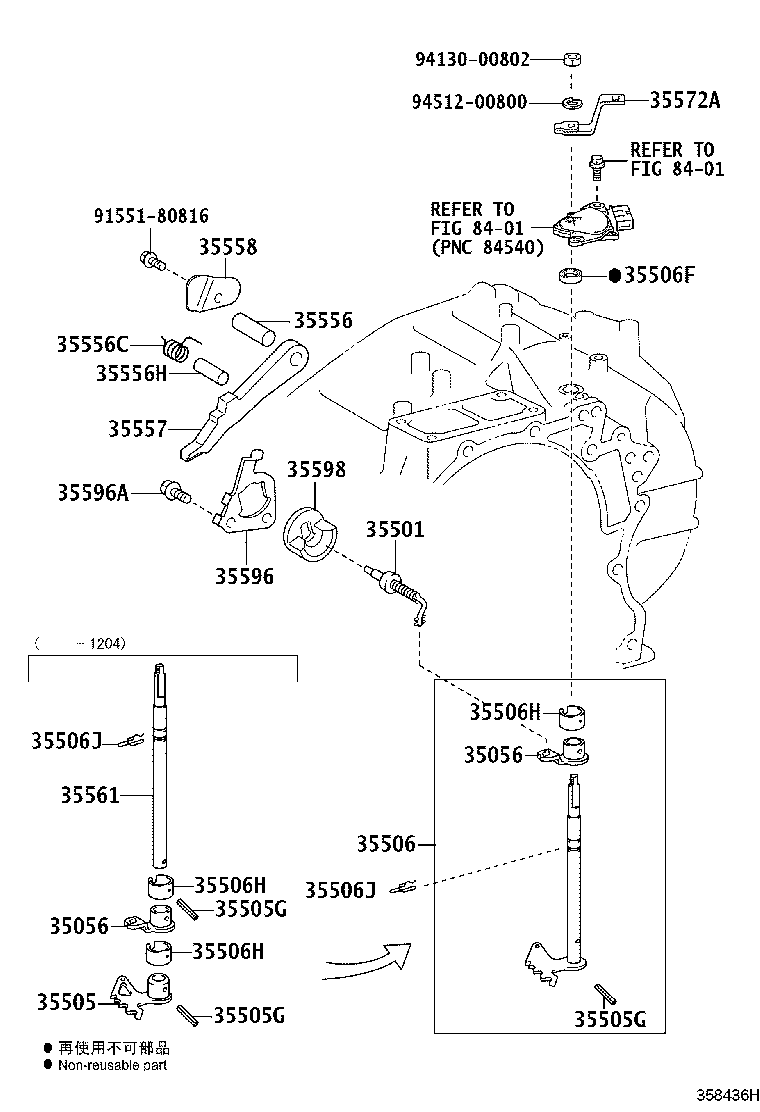

Figure 356960G 356960G 2011-08 → — Figure 358436H 358436H 2011-08 → — Figure 357006C 357006C 2012-08 → —

Part groups

PNCDescription
35056 Lever Sub-assy, Parking Lock W/Roller
35501 Rod Sub-assy, Parking Lock
35505 Lever Sub-assy, Manual Valve
35505B Spacer (FOR MANUAL VALVE LEVER)
35505G Pin, Slotted Spring (FOR MANUAL VALVE LEVER)
35506 Shaft Sub-assy, Manual Valve Lever
35506F Seal, Oil (FOR MANUAL VALVE LEVER SHAFT)
35506H Spacer (FOR MANUAL VALVE LEVER SHAFT)
35506J Spring, Retainer (FOR MANUAL VALVE LEVER SHAFT)
35556 Shaft, Parking Lock Pawl
35556C Spring, Torsion (FOR PARKING LOCK PAWL SHAFT)
35556H Shaft, Parking Lock Pawl
35557 Pawl, Parking Lock
35557A Spring, Torsion (FOR PARKING LOCK PAWL)
35558 Clamp, Pawl Shaft
35561 Shaft, Manual Valve Lever
35572A Lever, Transmission Control Shaft
35579 Pin, Parking Lock Pawl
35595 Bracket, Parking Lock Pawl
35596 Plate, Pawl Stopper
35596A Bolt (FOR PAWL STOPPER PLATE)
35598 Sleeve, Parking Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
