Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle Assy(HEV OR BEV OR FCEV)

25 part groups · 3 illustrations

Illustrations

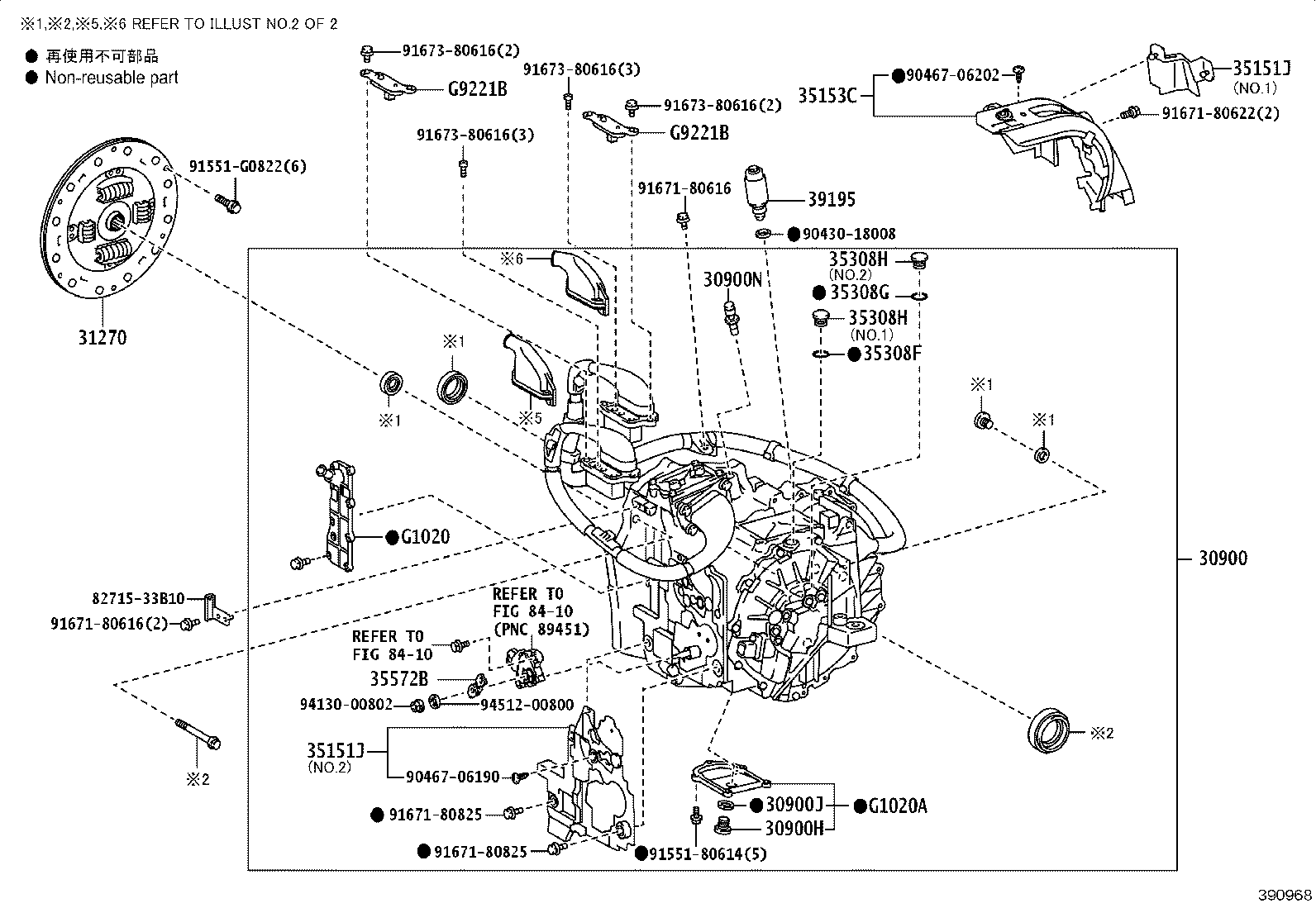

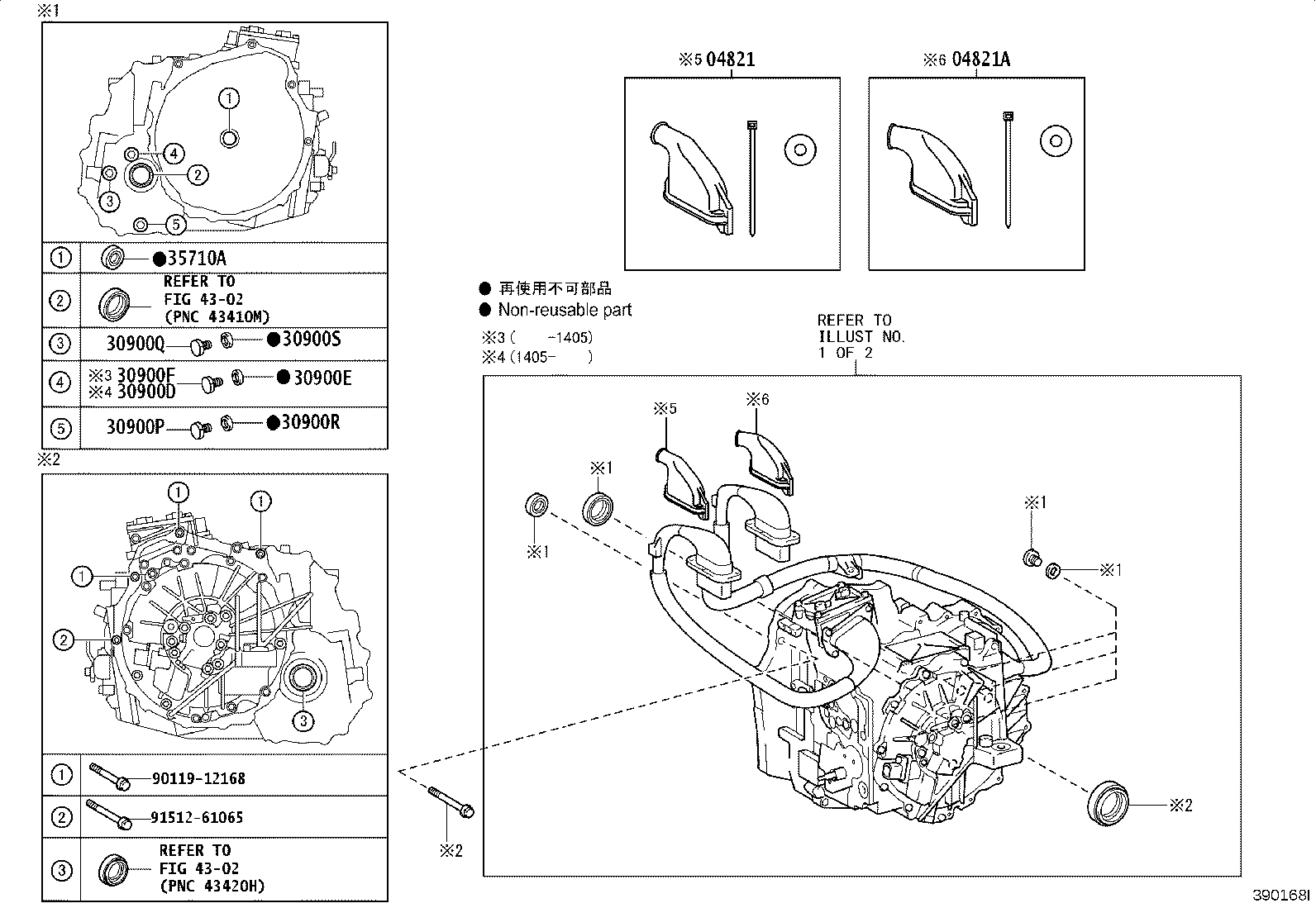

Figure 390967 390967 2011-08 → 2014-05 Figure 390968 390968 2014-05 → — Figure 390168I 390168I 2011-08 → —

Part groups

PNCDescription
04821 Boot Kit, Wire Harness
04821A Boot Kit, Wire Harness
30900 Transaxle Assy, Hybrid Vehicle
30900D Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE)
30900E Gasket(FOR TRANSAXLE HOUSING & CASE)
30900F Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
30900H Plug, W/Head Straight Screw, NO.3(FOR TRANSAXLE HSG & CASE)
30900J Gasket, NO.3(FOR TRANSAXLE HOUSING & CASE)
30900N Plug, Breather(FOR TRANSAXLE)
30900P Plug, Drain(HEV)
30900Q Plug, Filler(HEV)
30900R Gasket, Drain Plug(HEV)
30900S Gasket, Filler Plug(HEV)
31270 Damper Assy, Transmission Input
35151J Cover, Automatic Transmission Case
35153C Cover, Automatic Transmission Case, NO.3
35308F Ring, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)
35308G Ring, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308H Plug (FOR TRANSMISSION OIL PUMP COVER)
35572B Lever, Transmission, Outer
35710A Seal, Type T Oil(FOR INPUT SHAFT)
39195 Damper, HV Transaxle Mass
G1020 Cover Assy, Motor Water Jacket, NO.1
G1020A Cover Assy, Motor Water Jacket, NO.2
G9221B Cover, Inverter, Uprper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
