Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

20 part groups · 3 illustrations

Illustrations

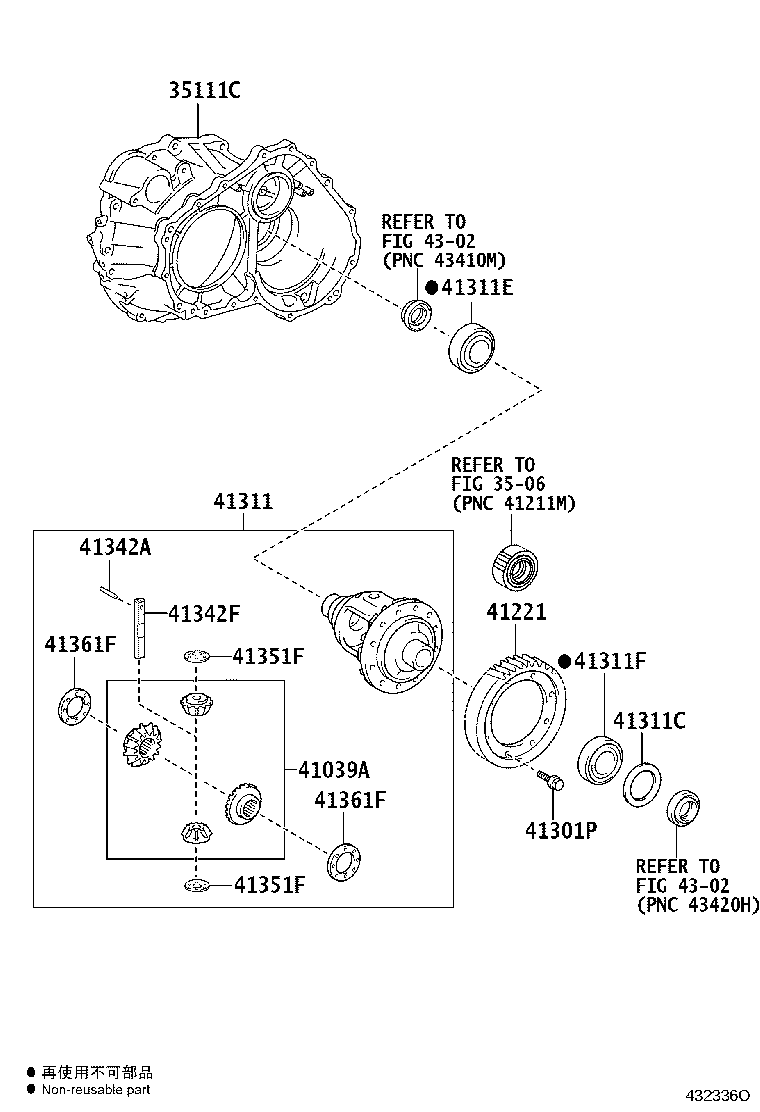

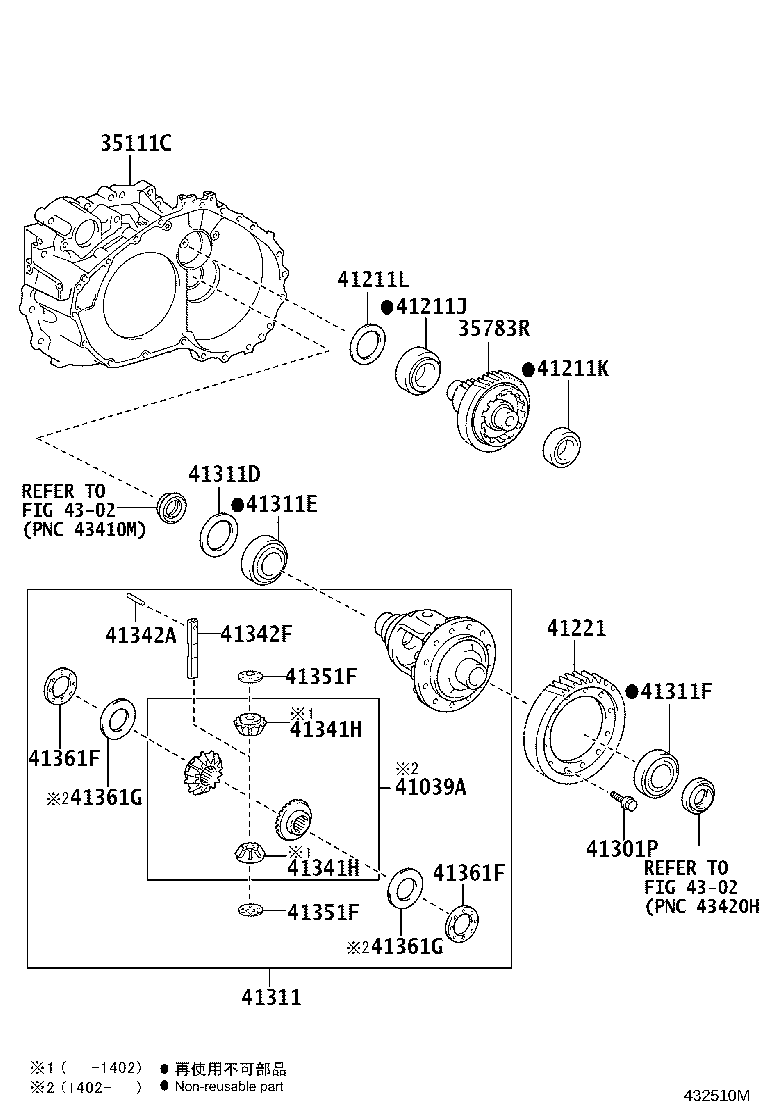

Figure 432378N 432378N 2011-08 → — Figure 432510M 432510M 2011-08 → — Figure 432336O 432336O 2012-08 → —

Part groups

PNCDescription
35111C Housing, Transaxle
35174 Separator, Transaxle Housing Oil
35783R Gear, Counter Driven
41039A Gear Kit, Differential
41211J Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION RH)
41211K Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION LH)
41211L Shim (FOR DIFFERENTIAL DRIVE PINION)
41221 Gear, Front Differential Ring
41301P Screw(FOR FRONT DIFFERENTIAL CASE)
41311 Case, Front Differential
41311C Shim (FOR FRONT DIFFERENTIAL CASE REAR)
41311D Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41341H Pinion, Differential
41342A Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342F Shaft, Front Differential Pinion, NO.1
41351F Washer, Front Differential Pinion Thrust
41361F Washer, Front Differential Side Gear Thrust, NO.1
41361G Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
