Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

15 part groups · 5 illustrations

Illustrations

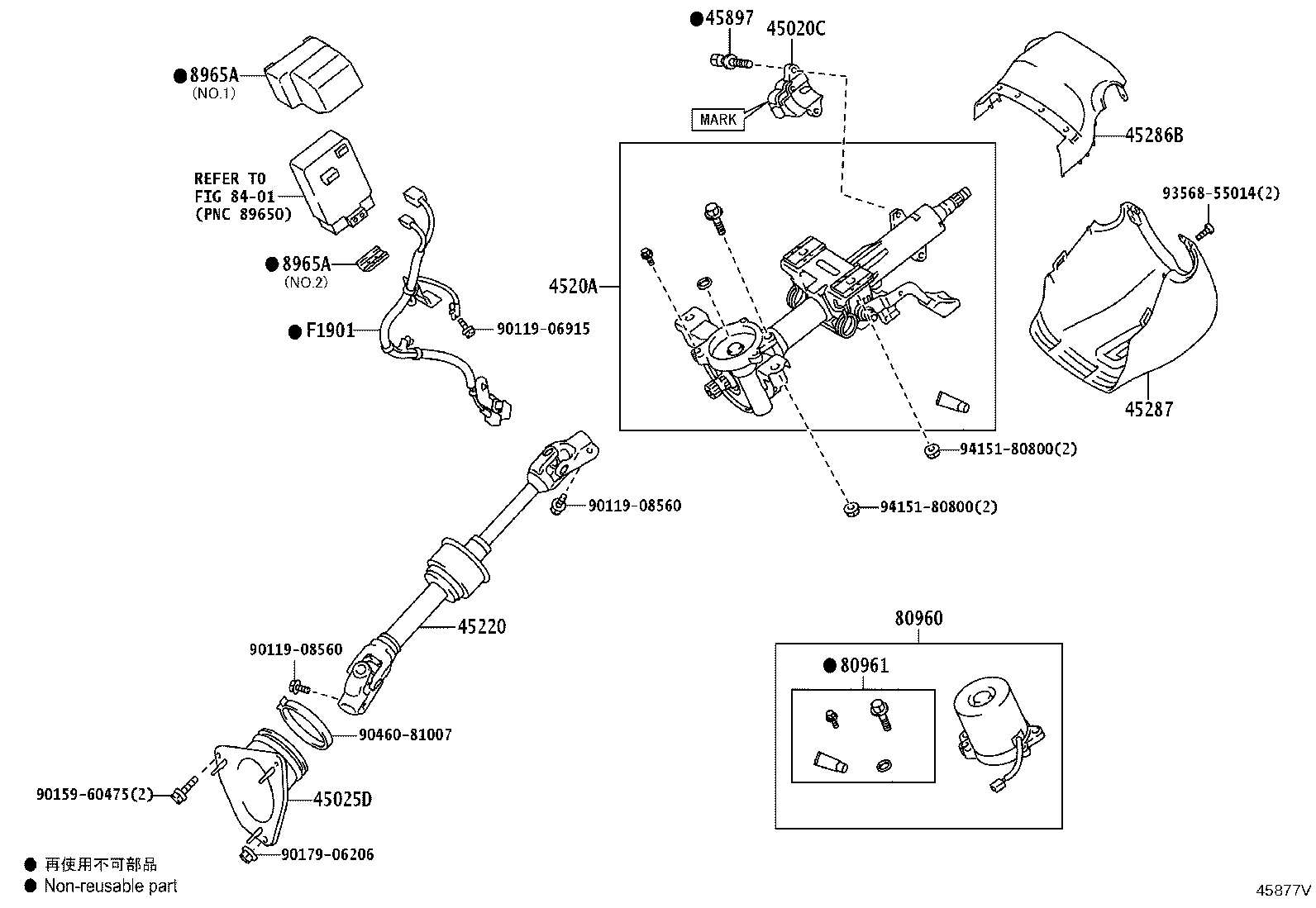

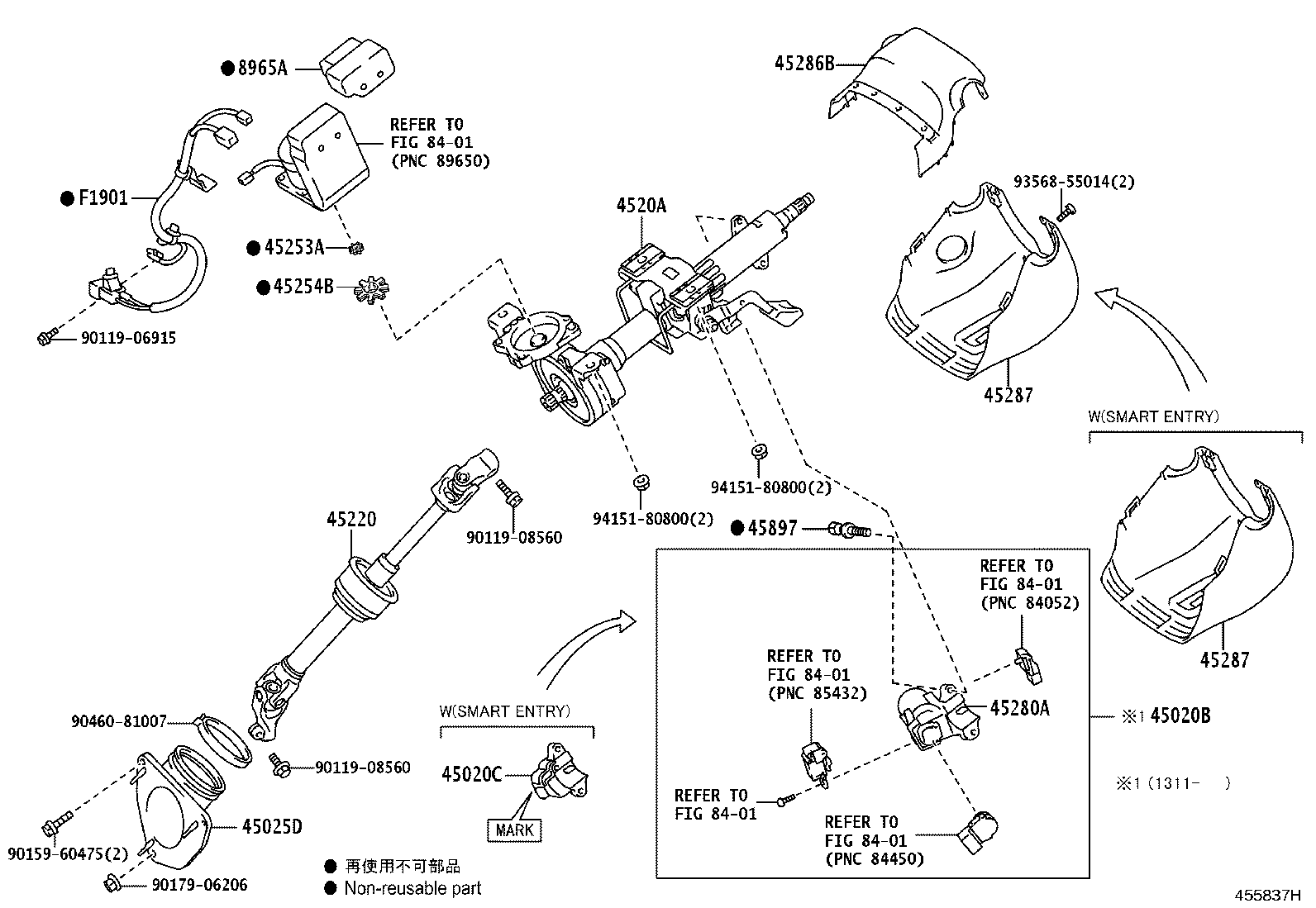

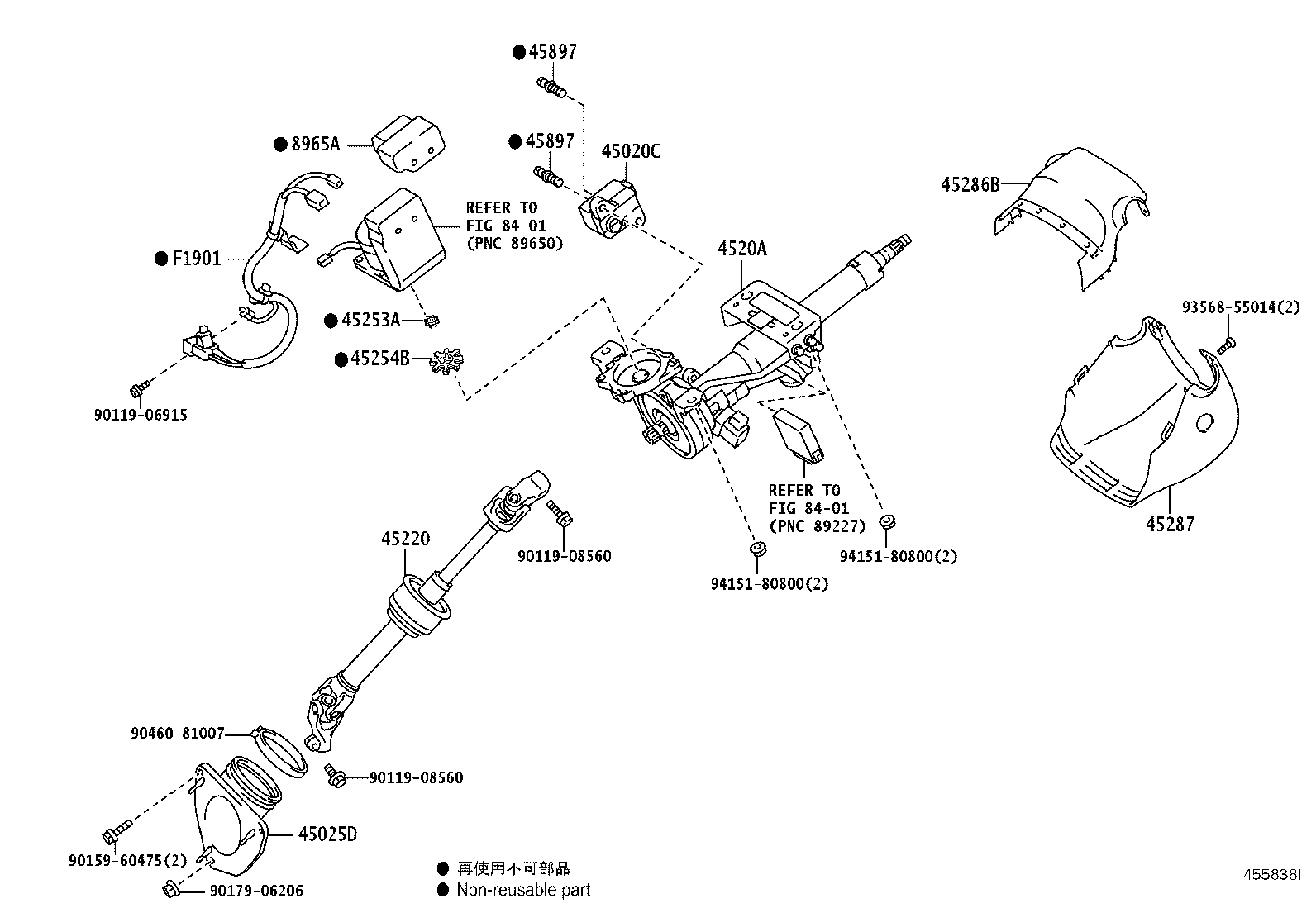

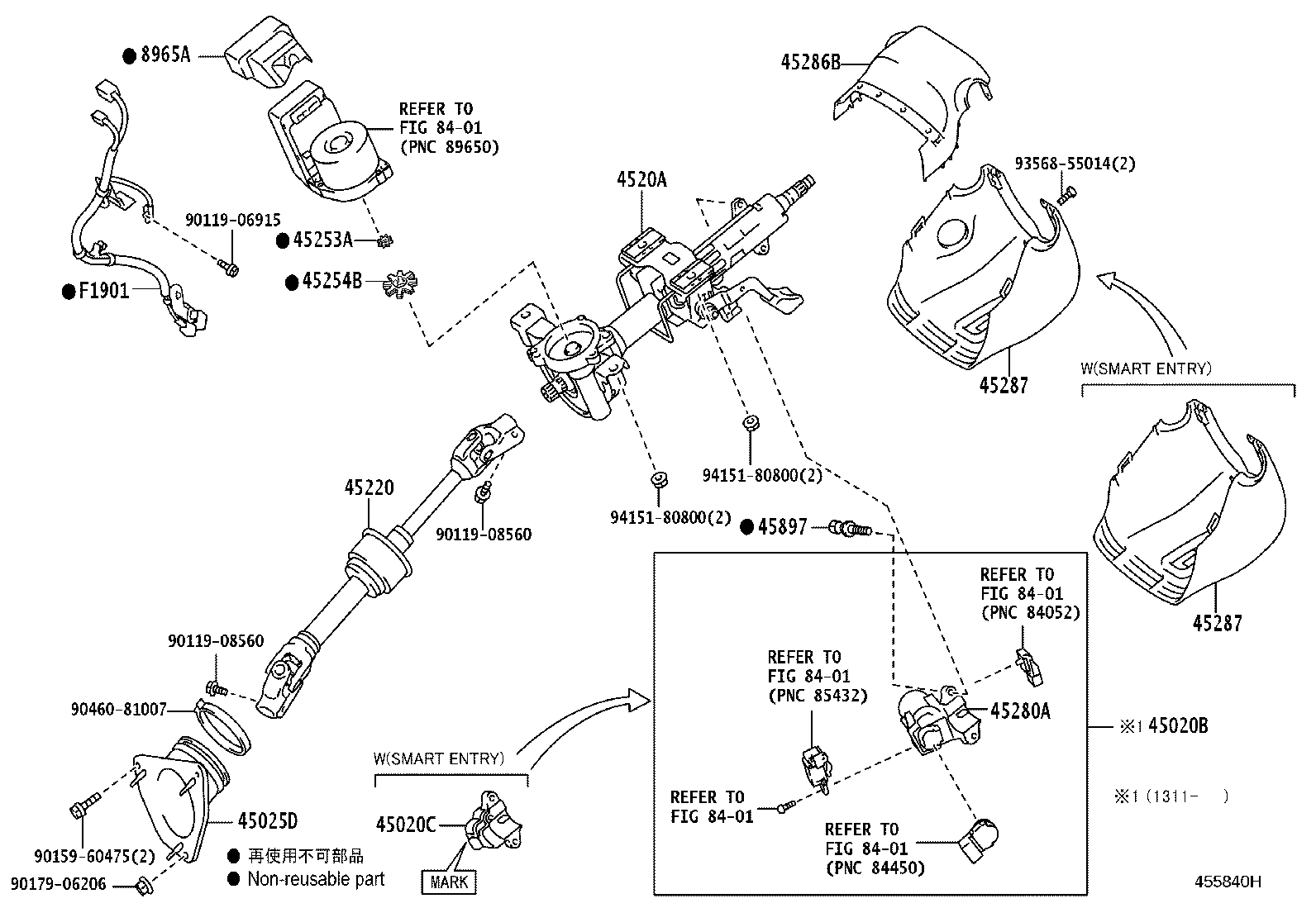

Figure 455836J 455836J 2011-08 → — Figure 45877V 45877V 2011-08 → — Figure 455837H 455837H 2011-08 → — Figure 455838I 455838I 2011-08 → — Figure 455840H 455840H 2011-08 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45220 Shaft Assy, Steering Intermediate
45253A Spacer, Electric Power Steering Motor Shaft
45254B Damper, Electric Power Steering Motor Shaft
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45897 Bolt, Steering Lock Set
80960 Motor Assy, Power Steering
80961 Fastener Set, Power Steering Motor
8965A Protector, Power Steering Computer
F1901 Wire Sub-assy, Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
