Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

9 part groups · 2 illustrations

Illustrations

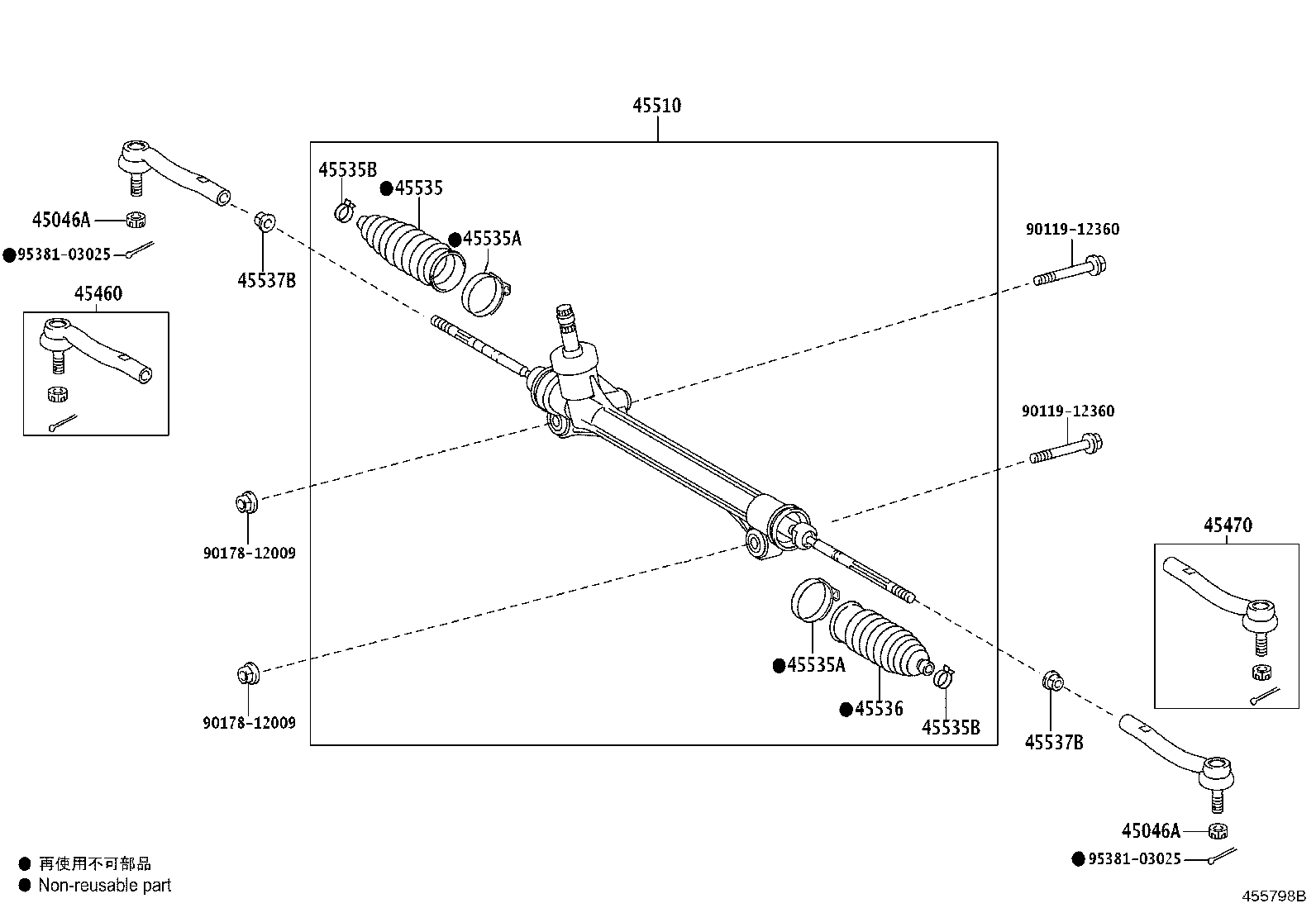

Figure 455797B 455797B 2011-08 → — Figure 455798B 455798B 2011-08 → —

Part groups

PNCDescription
45046A Nut, Castle(FOR TIE ROD END)
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45510 Gear Assy, Steering
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
45536 Boot, Steering Rack, NO.2
45537B Nut, Rack End Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
