Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

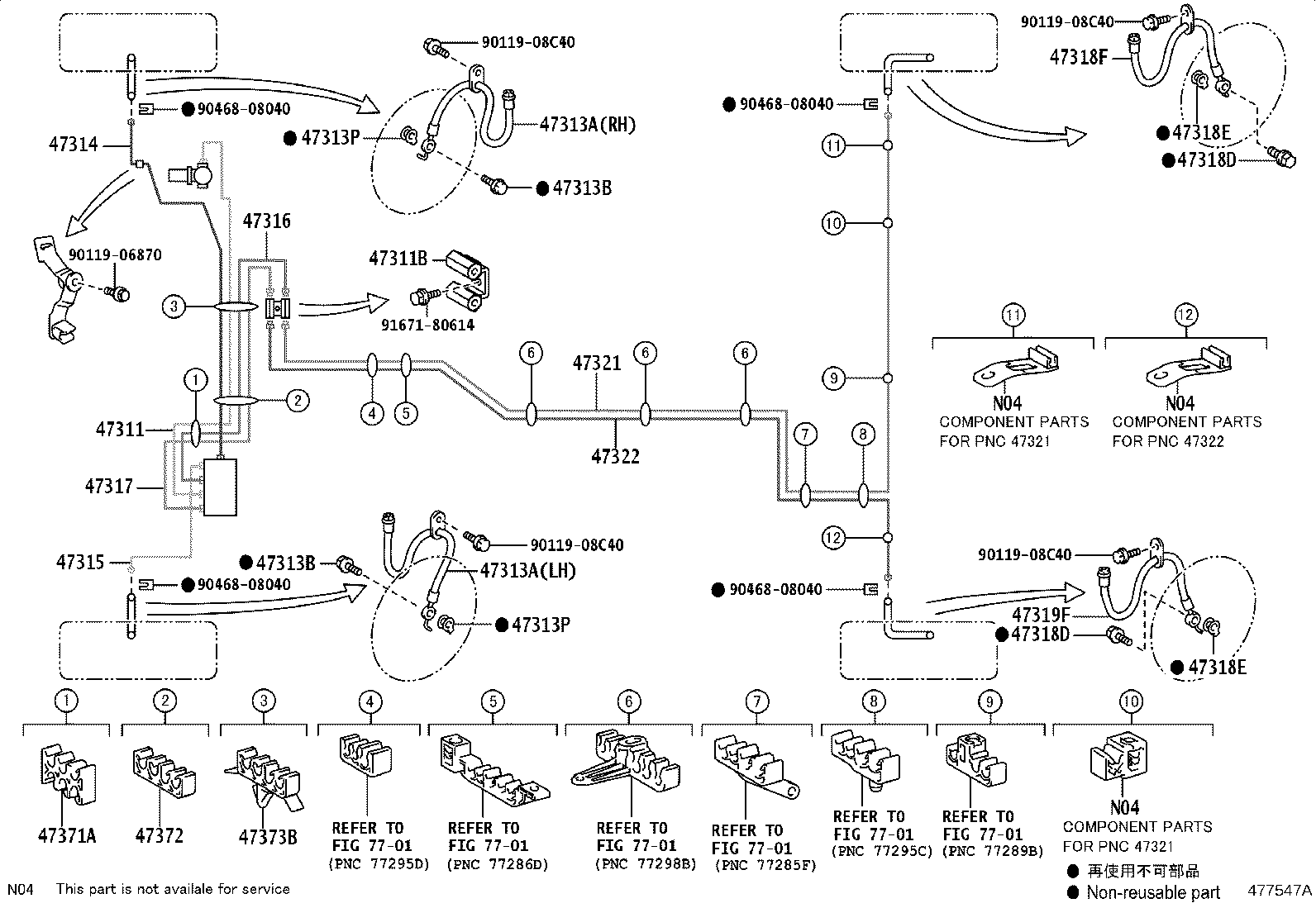

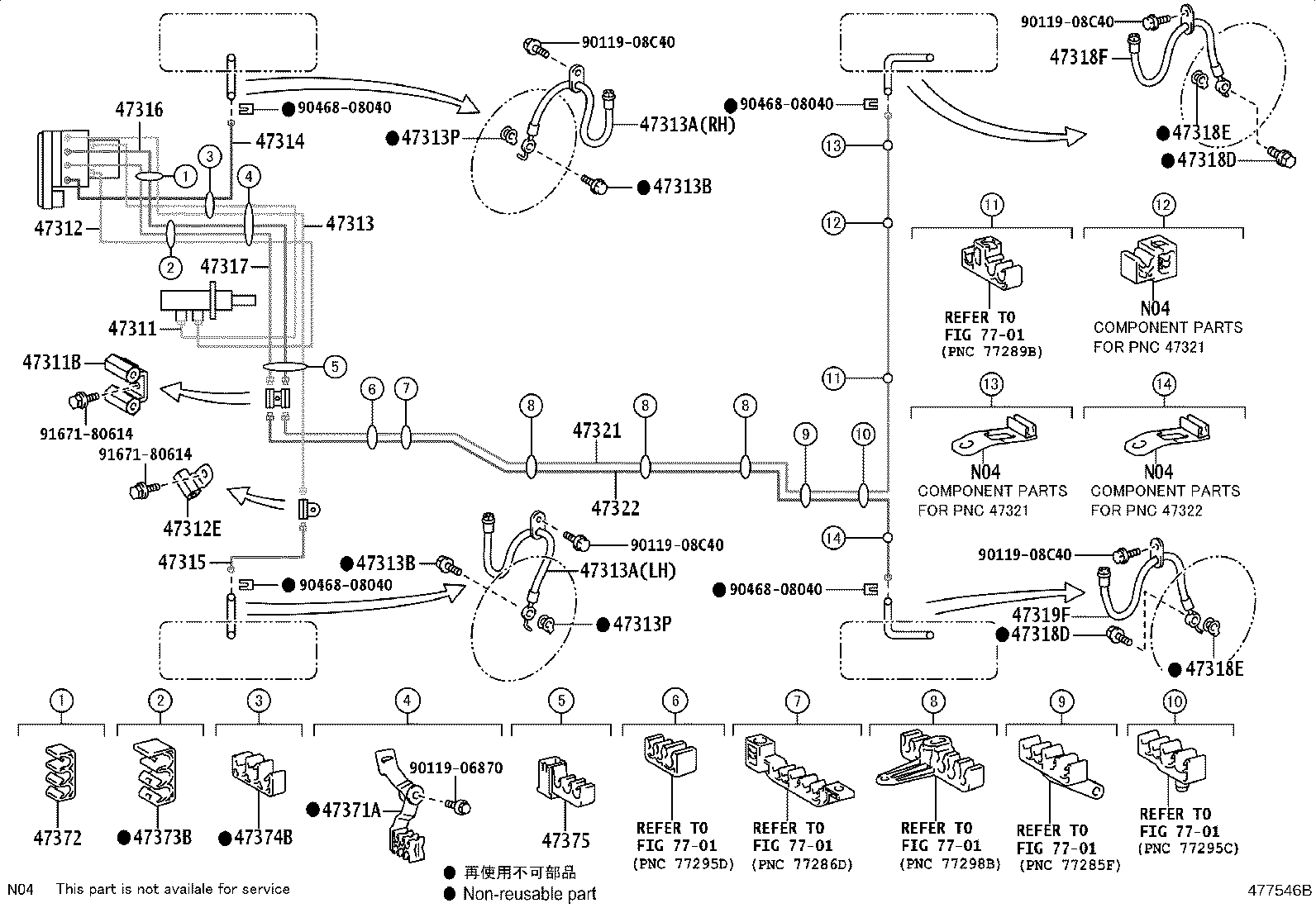

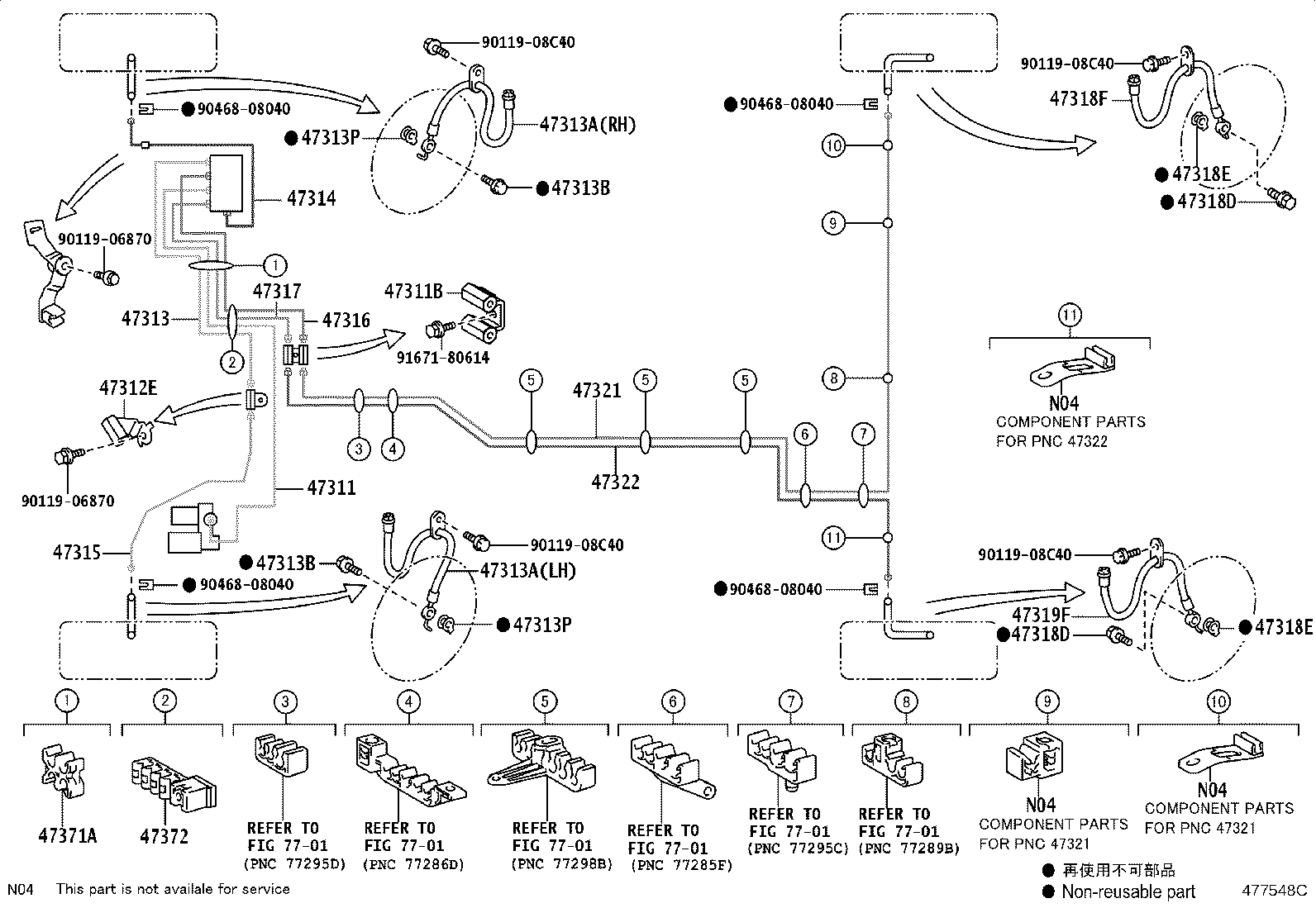

Brake Tube & Clamp
31 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 44510 | Actuator Assy, Brake |
| 44590 | Bracket Assy, Brake Actuator |

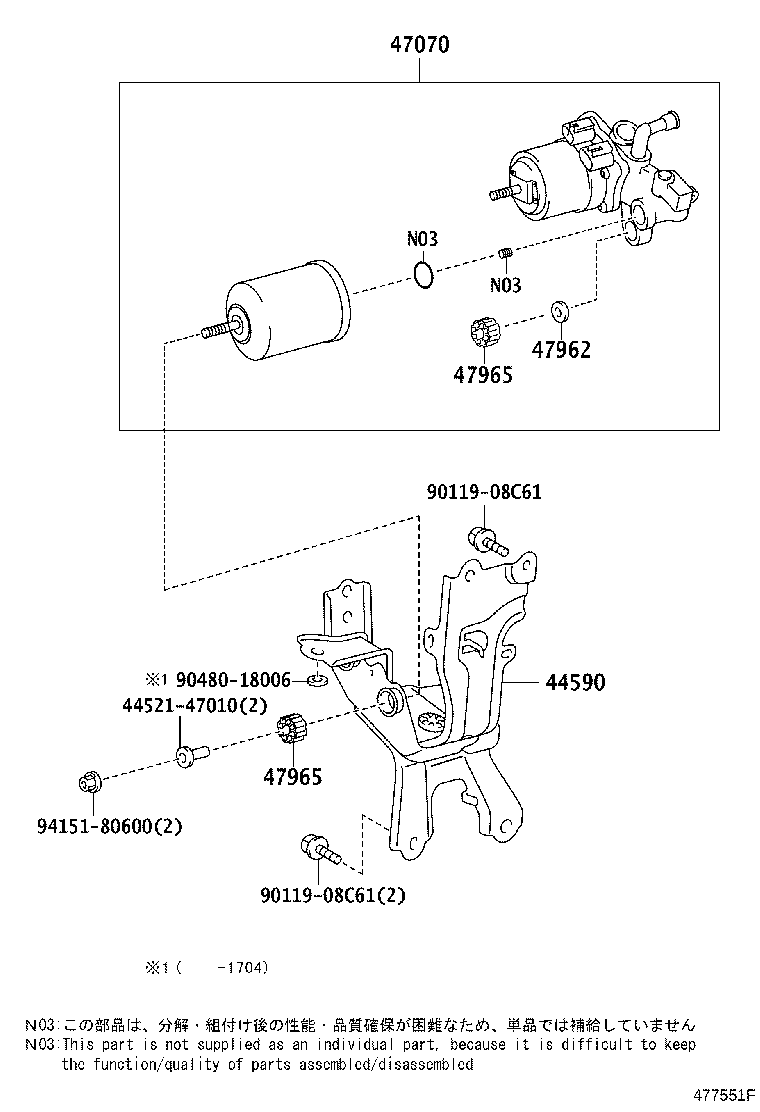

| 47070 | Pump Assy, Brake Booster |
| 47311 | Tube, Front Brake, NO.1 |
| 47311A | Way(FOR FRONT BRAKE TUBE) |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47311K | Tube, Brake Master Cylinder TO Way |
| 47312 | Tube, Front Brake, NO.2 |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47317 | Tube, Front Brake, NO.7 |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47375 | Clamp, Brake Tube, NO.5 |
| 47962 | Collar, Brake Booster Pump |
| 47965 | Bush, Brake Booster Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
