Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

25 part groups · 3 illustrations

Illustrations

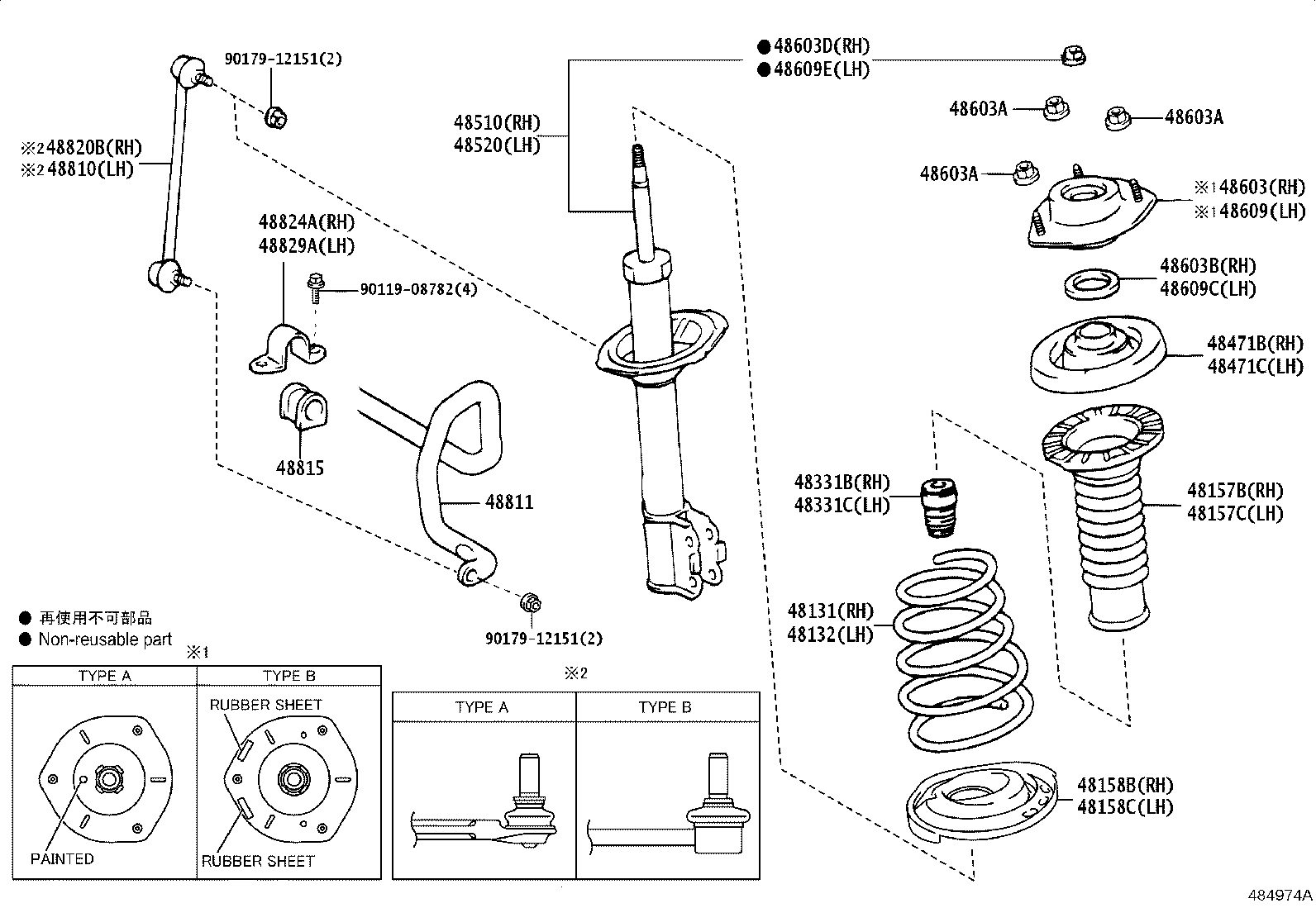

Figure 484973A 484973A 2011-08 → — Figure 484973A 484973A 2011-11 → 2013-11 Figure 484974A 484974A 2013-11 → —

Part groups

PNCDescription
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48157B Insulator, Front Coil Spring, Upper RH
48157C Insulator, Front Coil Spring, Upper LH
48158B Insulator, Front Coil Spring, Lower RH
48158C Insulator, Front Coil Spring, Lower LH
48331B Bumper, Front Spring, RH
48331C Bumper, Front Spring, LH
48471B Seat, Front Coil Spring, Upper RH
48471C Seat, Front Coil Spring, Upper LH
48510 Absorber Assy, Shock, Front RH
48520 Absorber Assy, Shock, Front LH
48603 Support Sub-assy, Front Suspension, RH
48603A Nut(FOR FRONT SUSPENSION SUPPORT)
48603B Bearing(FOR FRONT SUSPENSION SUPPORT RH)
48603D Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609 Support Sub-assy, Front Suspension, LH
48609C Bearing(FOR FRONT SUSPENSION SUPPORT LH)
48609E Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48810 Link Assy, Front Stabilizer, LH
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48820B Link Assy, Front Stabilizer, RH
48824A Bracket, Front Stabilizer, NO.1 RH
48829A Bracket, Front Stabilizer, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
