Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

27 part groups · 12 illustrations

Illustrations

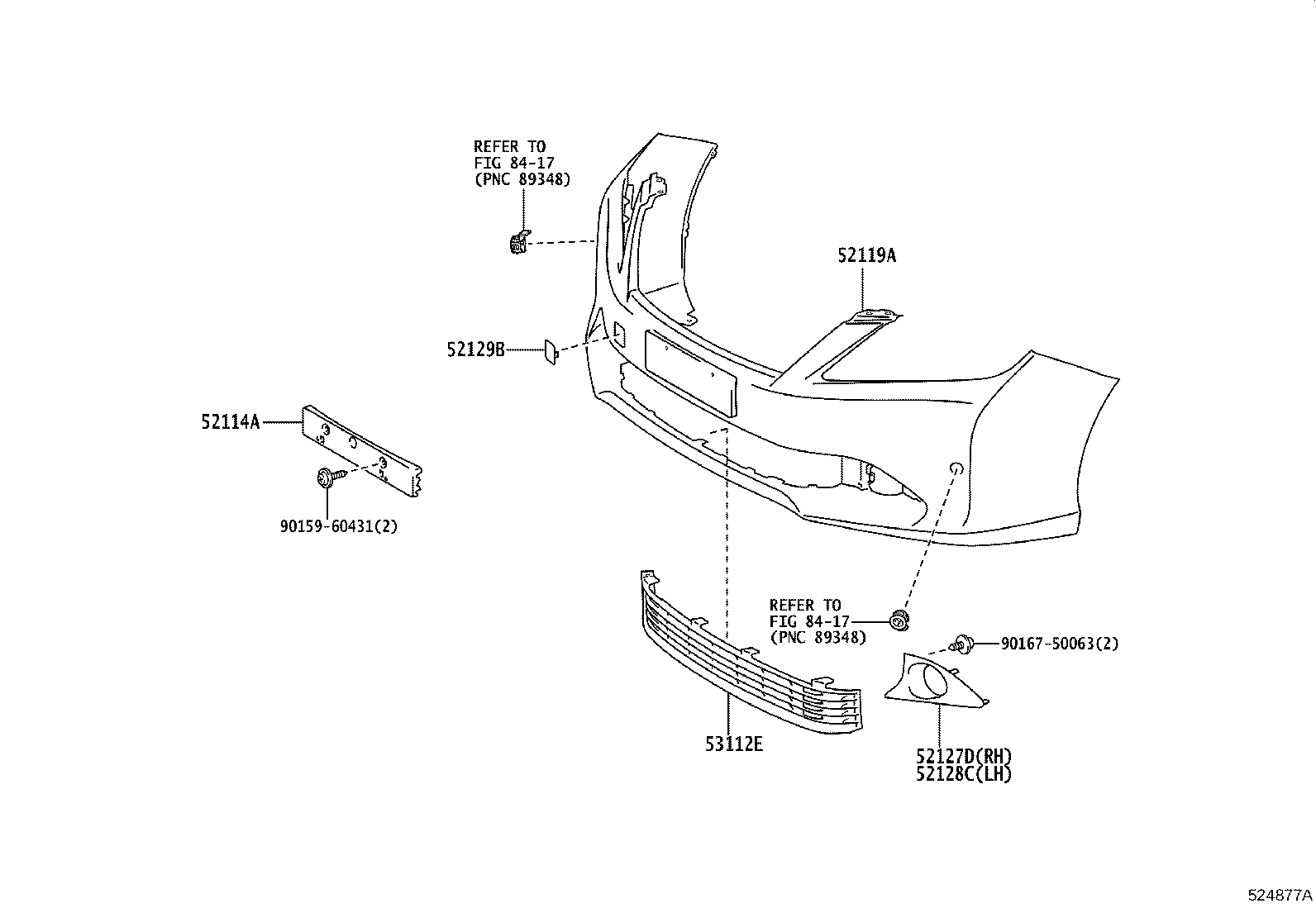

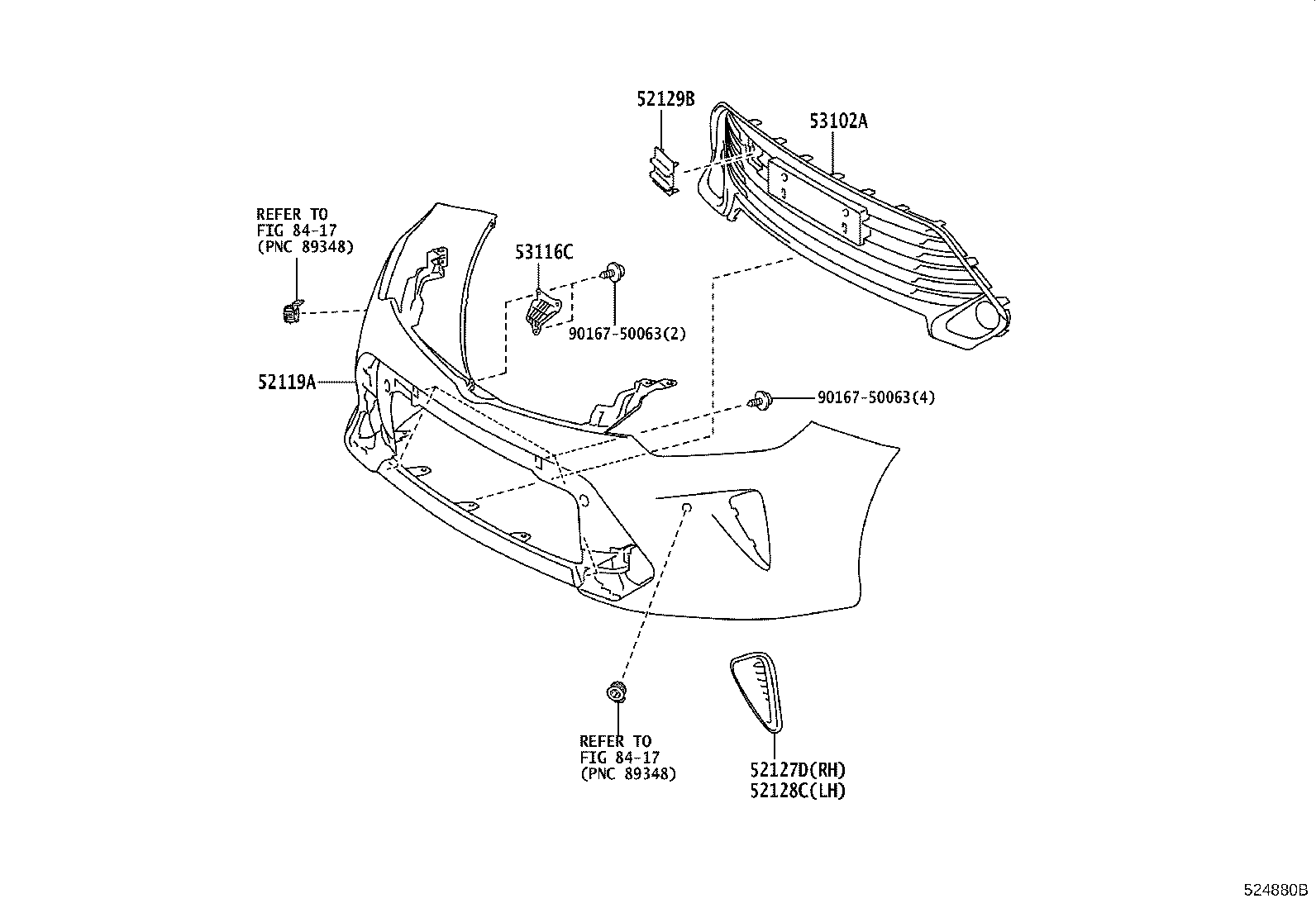

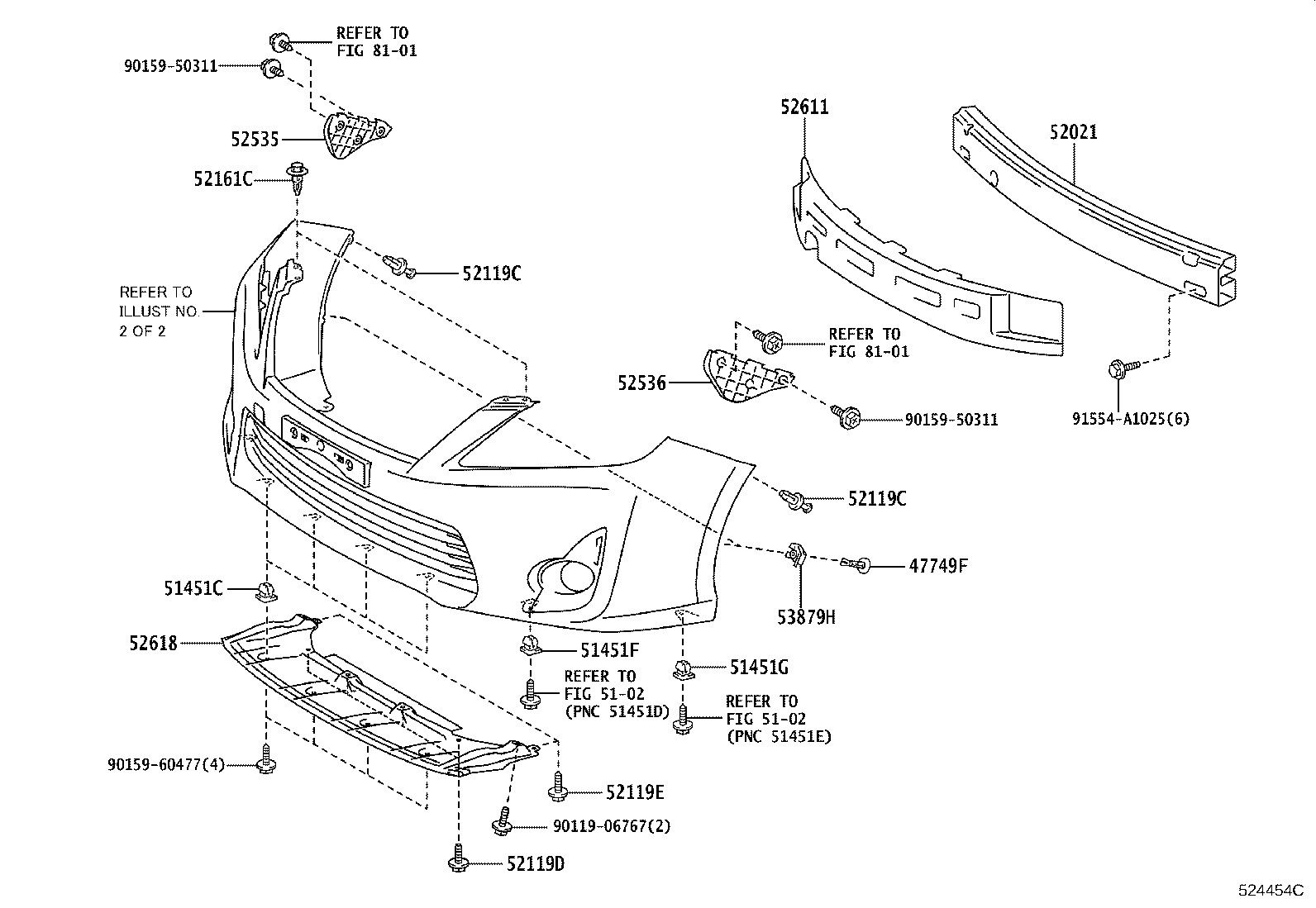

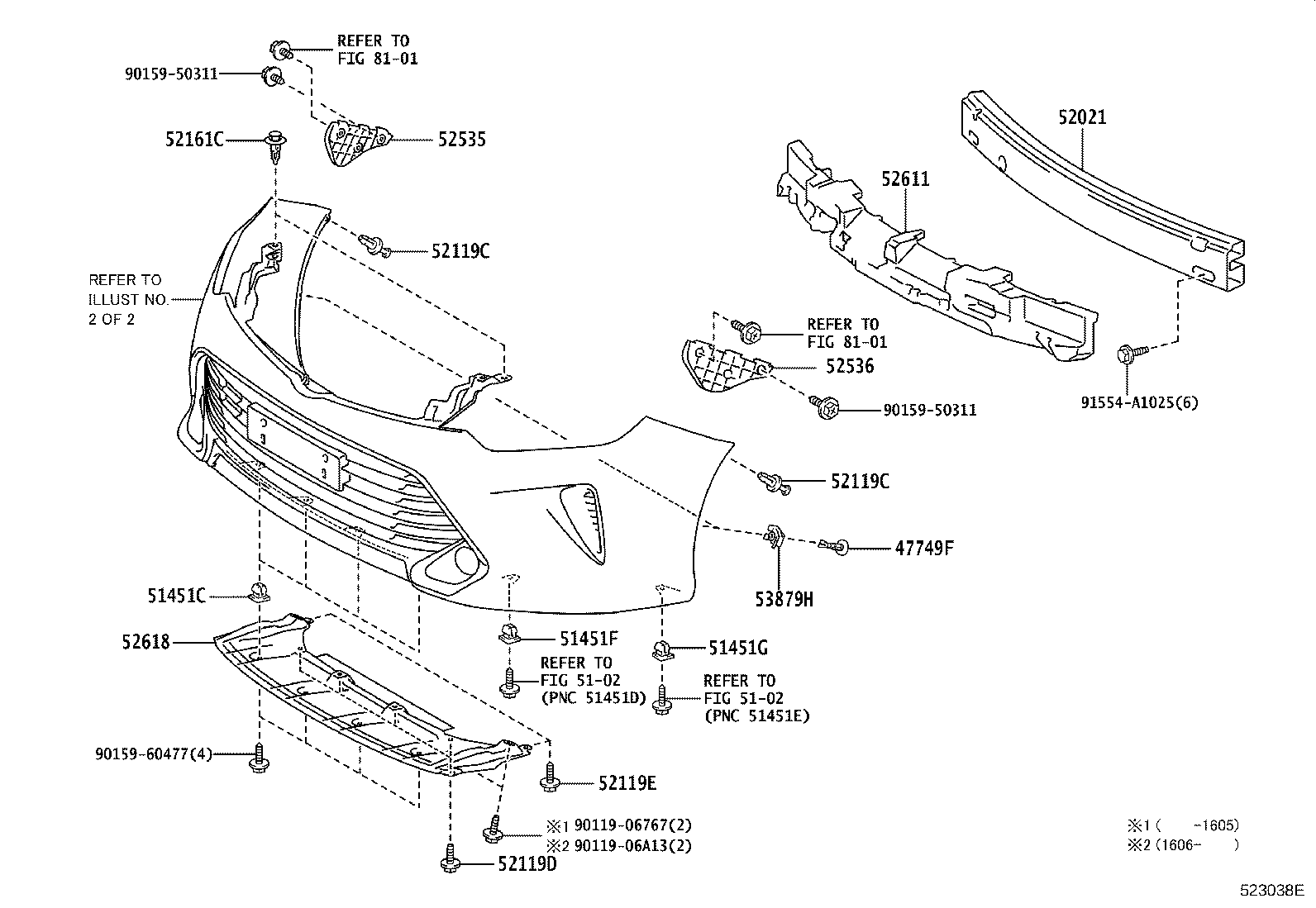

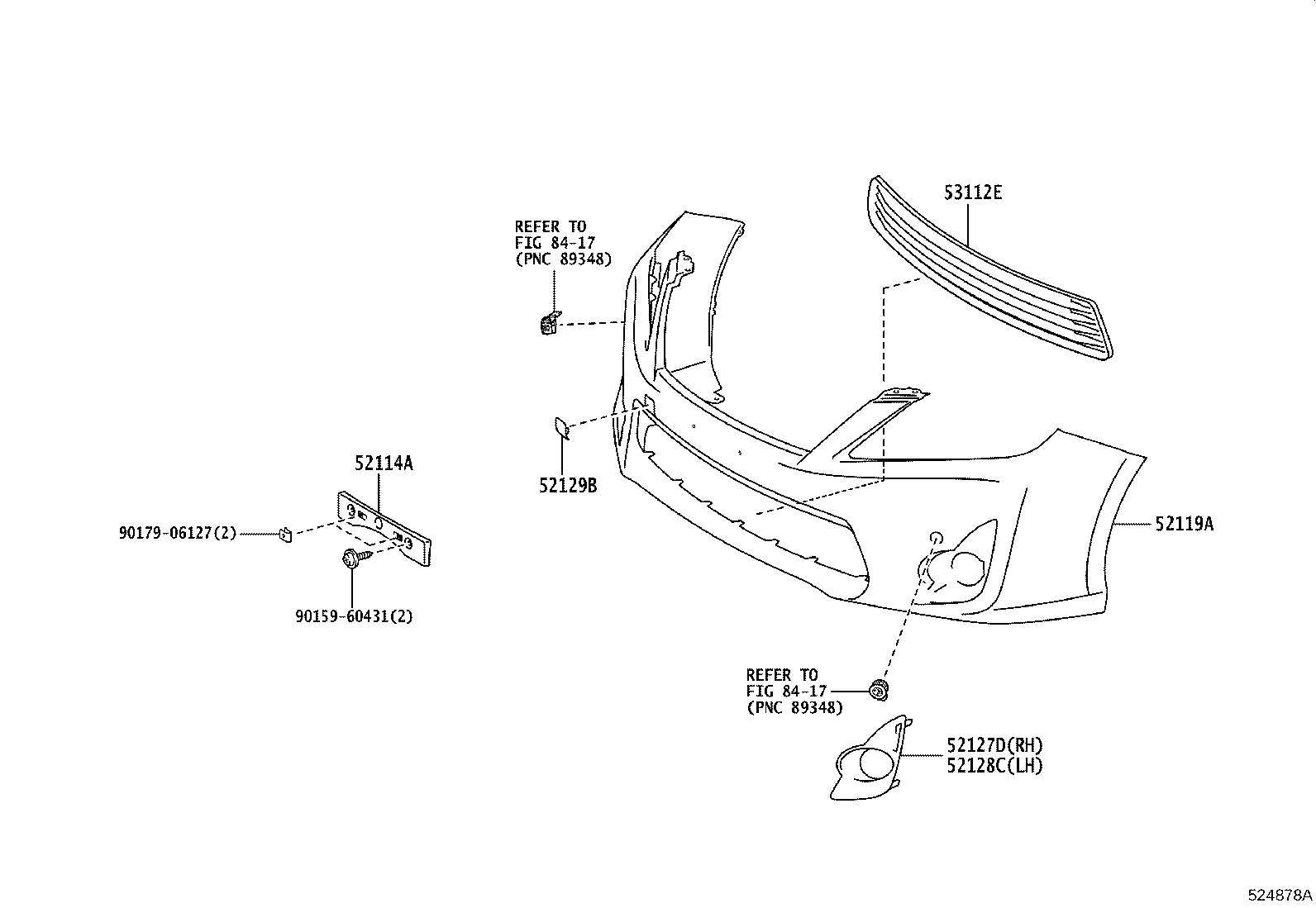

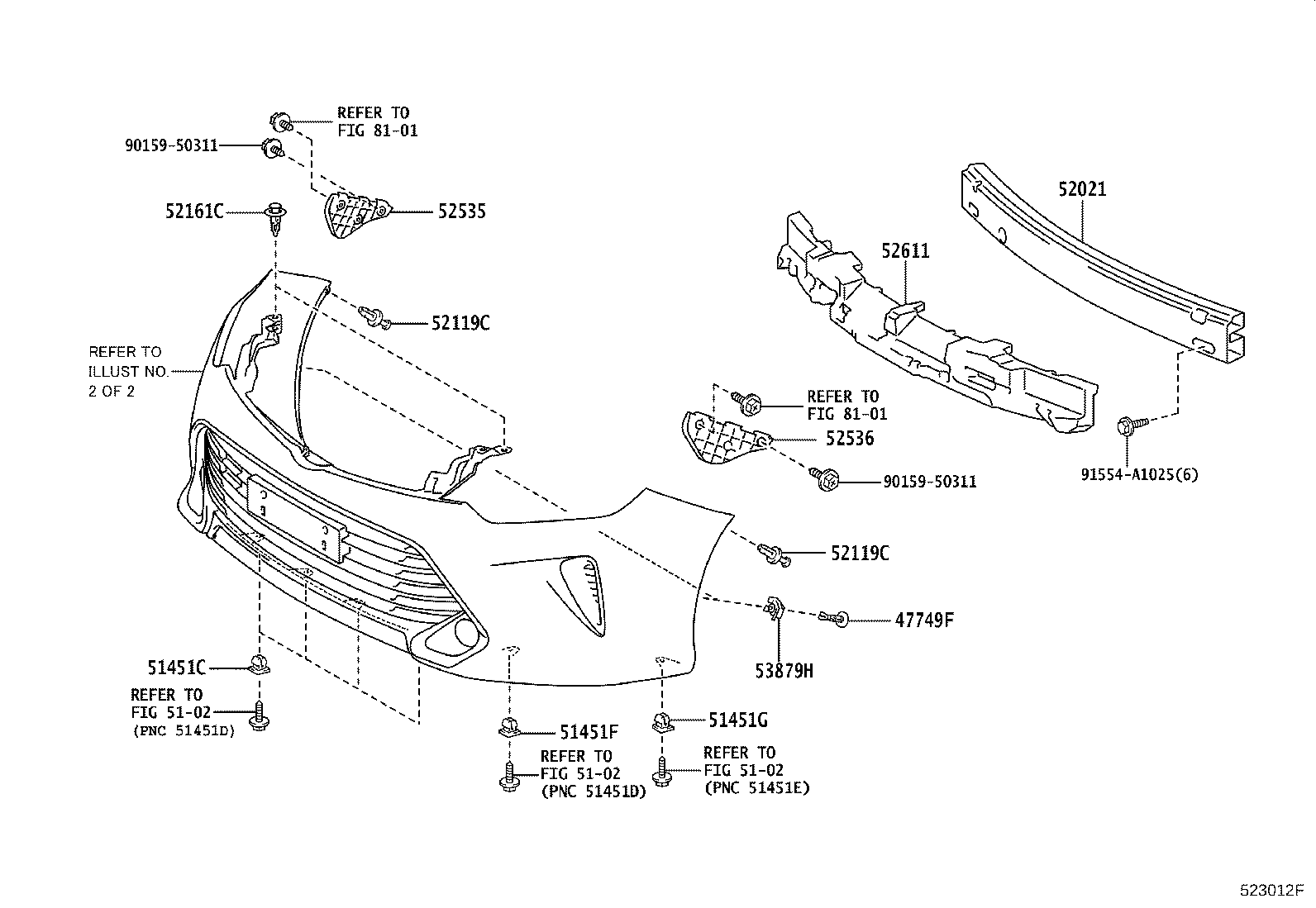

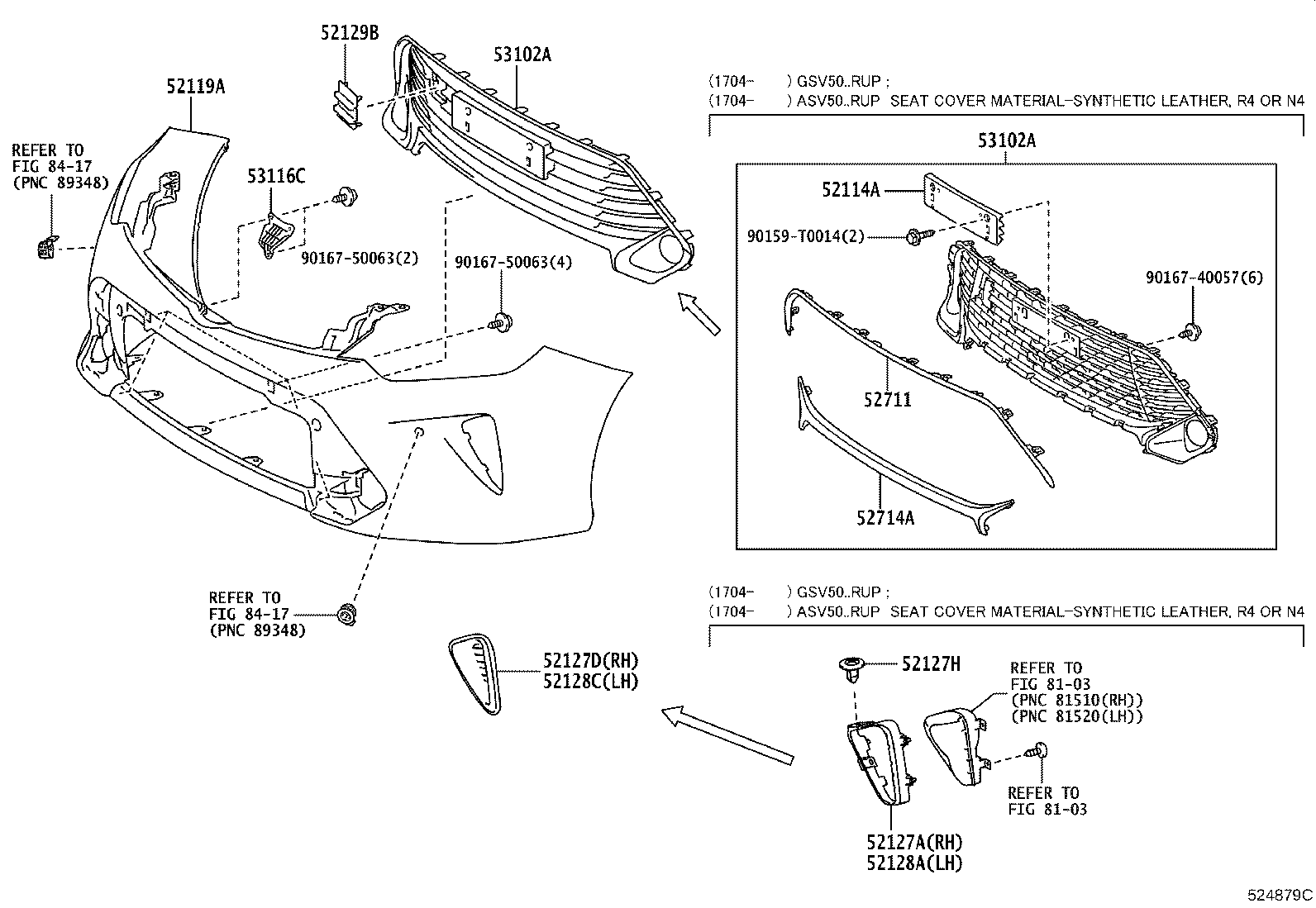

Figure 522408J 522408J 2011-08 → 2014-09 Figure 522408J 522408J 2011-11 → 2014-11 Figure 524877A 524877A 2011-08 → 2014-09 Figure 524877A 524877A 2011-11 → 2014-11 Figure 524454C 524454C 2011-08 → 2014-09 Figure 524878A 524878A 2011-08 → 2014-09 Figure 523012F 523012F 2014-09 → — Figure 523012F 523012F 2014-11 → — Figure 524879C 524879C 2014-09 → — Figure 524879C 524879C 2014-11 → — Figure 523038E 523038E 2014-09 → — Figure 524880B 524880B 2014-09 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51451C Grommet(FOR ENGINE UNDER COVER)
51451F Grommet, NO.1
51451G Grommet, NO.2
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52119D Screw, NO.1
52119E Screw, NO.2
52127A Bracket, Front Turn Signal Lamp, RH
52127D Cover, Front Bumper Hole, RH
52127H Clip, Front Bumper Hole Cover
52128A Bracket, Front Turn Signal Lamp, LH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52161C Piece, Front Bumper
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52711 Moulding, Front Bumper
52714A Moulding, Front Bumper, NO.2
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53116C Bracket, Radiator Grille, NO.2
53879H Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
