Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 5 illustrations

Illustrations

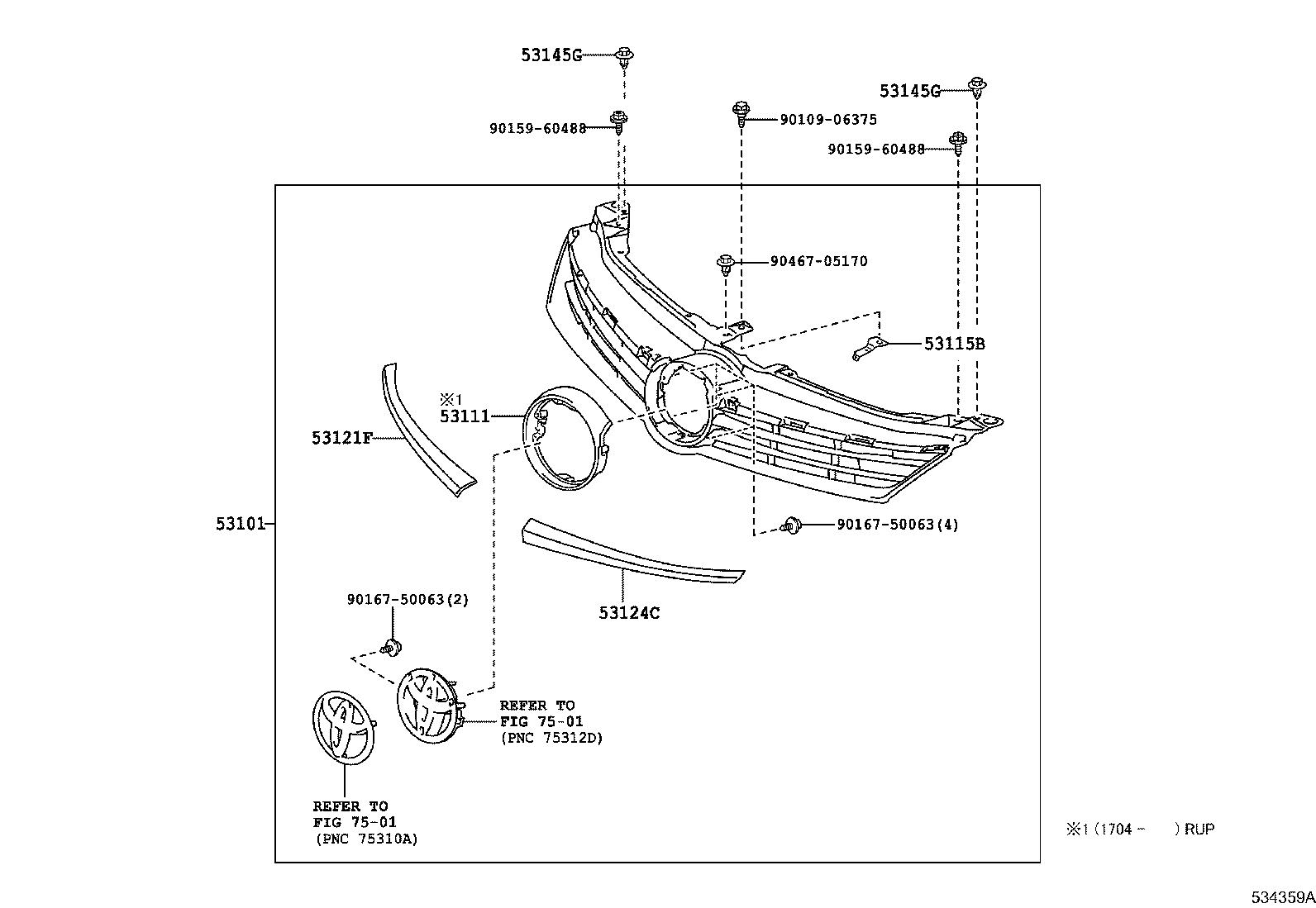

Figure 533444A 533444A 2011-08 → 2014-09 Figure 533444A 533444A 2011-11 → 2014-11 Figure 534359A 534359A 2014-09 → — Figure 534359A 534359A 2014-11 → — Figure 534360A 534360A 2014-09 → —

Part groups

PNCDescription
52161K Piece, Front Bumper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53121F Moulding, Radiator Grille, Upper RH
53124C Moulding, Radiator Grille, Upper LH
53145G Clip, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
