Toyota Camry/Hybrid
2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe
Supported model
Data version 2018-09

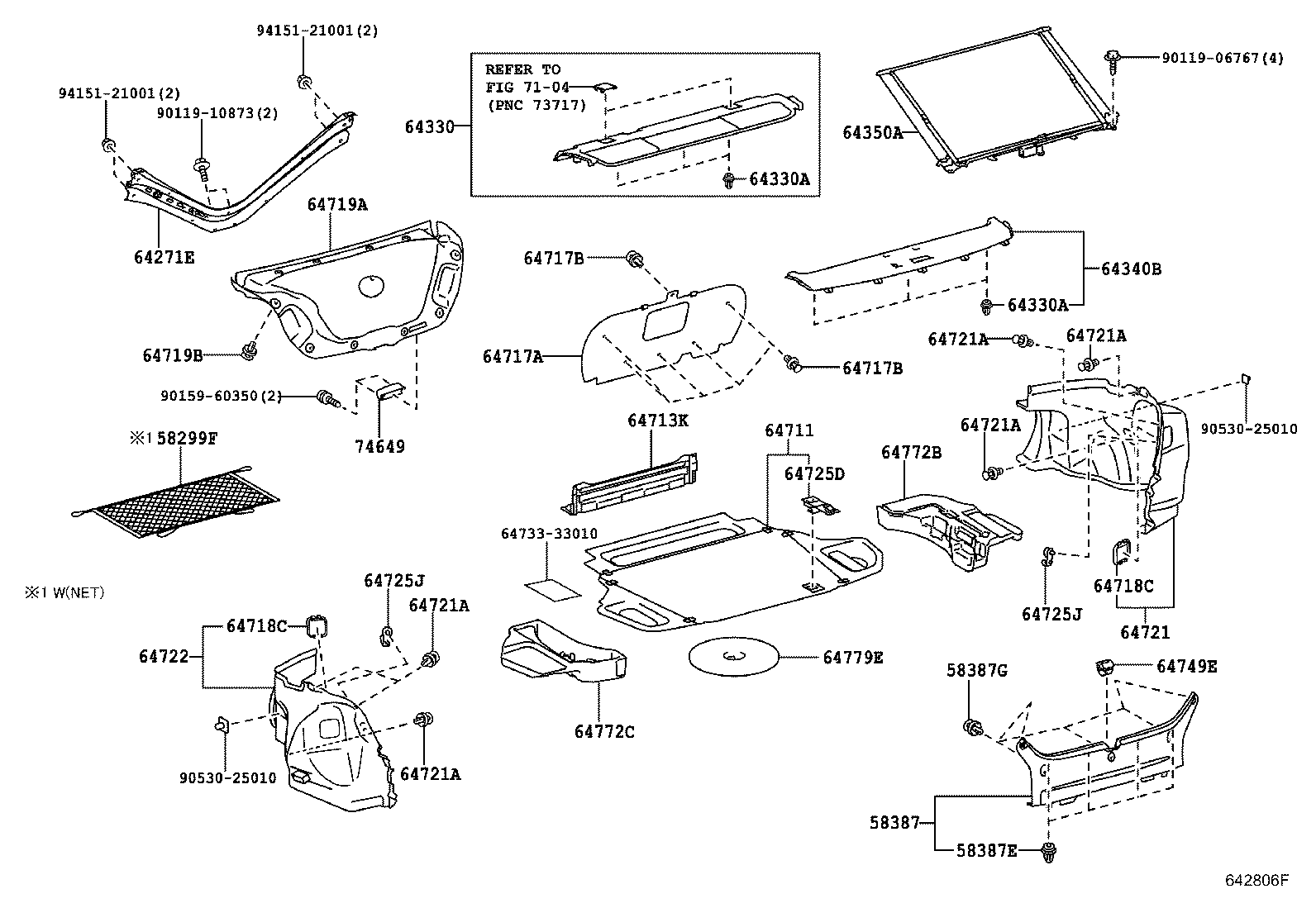

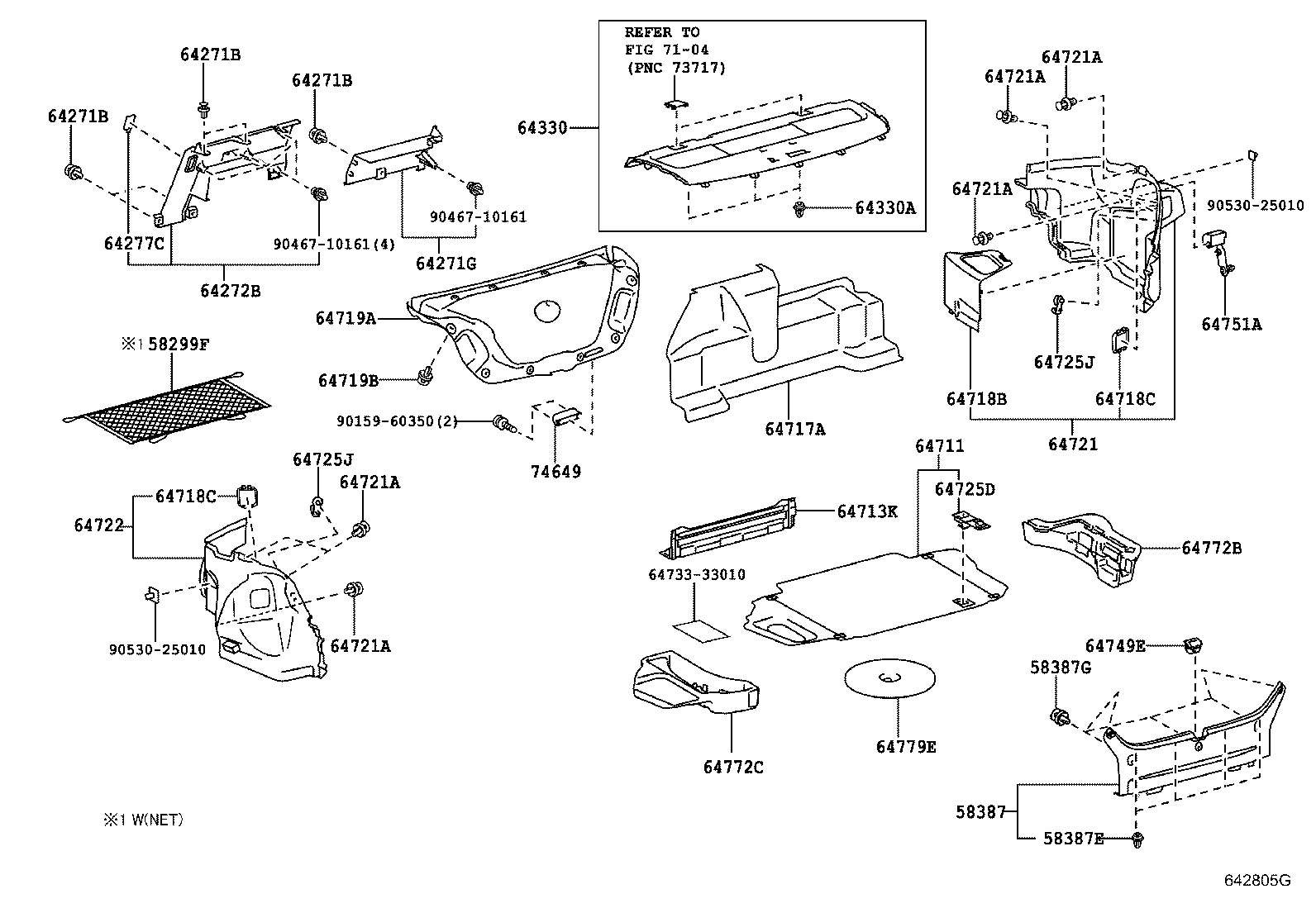

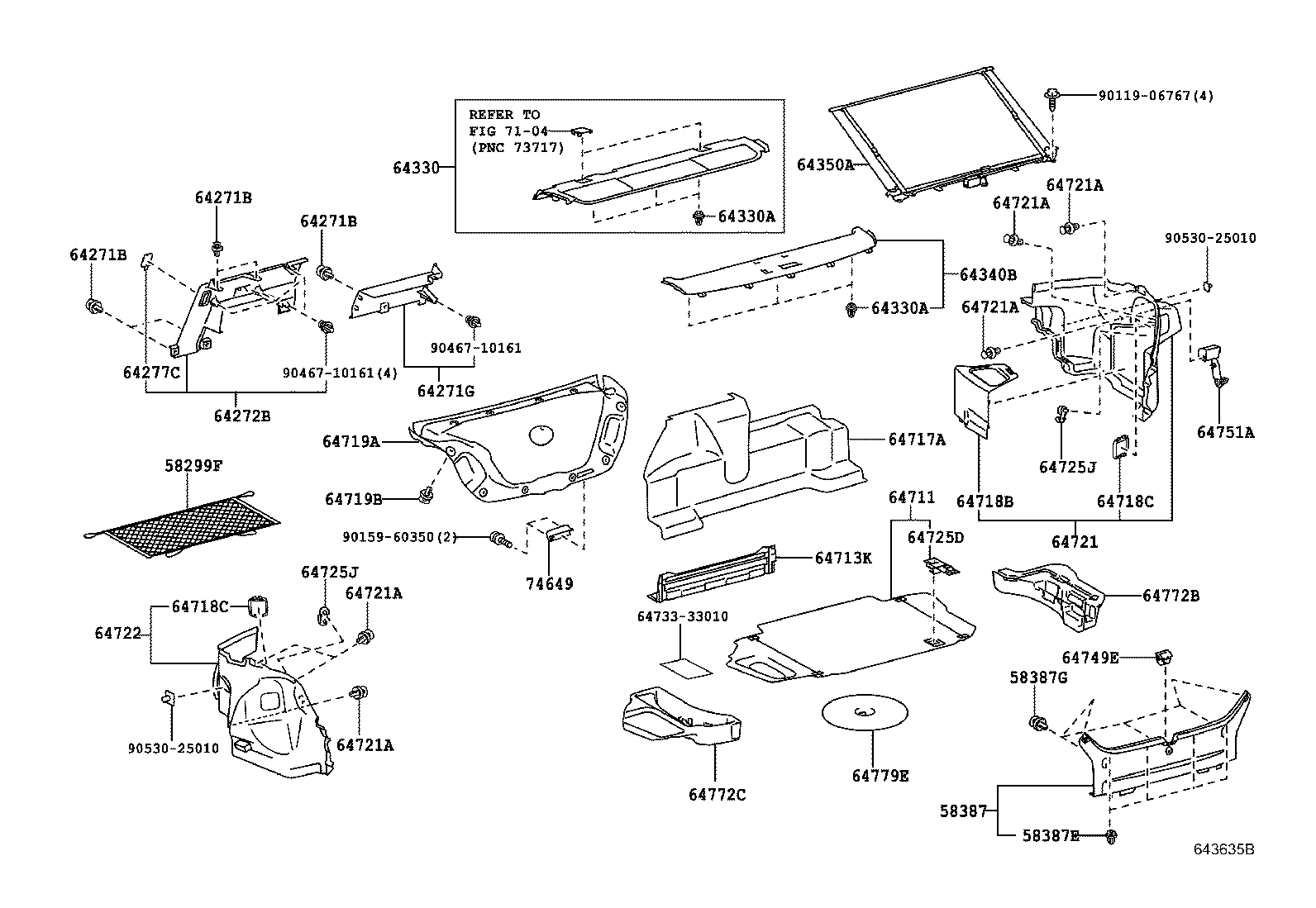

Package Tray Panel & Luggage Compartment Mat
33 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 58299F | Net, Baggage Holder |
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58387G | Clip(FOR REAR FLOOR FINISH PLATE) |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271E | Panel, Room Partition |
| 64271G | Board, Room Partition, RH |
| 64272B | Board, Room Partition, LH |
| 64277C | Cover, Room Partition, NO.2 |
| 64330 | Panel Assy, Package Tray Trim |
| 64330A | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64340B | Panel Assy, Package Tray Trim, NO.2 |
| 64350A | Shade Assy, Rear Window |
| 64711 | Mat, Luggage Compartment Floor |
| 64713K | Cover, Luggage Compartment Trim, Front Upper |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64718B | Cover, Luggage Trim Service Hole |
| 64718C | Cover, Luggage Trim Service Hole |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64725D | Hook, Luggage Compartment Trim, NO.1 |
| 64725J | Hook, Luggage Compartment Trim, NO.1 |
| 64727A | Pad, Luggage Compartment Trim, Inner |
| 64749E | Cover, Luggage Compartment Door Striker |
| 64751A | Bracket, Luggage Compartment Cover, NO.1 |
| 64772B | Pad, Spare Wheel Cover |
| 64772C | Pad, Spare Wheel Cover |
| 64779E | Tray, Spare Wheel Cover |
| 74649 | Grip, Luggage Compartment Door Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
