Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

45 part groups · 7 illustrations

Illustrations

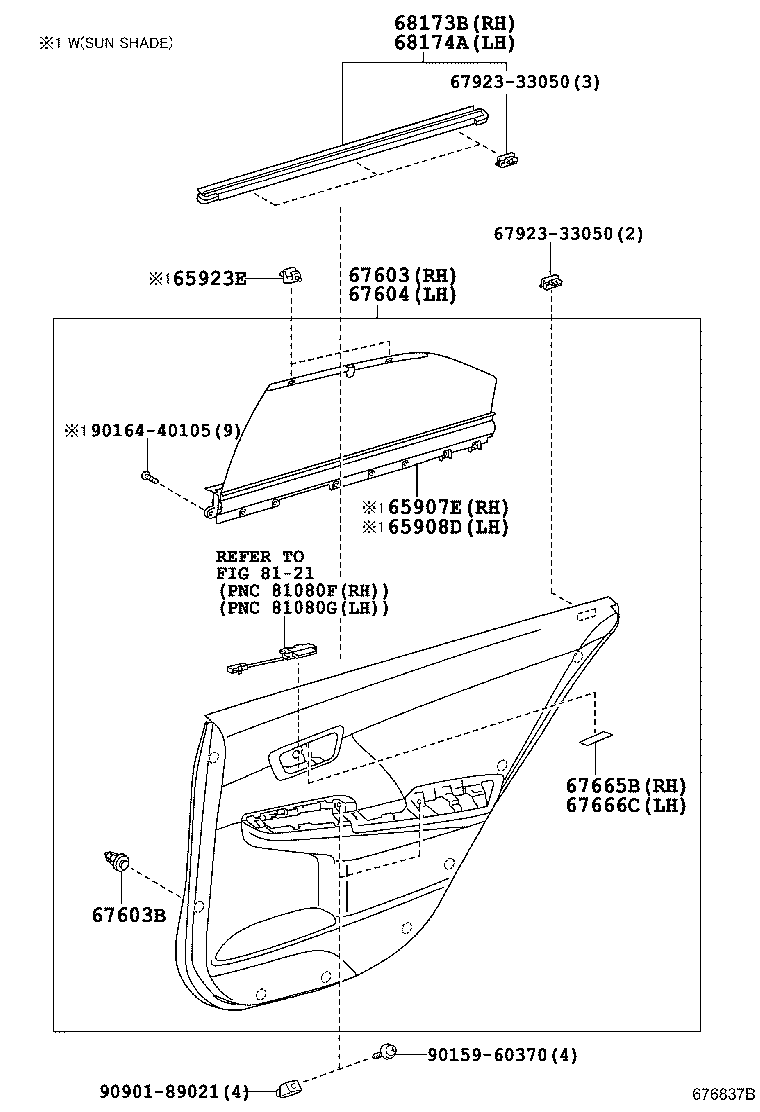

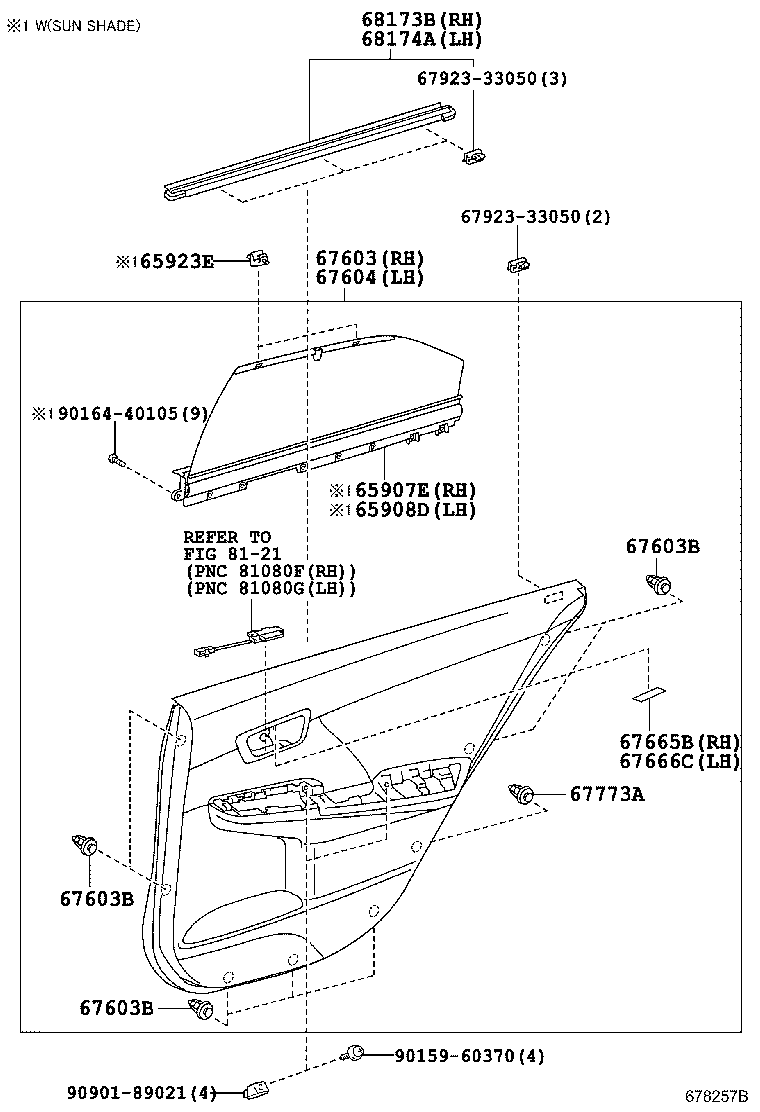

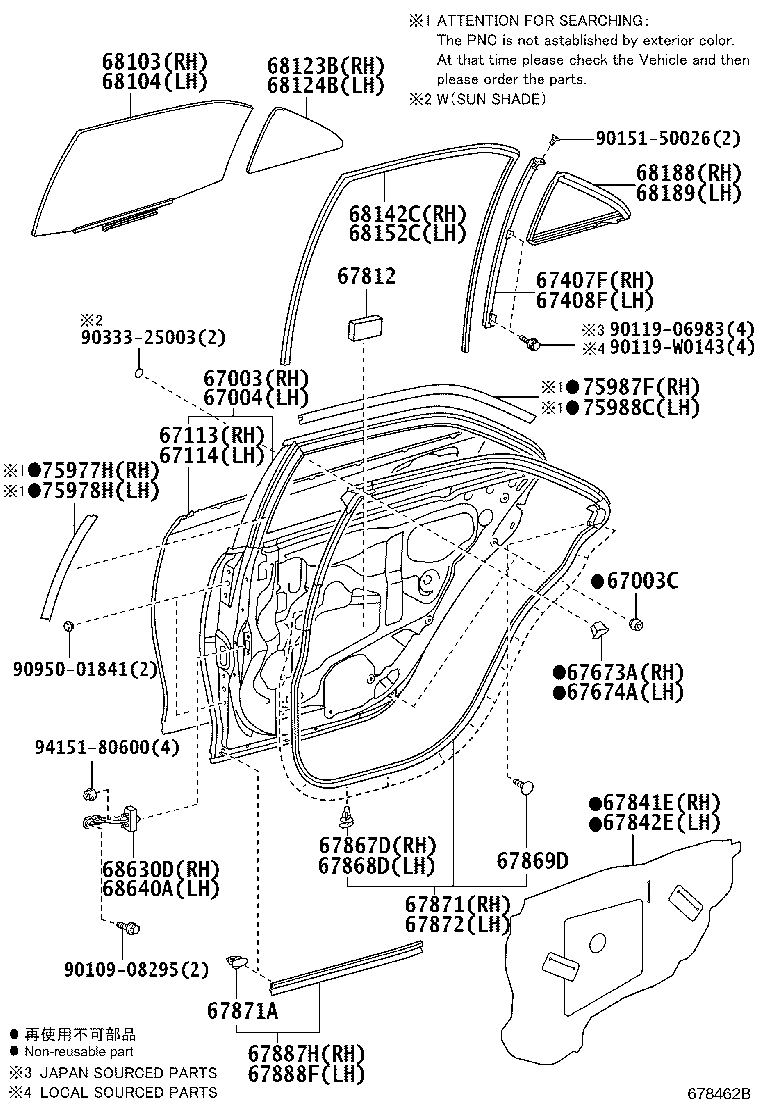

Figure 676836F 676836F 2011-08 → 2014-11 Figure 676836F 676836F 2014-11 → — Figure 678462B 678462B 2014-11 → — Figure 676837B 676837B 2011-08 → 2014-04 Figure 678257B 678257B 2014-04 → 2014-11 Figure 678257B 678257B 2014-11 → — Figure 678404A 678404A 2014-11 → —

Part groups

PNCDescription
65907E Curtain Sub-assy, Rear RH
65908D Curtain Sub-assy, Rear LH
65923E Hook, Curtain
67003 Panel Sub-assy, Rear Door, RH
67003C Cushion, Rear Door Panel
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67407F Frame Sub-assy, Rear Door Window, Rear Lower RH
67408F Frame Sub-assy, Rear Door Window, Rear Lower LH
67603 Board Sub-assy, Rear Door Trim, RH
67603B Clip(FOR REAR DOOR TRIM BOARD)
67604 Board Sub-assy, Rear Door Trim, LH
67665B Reflector, Rear Door Trim, RH
67666C Reflector, Rear Door Trim, LH
67673A Garnish, Rear Door Frame, RH
67674A Garnish, Rear Door Frame, LH
67773A Clip, Rear Door Trim Upper Retainer, NO.1
67812 Pad, Rear Door Silencer
67841E Cover, Rear Door Service Hole, RH
67842E Cover, Rear Door Service Hole, LH
67867D Retainer, Rear Door Weatherstrip, RH
67868D Retainer, Rear Door Weatherstrip, LH
67869D Clip, Door Weatherstrip
67871 Weatherstrip, Rear Door, RH
67871A Retainer(FOR REAR DOOR WEATHERSTRIP)
67872 Weatherstrip, Rear Door, LH
67887H Weatherstrip, Rear Door, NO.2 RH
67888F Weatherstrip, Rear Door, NO.2 LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68123B Glass, Rear Door Quarter Window, RH
68124B Glass, Rear Door Quarter Window, LH
68142C Run, Rear Door Glass, RH
68152C Run, Rear Door Glass, LH
68173B Weatherstrip, Rear Door Glass, Inner RH
68174A Weatherstrip, Rear Door Glass, Inner LH
68188 Weatherstrip, Rear Door Quarter Window, RH
68189 Weatherstrip, Rear Door Quarter Window, LH
68630D Check Assy, Rear Door, RH
68640A Check Assy, Rear Door, LH
75977H Stripe, Rear Door Outside, Lower RH
75978H Stripe, Rear Door Outside, Lower LH
75987F Stripe, Rear Door, Outside, RH
75988C Stripe, Rear Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
