Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

52 part groups · 9 illustrations

Illustrations

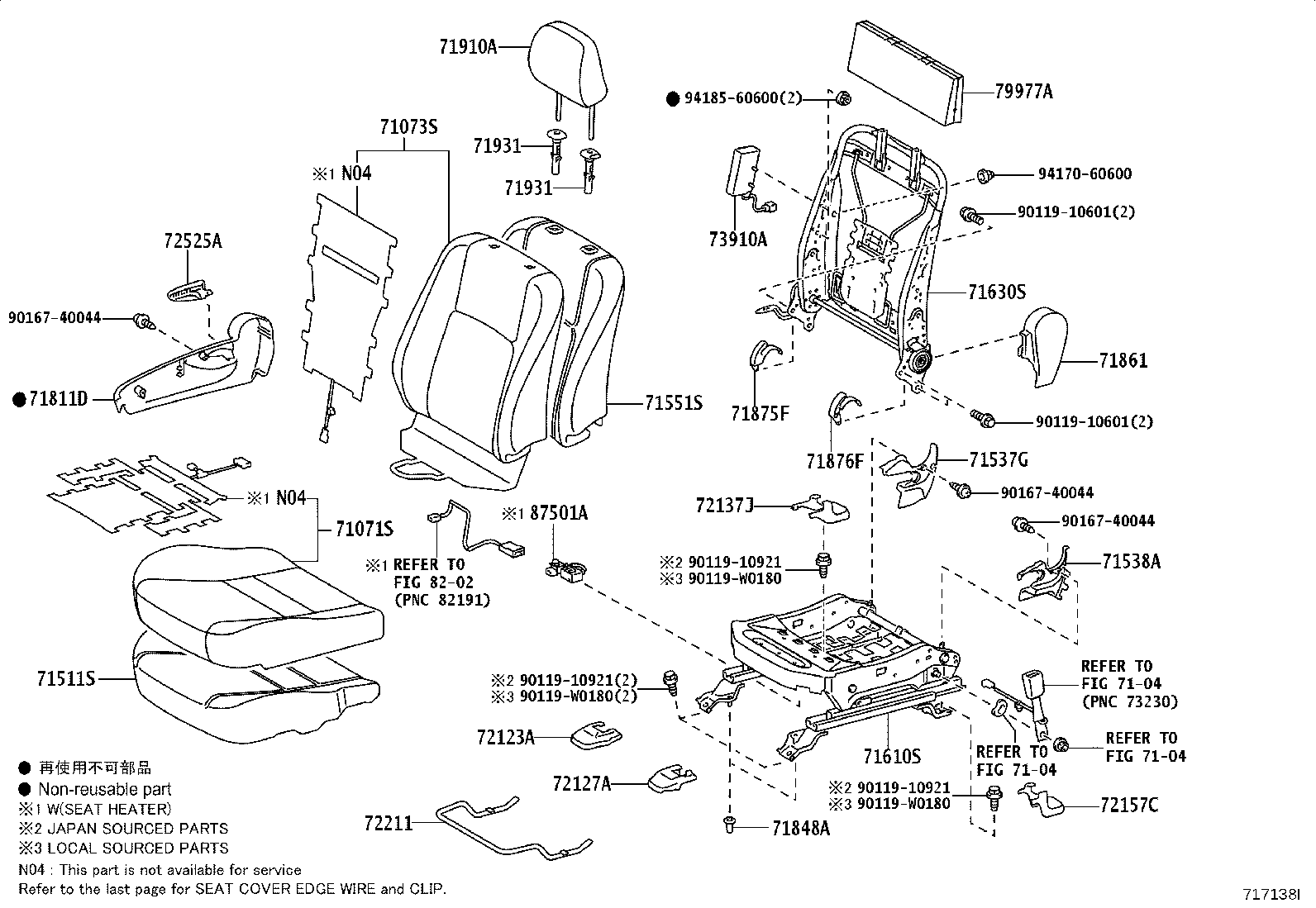

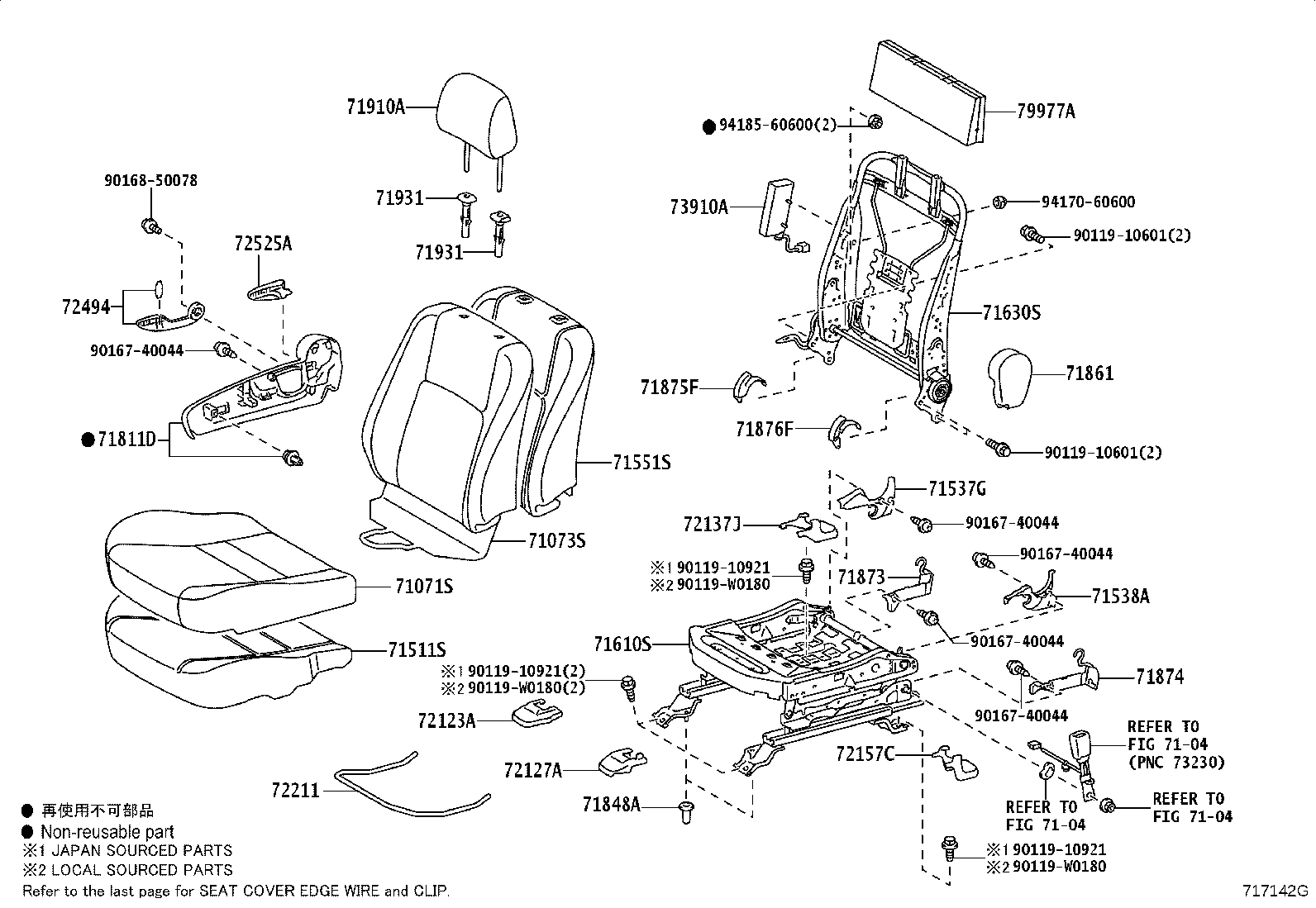

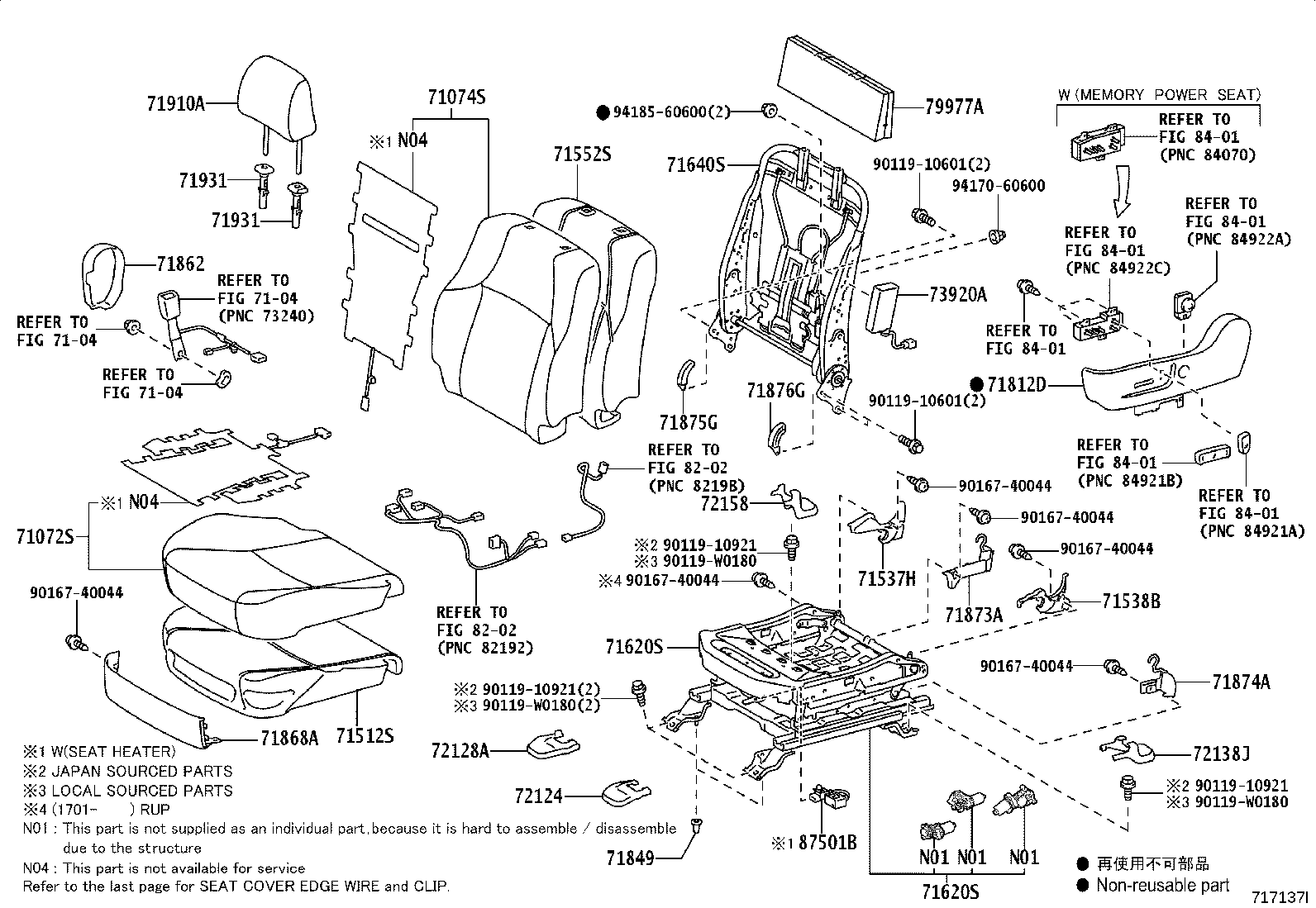

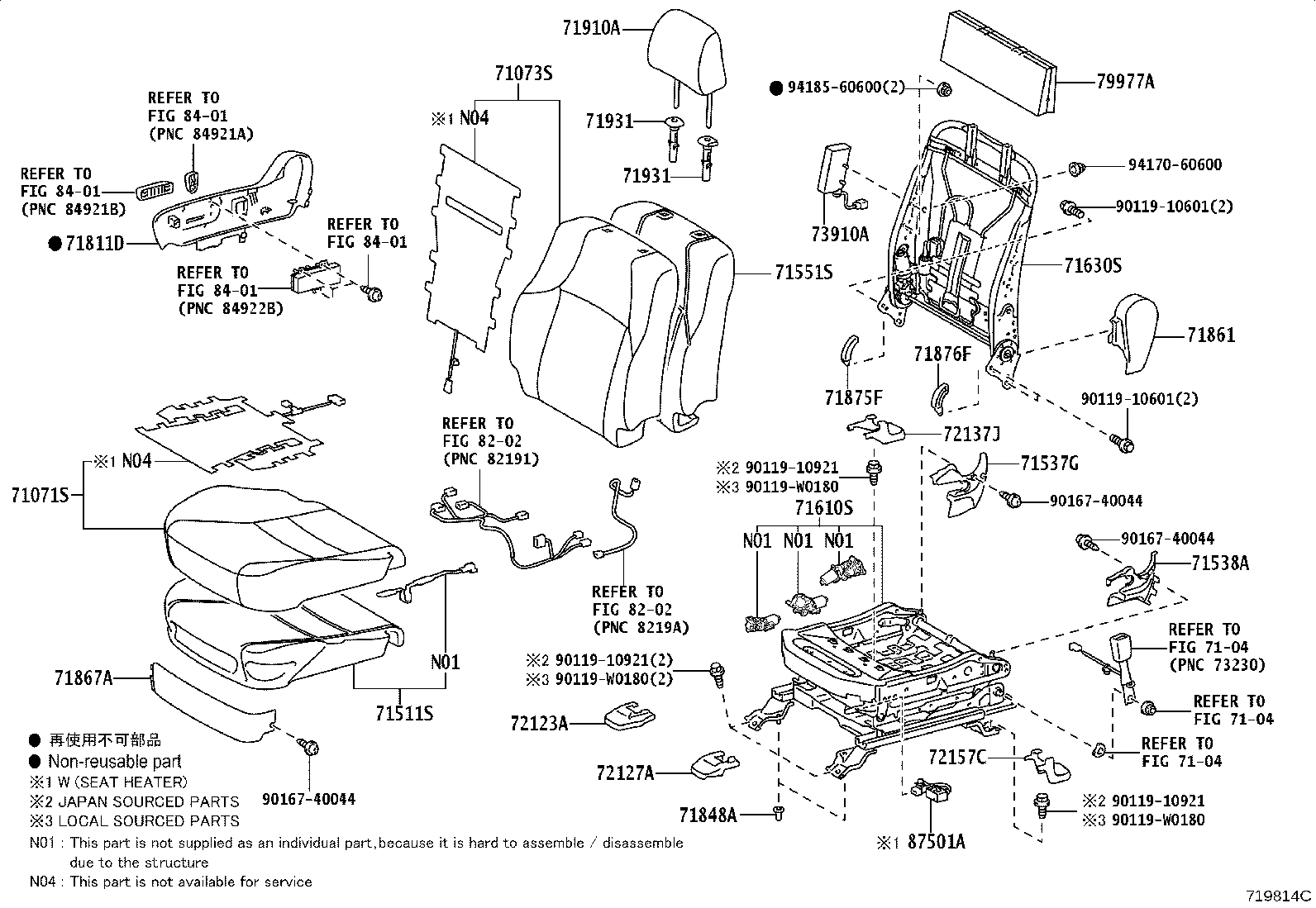

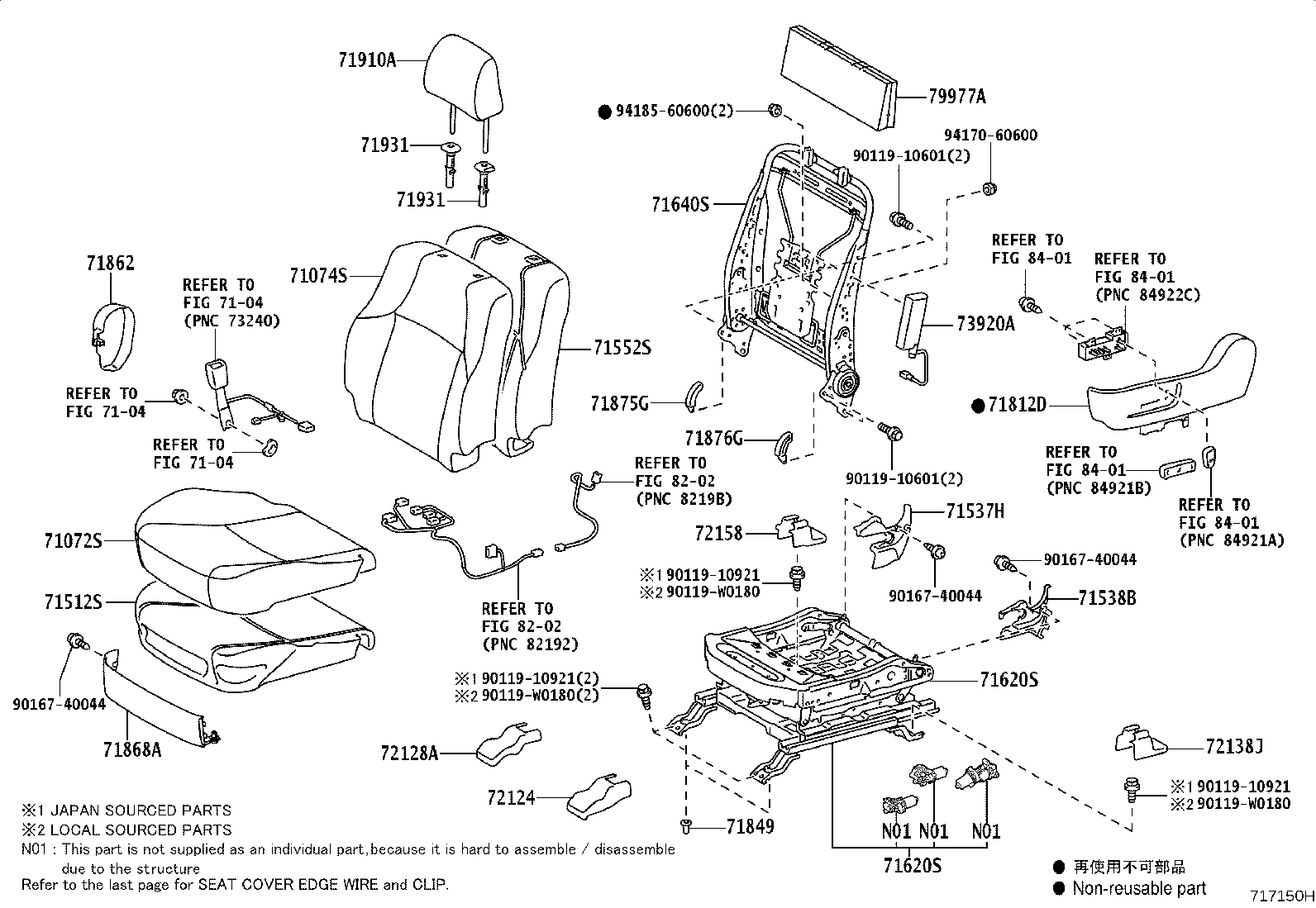

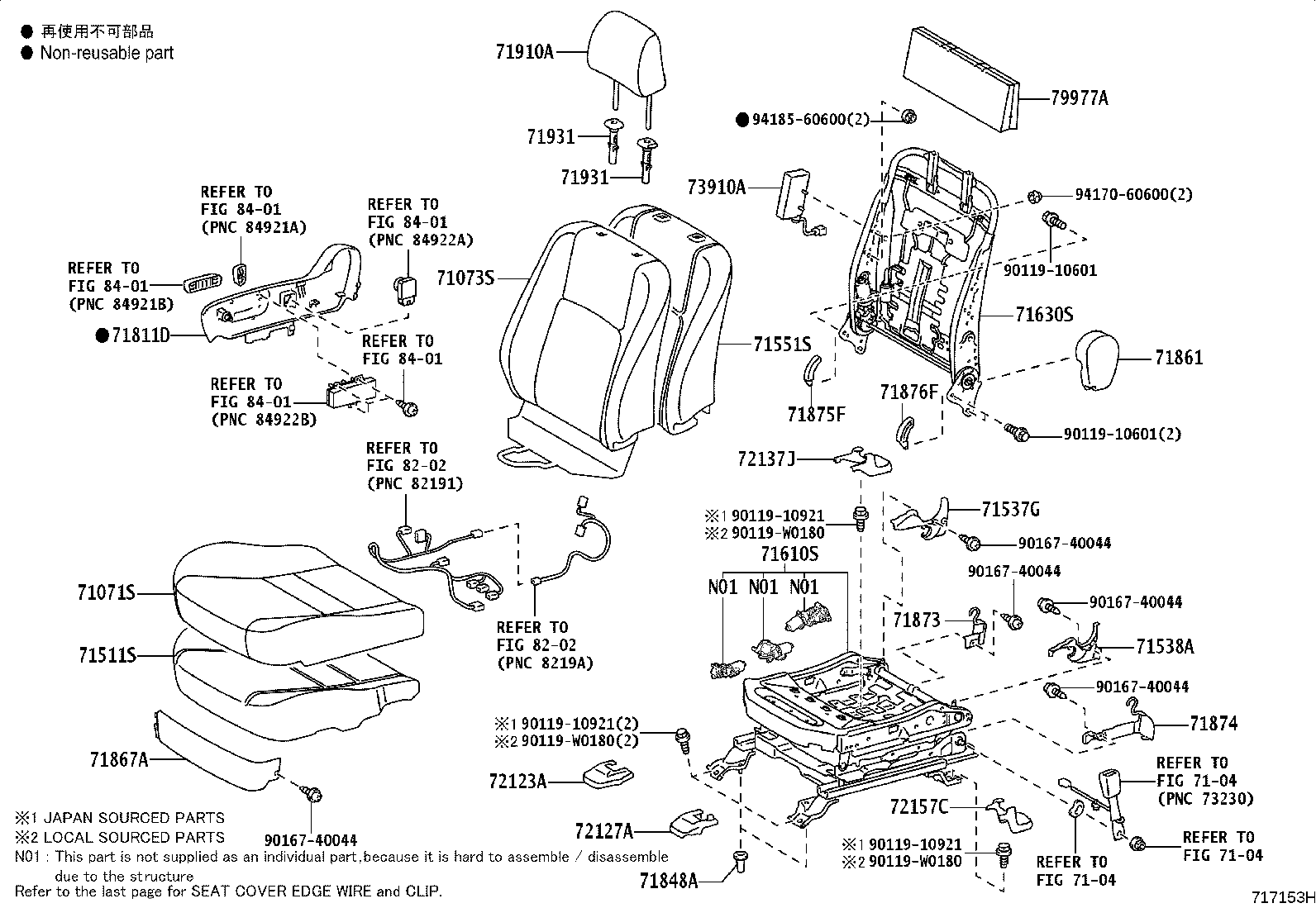

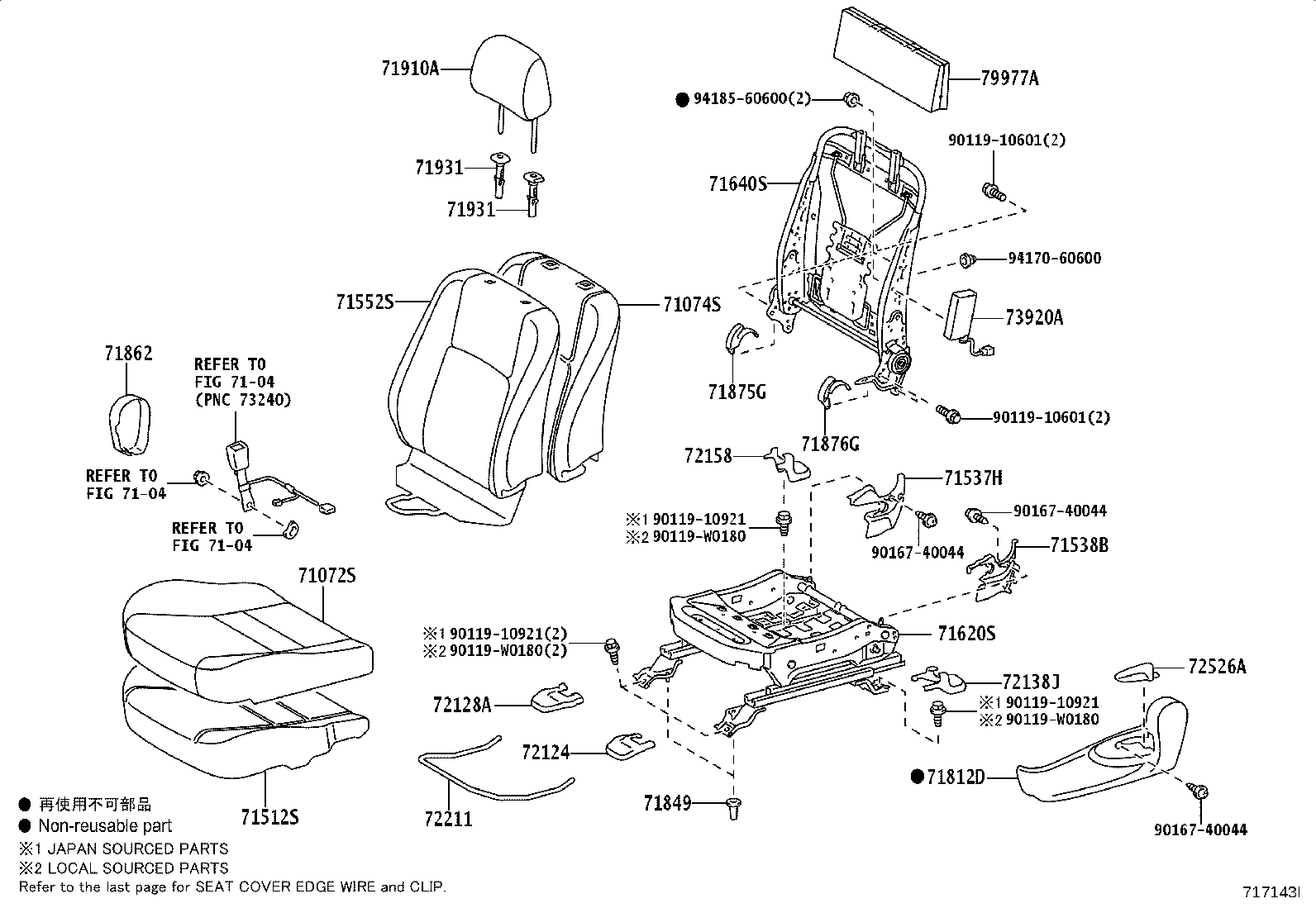

Figure 717136G 717136G 2011-08 → — Figure 717137I 717137I 2011-08 → — Figure 717142G 717142G 2011-08 → 2014-09 Figure 717153H 717153H 2011-08 → — Figure 717138I 717138I 2011-08 → — Figure 719814C 719814C 2011-08 → — Figure 717143I 717143I 2011-08 → — Figure 717150H 717150H 2011-08 → — Figure 719024D 719024D 2011-08 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71537H Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137J Cover, Front Seat Track, RH Rear Outer
72138J Cover, Front Seat Track, LH Rear Outer
72157C Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72211 Handle, Seat Track Adjusting
72493 Handle, Vertical Adjusting, NO.2
72494 Handle, Vertical Adjusting, RH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79977A Felt, Seatback
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
