Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

7 part groups · 5 illustrations

Illustrations

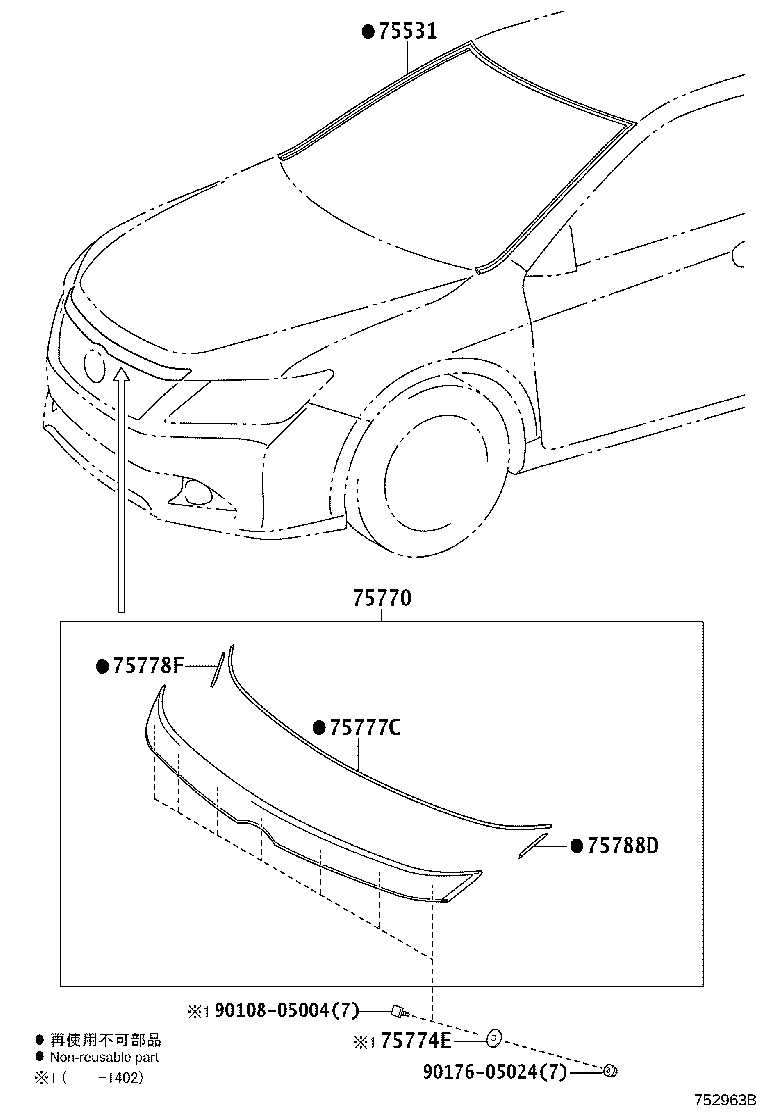

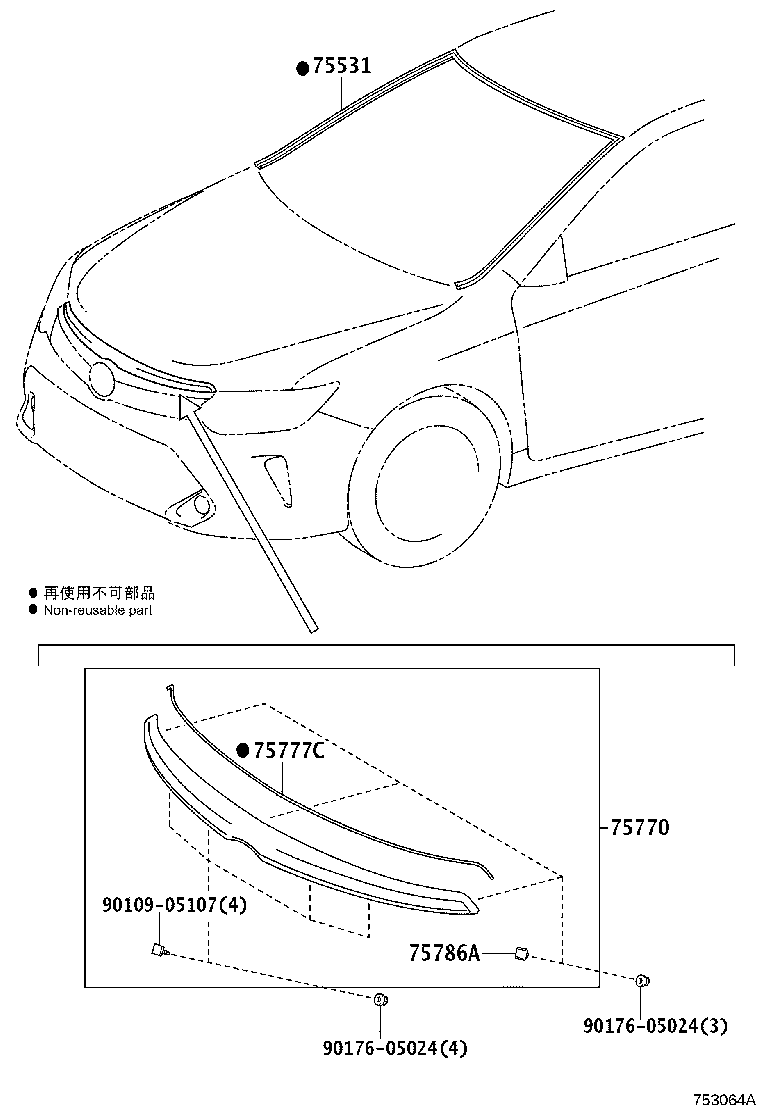

Figure 752465D 752465D 2011-08 → 2014-09 Figure 752465D 752465D 2011-11 → 2013-11 Figure 752963B 752963B 2013-11 → 2014-11 Figure 753064A 753064A 2014-09 → — Figure 753064A 753064A 2014-11 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75770 Moulding Assy, Hood, Front
75774E Spacer, Hood Moulding
75777C Pad, Hood Front Moulding
75778F Pad, Hood Front Moulding, RH
75786A Retainer, Hood Front Moulding
75788D Pad, Hood Front Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
