Toyota Camry/Hybrid

2011-08 → 2018-03 · chassis ACV51,ASV5#,AVV50,GSV50 · catalogue 284590 · Europe

Supported model Data version 2018-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

31 part groups · 4 illustrations

Illustrations

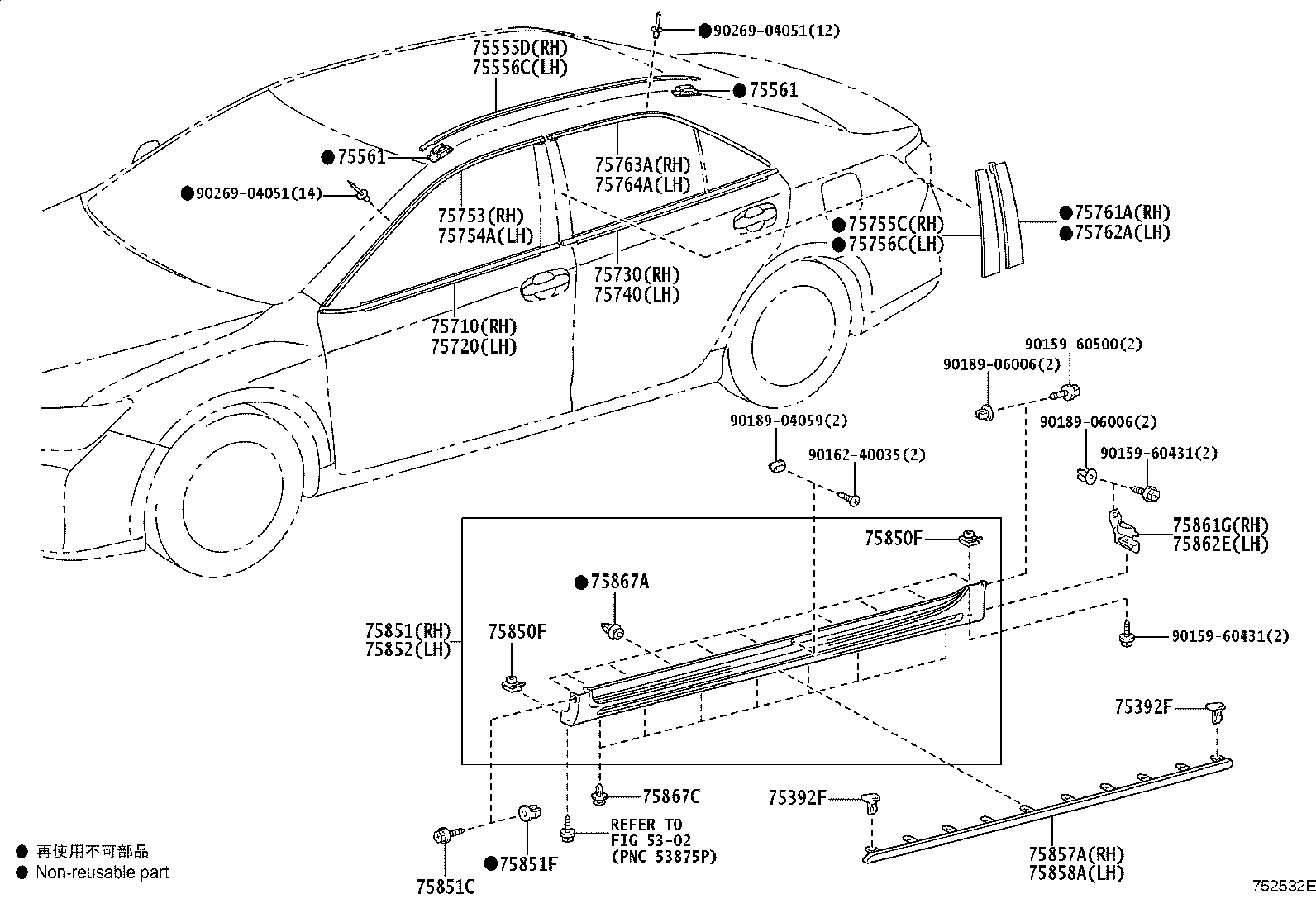

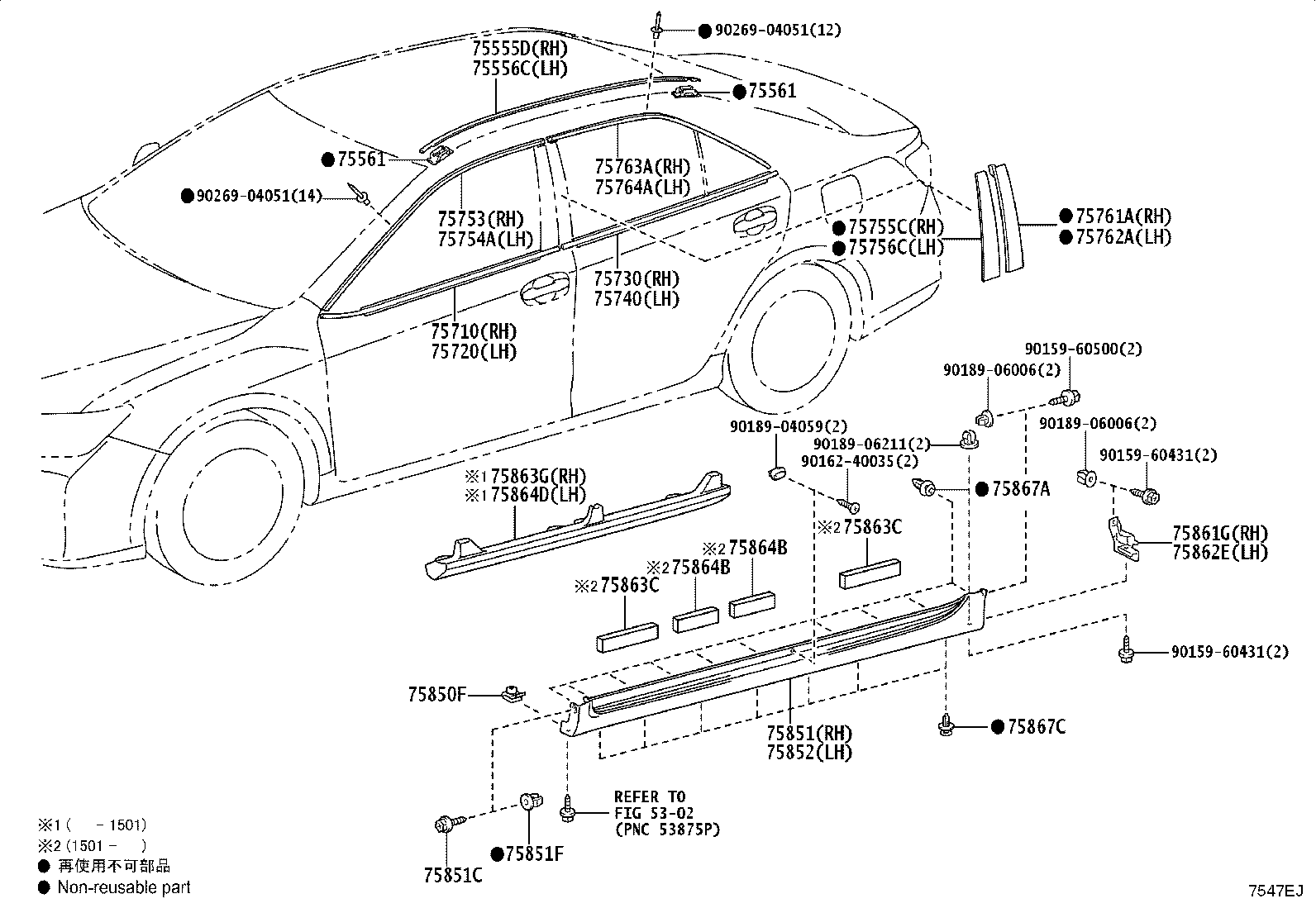

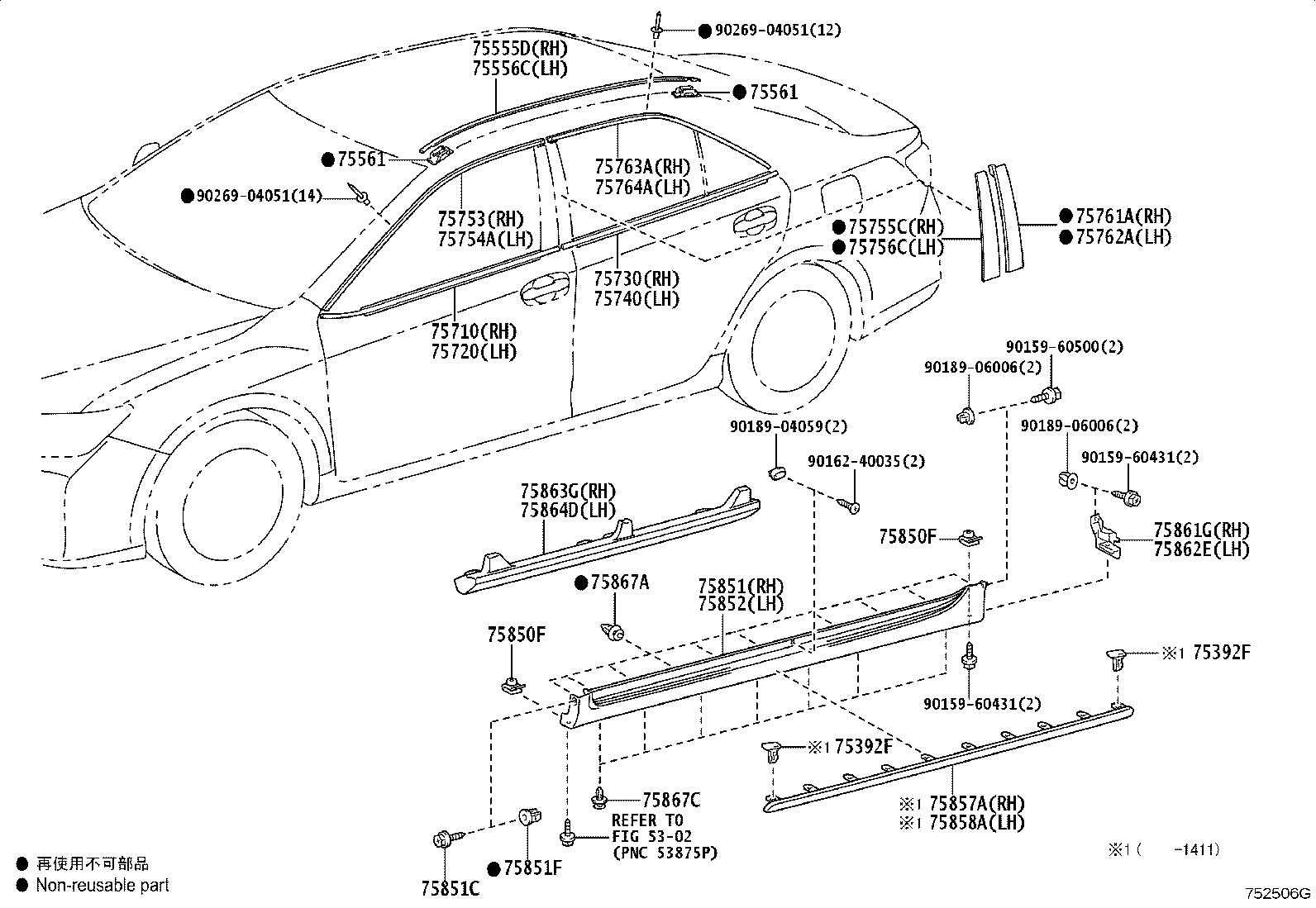

Figure 752533G 752533G 2011-08 → 2012-09 Figure 752532E 752532E 2011-08 → 2014-09 Figure 752506G 752506G 2011-11 → — Figure 7547EJ 7547EJ 2014-09 → —

Part groups

PNCDescription
75392F Retainer, Outside Moulding
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75740 Moulding Assy, Rear Door Belt, LH
75753 Moulding, Front Door Window Frame, Upper RH
75754A Moulding, Front Door Window Frame, Upper LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75761A Moulding, Rear Door Window Frame, Front RH
75762A Moulding, Rear Door Window Frame, Front LH
75763A Moulding, Rear Door Window Frame, Upper RH
75764A Moulding, Rear Door Window Frame, Upper LH
75850F Nut, NO.1
75851 Moulding, Rocker Panel, RH
75851C Screw(FOR BODY ROCKER PANEL MOULDING)
75851F Grommet(FOR BODY ROCKER PANEL MOULDING)
75852 Moulding, Rocker Panel, LH
75857A Cover, Rocker Panel Moulding, RH
75858A Cover, Rocker Panel Moulding, LH
75861G Cover, Rocker Panel Moulding End, Front RH
75862E Cover, Rocker Panel Moulding End, Front LH
75863C Protector, Rocker Panel Moulding, NO.3
75863G Protector, Rocker Panel Moulding, RH
75864B Protector, Rocker Panel Moulding, NO.4
75864D Protector, Rocker Panel Moulding, LH
75867A Clip, Rocker Panel Moulding
75867C Clip, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
